Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW
Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Inverter Vfd
Certification: CE

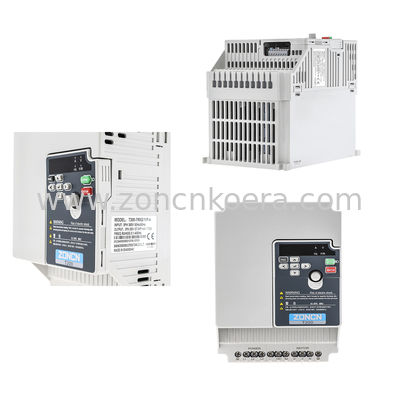

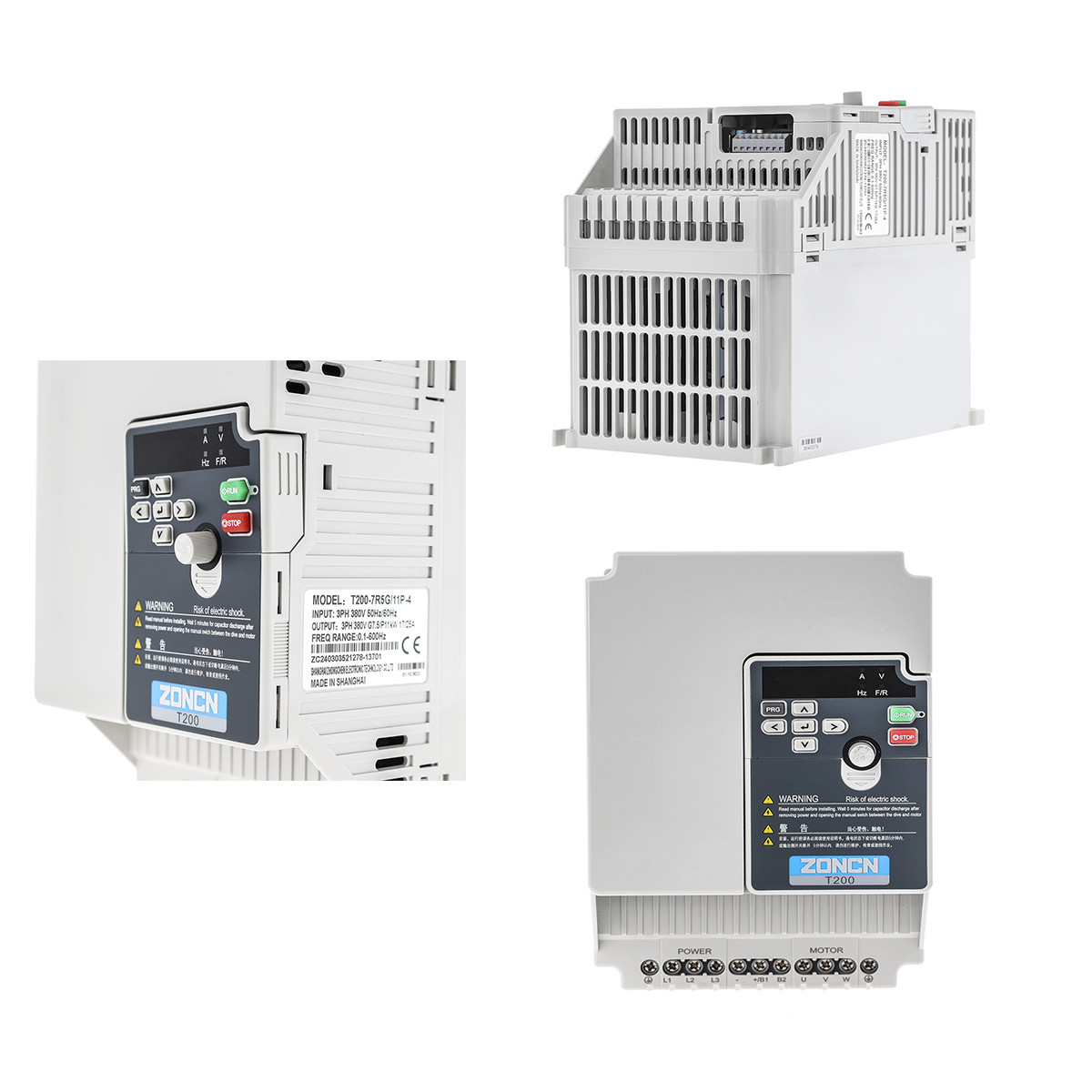

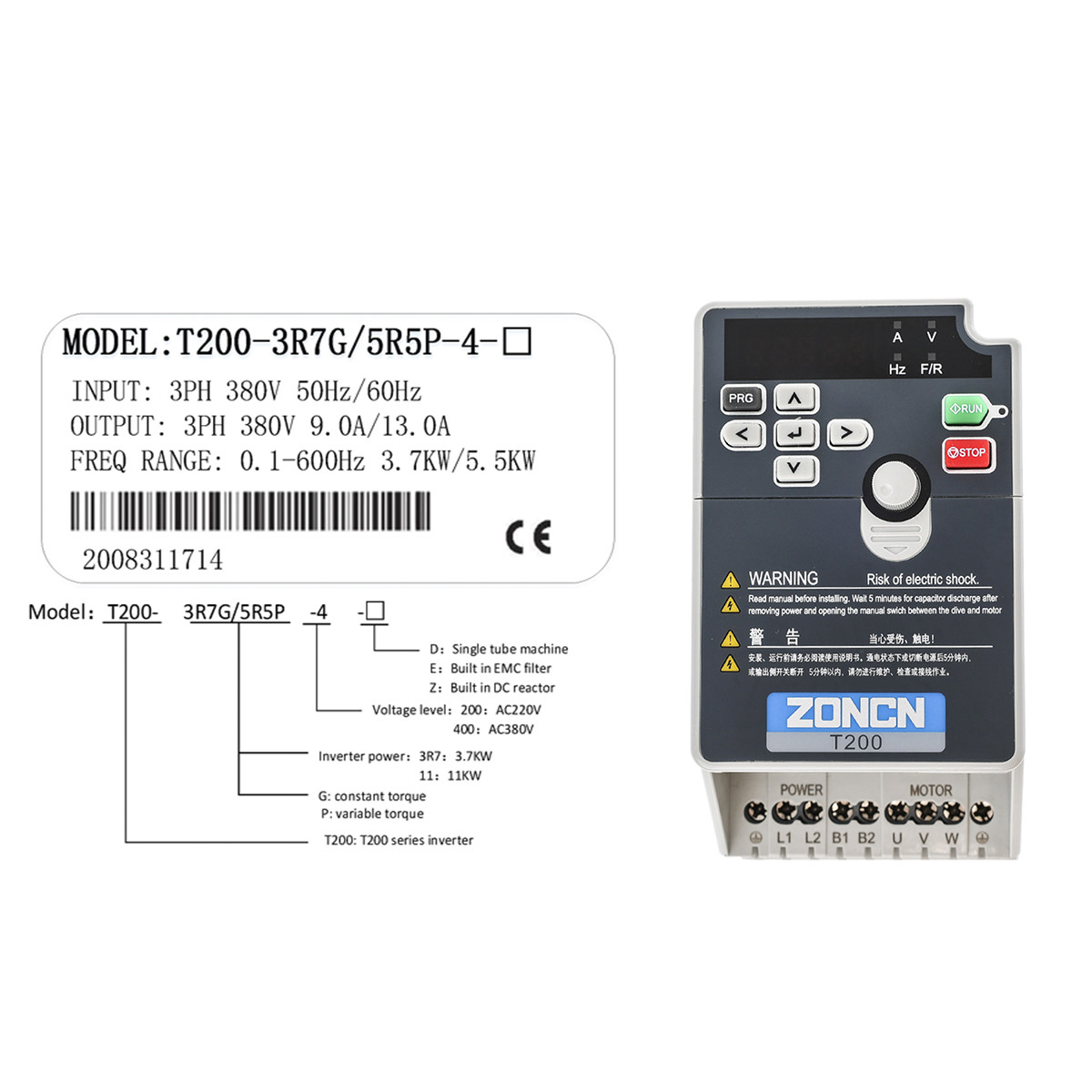

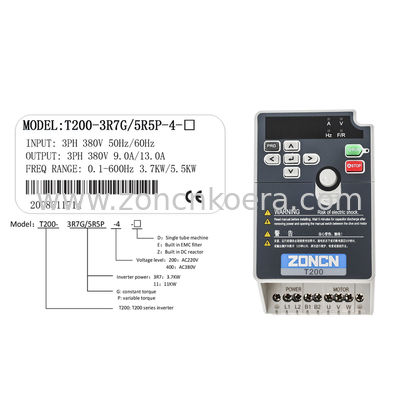

Model Number: T200 series VFD
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 380v±15%； Closed Loop Vector Control: Yes
Open Loop Vector Control: Yes 24VDC: Support
STO Function: Support Input: 380v 22kw 3phase
Output: 380v 22kw 3phase Storage: -40～+70℃
V/F, Open/close Loop: V/F, Open/close Loop Product Name: Inverter Vfd T200 Series
Highlight:

22kW Inverter Vfd Drives

,

Low Voltage Inverter Vfd Drives

,

380v Inverter Vfd Drives

T200 Series variador de frecuencia vfd 22kw



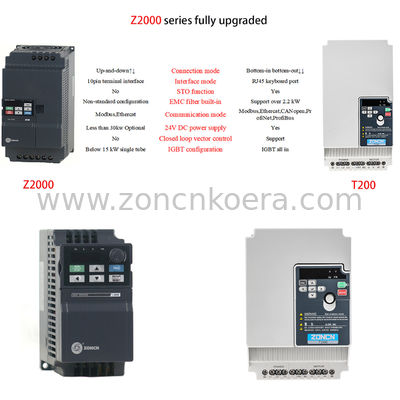

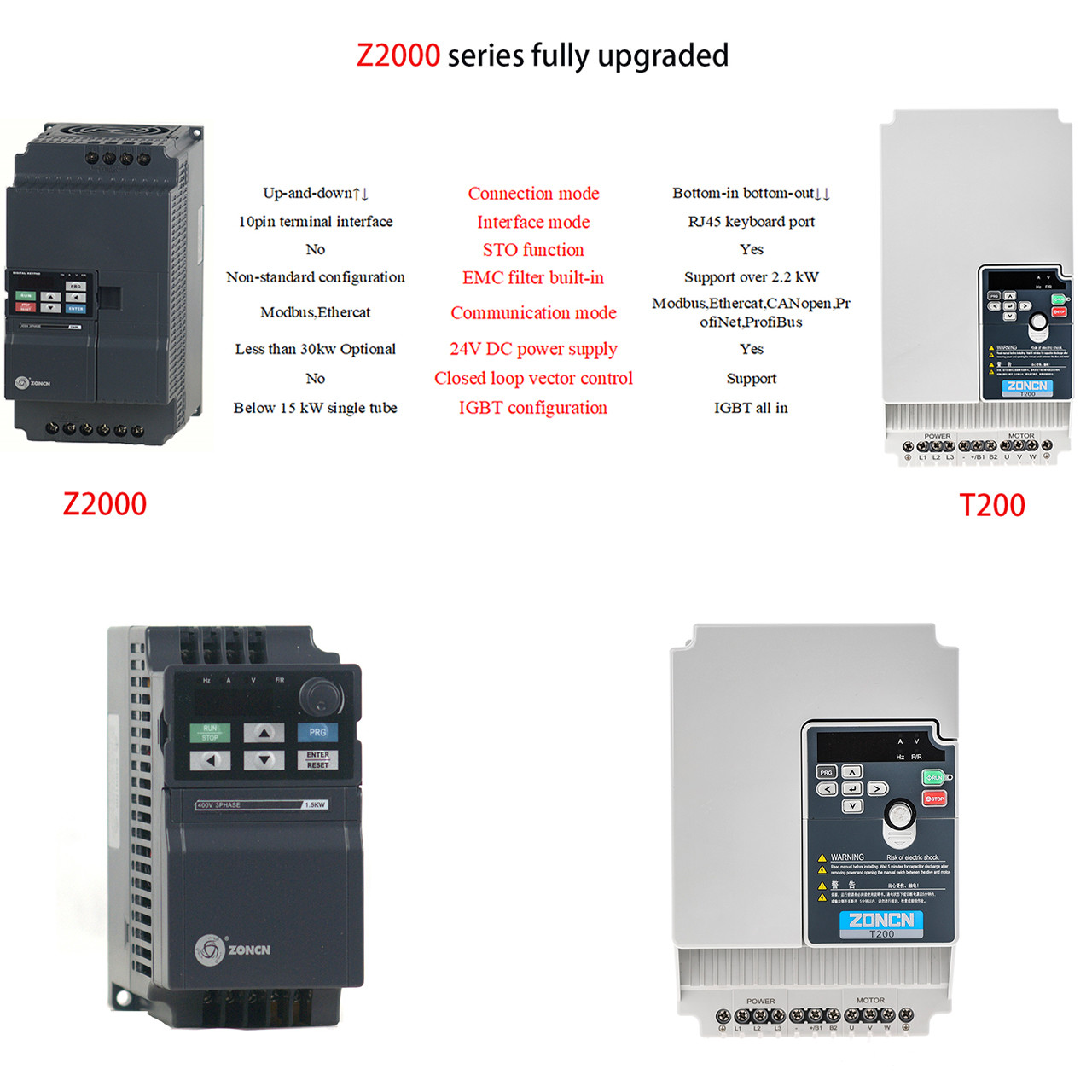

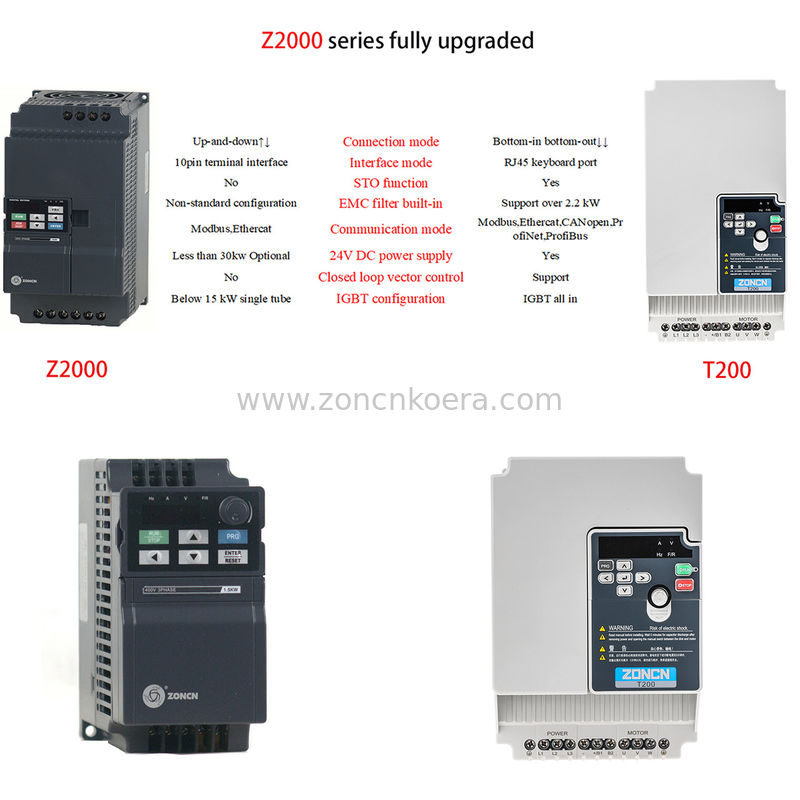

Basic product introduction:

The T200 family offers a compact AC drive that combines easy operation with high-efficiency control for AC induction, PMS motor. The robust compact designed, various controls mode, support EtherCAT Modbus, Profibus-DP communication, built-in EMC filter, 24VDC, STO function, ExtersionPG Cards.



  No. Product features
1 Economically affordable; Micro compact design
2 Easy to use and install: DlN rail installation(below 3.7kW), keyboard cablewith RJ45,STO function (support 380V below15kW), built-in EMC filter, 24VDCpower supply, PlD adjustment
3 V/F control, open-loop vector control, closed-loop vector control mode
4 Power range 0.4-55KW(above 75kW under developing)
5 Supporting multiple expansion cards: EtherCAT, Profibus-DP, ProfiNet.ModbusTCP, CAN open, Digital I/O, PG card
6 External keyboard parameter copying function



The ZONCN T200 inverter is known for its excellent performance, and the built-in EMC filter effectively reduces electromagnetic interference to ensure the stability and reliability of equipment operation.The inverter is compact in design and robust in construction, and can maintain stable operation even in harsh industrial environments. The compact design makes it easy to install and maintain, saving space.T200 inverter support Modbus, Profibus and other communication protocols, easy to integrate with various industrial automation systems, improve the flexibility and scalability of the system.The T200 inverter design focuses on user experience, and the operation is simple and intuitive. The wiring mode adopts the design of down-in down-out, which makes the wiring more convenient and neat.



Product technical parameters:

Item T200 technical parameters
Maximum frequency Vector control:0～600Hz
V/F control:0-3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve Straight-line V/F curve；Multi-point V/F curve；
N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
High performance Control of asynchronous motor is implemented through the high-performance current vector control technology
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS485；EtherCAT；Profibus-DP；CAN is optional
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Running command channel Given by the panel, control terminals, Serial communication port, can be switched by many ways



Frequency inverter specifications:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4 AC 3PH 380V±15% 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20/26 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/90 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75





T200 series expansion card selection:

No. Expansion card model PCB internal model number Function description Applicable model
1 PG-T11-01 T11PG01 ABZ_ Differential input PG card _5V T200-0.4-55 kw
2 PG-T11-02 T11PG02 ABZ_OC& Push-pull input PG card _24V
3 ET-T11-01 T11JK01 1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4 ET-T11-02 T11JK02 1 high speed pulse output _2 DI_1 FIV_1 FOC
5 CM-T11-01 T11CM01 ProfibusDP communication card
6 CM-T11-02 T11CM02 Ethercat communication card
7 CM-T11-03 T11CM03 CAN communication card
8 CM-T11-04 T11CM04 Modbus TCP communication card
9 CM-T11-05 T11CM05 Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.





T200 series product circuit diagram:

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW 0





Product size:

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW 1

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW 2

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW 3

Variador De Frecuencia Inverter Vfd Drives With STO Low Voltage 380v 22kW 4



FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
