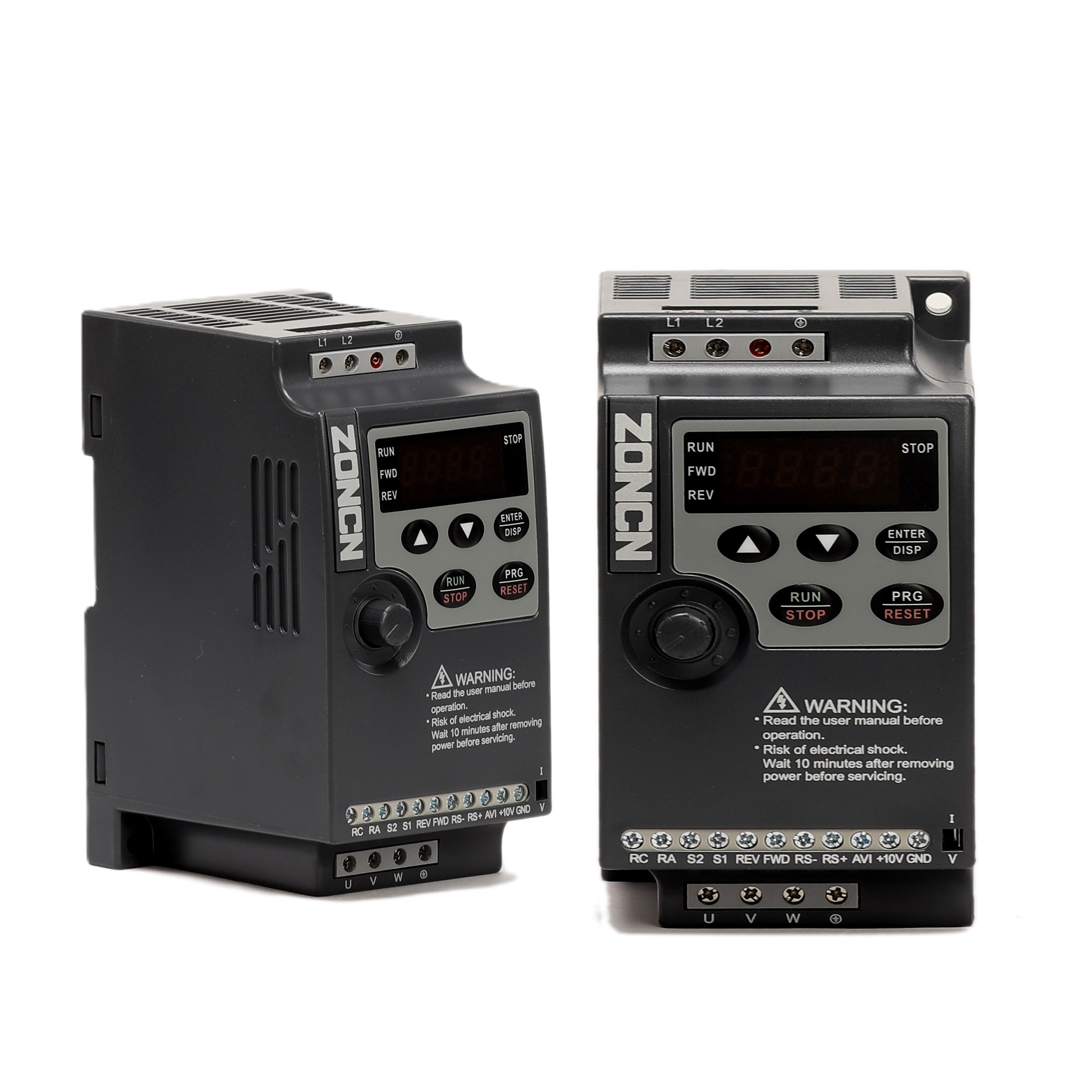

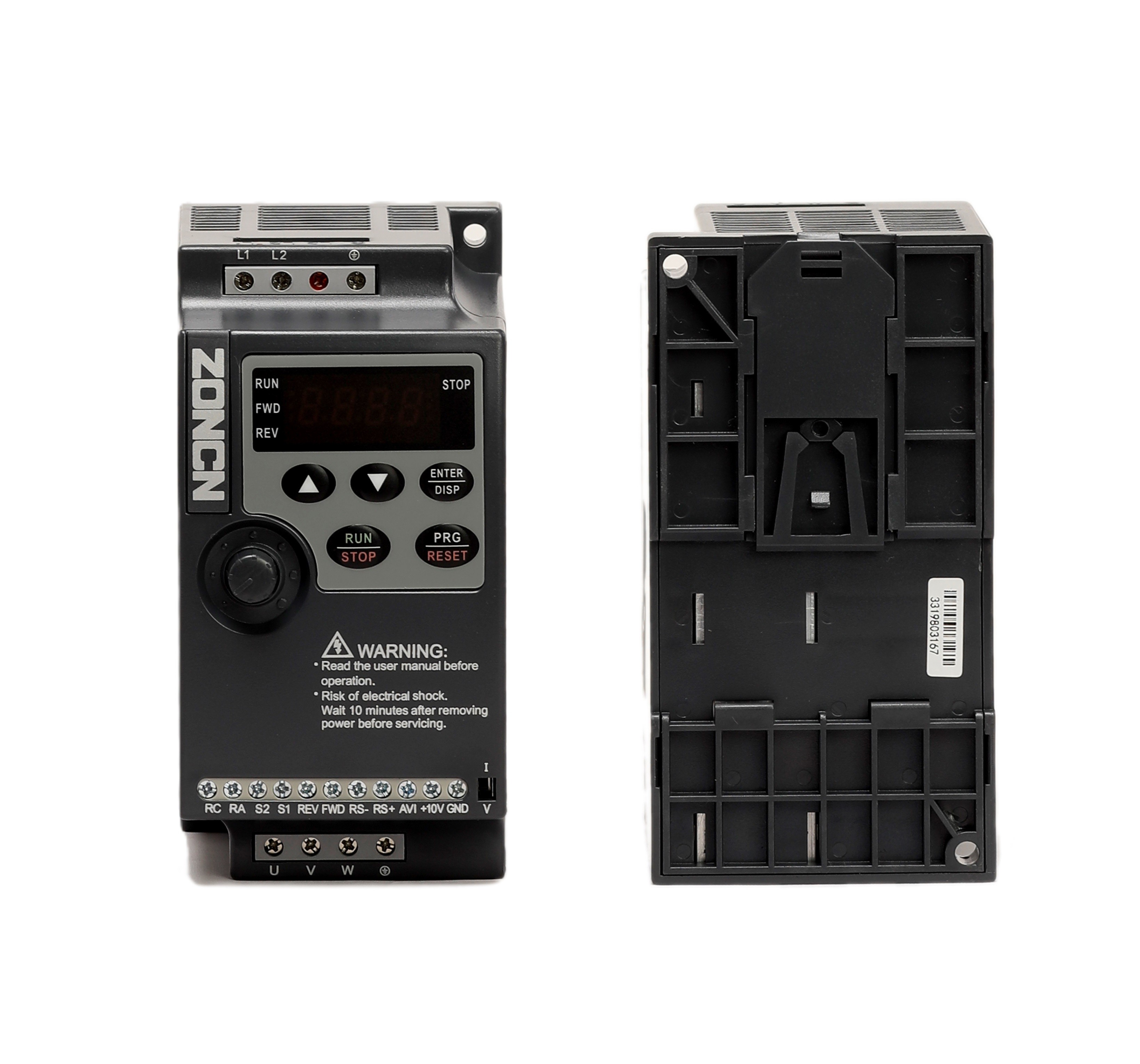

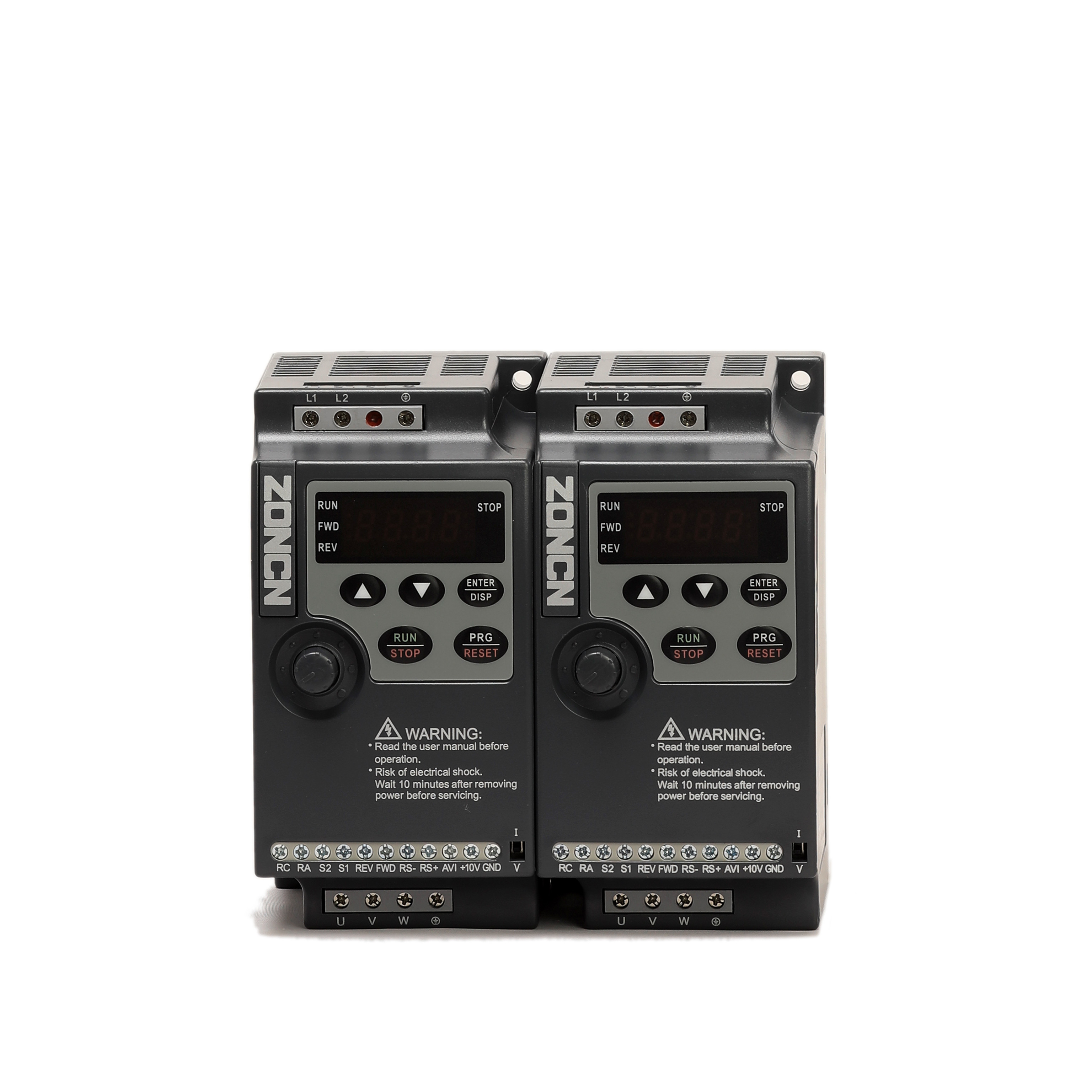

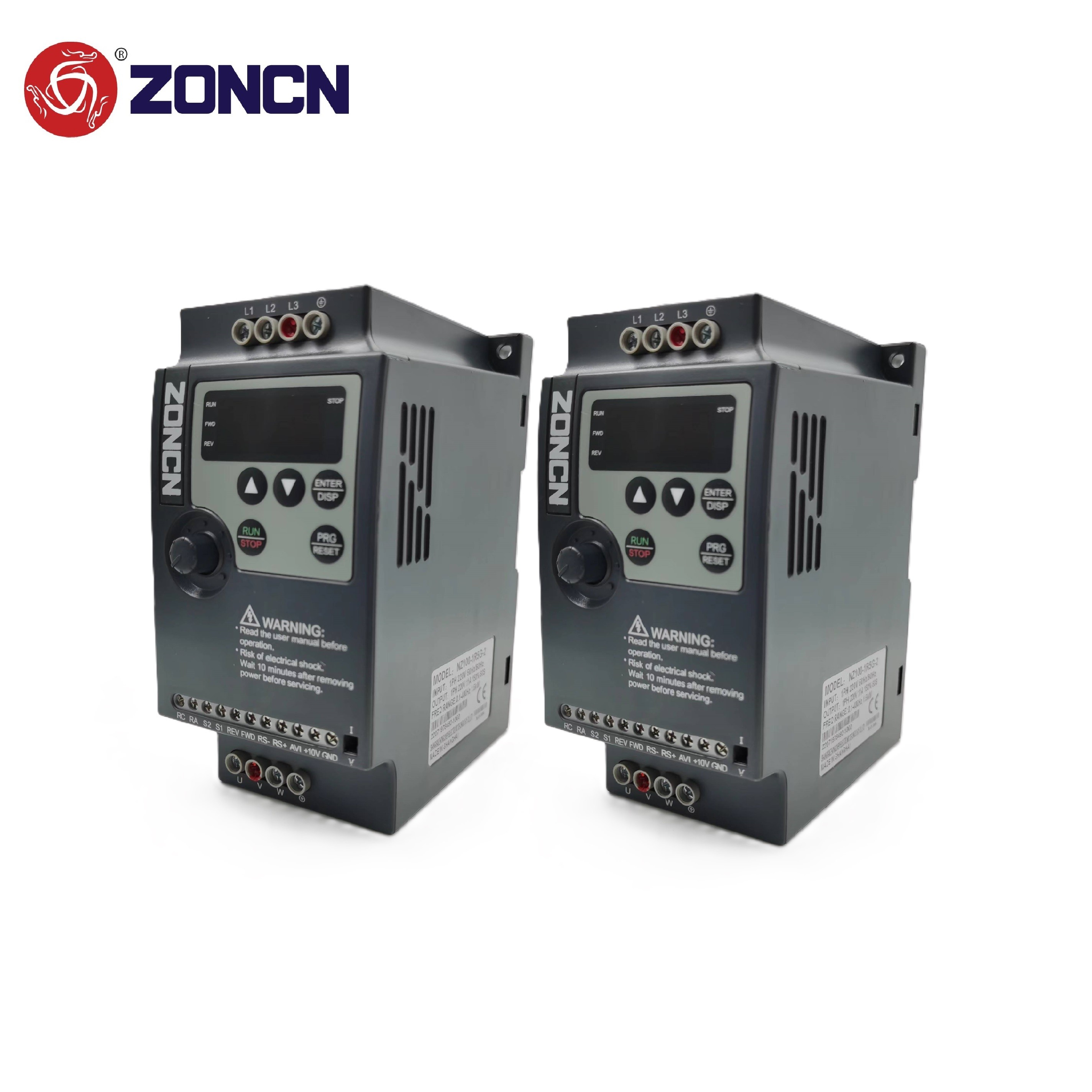

Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive

Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive
Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive
Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-2R2G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: VFD Inverter Brand: ZONCN
Model: NZ100-2R2G-2 Size: Mini
Control Mode: V/F Control Application: Fan/pump/blower/machinery Etc.
Highlight:

220v 2.2kw NZ100-2R2G-2

,

3hp NZ100-2R2G-2

,

Single Phase NZ100-2R2G-2

Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive





NZ100 inverter's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.



































VFD inverter's Dimension



Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive 0





VFD inverter's Wiring Diagram



Original ZONCN NZ100-2R2G-2 VFD 220v 2.2kw 3hp Single Phase Variable Frequency Drive 1



NZ100 VFD inverter Features

Micro drive ; Low cost
Adjustable V/f control, Built-in PID control, output frequency range 0.1-400Hz
Compact size, spave saving
DIN rail mounting and wall mounting
Easy wiring, terminals uncovered
Standard communication protocol, Modbus RTU , RS 485
