ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive

ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive
ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive
ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: Variable Frequency Inverter Brand: ZONCN
Model: NZ100-1R5G-2 Size: Mini
Control Mode: V/F Control External Keyboard: Available
OEM/ODM: YES Warranty: 18 Months
Weight: 0.7kg Application: Fan/pump/blower/machinery Etc.
Highlight:

2hp Single Phase VFD

,

1.5kw Single Phase VFD

,

220v Single Phase VFD

ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive





NZ100 Inverter Features

The NZ100 series inverter has the following outstanding features:

  1. Compact size and low cost, making it highly cost-effective and space-saving.
  1. Terminals are located on the outside for easy wiring, facilitating installation and maintenance.

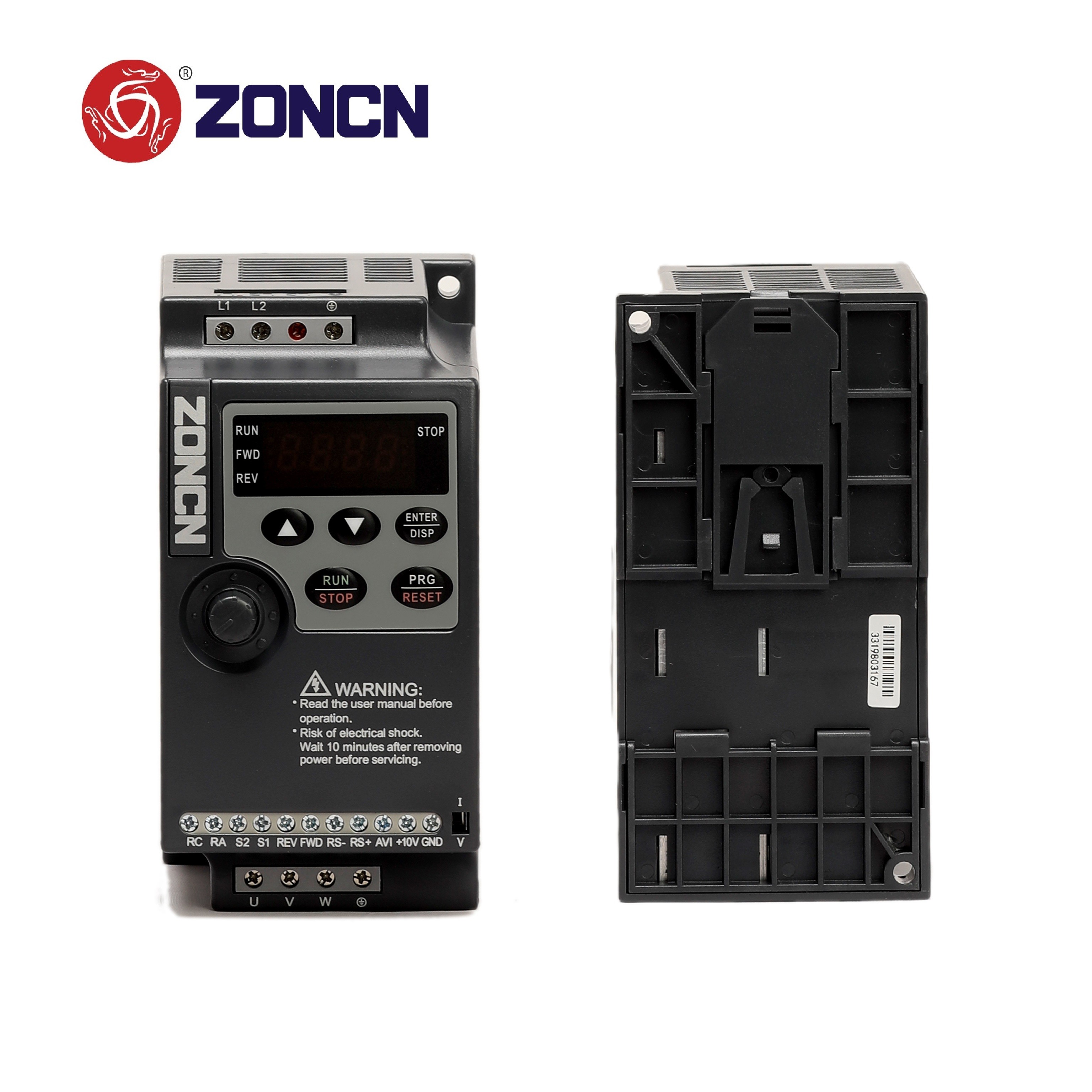

  1. Convenient installation. Models below 5.5kW can be installed on a rail.
  1. Equipped with an RS485 communication interface for seamless communication and integration with other systems.

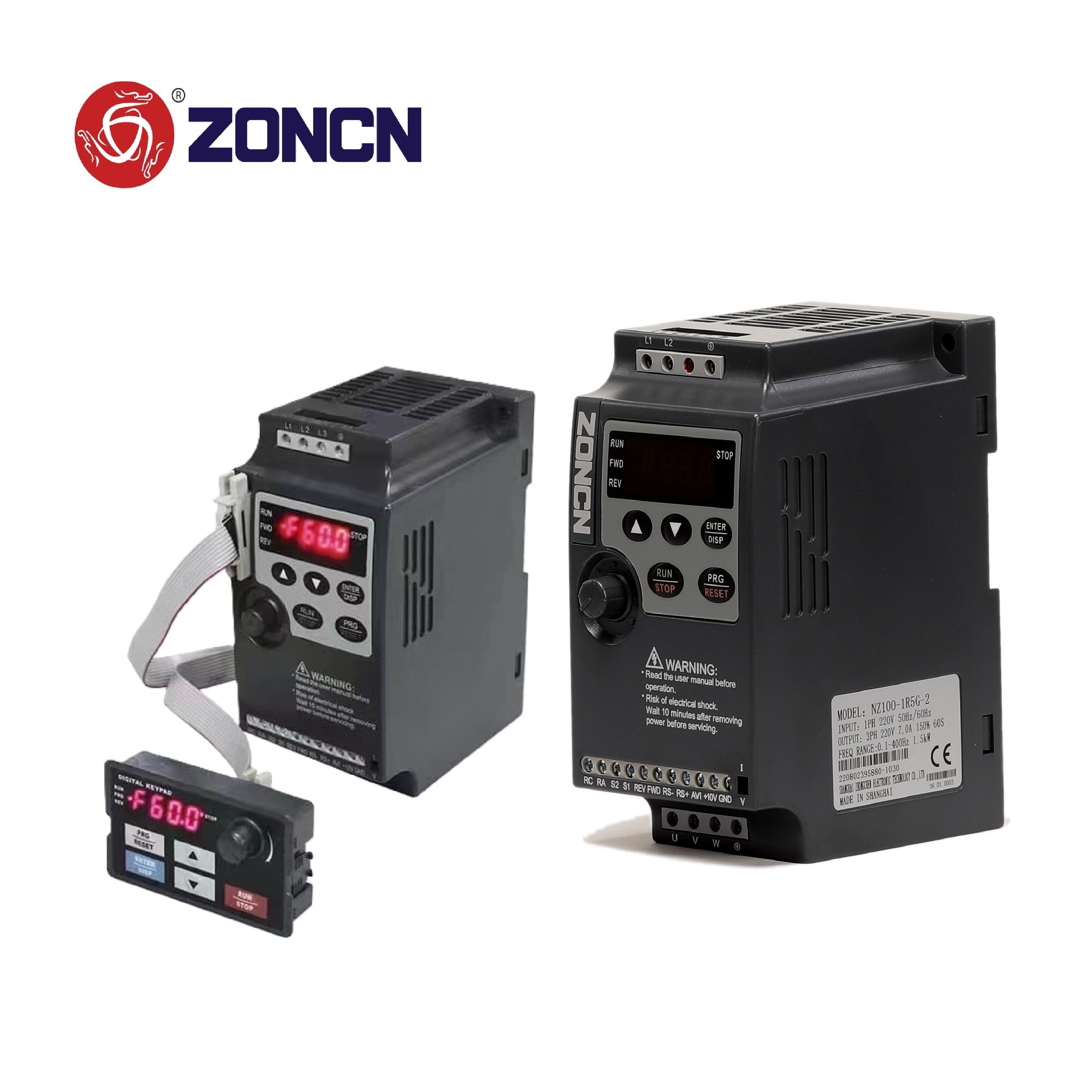

  1. Optional external keyboard for flexible operation and control.
  1. Adopts V/F control and has built-in PID control for precise process control.

Power range:

220V: 0.4 - 2.2kW;

380V: 0.75 - 55kW.





NZ100 inverter's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension



ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive 0





VFD inverter's Wiring Diagram



ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive 1





Packaging

ZONCN Original NZ100-1R5G-2 VFD 220v Single Phase 1.5kw 2hp Variable Frequency Drive 2











Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
