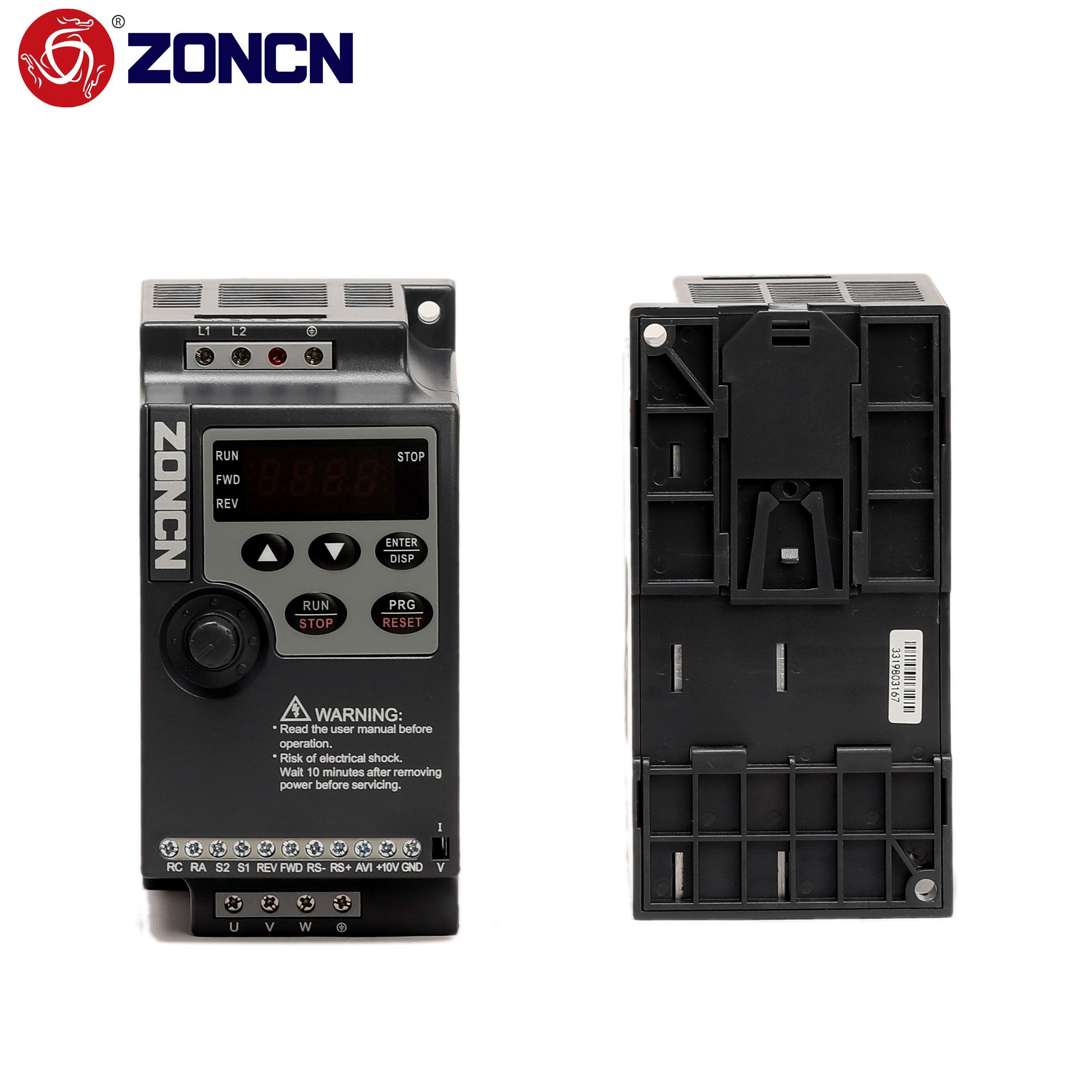

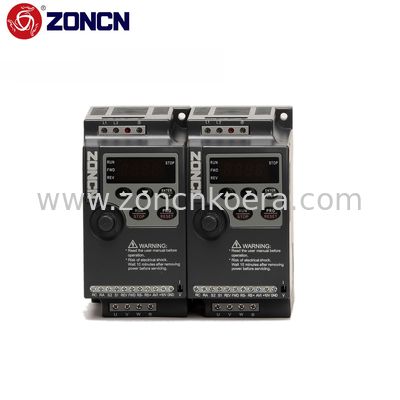

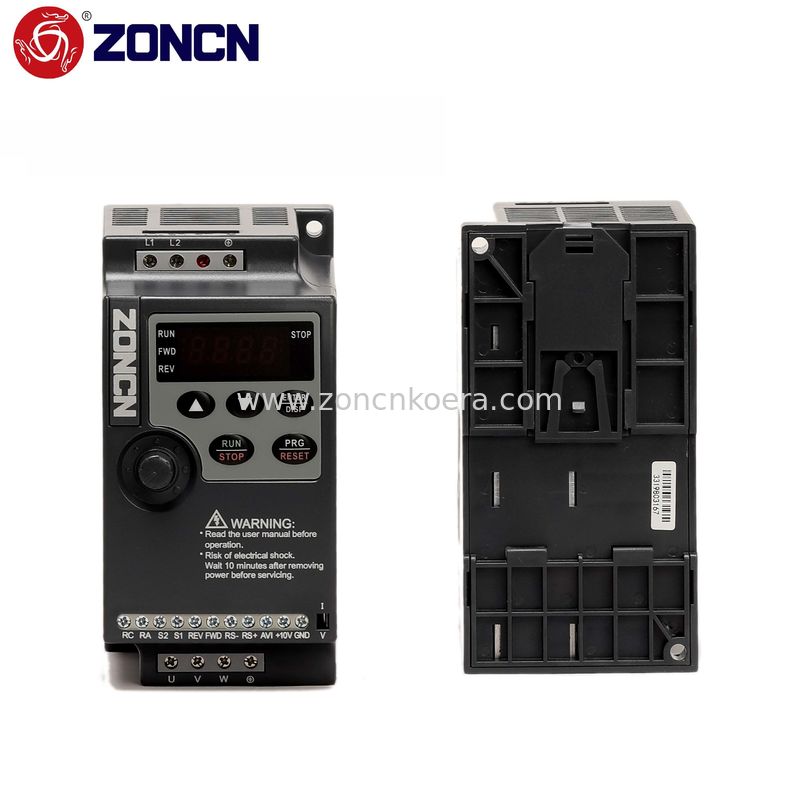

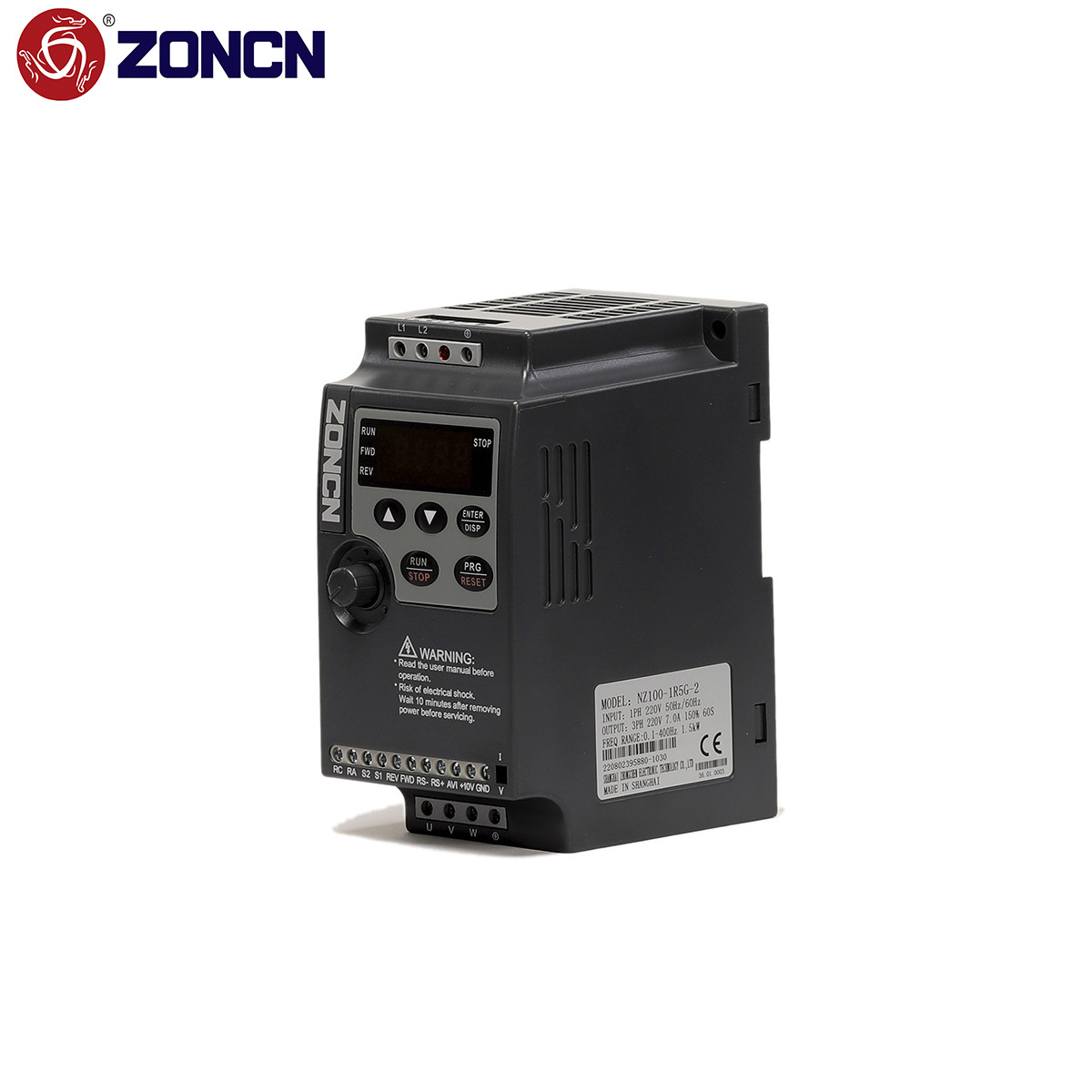

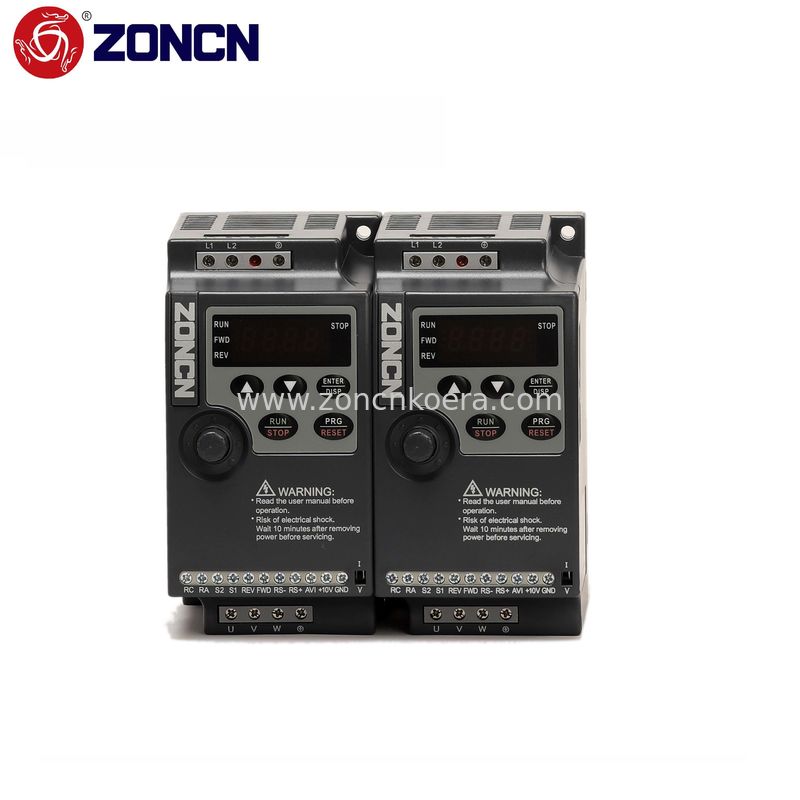

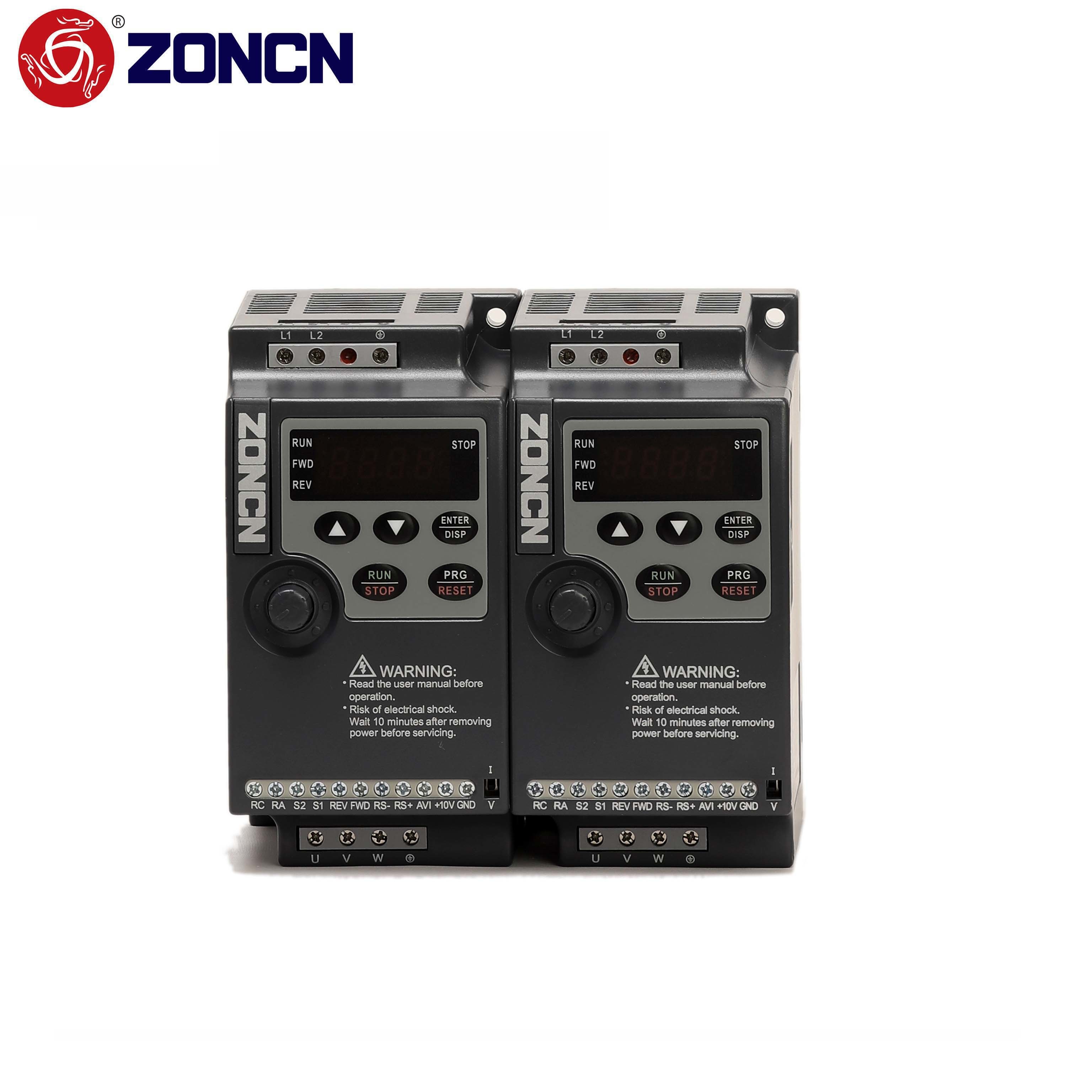

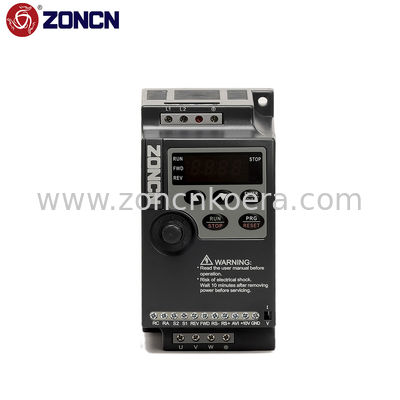

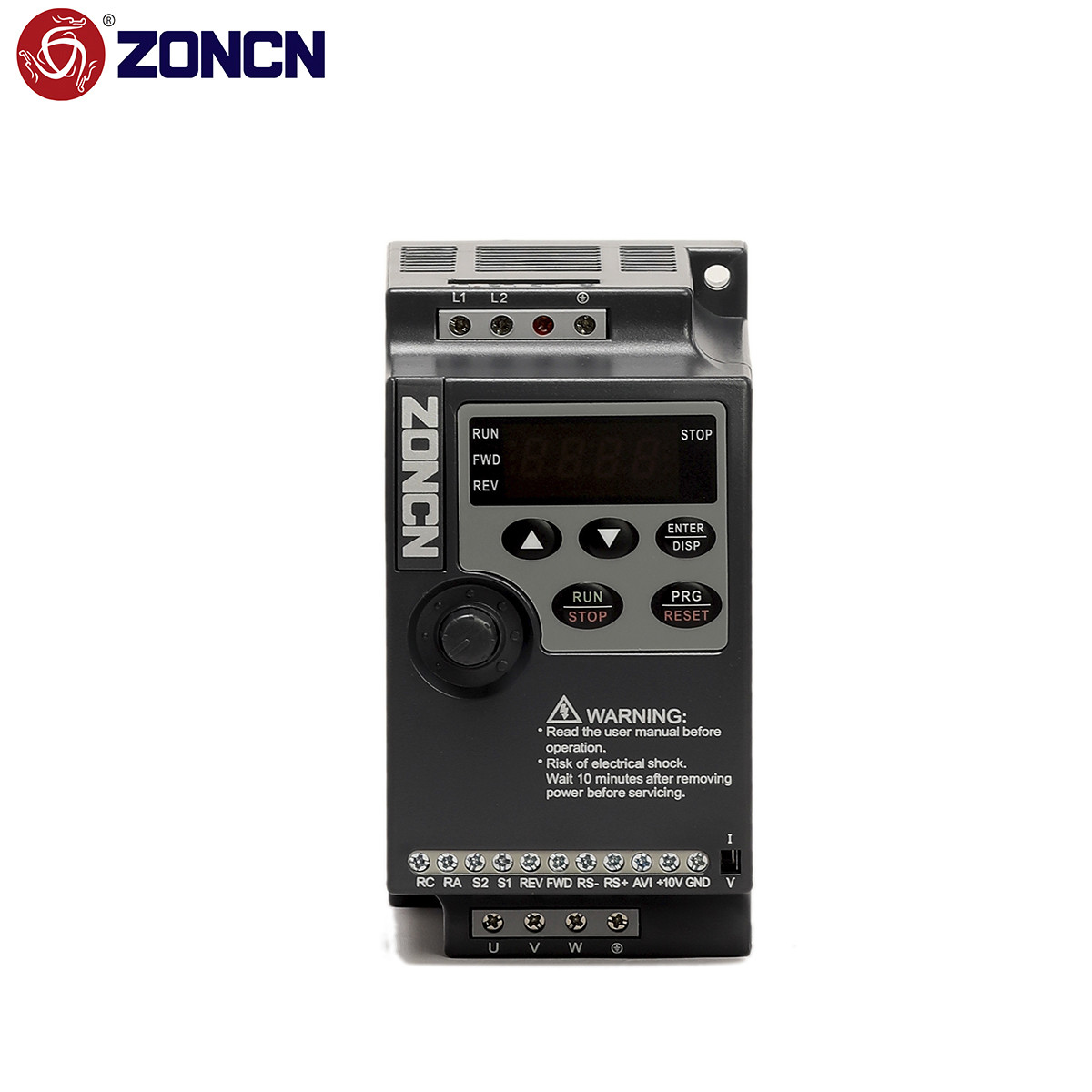

Low Voltage Frequency Ac Drives 220v 1.5kw Inverters Via RS485 ZONCN NZ100 Series

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE+KC
Model Number:	NZ100-1R5G-2

Minimum Order Quantity:	1 unit
Packaging Details:	Carton；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	NZ100-1R5G-2 Vfd	Type:	AC Drive Inverter
External Keypad:	Yes	Build-in PID Control:	Yes
VF Control:	Yes	Frequency Range:	0-400Hz
RS485:	Standard RS485 Communication Function (MODBUS)	OEM/ODM:	Support
Cooling Mode:	Forced Air Cooling	Rated Voltage, Frequency:	One-phase/Three-phase AC 220V/380V 50/60Hz
Highlight:	RS485 ZONCN NZ100 Series , 220v 1.5kw Inverters , Low Voltage Frequency Ac Drives

NZ100-1R5G-2 Variable Frequency Drives Vfd Variador De Frecuencia

NZ100 series micro ac vfd inverter 220V 1.5kW

Basic product introduction:

The NZ100 vfd inverter is marketed as an affordable and fully functional vfd inverter. Through the use of advanced design and manufacturing techniques, the NZ100 achieves compact volume, thereby reducing equipment footprint and installation costs.
The energy efficiency of the NZ100 vfd drives is 15% higher than that of conventional drives, saving companies about 10% in energy costs in one year. In addition, the ease of installation of the NZ100 vfd inverter also reduces installation time and labor costs, further enhancing economic benefits.

Compact size and low cost desgin
Terminals uncovered,easy for wiring design
DIN-rail mounting(below 5.5kw)
Modbus via RS485
Maintenance-free function
Support MODBUS ASCII communication

Technical Specific:

Items	NZ100 series vfd inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20

Product application:

Low Voltage Frequency Ac Drives 220v 1.5kw Inverters Via RS485 ZONCN NZ100 Series 0

The compact size of the NZ100 series drives makes it easy to integrate into a variety of small machines. The port is designed on the outside, easy to connect, easy to install, and can be installed by rail (below 5.5kW), which greatly saves installation time and cost. At the same time, it also provides an RS485 communication port, which can realize remote control and data transmission, making the operation of the equipment more flexible and convenient.

In the field of food machinery, the NZ100 series inverter also performs well. With V/F control and a built-in PID controller, it enables highly accurate speed and tension control, which is essential for machines that require precise control of food processing. Whether it is a dumpling machine, a blender, a filling machine or a pastry forming machine, the NZ100 series inverter provides stable and reliable frequency conversion control to ensure the accuracy and efficiency of food processing.

Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
