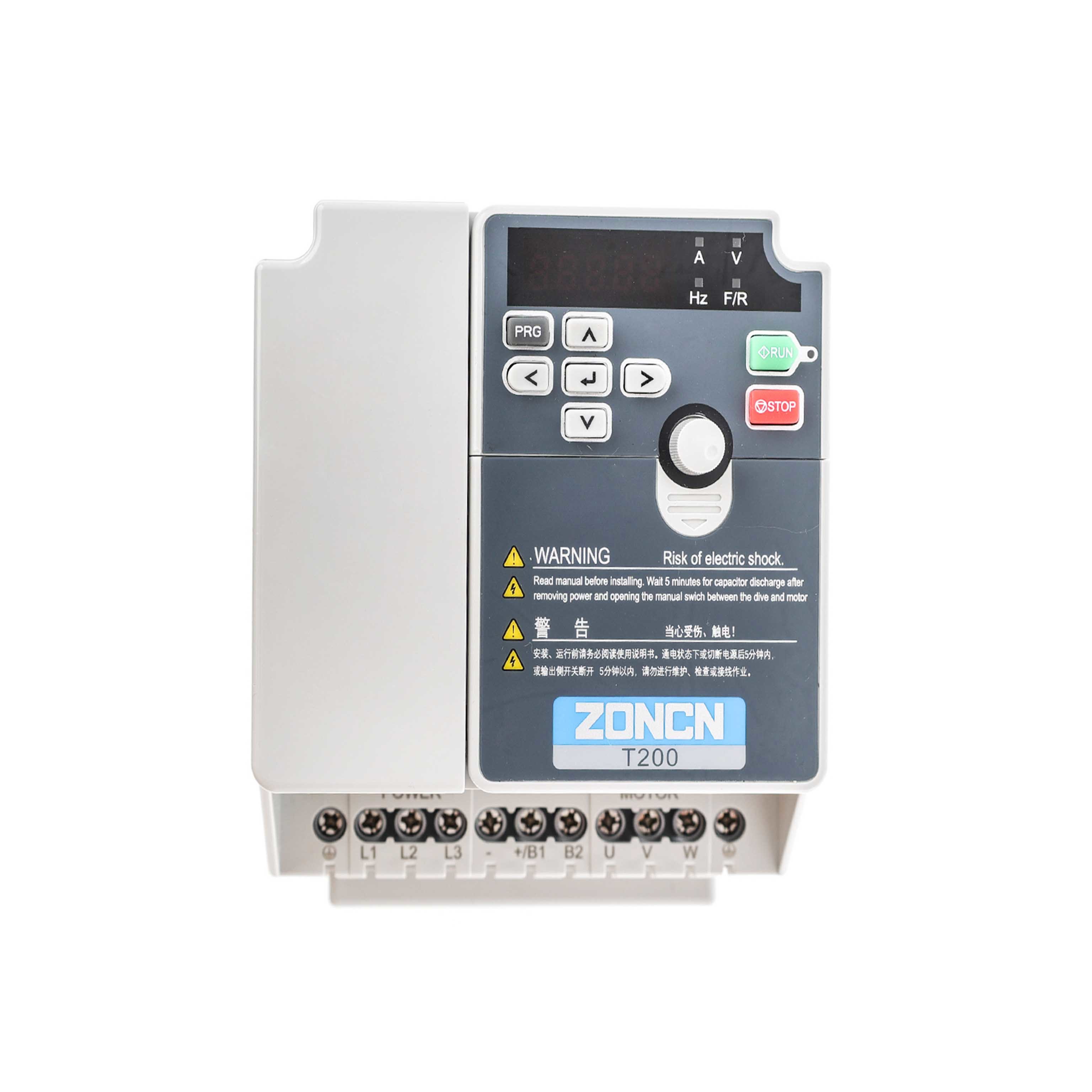

Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v

Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v
Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Inverter Vfd
Certification: CE
Model Number: T200 series VFD
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 400v±15%； Closed Loop Vector Control: Yes
Open Loop Vector Control: Yes Power Range: 0-55KW Vfd
STO Function: 380v Below 15KW Vfd 24V DC Power Supply: Yes
CAN Open: Support Vector Control: 0-600Hz
External Keyboard Parameter Copying Function: Support Profibus-DP: Support
Profinet: Support
Highlight:

5.5kw Vfd Inverter Pump

,

7HP Vfd Inverter Pump

,

400v Vfd Inverter Pump

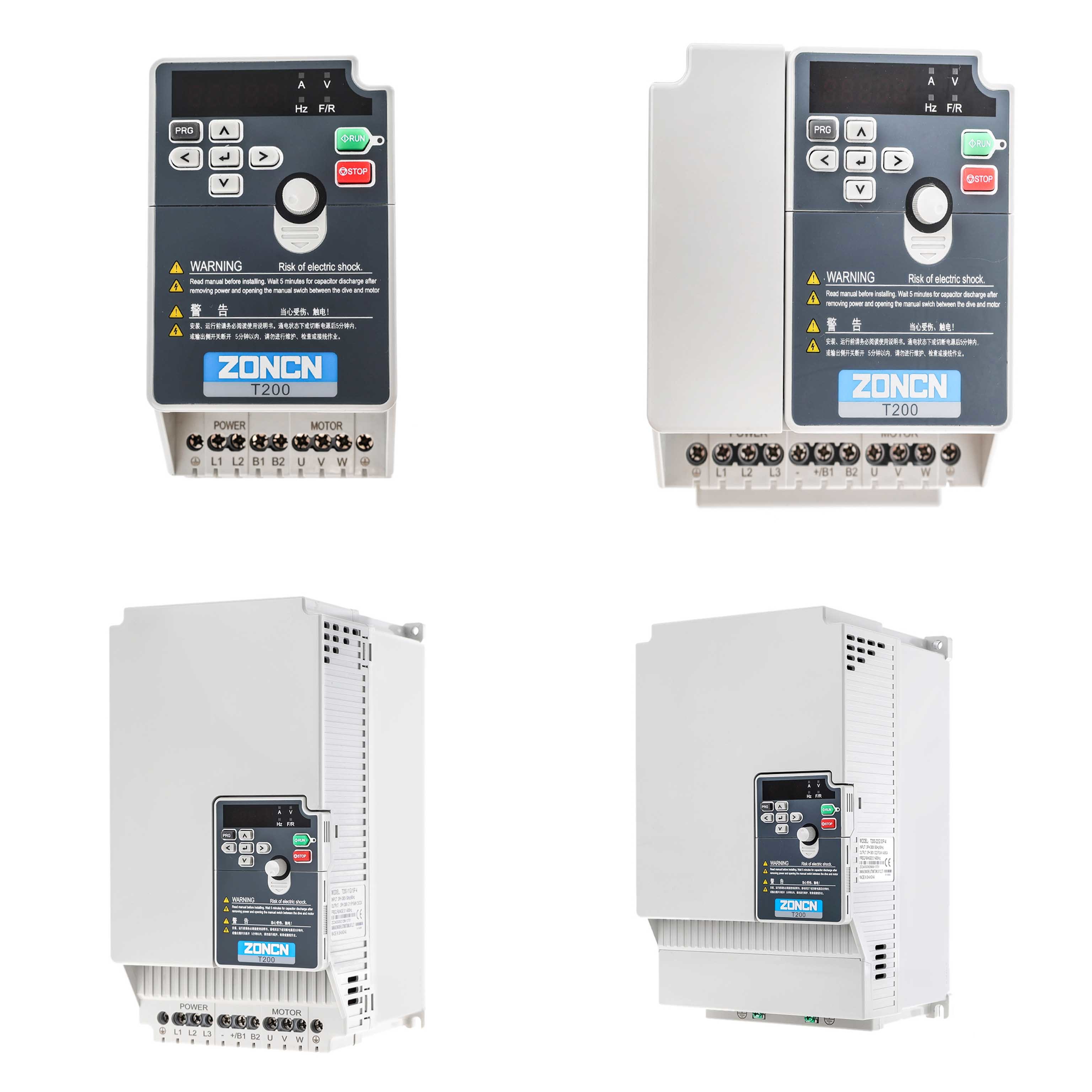

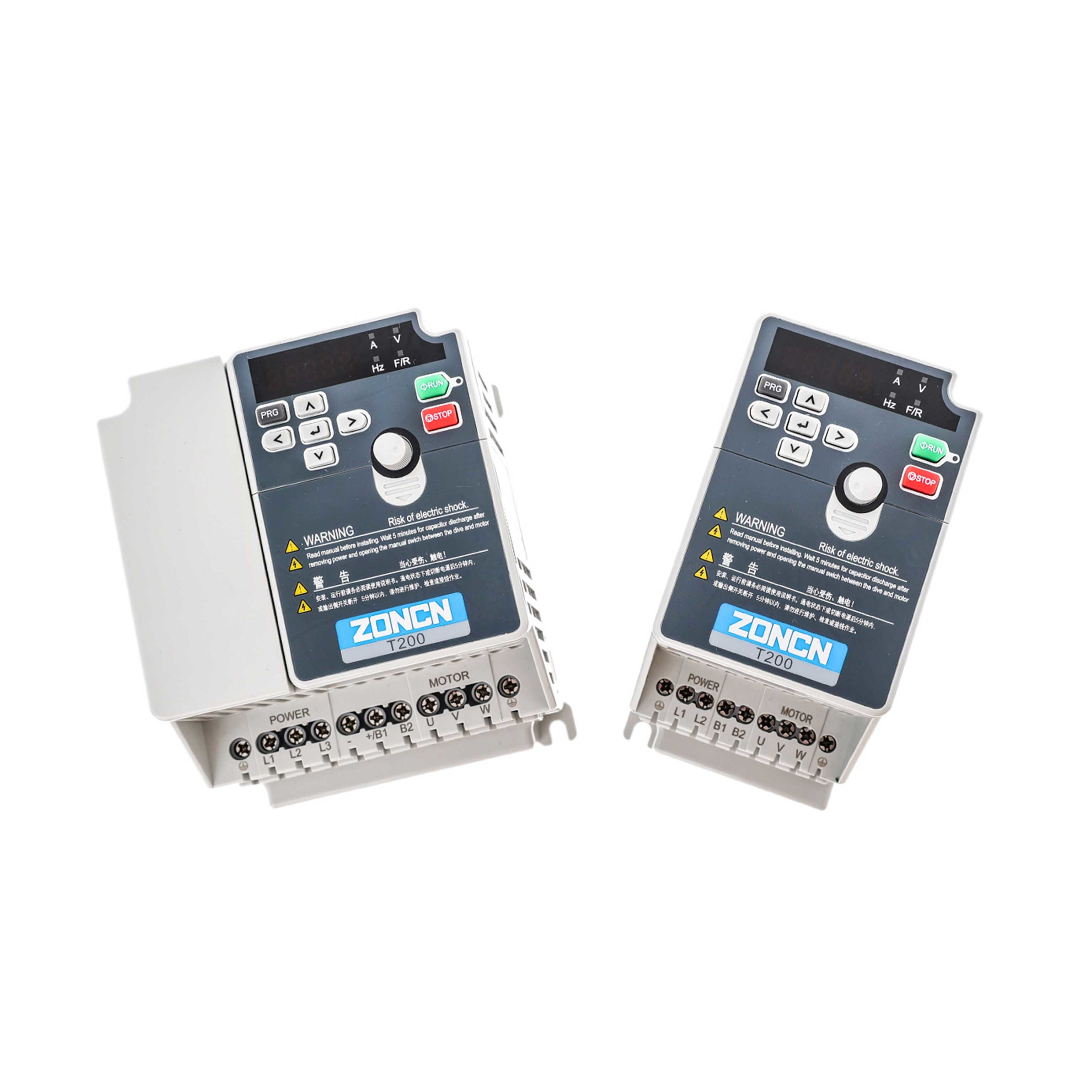

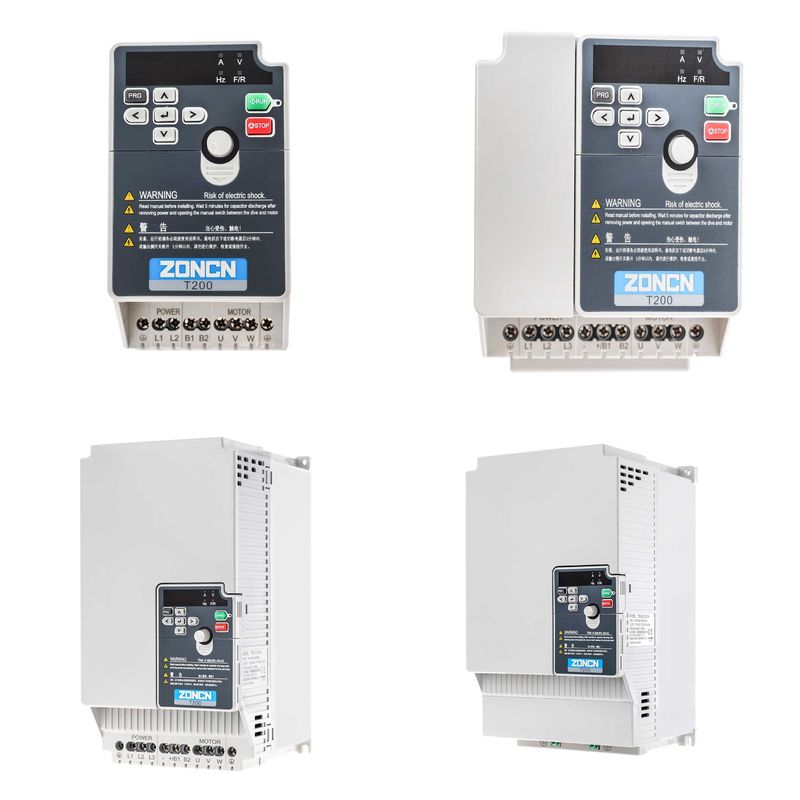

T200 Series VFD Frequency Inverter AC Drives 7.5KW



Basic product introduction:

· Economically affordable ; Micro compact design

· Easy to use and install:DIN rail installation (below3.7kW) , keyboard cable with RJ45,STO function(support 380V below 15kW), built-in EMC filter, 24VDC,powersupply,PID adjustment.

· V/Fcontrol,open-loop vector control,closed-loop vector control mode.

· Power range 0.4-55kW(above 75kW underdeveloping)

· Supporting multiple expansion cards : EtherCAT , Profibus-DP, ProfiNet, ModbusTCP, CANopen, Digital I/O, PGcard

· External keyboard parameter copying function.











Frequency inverter specifications:



Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4 AC 3PH 380V±15% 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20/26 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/90 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75







T200 series expansion card selection:

No. Expansion card model PCB internal model number Function description Applicable model
1 PG-T11-01 T11PG01 ABZ_ Differential input PG card _5V T200-0.4-55 kw
2 PG-T11-02 T11PG02 ABZ_OC& Push-pull input PG card _24V
3 ET-T11-01 T11JK01 1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4 ET-T11-02 T11JK02 1 high speed pulse output _2 DI_1 FIV_1 FOC
5 CM-T11-01 T11CM01 ProfibusDP communication card
6 CM-T11-02 T11CM02 Ethercat communication card
7 CM-T11-03 T11CM03 CAN communication card
8 CM-T11-04 T11CM04 Modbus TCP communication card
9 CM-T11-05 T11CM05 Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.





T200 series product circuit diagram:

Vfd Inverter Pump T200-5R5G-4 5.5kw 7HP AC Drives Low Voltage 400v 0





FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
