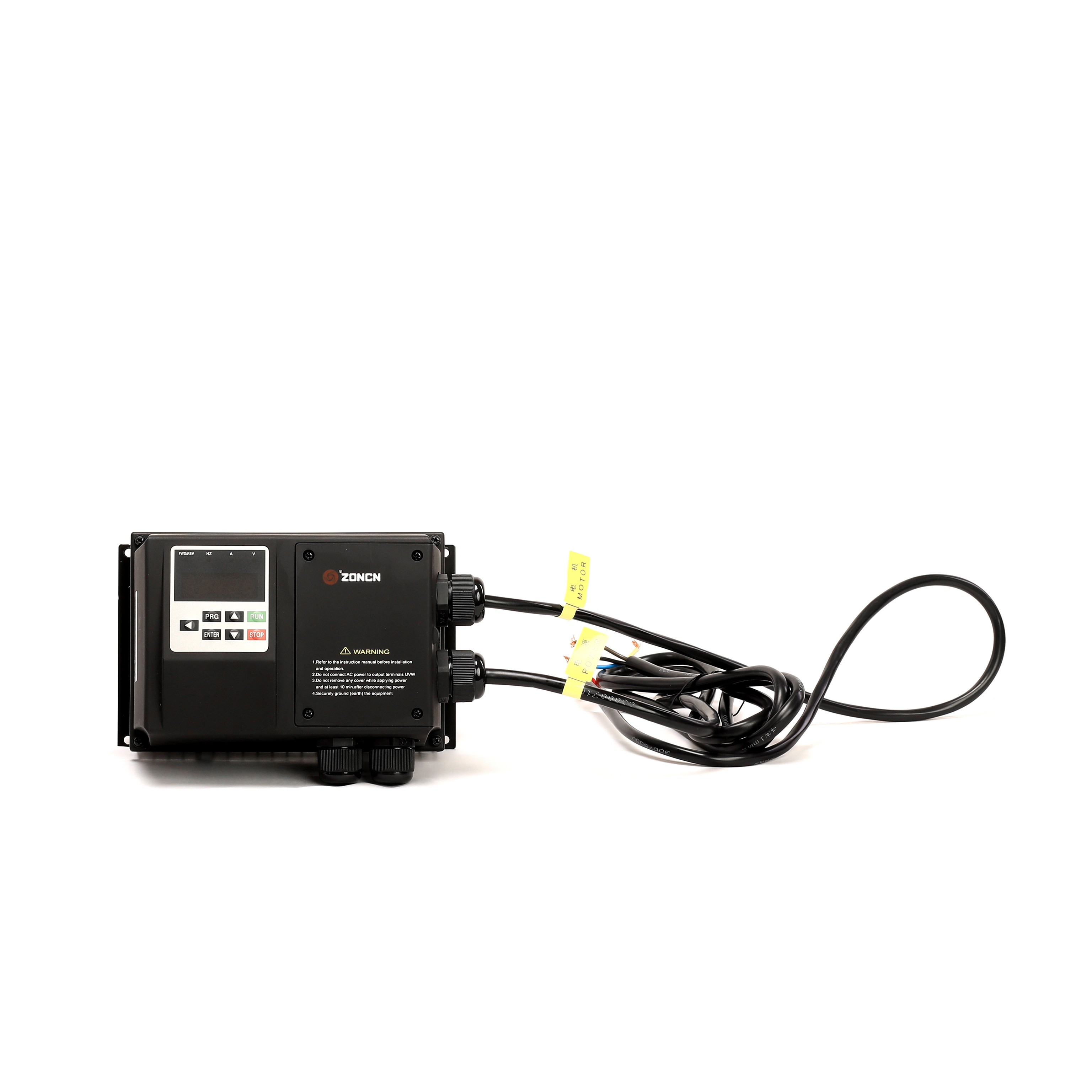

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN Vfd
Certification:	CE
Model Number:	Z5400A01D5K-BF

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Input:	380v 1ph AC Drives	Output:	380v 3ph AC Drives
Brand:	ZONCN Vfd	Protection:	IP54/IP65
English Instruction Manual:	Yes	Built-in EMC Filter:	Yes
Power:	1.5kw	Torque Boost:	Auto-boost ; Customized Boost:0.1%~30.0%
Timing Control:	Timing Range : 0.0Min~6500.0Min	Communication:	RS485
OEM/ODM:	Support	Driving Mode:	Vector Control
Highlight:	380v High Protection Level Inverter , 1.5kw High Protection Level Inverter , IP65 High Protection Level Inverter

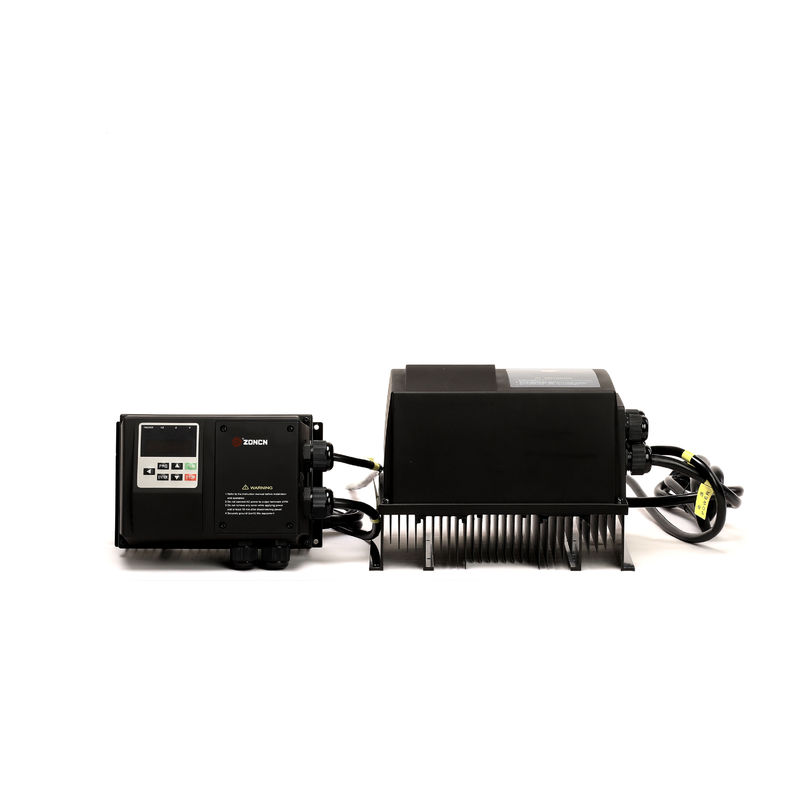

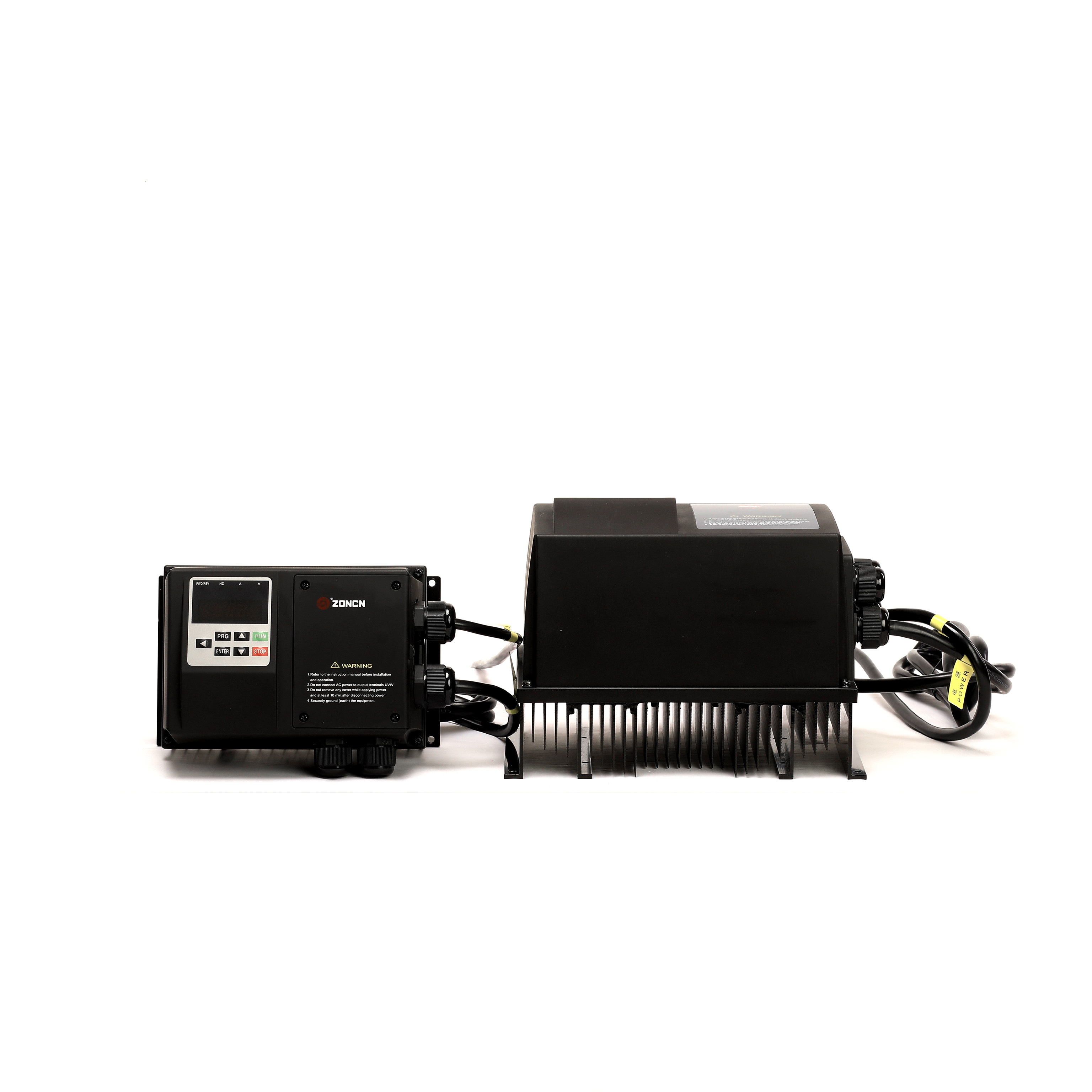

ZONCN Z5000-BF IP65 380v frequency vfd inverter

Product Brief Introduction:

The ZONCN Z5000-BF series vfd drives have a number of notable features, one of which is its IP65 protection class. This means that the inverter performs well in dust and water resistance, effectively prevents dust intrusion, and can withstand low-pressure water spray from any direction without damage. Therefore, the Z5000-BF series vfd inverter is particularly suitable for use in harsh industrial environments, such as wet, dusty or lightly splashed places.

Item	Z5000-BF Series Vfd
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports 0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Z5000-BF Vfd Technical Specification:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-BF	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160

Z5000-BF Vfd wiring diagram:

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level 0

Z5000-BF vfd dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75

Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.

a. Horizontal installation

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level 1

b. Vertical installation

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level 2

45-160kW

Model	Motor	Output current	Overall dimension(mm)				Mounting dimension(mm)
			W	H	H1	D	A	B	Φd
Z5400A0045K-BF	45	90	300	450	482	278	210	465	9
Z5400A0055K-BF	55	110
Z5400A0075K-BF	75	150	400	520	560	275	300	535	9
Z5400A0090K-BF	90	176
Z5400A0110K-BF	110	210
Z5400A0132K-BF	132	253	400	800	864	321.5	330	780	11
Z5400A0160K-BF	160	300

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level 3

Application:

380v 1.5kw Ac Frequency Inverter Converter IP65 High Protection Level 4

Z5000-BF Vfd suitable for industrial scenarios:

Z5000-BF series inverter has a wide range of application prospects in the pump industry, it can effectively control the running speed of the pump, so as to achieve energy saving and consumption reduction. In high-pollution industries, such as chemical, paper, metallurgy and other fields, this series of inverters also perform well. It can not only improve production efficiency, but also reduce energy consumption, reduce pollution emissions, and meet environmental protection requirements. In addition, the stability and reliability of the Z5000-BF series drives make them ideal for upgrading and retrofitting equipment in these industries.

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
