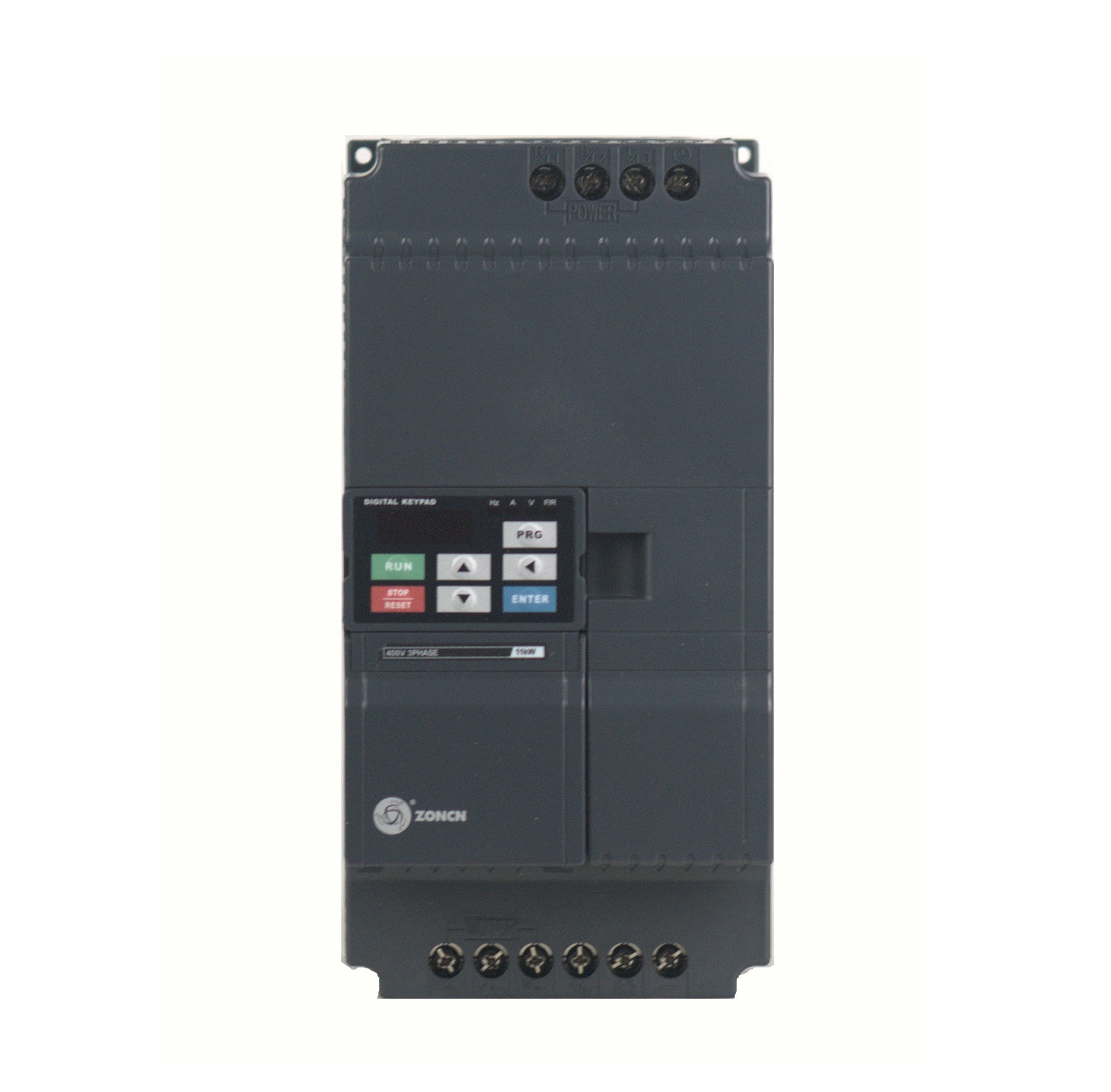

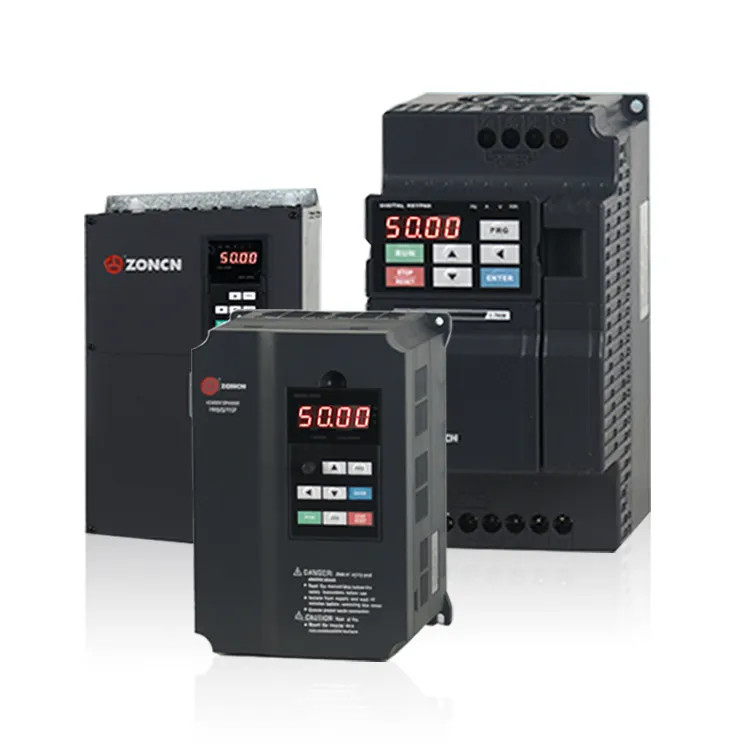

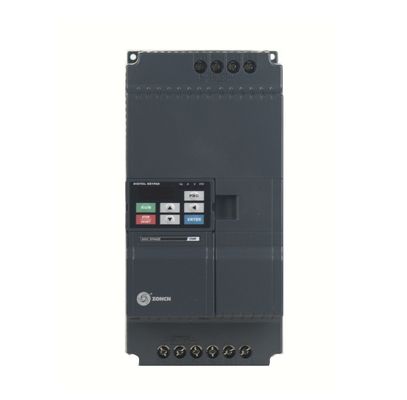

ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac

ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac
ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 7.5kW Vfd
Voltage: 400V Vfd Type: AC Drives Vfd
Model: Z2400-7R5G/11P Vfd Input Frequency: 50/60Hz
Frequency Range: 0-600Hz；0-320Hz Application: Motor Speed Controller
VF Curve: Line V/F Curve；Multi-point V/F Curve；N-power V/F Curve Speed Range: 1:100(SVC)
Built-in EMC Filter: Yes Material: Plastic And Metal
Highlight:

7.5KW ZONCN Inverter

,

Low Voltage ZONCN Inverter

,

380V ZONCN Inverter

Z2000 English Catalog.pdf

VFD ZONCN Z2000 Series 7.5KW For Motor Speed Controller

Basic product introduction:

ZONCN Z2000 series inverter is widely used in the field of industrial automation, it precisely controls the speed and torque of the motor to achieve fine regulation of the production process. With high-performance vector control technology, this series of inverters can adapt to various complex industrial environments and provide stable power output. In automated production lines, conveying systems, fan pump control and various mechanical equipment, the Z2000 series inverter can effectively reduce energy consumption and improve production efficiency. In addition, it also supports a variety of communication protocols, easy to integrate with PLC and other automatic control systems, to achieve intelligent management.

Technical Specification:

Item Z2000 series vfd inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency  1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solution Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive vfd



Product selection:

ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac 0





Product wiring diagram:

ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac 1



Product applications:

ZONCN 7.5KW Vfd Drives Inverters 380V Low Voltage Inverter Ac 2
The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.


Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
