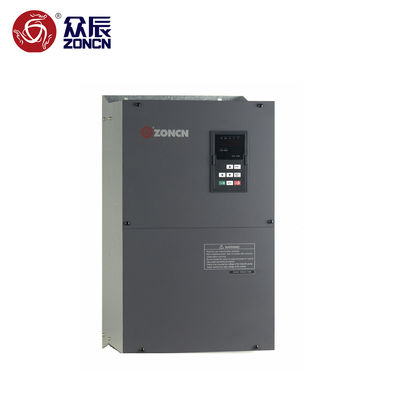

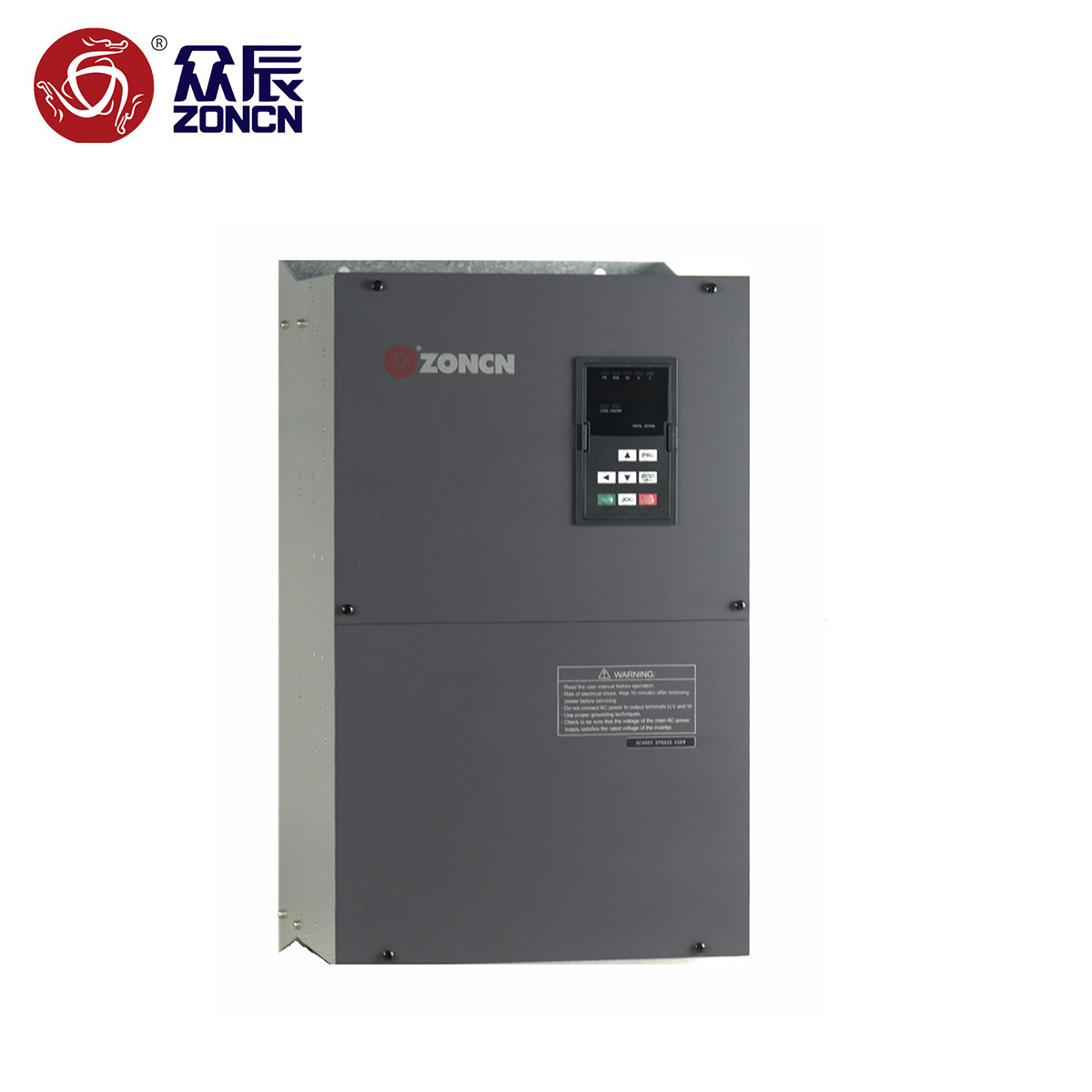

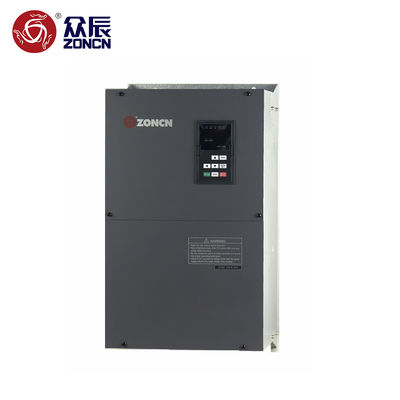

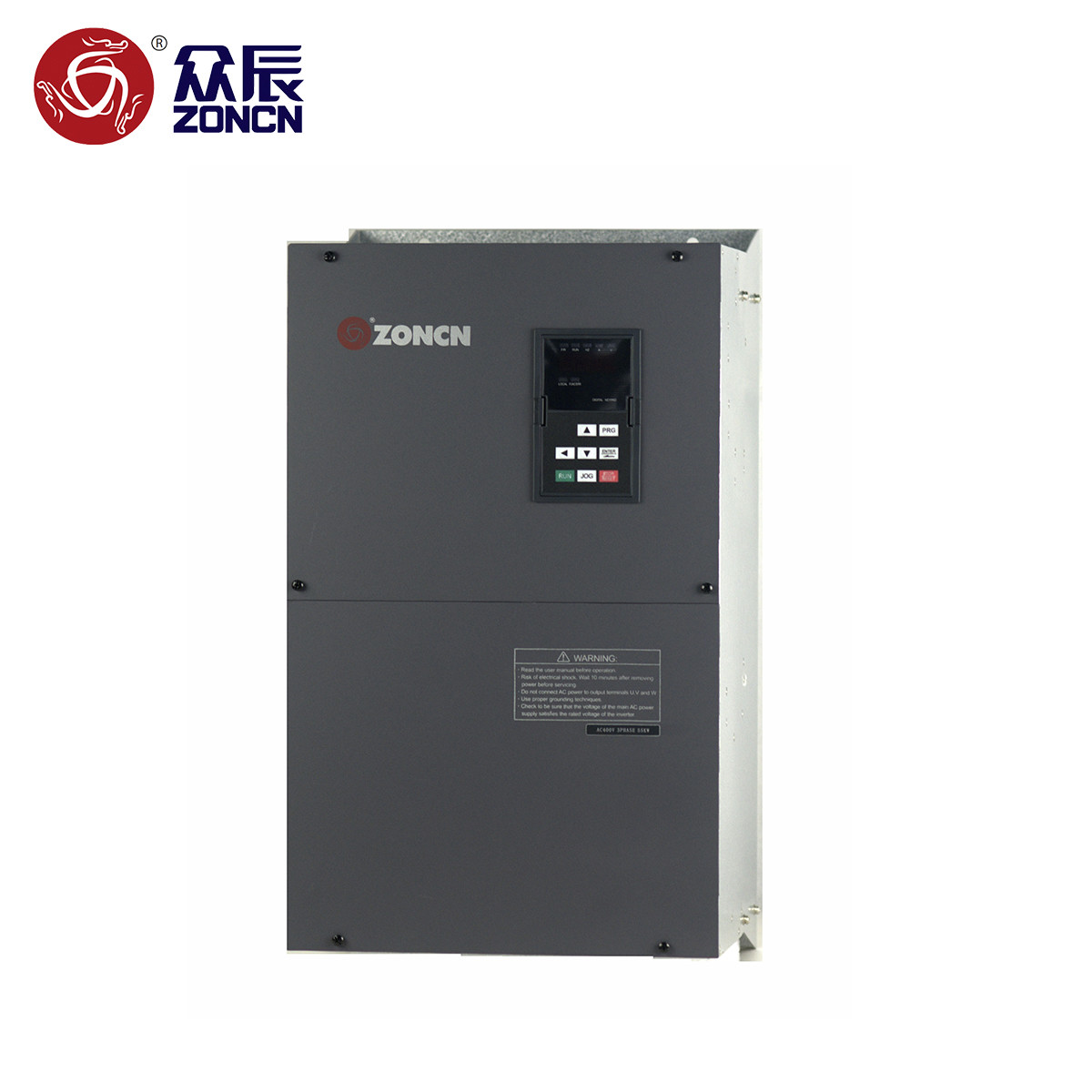

ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine

ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine
ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 37kW Vfd
Voltage: 400V Vfd Type: AC Drives Vfd
Model: Z2400-37G/45P Vfd Input Frequency: 50/60Hz
Frequency Range: 0-600Hz；0-320Hz Application: Textile Machine
VF Curve: Line V/F Curve；Multi-point V/F Curve；N-power V/F Curve Speed Range: 1:100(SVC)
Built-in EMC Filter: Yes Material: Plastic And Metal
Highlight:

Textile Machine ZONCN Vfd Drives

,

400V ZONCN Vfd Drives

,

37KW ZONCN Vfd Drives

Z2000 English Catalog.pdf

VFD ZONCN Z2000 Series 37KW For Textile Machine

Basic product introduction:

ZONCN's Z2000 series vfd drives are high performance industrial grade drives used in a wide range of industrial automation applications. This series of vfd inverters uses advanced vector control technology to provide accurate speed and torque control and is suitable for a variety of load types such as fans, pumps and conveyor belts. Z2000 series vfd inverter has good stability and reliability, support a variety of communication protocols, convenient for users to remote monitoring and control. In addition, this series of vfd inverter also has overload protection, overvoltage protection, undervoltage protection and other protection functions to ensure the safe and stable operation of the equipment. ZONCN Z2000 series vfd inverter with its excellent performance and high cost performance, has won the favor of the majority of users.

Technical Specification:

ItemZ2000 series vfd inverter
Control modeSenseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequencyVector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solutionDigital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100
Speed stability accuracy±0.5%
Overload capacityG type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureLine V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separationTwo types: complete separation; half separation
Ramp modeStraight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG controlJ0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive vfd



Product selection:

ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine 0





Product wiring diagram:

ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine 1



Product applications:

ZONCN 37KW Vfd Drives Inverters 400V Low Voltage Inverter For Textile Machine 2

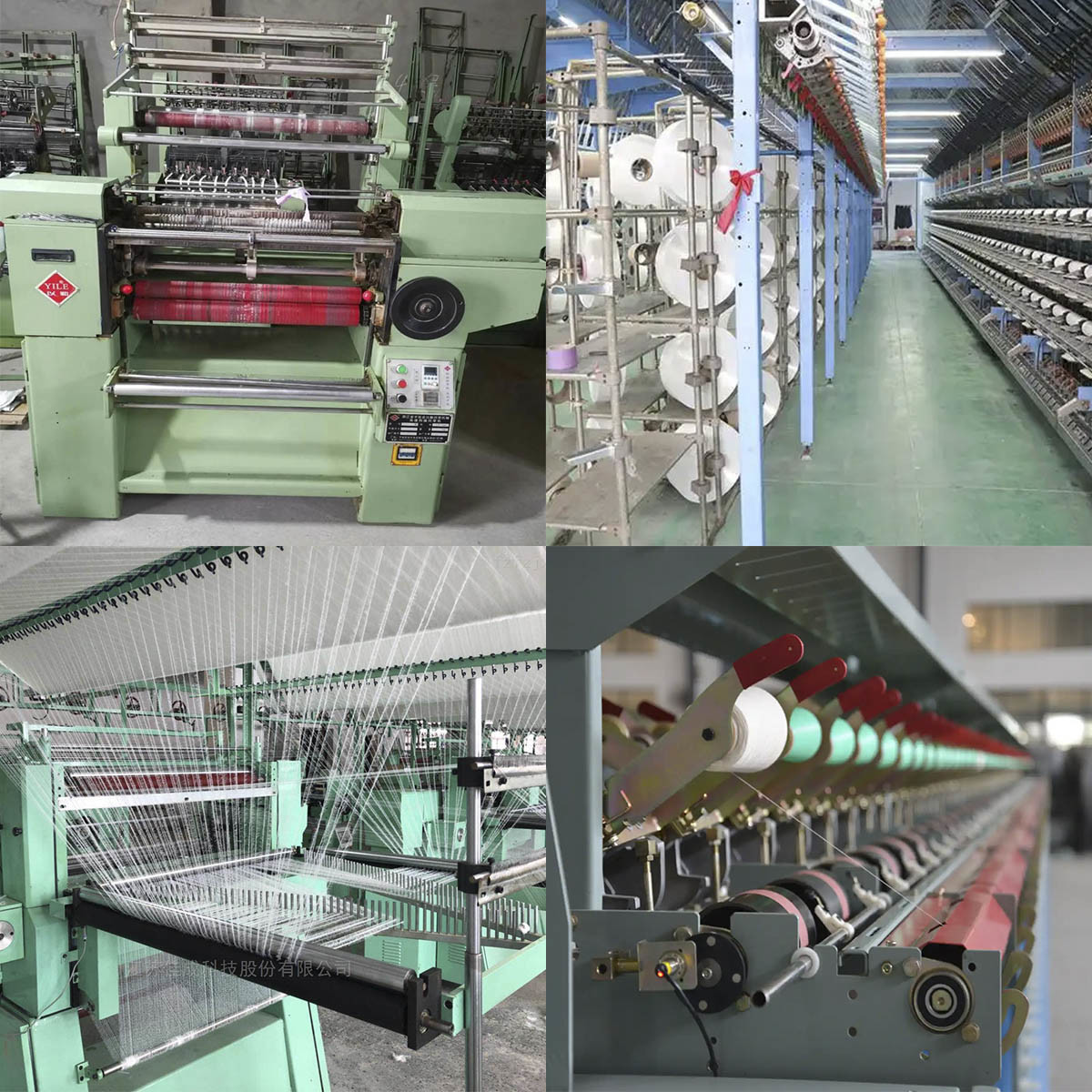

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
