7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine

7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine
7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 7.5kW Vfd
Voltage: 380V Vfd Type: AC Drives Vfd
Model: Z2400-7R5G/11P Input Frequency: 50/60Hz
Frequency Range: 0-600Hz；0-320Hz Application: Woodworking Engraving Machine
Onboard PID: It Realizes Process-controlled Closed Loop Control System Easily VF Curve: Line V/F Curve；Multi-point V/F Curve；N-power V/F Curve
Speed Range: 1:100(SVC)
Highlight:

7.5kw Vfd Drives

,

Woodworking Engraving Machine Vfd Drives

,

380v Vfd Drives

Z2000 English Catalog.pdf

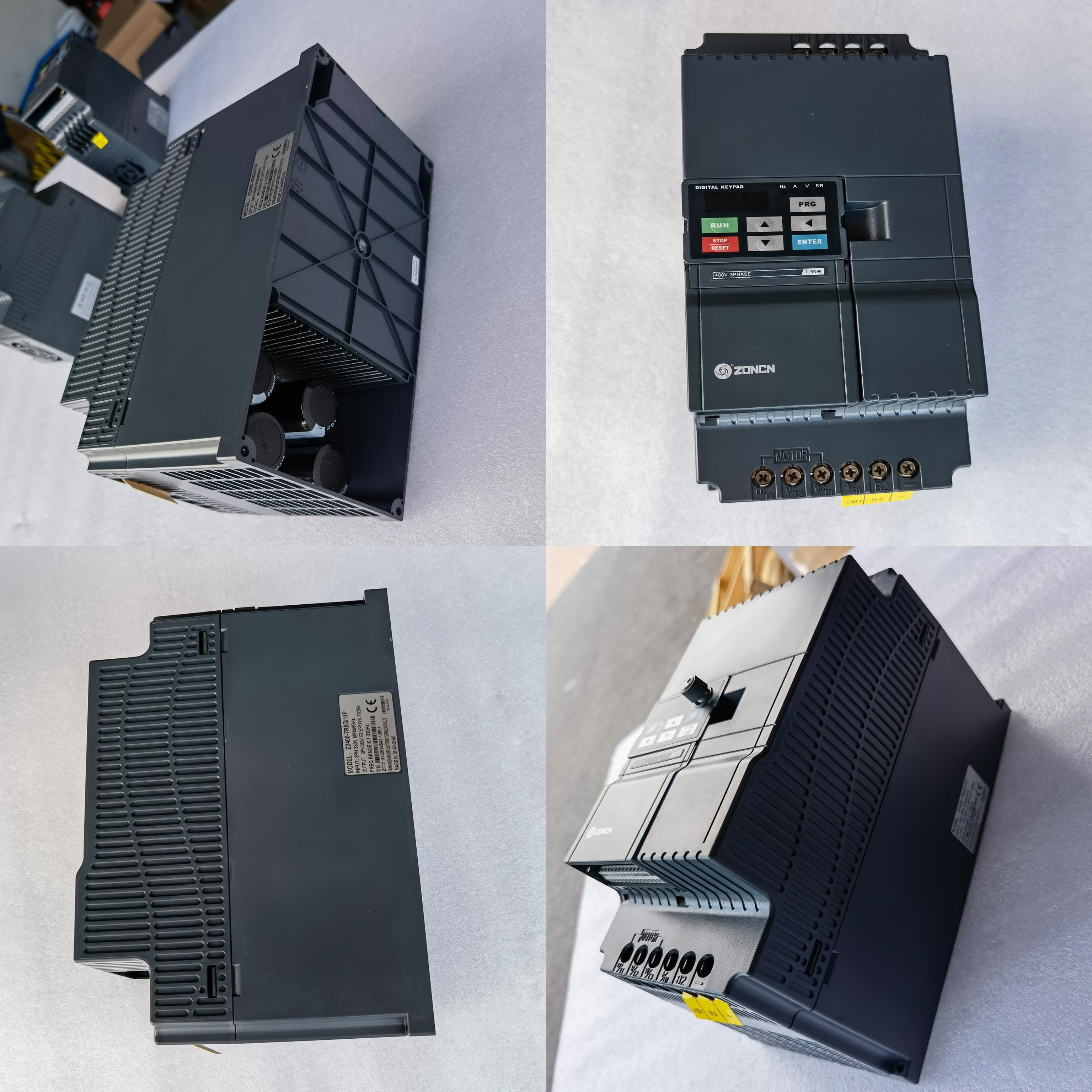

VFD ZONCN Z2000 Series 7.5KW For Woodworking Engraving Machine

Basic product introduction:

ZONCN's Z2000 vfd inverter is a high-performance, versatile AC motor speed regulating device for a wide range of applications, especially for woodworking engraving machines. In the field of woodworking engraving machines, the Z2000 vfd inverter shows excellent performance and stability. In order to better meet the needs of woodworking engraver, ZONCN vfd also offers professional woodworking engraver software, which makes the commissioning process simple and easy to operate. Users can easily set and adjust the operating parameters of the engraving machine through the software, so as to achieve efficient and accurate engraving operations.

The Z2000 vfd inverter also has a variety of other protective measures, such as short circuit protection, undervoltage protection, etc., to ensure the stable operation of the equipment under various extreme conditions. These protection functions not only improve the reliability of the inverter, but also extend the service life of the equipment.
To sum up, ZONCN's Z2000 vfd inverter has a wide range of application prospects in the field of woodworking engraving machines, and its professional software support and powerful protection functions make it an ideal choice for users.


Technical Specification:

ItemZ2000 series vfd inverter
Control modeSenseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequencyVector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solutionDigital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100
Speed stability accuracy±0.5%
Overload capacityG type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureLine V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separationTwo types: complete separation; half separation
Ramp modeStraight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG controlJ0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive vfd


7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 0


Product wiring diagram:

7.5kw Vfd Drives Frequency Inverter Low Voltage 380v For Woodworking Engraving Machine 1

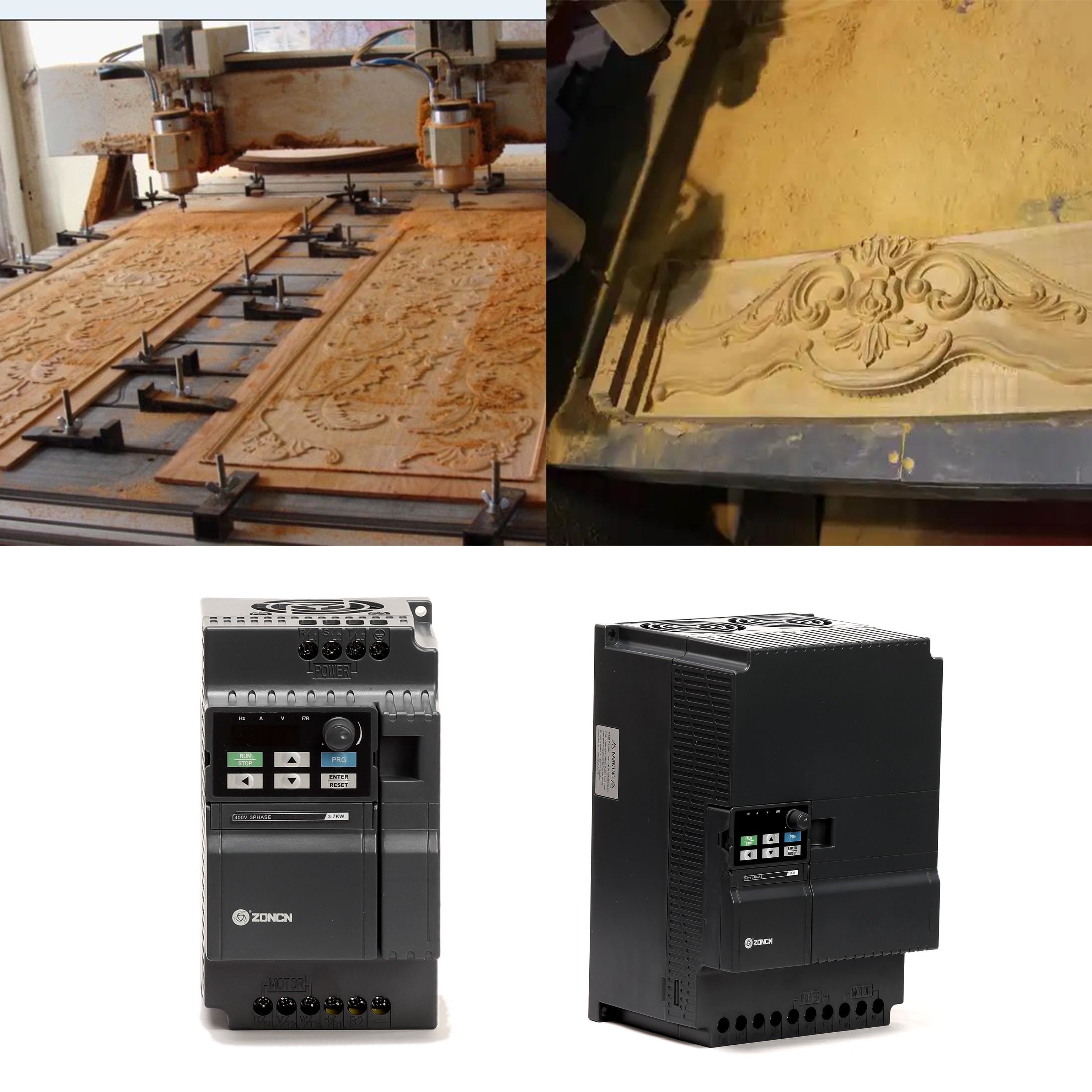

Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
