Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive

Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive
Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: Z8200-3R7G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverters Product Name: VFD Inverter
Brand: ZONCN Series: Z8000 High Performance Series
Input Voltage: 220v 380v 690v Communication: RS485
Communication: Profibus Control Mode: V/F Control
Control Mode: Cloose Loop Vector Control
Highlight:

3.7kw Inverter

,

10hp Inverter

,

Single Phase 220v Inverter

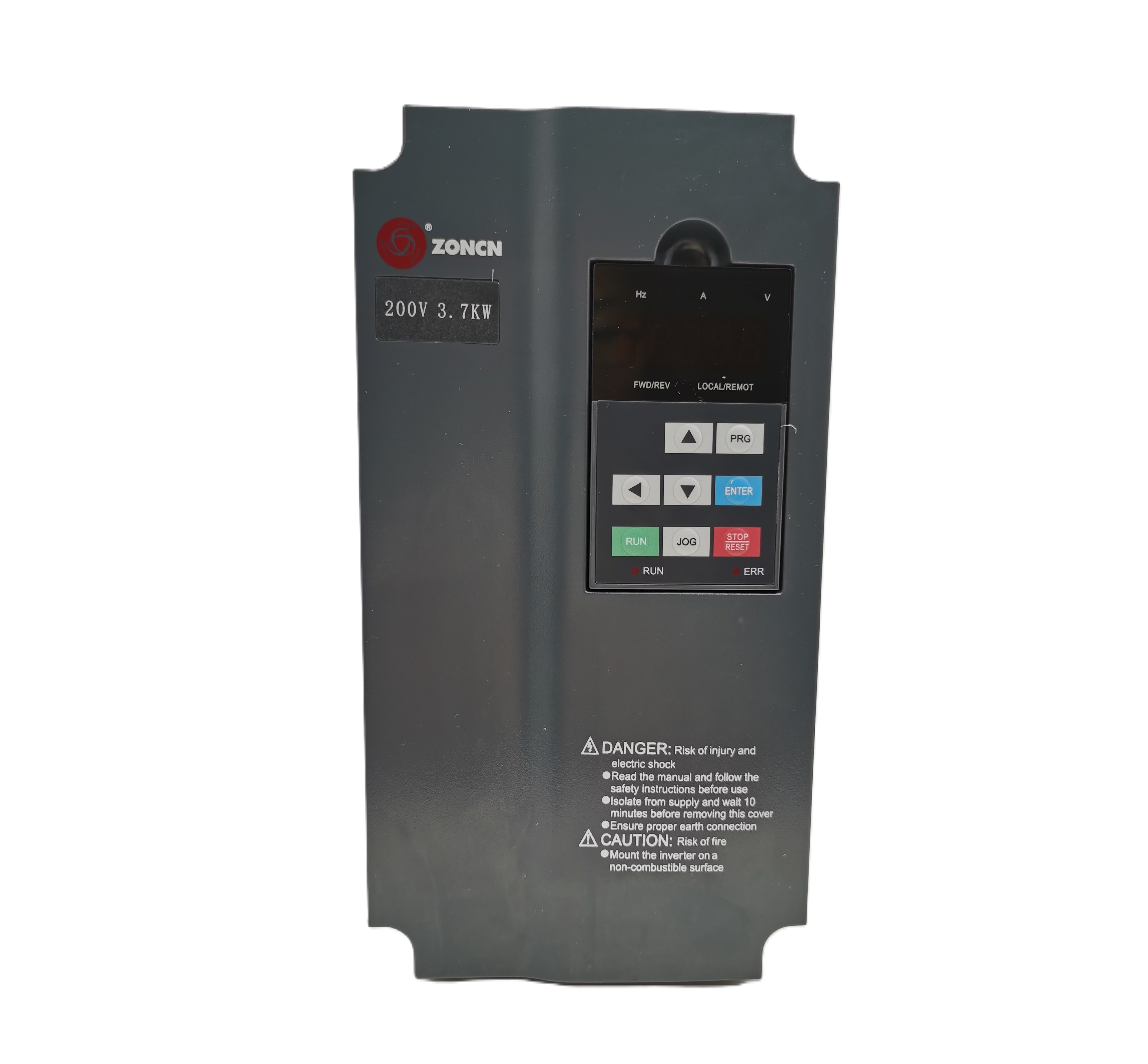

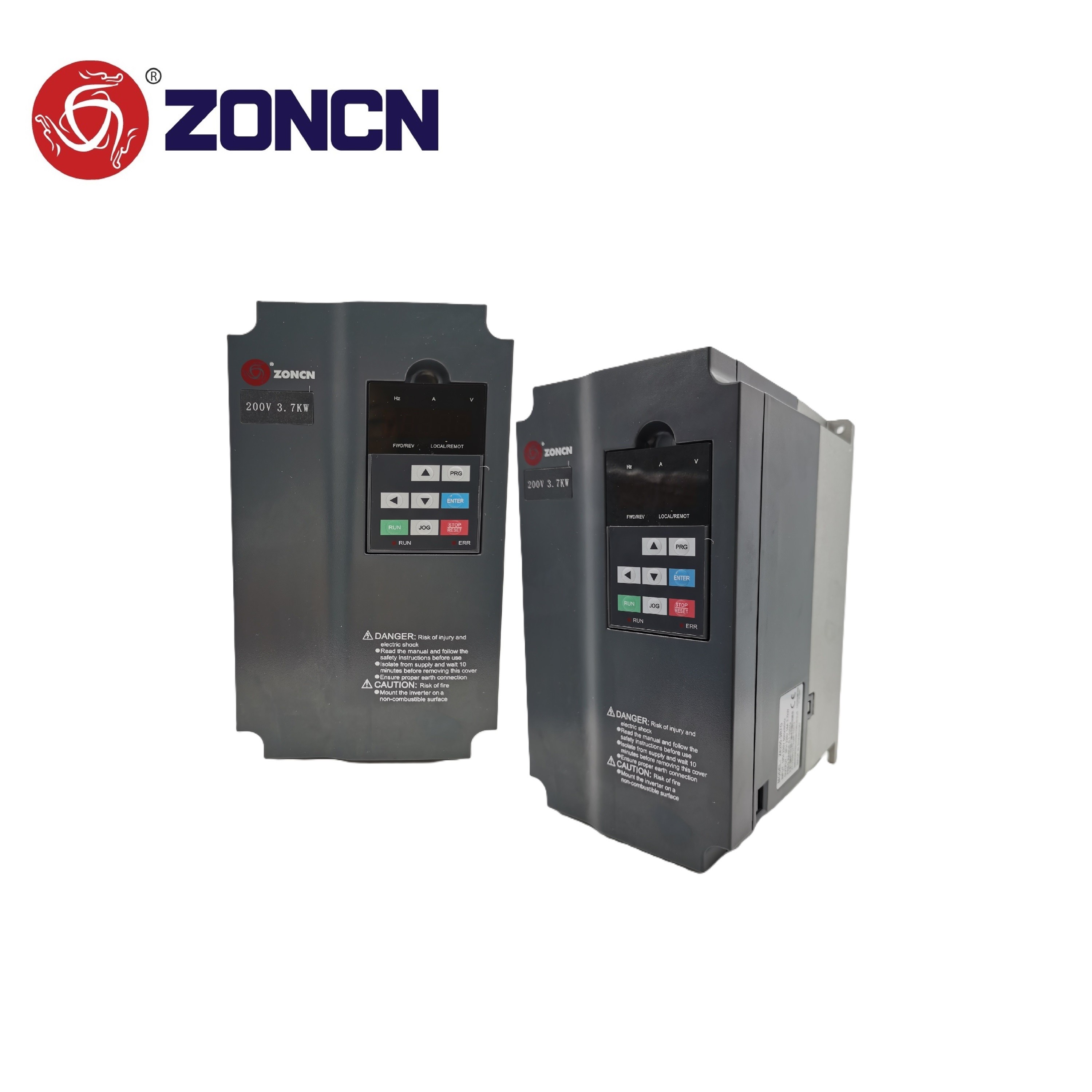

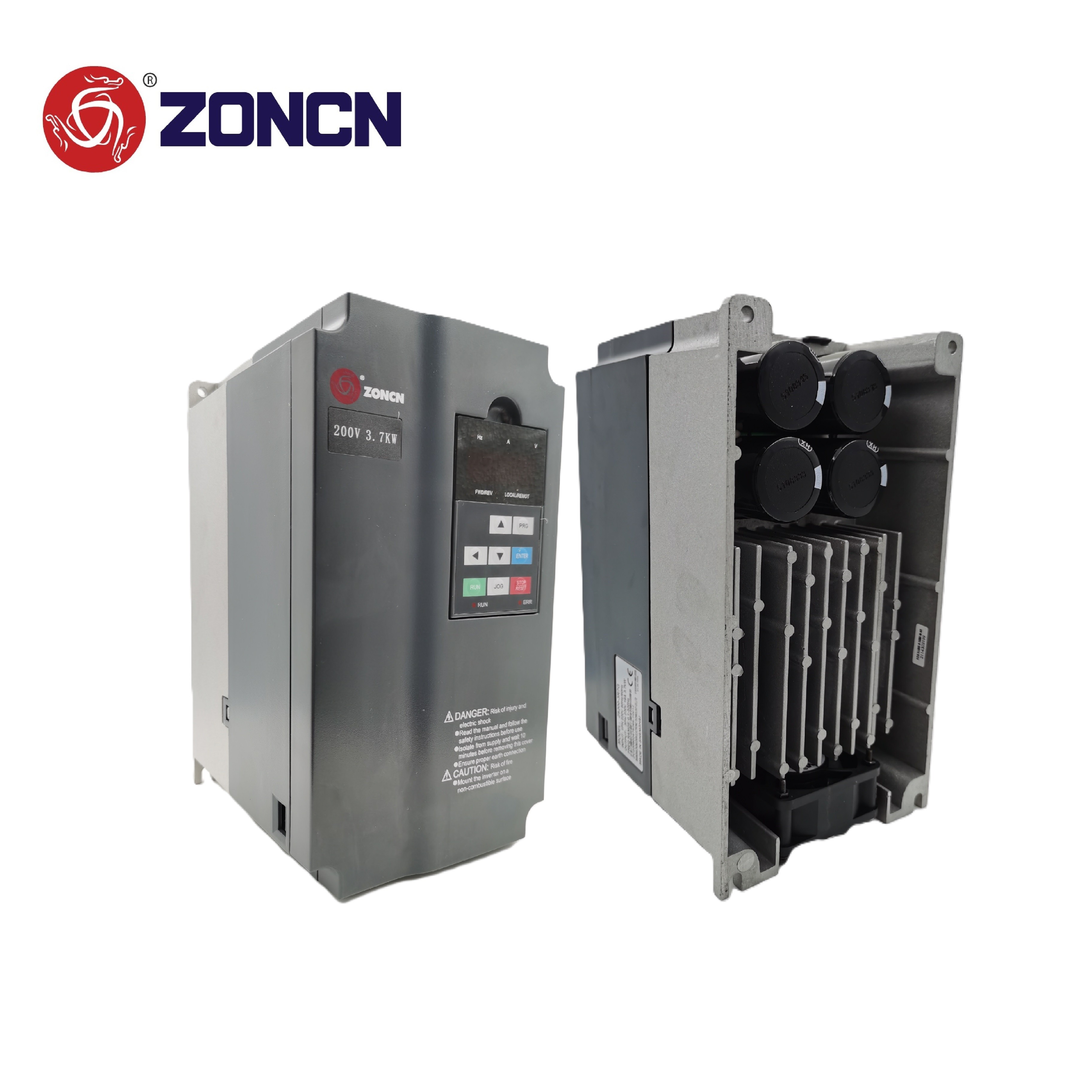

Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive







Z8000 VFD Introduction





Z8000 VFD is ZONCN's high performance close loop vector control VFD series, power range from 0.4kw to 100kw for 220v, 380v and 690v voltages. Our other hot selling are NZ100, NZ200, Z2000, T9000, Z5000-BF, etc.



Z8000 series VFD support for various PG cards. Support RS485 and profibus communication. Support Permanent magnet synchronous motor.



Z8000 series VFD have tension control, on board PID control.



Z8000 VFD Specification

VFD Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z8200-0R4G 0.4 5.4 2.5 0.4
Z8200-0R75G 0.75 7.2 5 0.75
Z8200-1R5G 1.5 10 7 1.5
Z8200-2R2G 2.2 16 11 2.2
Z8200-3R7G 3.7 23 16.5 3.7
Input Voltage:3PH AC 380V±15%
Z8400-0R75G 0.75 3.8 2.5 0.75
Z8400-1R5G 1.5 5 3.7 1.5
Z8400-2R2G 2.2 5.8 5 2.2
Z8400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z8400-5R5G/7R5P 5.5 15 13 5.5
Z8400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z8400-11G/15P 11/15 26/35 25/32 11/15
Z8400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z8400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z8400-22G/30P 22/30 46/62 45/60 22/30
Z8400-30G/37P 30/37 62/76 60/75 30/37
Z8400-37G/45P 37/45 76/90 75/90 37/45
Z8400-45G/55P 45/55 90/105 90/110 45/55
Z8400-55G 55 105 110 55
Z8400-75G/90P 75/90 140/160 150/176 75/90
Z8400-90G/110P 90/110 160/210 176/210 90/110
Z8400-110G/132P 110/132 210/240 210/253 110/132
Z8400-132G/160P 132/160 240/290 253/300 132/160
Z8400-160G/185P 160/185 290/330 300/340 160/185
Z8400-185G/200P 185/200 330/370 340/380 185/200
Z8400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　
Z8400-1000G 1000 1800 1720 1000




VFD Nameplate Description

Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive 0




ZONCN Company Profile

Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive 1

Single Phase 220v 3.7kw Inverter 3 Phase 380v VFD 5hp 7hp 10hp Variable Frequency Drive 2




FAQ

Q1. Can i order one unit to test first?

A: no problem, our MOQ is 1PC.



Q2.  This Z8000 series VFD support Proibus communication?

A. Yes. We also have Z2000 series VFD support EtherCAT and T9000 VFD series support Profinet.



Q3. Can i be your ZONCN's agent in my country?

A. Yes, why not. Feel free to contact us for the detail negotiations.



Q4. Can you print my logo on your VFD drives?

A. No problem if the quantity can meet the requirements.
