VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485

VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485
VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485
Basic Information
Place of Origin: CHINA
Brand Name: ZONCN
Certification: CE
Model Number: T200
Minimum Order Quantity: 1
Packaging Details: Carton Packaging
Delivery Time: within 15 days
Payment Terms: T/T, Paypal
Supply Ability: 100000 per month
Get Best Price Contact Now
Type: AC Inverter Product Name: Frequency Inverter VFD
Brand: ZONCN Series: T200
Power: 0.4kw-55kw Voltage: 3PH AC380V±15%
STO: Yes EMC Filter: Yes
Communication: RS485/EtherCAT/Profibus/Profinet/Canopen
Highlight:

RS485 Inverter ZONCN

,

220v Inverter ZONCN

,

1hp 2hp Inverter ZONCN

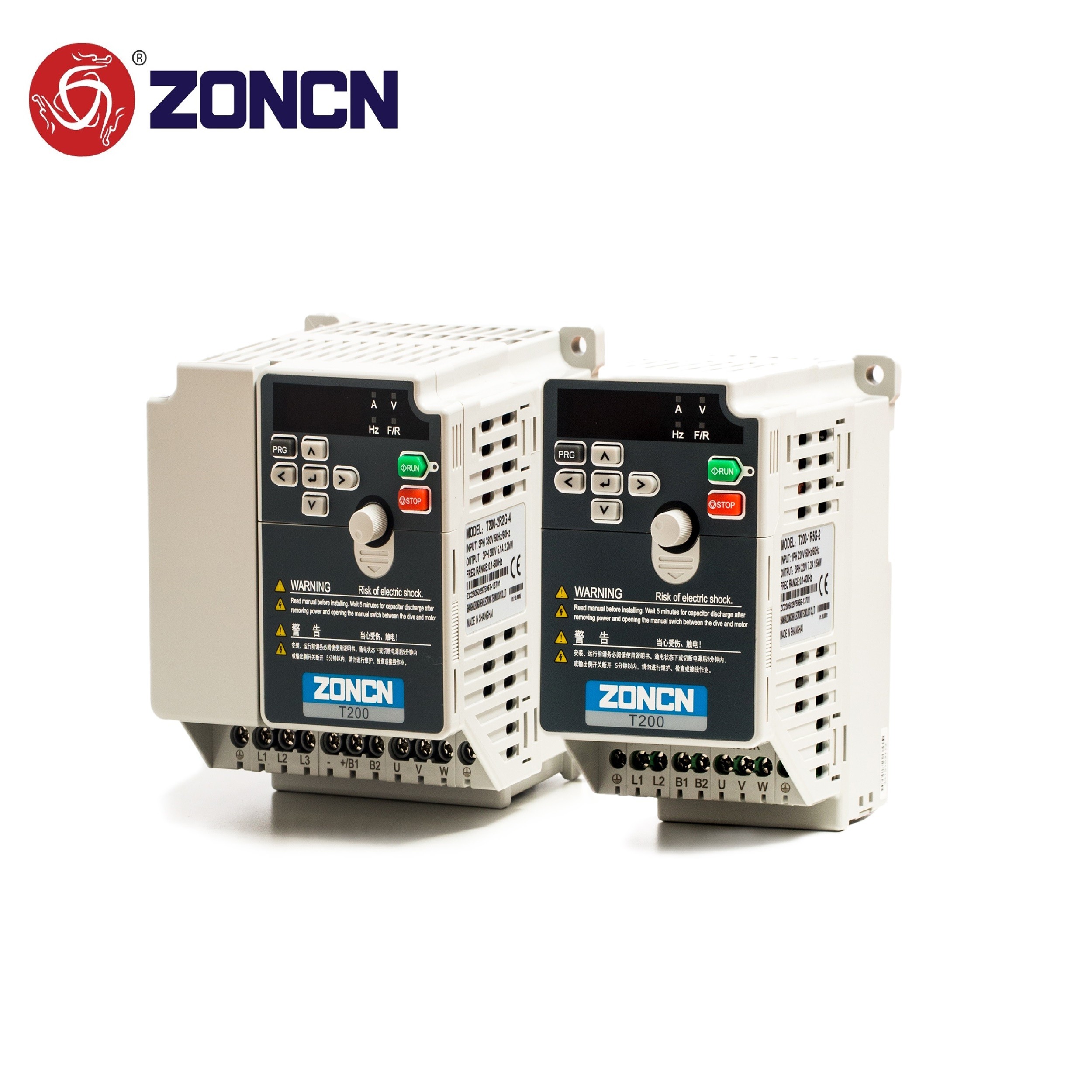

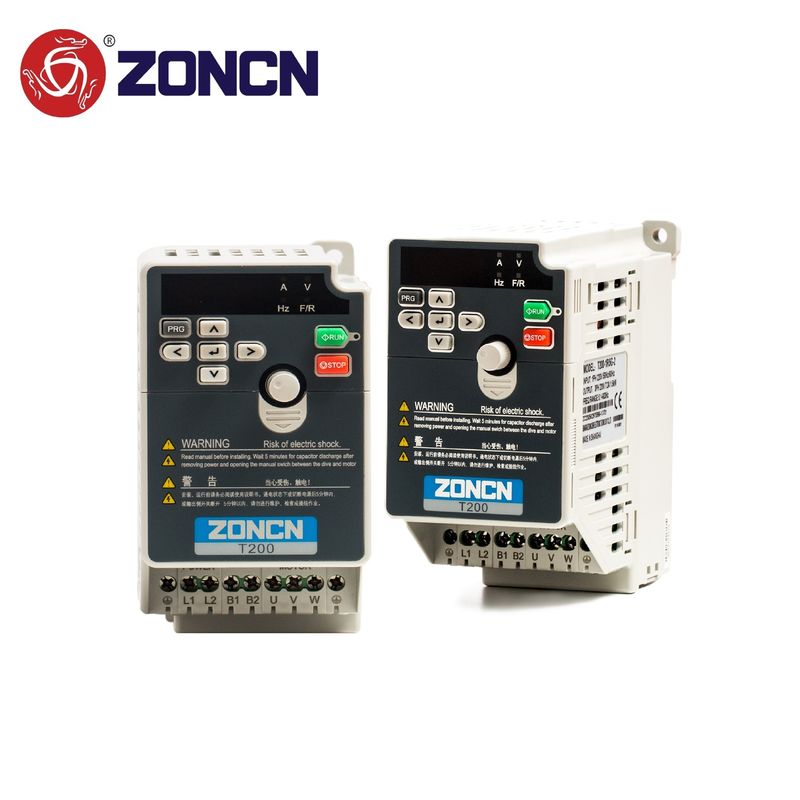

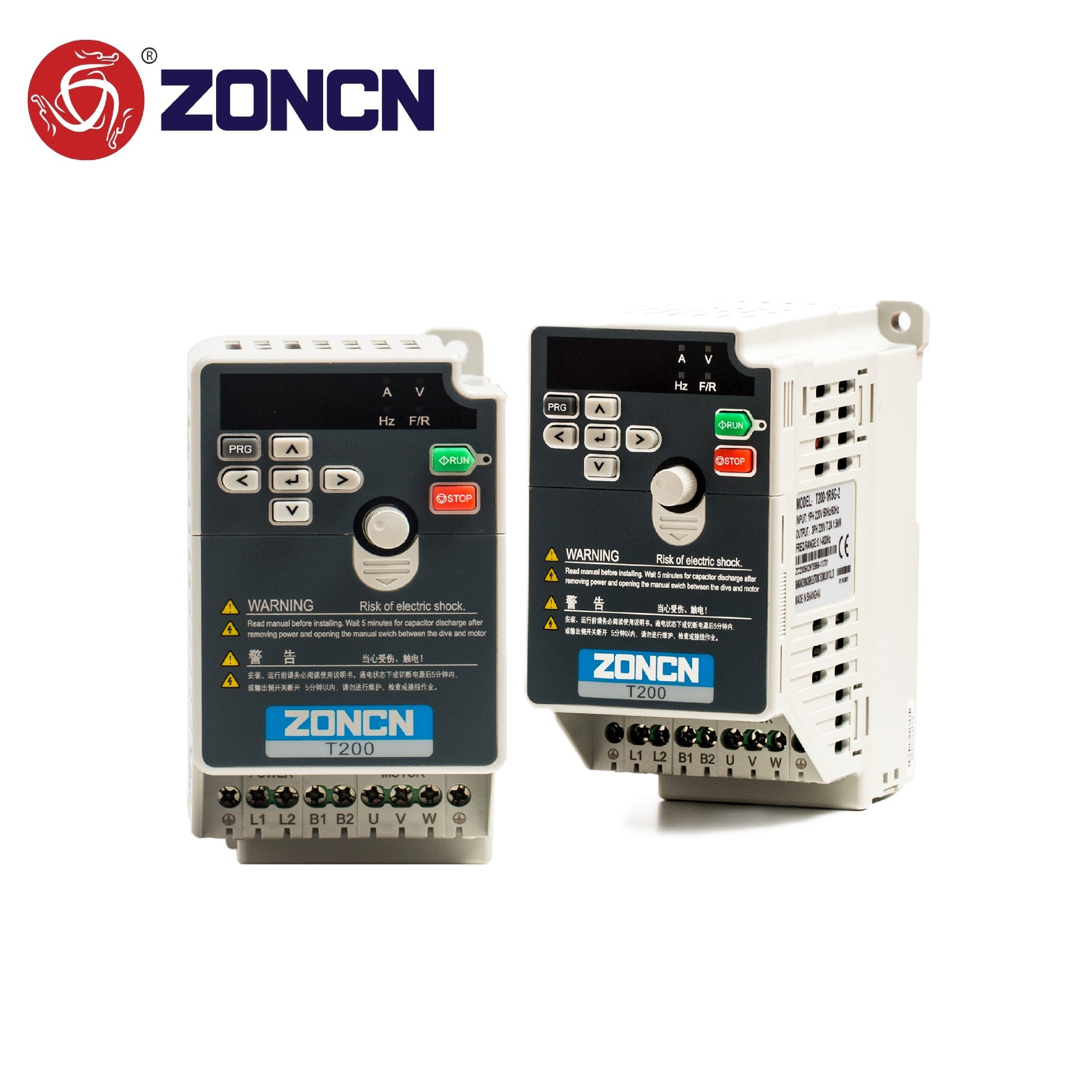

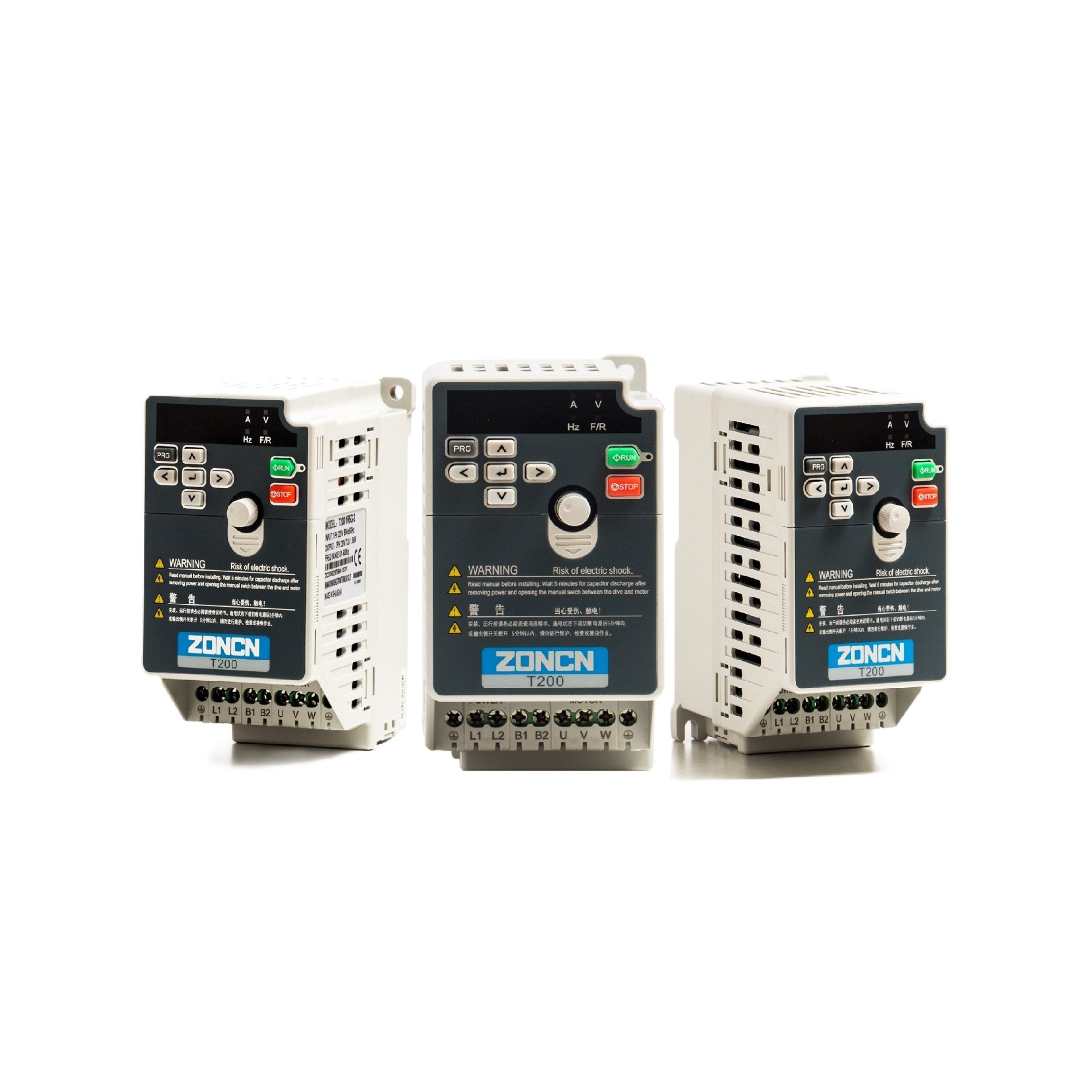

VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485







ZONCN T200 Inverter Introduction



  Inverter Model Input voltage Rated output power (KW) Rated input current(A) Rated output current (A) Motor power (KW)
T200-0R4G-2 1PH AC 220V+/-15% 0.4 5.4 2.1 0.4
T200-0R75G-2 0.75 7.2 3.8 0.75
T200-1R5G-2 1.5 10 7.2 1.5
T200-2R2G-2 2.2 16 9 2.2
T200-3R7G-2 3.7 23 13 3.7
T200-0R4G-4 3PH AC 380V+/-15% 0.4 3.4 1.5 0.4
T200-0R75G-4 0.75 3.8 2.1 0.75
T200-1R5G-4 1.5 5 3.8 1.5
T200-2R2G-4 2.2 5.8 5.1 2.2
T200-3R0G-4 3 8.5 7.2 3
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20.0/26.0 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/92 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75





ZONCN T200 Inverter Features

  • cost-effective
  • micro compact design
  • Easy to use and install
  • DIN Rail mount, RJ45 interface keypad cable
  • Safe torque off feature
  • Built-in EMC filter
  • 24V DC input
  • V/F, sensorless vector control, closed loop vector control mode
  • Frequency range:0-599Hz



VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485 0





FAQ:

Q1, Can you produce for my own logo?

A. Yes, we have produced a lots of OEM brands inverter both for domestic and abroad markets.



Q2, Can i order 1 unit of inverter sample to test first?

A. Yes, our MOQ is 1 unit. You can test first before formal order.



Q3, Do you provide any technical support for your inverters?

A. Yes, if you have any technical question before or after sales for our VFD inverters, pls feel free to contact us, we will help you.



Q4. How about your vfd inverter's warranty time?

A. We have 18 months warranty for all our inverters.






Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
