Three Phase Inverter 380v Variador De Frecuencia 220v 1hp 2hp VFD VSD

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	T9400-1R5G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Frequency Inverter	Brand:	ZONCN
Manufacturer:	ZONCN	Series:	T9000
Voltage:	380v/440v/480v	Power:	0.75kw/1.5kw(1hp/2hp)
Potentionmeter:	Have	24V Power Supply:	Have
Highlight:	220v 1hp 2hp Inverter , Three Phase Inverter 380v , 220v 1hp 2hp VFD VSD

Three Phase Inverter 380v Variador De Frecuencia 220v 1hp 2hp VFD VSD

ZONCN Inverter Description

T9000 is ZONCN's general purpose series inverter, power ranges from 0.4kw to 450kw, voltage for 220v/440v/480v are all available. T9000 series inverters have been used in all kinds of industrial applications for automation sollutions.

T9000 inverter is vector control with good performance and price. It has 24V power supply terminal, and support RS485 and Profinet communication. For powers below 5.5kw, the keypad is removable, and there is potentionmeter which can adjust the speed easily.

ZONCN is Top 5 inverter manufacturer with 19 years of experience in China. We have researched and developed different series according to the applications. Eg. we have NZ100 series mini inverter with low cost, we have NZ200 series vector control with economic price, we have Z8000 high performance which support 690v and profibus communication. And we have Z5000-BF high protection waterproof series which can be used in bad environment.

ZONCN T9000 Inverter Model

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Due to space limitation, please contact us for powers above 110kw

ZONCN Inverter Nameplate Description

Three Phase Inverter 380v Variador De Frecuencia 220v 1hp 2hp VFD VSD 0

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

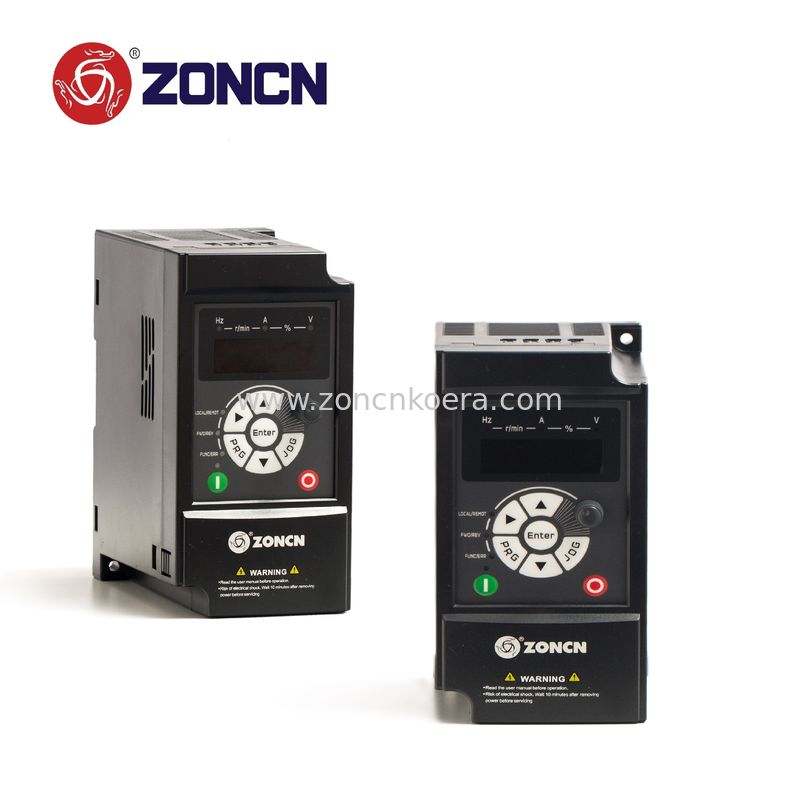

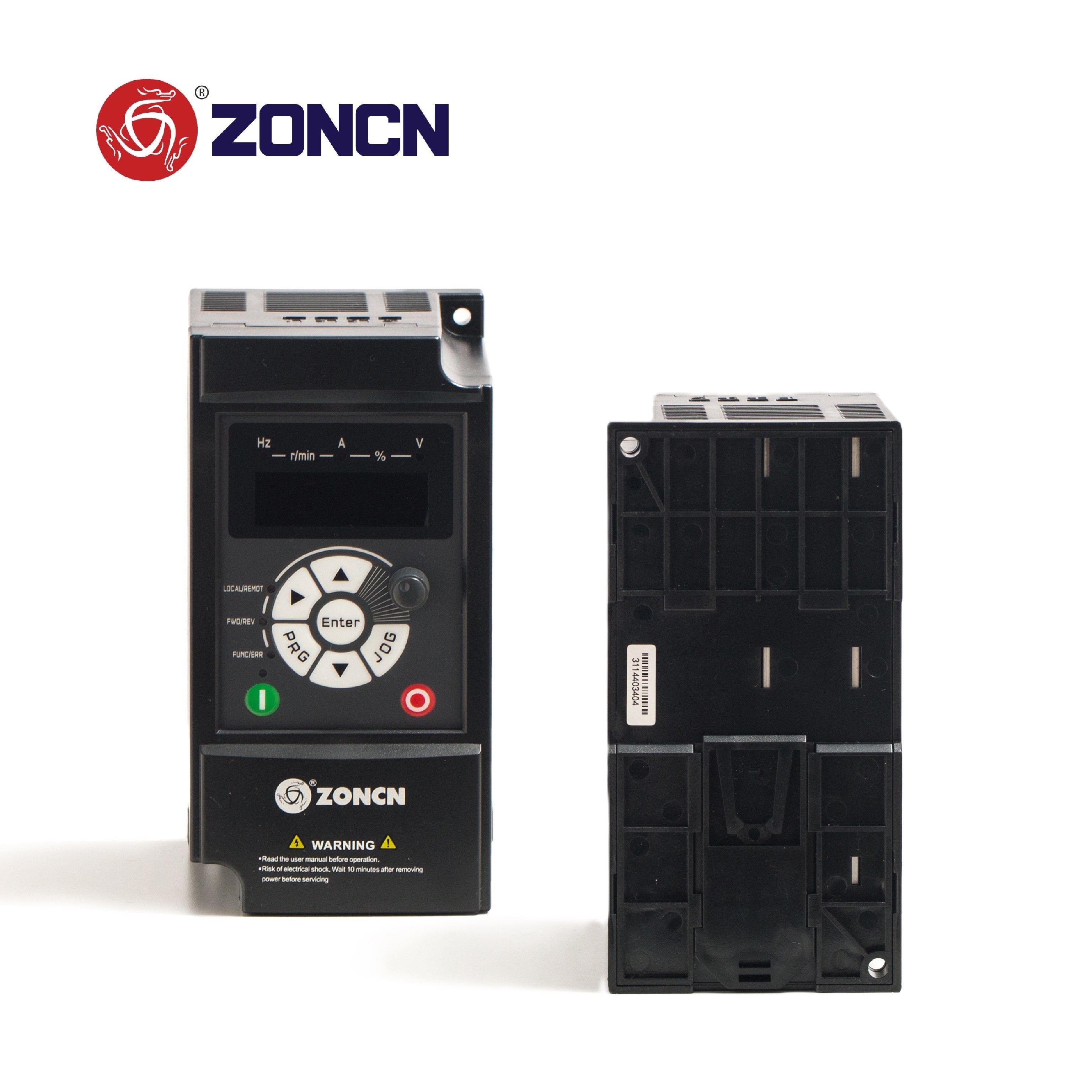

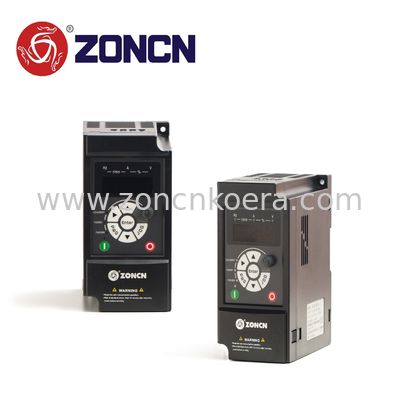

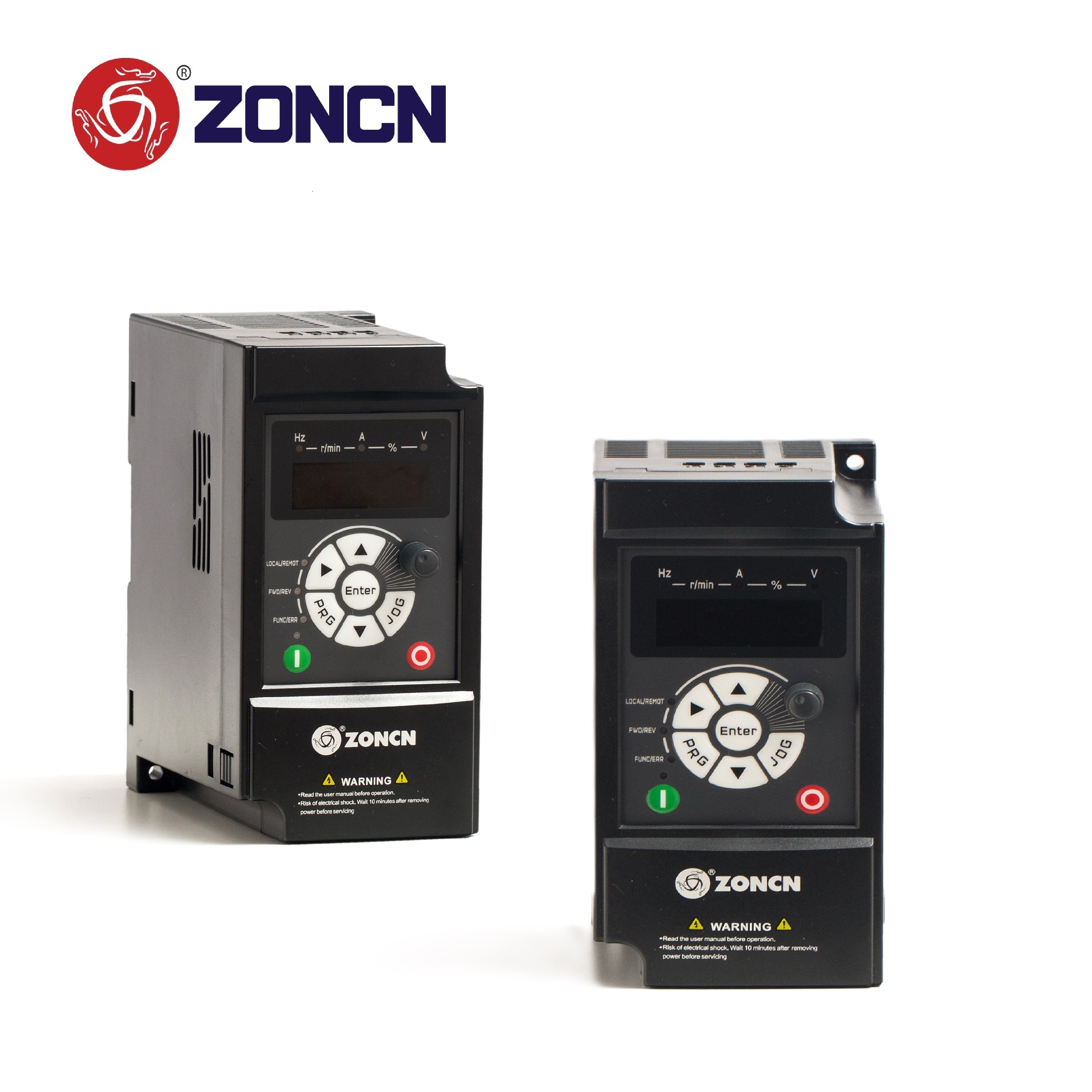

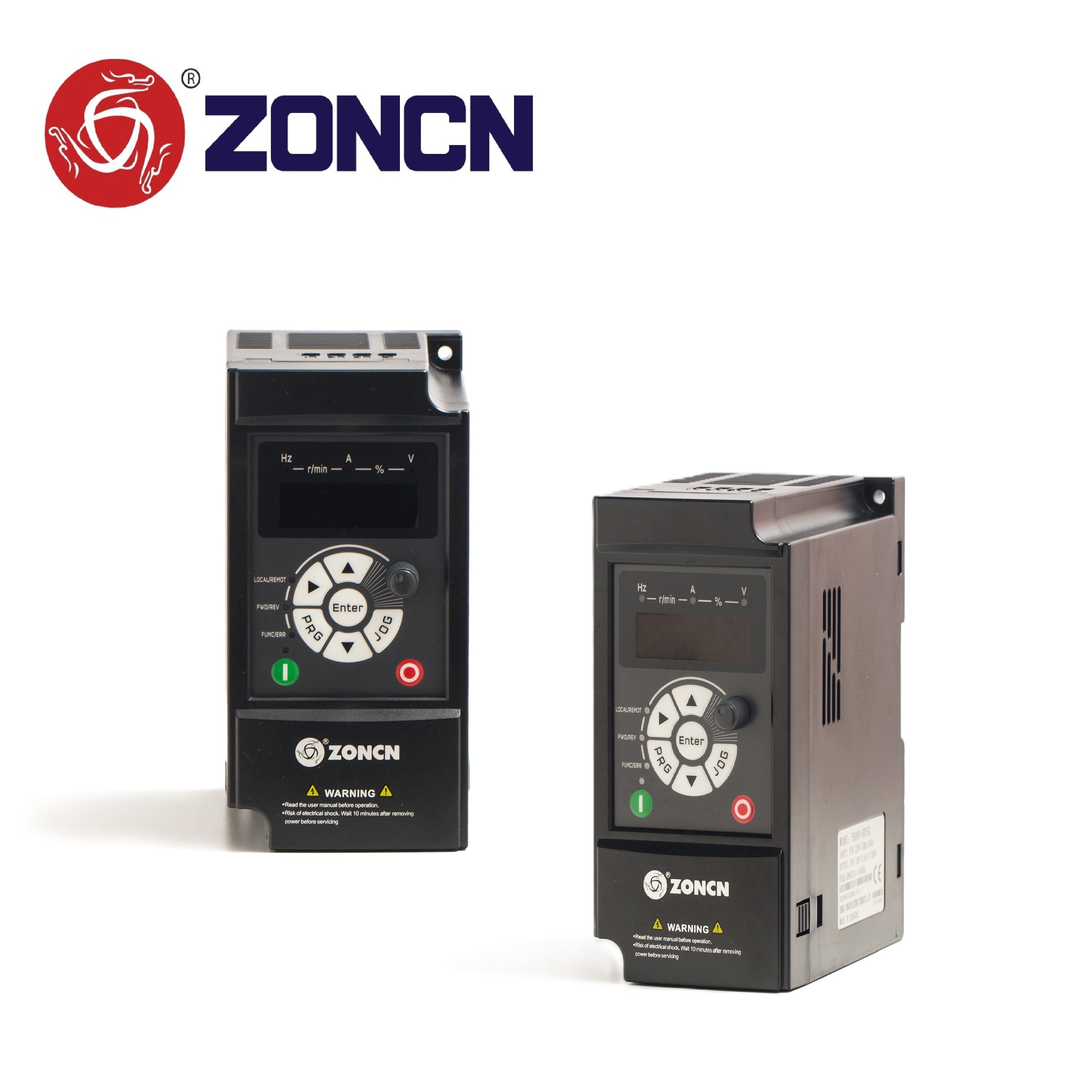

ZONCN T9000 inverter picture

Three Phase Inverter 380v Variador De Frecuencia 220v 1hp 2hp VFD VSD 1
