T9200 T9400 ZONCN T9000 Variable Frequency Drive VFD Inverter 220v 380v 3.7kw 5.5kw

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	T9400-3R7G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Variable Frequency Inverter	Brand:	ZONCN
Condition:	New And Original	Series:	T9000
Control Mode:	Open Loop/close Loop Vector Control	Voltage:	380v/440v/480v/690v
Power:	1.5kw/2.2kw/3.7kw/5.5kw/7.5kw	Lead Time:	15 Days Normally
Warranty:	18 Months	Certificate:	CE
Highlight:	5.5kw T9000 Inverter , 3.7kw T9000 Inverter , 220v T9000 Inverter

T9200 T9400 ZONCN T9000 Variable Frequency Drive VFD Inverter 220v 380v 3.7kw 5.5kw

T9000 Inverter Features

ZONCN T9000 Series--- Inverters for general purposes.

T9000 inverter's control mode: VF control+open loop vector control+close loop vector control.

Communication of T9000: standard RS485, also support Profinet.

24V power supply terminal: Have

Removable panel: Yes for powers below 5.5kw.

Inverter Voltage : 220v/380V/440V/480V

Inverter power range: 0.4kw-450kw

ZONCN T9000 Inverter Model

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Due to space limitation, please contact us for powers above 110kw

ZONCN Inverter Nameplate Description

T9200 T9400 ZONCN T9000 Variable Frequency Drive VFD Inverter 220v 380v 3.7kw 5.5kw 0

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

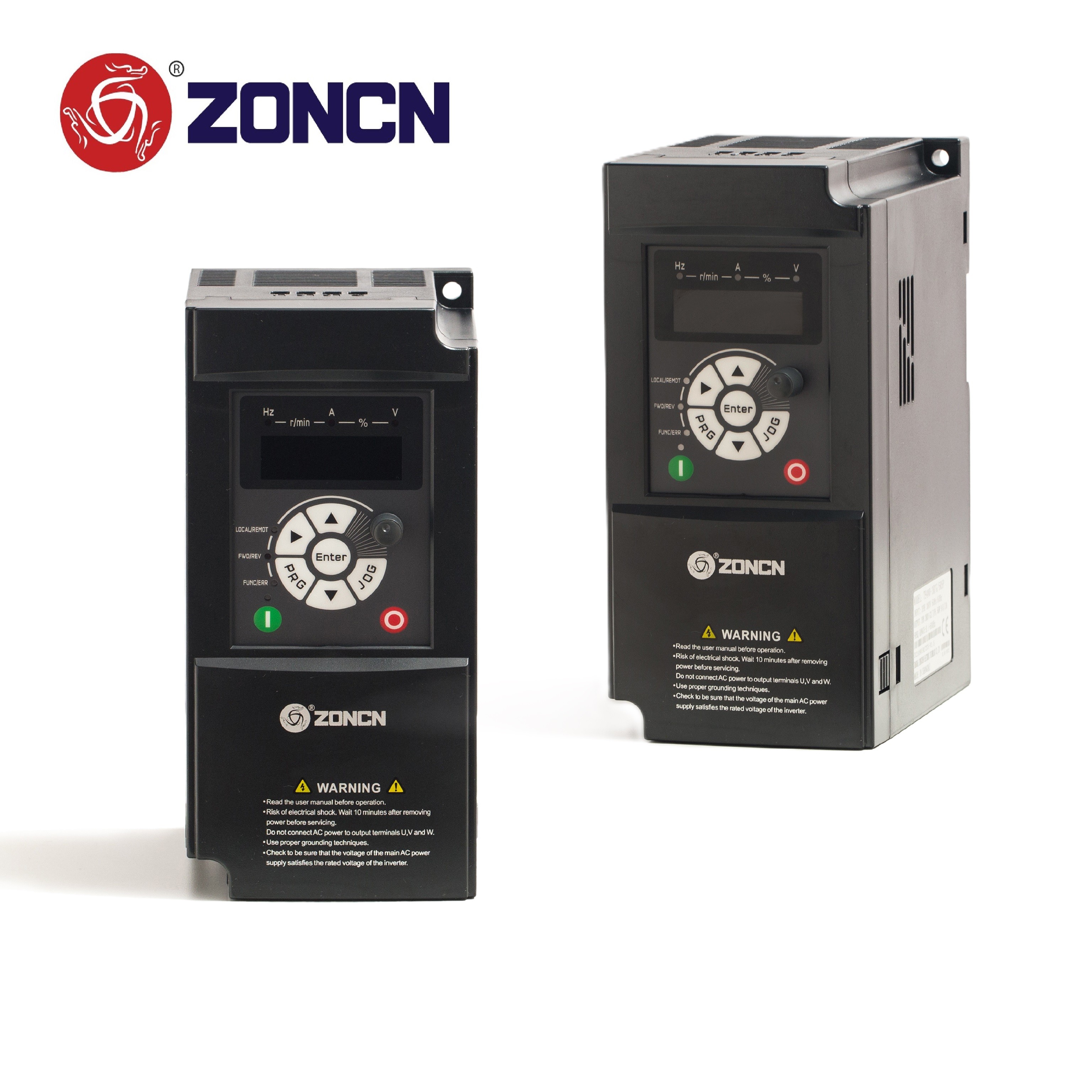

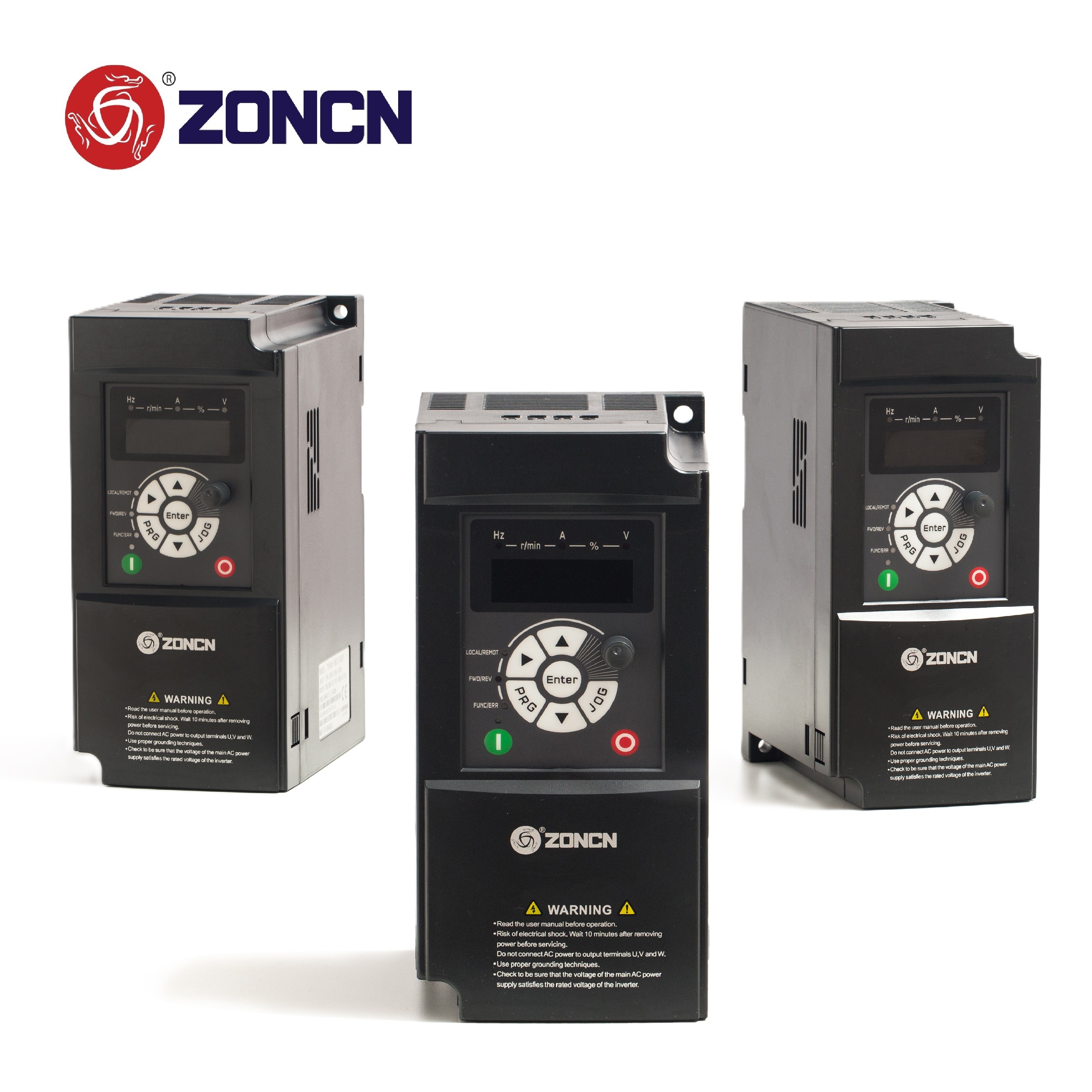

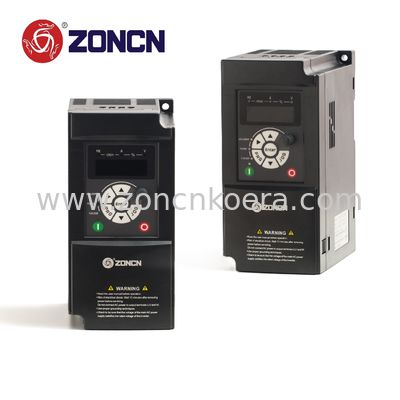

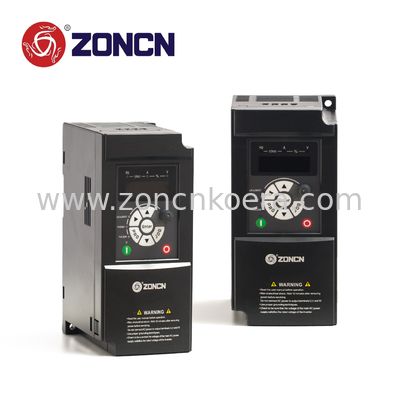

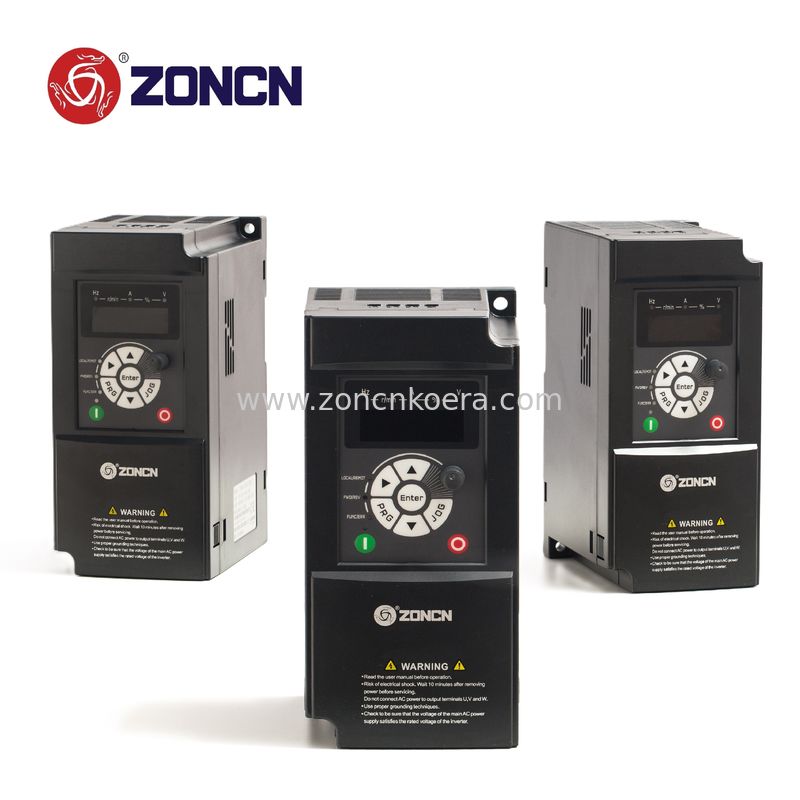

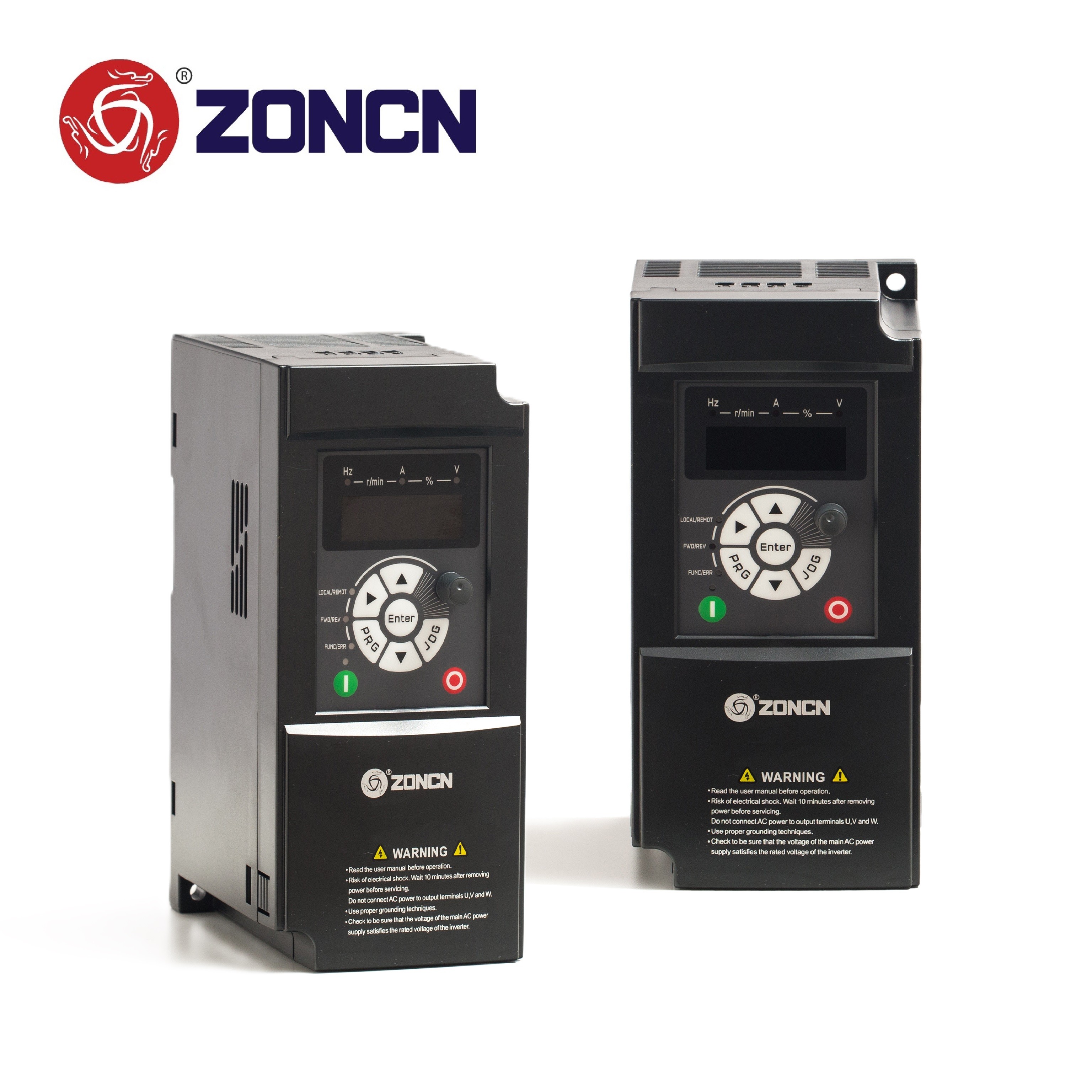

ZONCN T9000 inverter picture

T9200 T9400 ZONCN T9000 Variable Frequency Drive VFD Inverter 220v 380v 3.7kw 5.5kw 1

FAQ

Q1: Are you ZONCN direct factory?

A: Yes, all the inverters are 100 new and original ZONCN.

Q2. What is your inverter's lead time and warranty?

A: We mostly produce according to each customer's order, so the lead time normally takes about 15 days. And we have 18 months warranty after delivery.

Q3. Can you add my logo on your inverter?

A: Yes, if your order quantity can meet the customization quantity.
