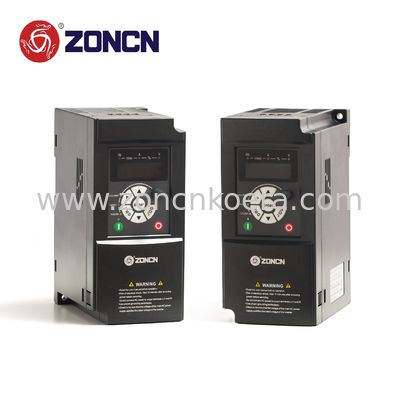

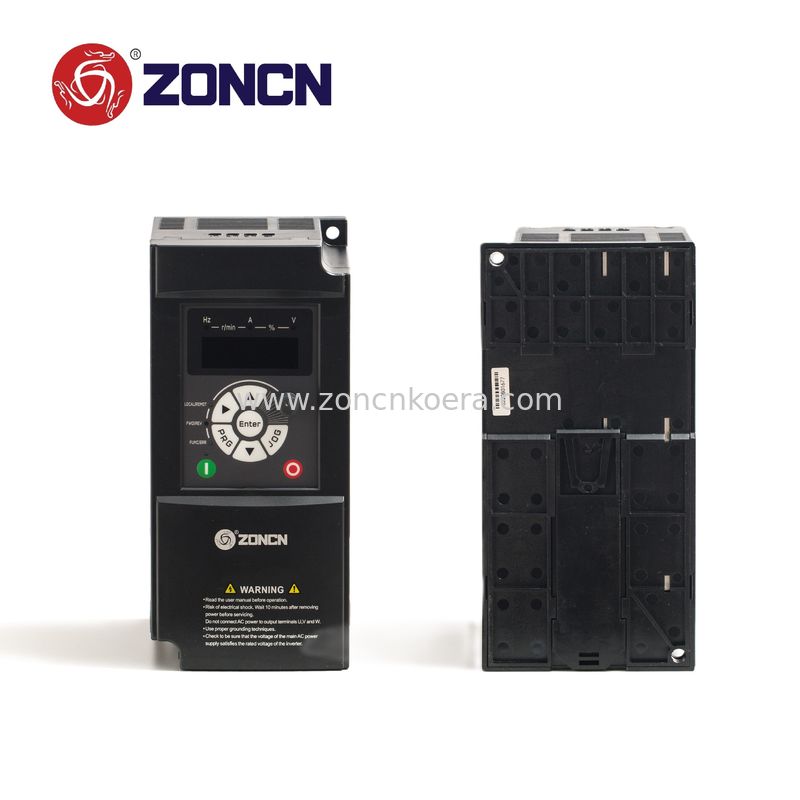

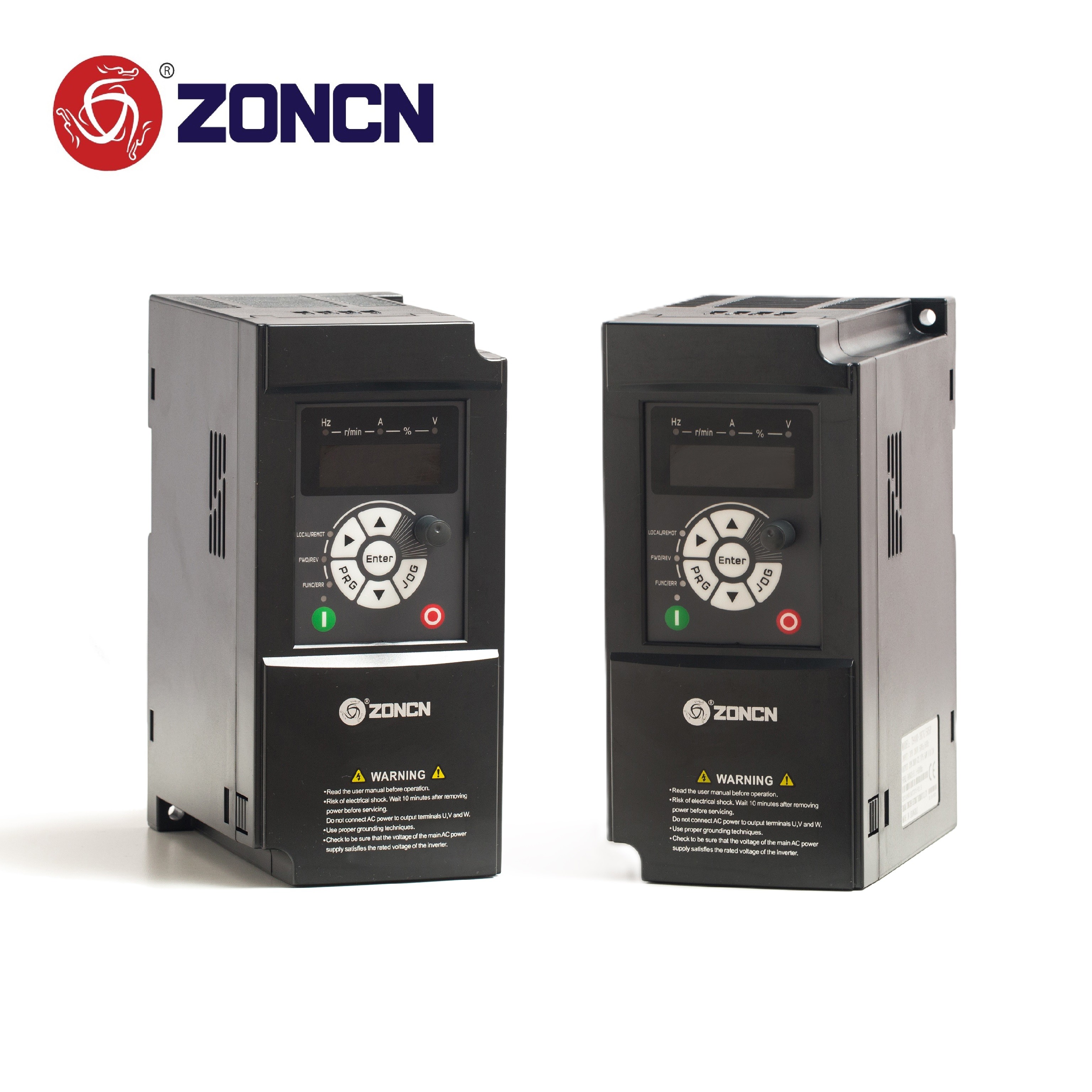

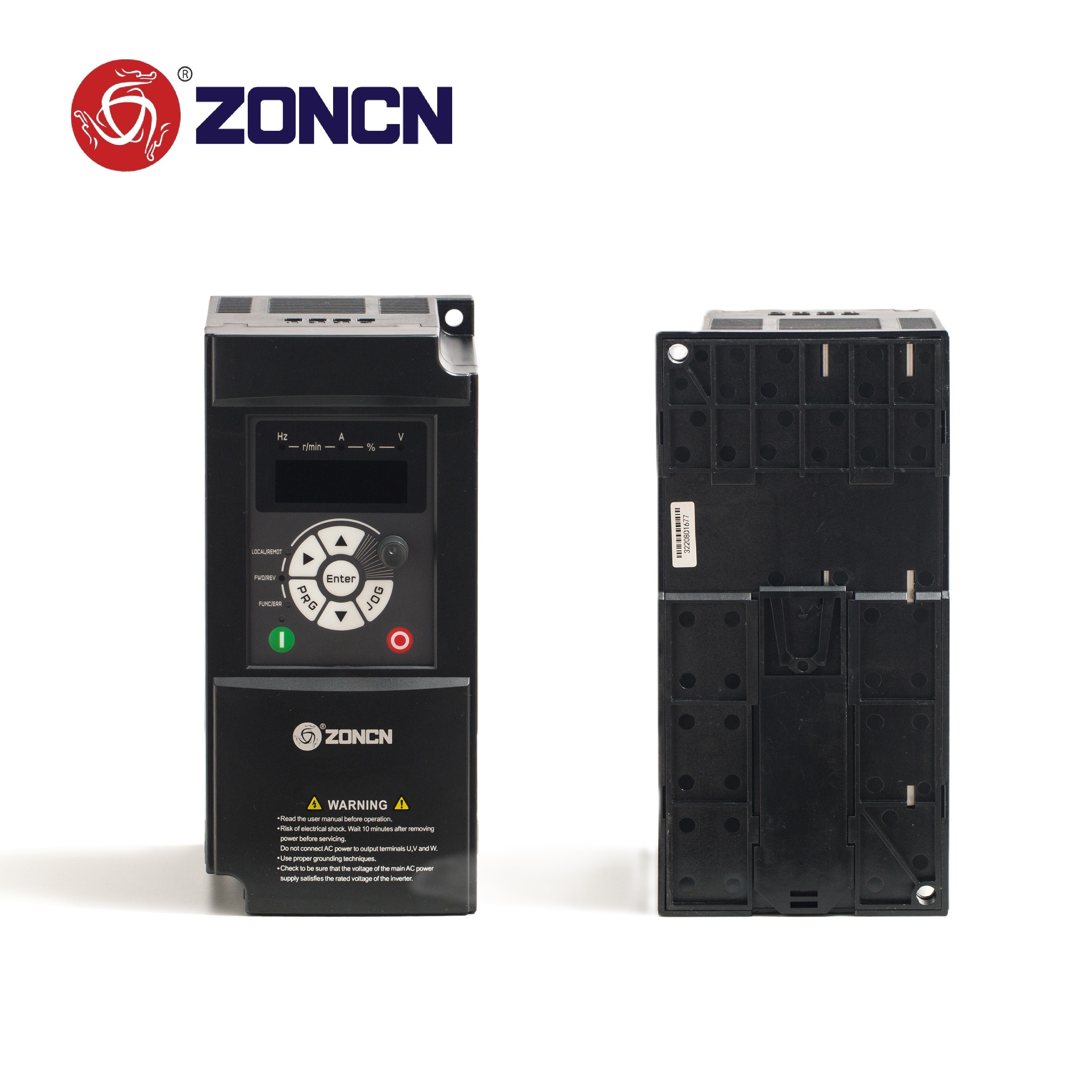

220v 380v VFD Inverter 1.5kw 2.2kw 3.7kw 5.5kw Variadores 1hp 2hp 3hp 5hp Drives

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	T9400-1R5G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Frequency Inverter	Product Name:	AC Variable Frequency Inverter
Brand:	ZONCN	Series:	T9000
Voltage:	220V/380V/440/V480V/690	Power:	0.75kw/1.5kw/2.2kw/3.7kw/5.5kw
Control Mode:	V/F+open/close Loop Vector Control	Packing:	Brown Carton/wooden Carton
Highlight:	220v 380v VFD Inverter , 3.7kw VFD Inverter , 5.5kw VFD Inverter

220v 380v VFD Inverter 1.5kw 2.2kw 3.7kw 5.5kw Variadores 1hp 2hp 3hp 5hp Drives

T9000 Inverter Features

VF control+close loop vector control+open loop vector control
Brake unit: Below 37kw built-in, 45kw and above optional
0.1S acceleration/deceleration
Removable panel: Below 5.5kw
24V power supply
DC braking
RS485/Profinet communication

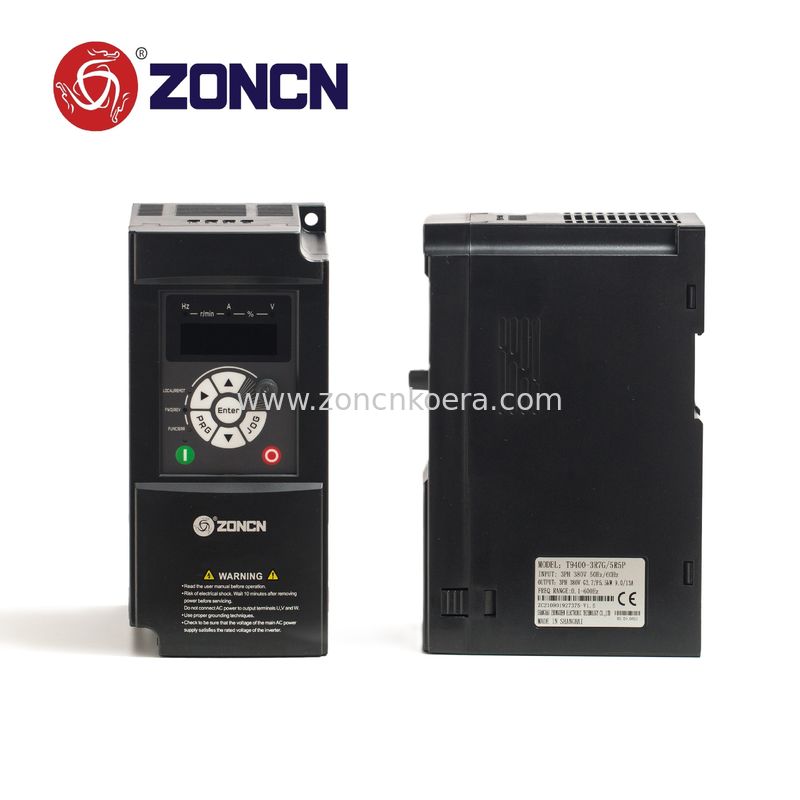

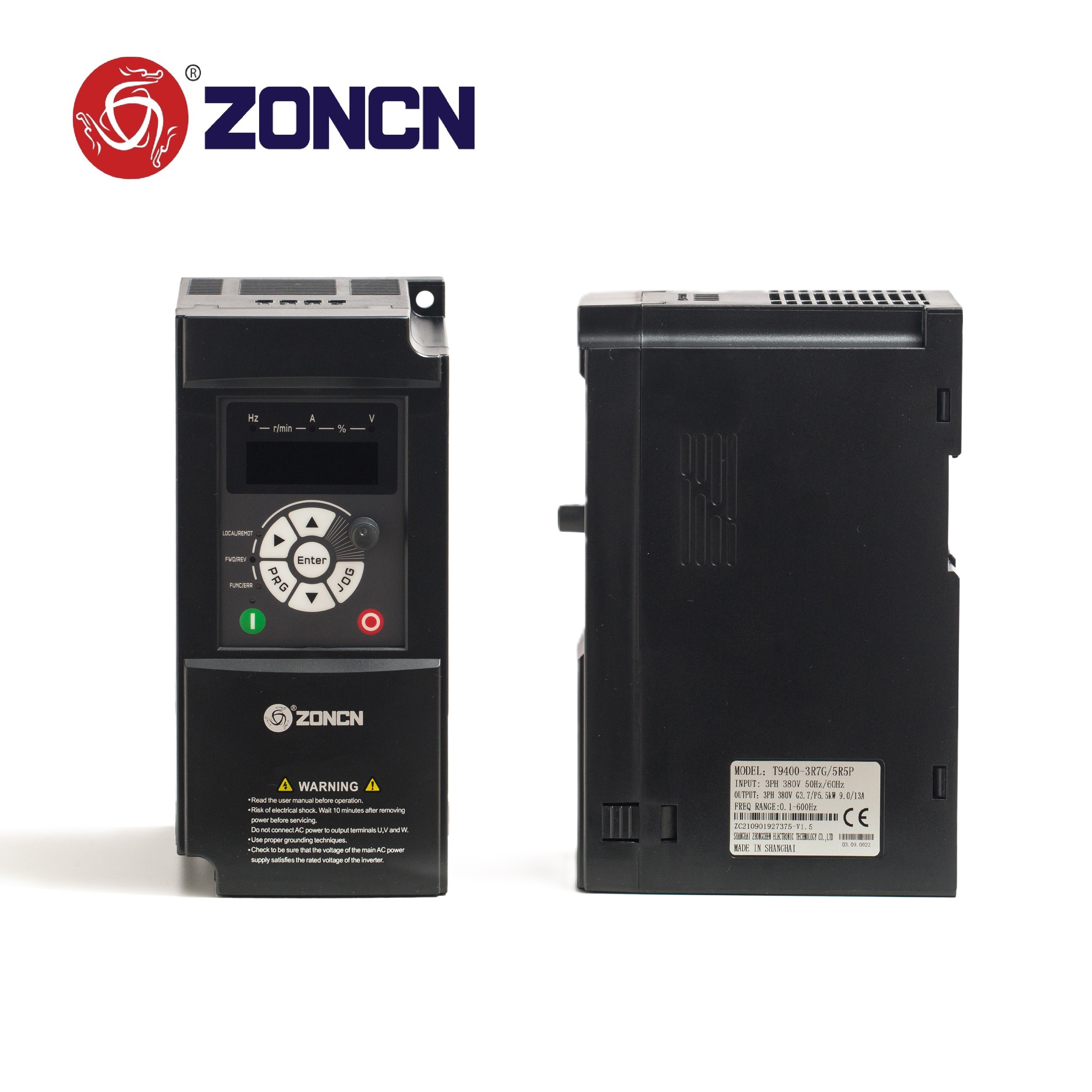

Nameplate Description

220v 380v VFD Inverter 1.5kw 2.2kw 3.7kw 5.5kw Variadores 1hp 2hp 3hp 5hp Drives 0

ZONCN T9000 Inverter Model

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Please contact us directly for inverter powers above 110kw

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

FAQ

Q1: T9000 series inverter is open loop control or close loop control?

A: ZONCN T9000 series inverter, except V/F control mode, it also has open loop vector control and close loop vector control.

Q2. Which communication of T9000 series inverter support?

A: ZONCN T9000 series support RS485 Modbus communication and Profinet communication.

Q3. Can you ship to my address by door to door?

A: Yes, we can ship by Express(UPS, Fedex) to you directly.

Q4. Does your inverters have warranty?

A: Sure, all our inverters have 18 months of warranty time.
