ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory

ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory
ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: T9400-5R5G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverter Brand: ZONCN
Condition: 100% New And Original Series: T9000
Control Mode: V/F Control+vector Control Voltate: 380v 3phase
Power: 5.5kw Communication: Support Profinet
24V Power Supply: Have
Highlight:

5.5kw ZONCN T9000

,

7.5kw ZONCN T9000

,

380v ZONCN T9000





ZONCN 220v 380v 3.7kw 5.5kw 7.5kw 11kw 15kw VFD Inverter From Shanghai Zhongchen





ZONCN T9000 Inverter Model

ZONCN T9000 Inverter Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9200-0R4G 1PH AC 220V±15% 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
T9400-0R4G 3PH AC 380V±15% 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62/76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110
T9400-110G/132P 110/132 214/256 210/253 110/132
★Due to space limitation, please contact us for powers above 110kw







ZONCN Inverter Nameplate Description



ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory 0

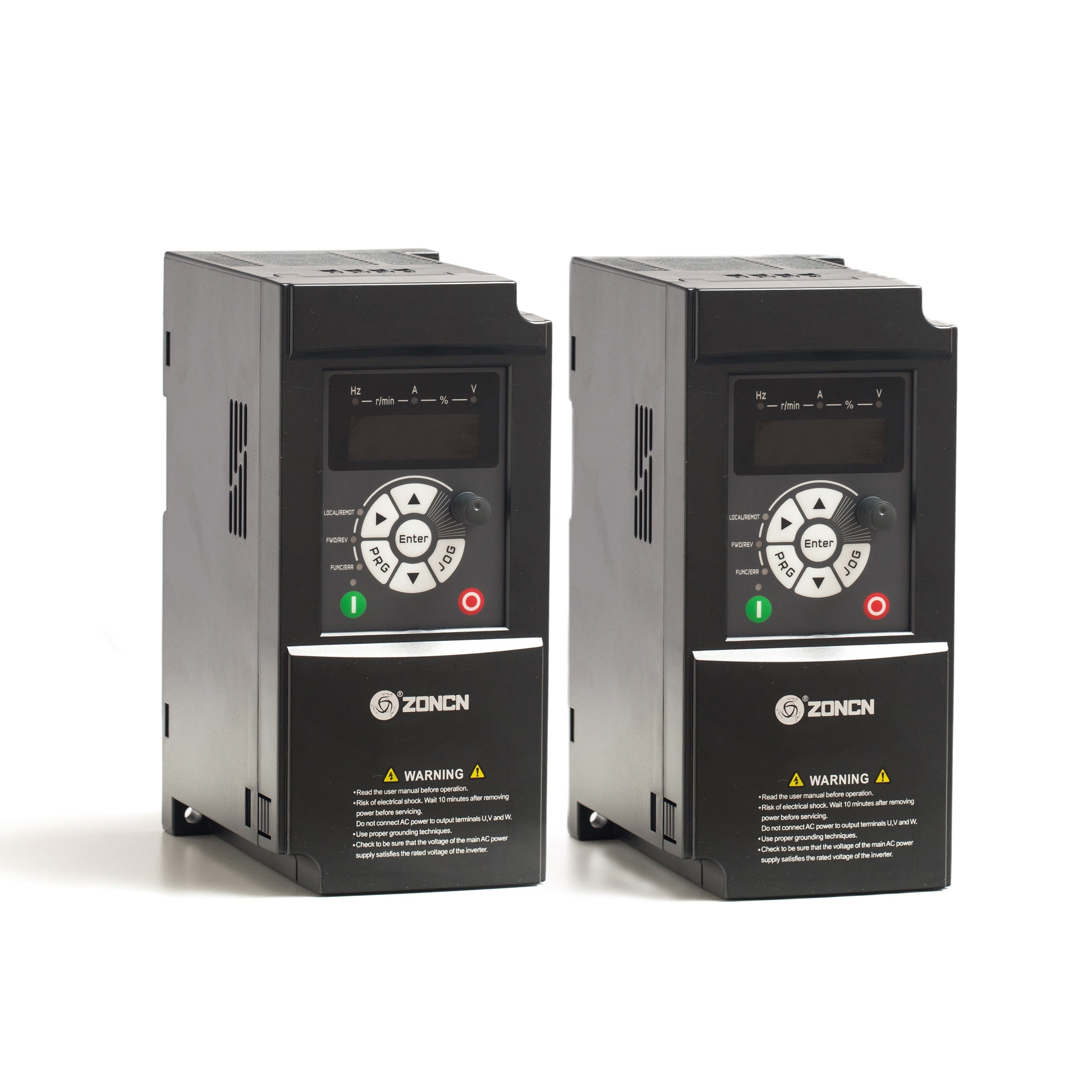

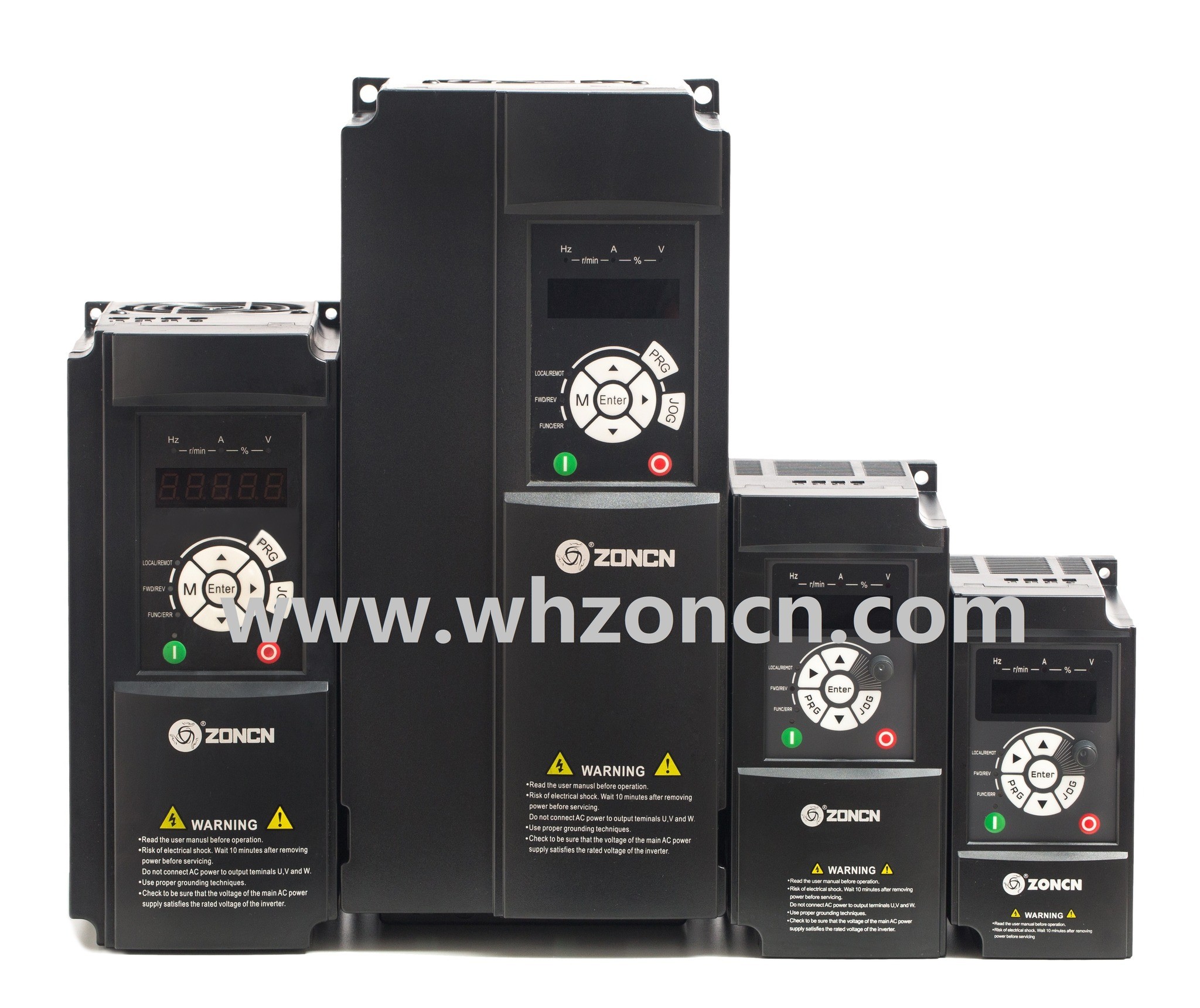

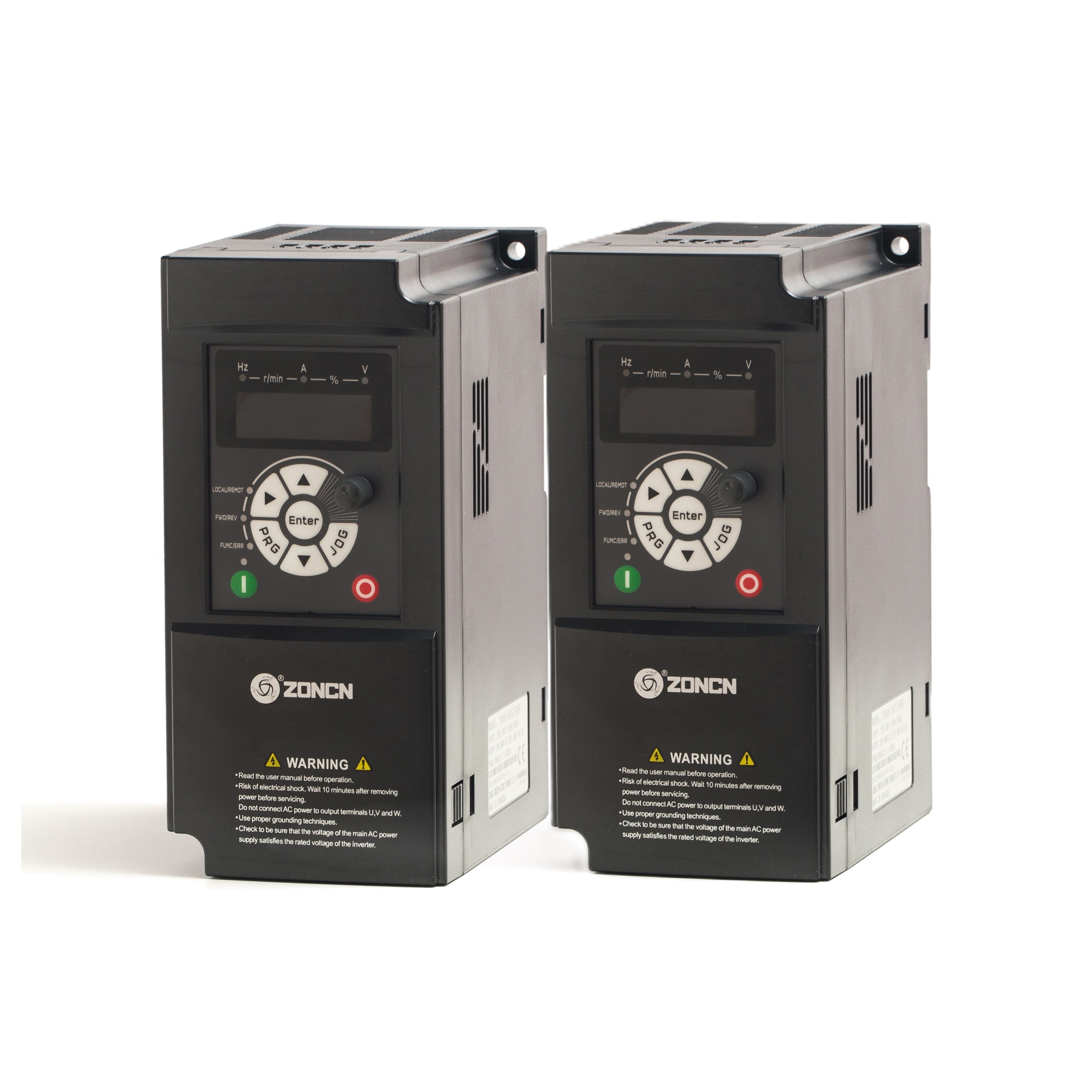

ZONCN T9000 inverter picture



ZONCN T9000 380v VFD 3.7kw 5.5kw 7.5kw Variable Frequency Drive From Shanghai Zhongchen Factory 1



Inverter Specification

Item Description
Basic function Control Mode VF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency 0~600Hz
Carrier frequency 0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torque G Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range 1:100 (SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ;
Customized boost: 0.1%~30.0%
V/F Curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation 2 types: complete separation; half separation
Ramp Mode Straight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking DC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG control JOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
　 Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card




T9000 Inverter Hardware configuration

Vector/VF control Yes Closed loop vector
control		 Yes
Built-in brake unit Support below 37kw.
Above 45kw optional		 0.1s acceleration and
deceleration		 Yes
Removable panel Support below 5.5kw High speed pulse output Yes
24v power supply Yes DC braking Yes
STO function Yes Profinet / RS485 Yes
I/O extension Yes Simple PLC function Yes
External brake resistor Yes Simple PLC function Yes
Electric reactor Optional PID Yes
EMC filter Optional level of protection IP20
Certificate CE Multi-protection Yes
