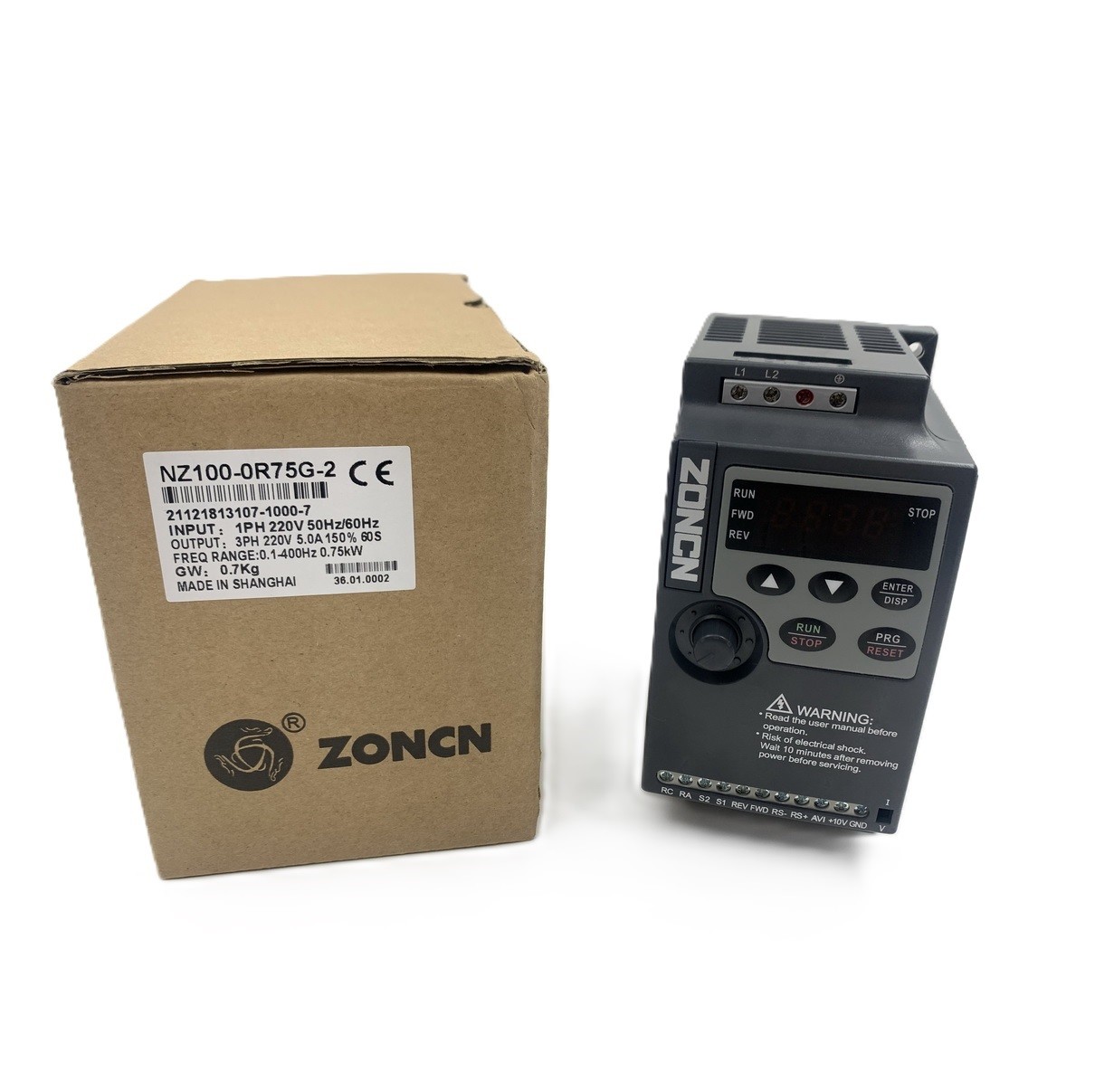

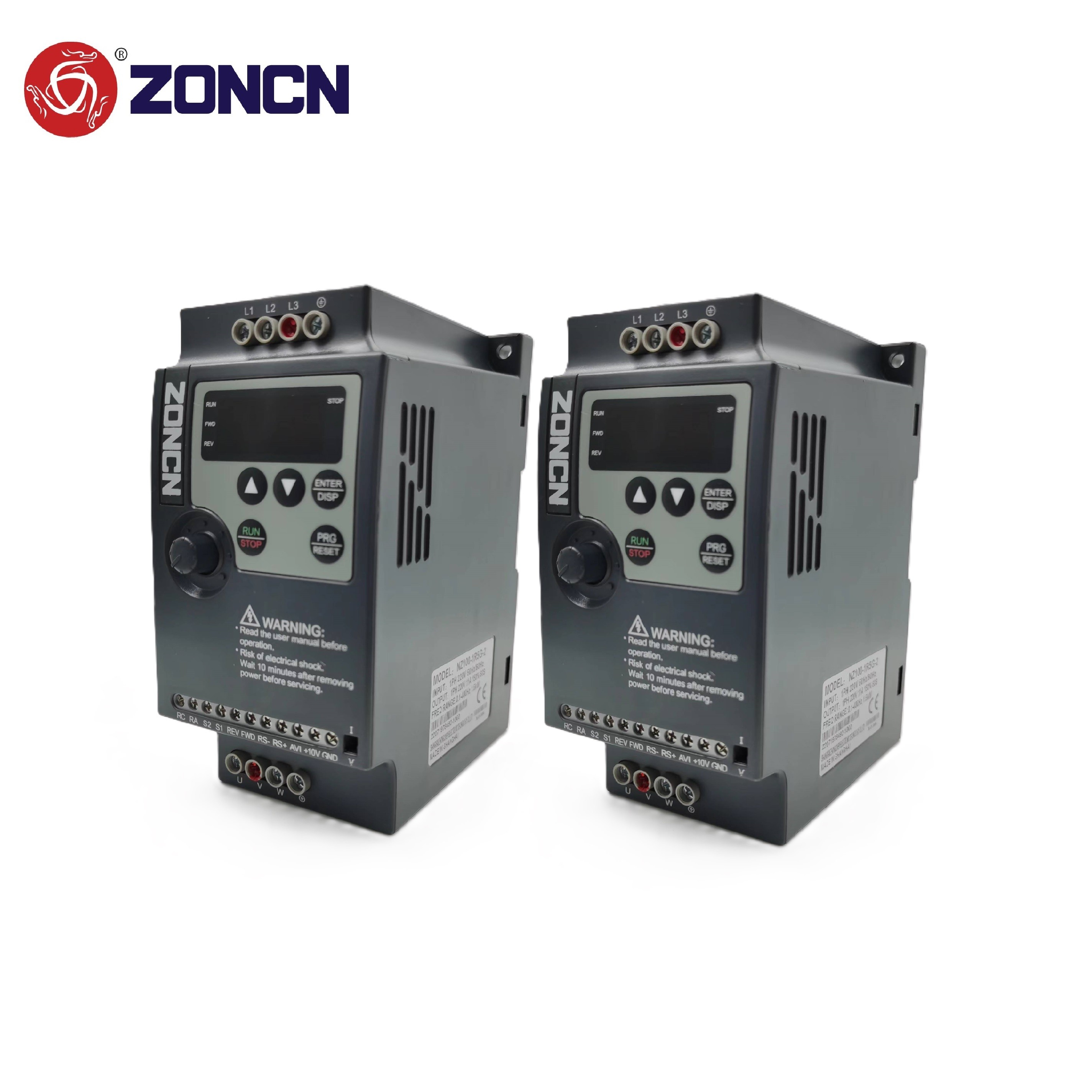

Low Cost Mini VFD Inverter 220v Variable Frequency Drives 0.75kw 1.5kw Motor Speed Controller

Low Cost Mini VFD Inverter 220v Variable Frequency Drives 0.75kw 1.5kw Motor Speed Controller





VFD Inverter Features

• Can work with 50hz/60hz, to adust the motor speed, which help saving energy
• Small size, very easy to use in a limited space, saving space
• Low cost, very economic to use
• Control mode: V/F control
• Support RS485 MODBUS communication
• External keypad is available
• Analog current and analog voltage input terminals are available
• Fast delivery
• 18 months warranty
• CE certificate





NZ100 VFD Inverter Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension







VFD inverter's Wiring Diagram











ZONCN VFD Application





FAQ



Q1. Does ZONCN NZ100 series VFD inverter have analog input?

A. Yes, NZ100 series have analog current and voltage input



Q2. Does ZONCN NZ100 series VFD inverter have remote keypad?

A: Yes, NZ100 series have extra keypad can remote control, just the cost for the keypad is extra.



Q3. Do you have warranty for your NZ100 VFD inverters ?

A: Yes, all our ZONCN VFD inverters have 18 months warranty after delivery.



Q4. Can you produce for my own logo on your NZ100 VFD inverters?

A:  No problem, if your quantity can meet our MOQ, we can print for your own brand
