ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters

ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters
ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters
ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-1R5G-2 Type: AC Drive Inverter
External Keypad: Yes Display: LCD Display
Input Voltage: 380V±15% AC Output Power: 1.5KW Vfd
Maintenance-free: Yes Maximum Power: 160KW
Series: NZ100 ODM: Support
Color: Black
Highlight:

220v NZ100 Series Vfd Ac Drives

,

1.5kw NZ100 Series Vfd Ac Drives

,

NZ100 Series Vfd Ac Drives

NZ100 series micro vfd inverter 220V 1.5kW AC



Basic product introduction:

  • Compact size and low cost desgin
  • Terminals uncovered,easy for wiring design
  • DIN-rail mounting(below 5.5kw)
  • Modbus via RS485
  • Maintenance-free function
  • Support MODBUS ASCII communication



Technical Specific:

Items NZ100 series vfd inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20



Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15





Product introduction​:

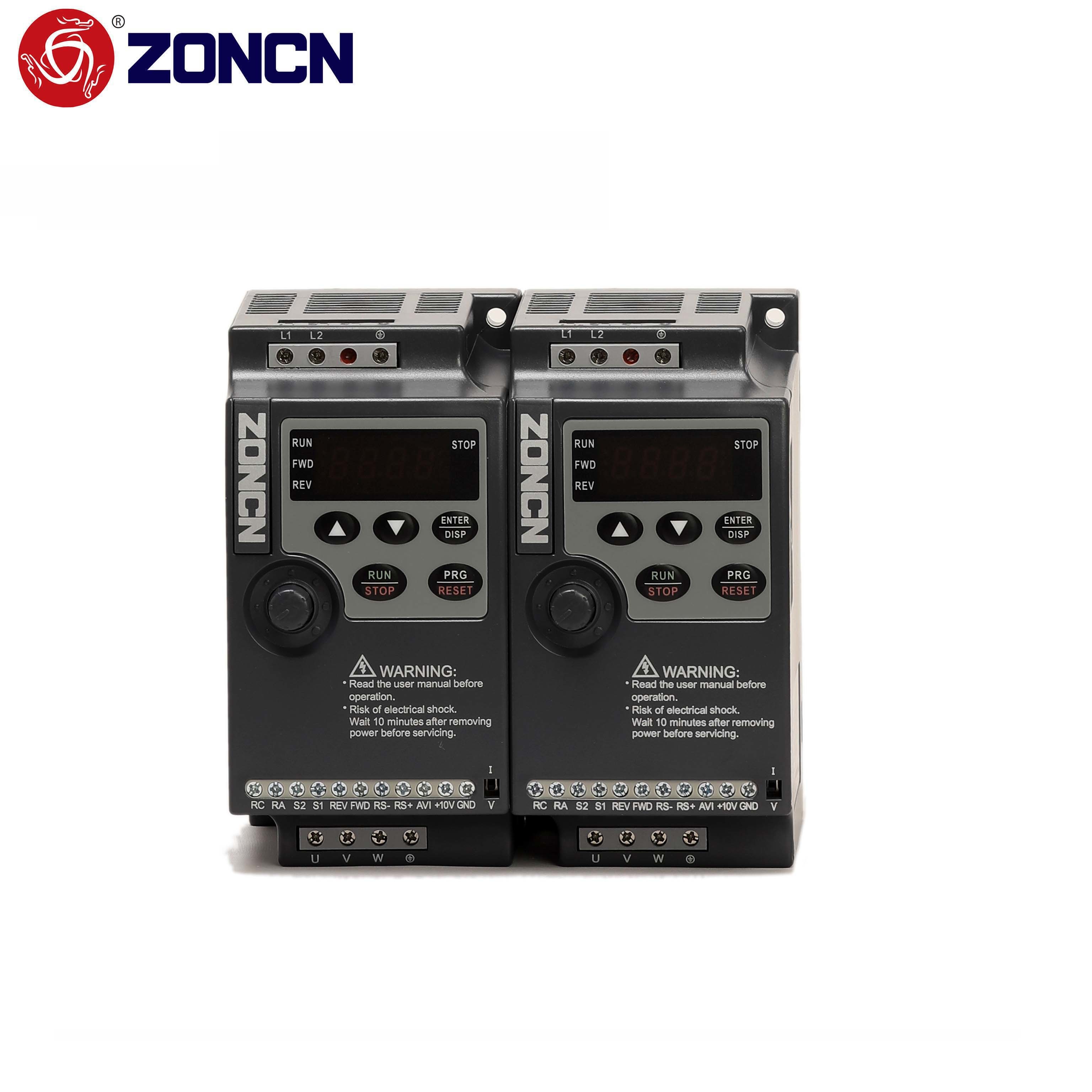

ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters 0

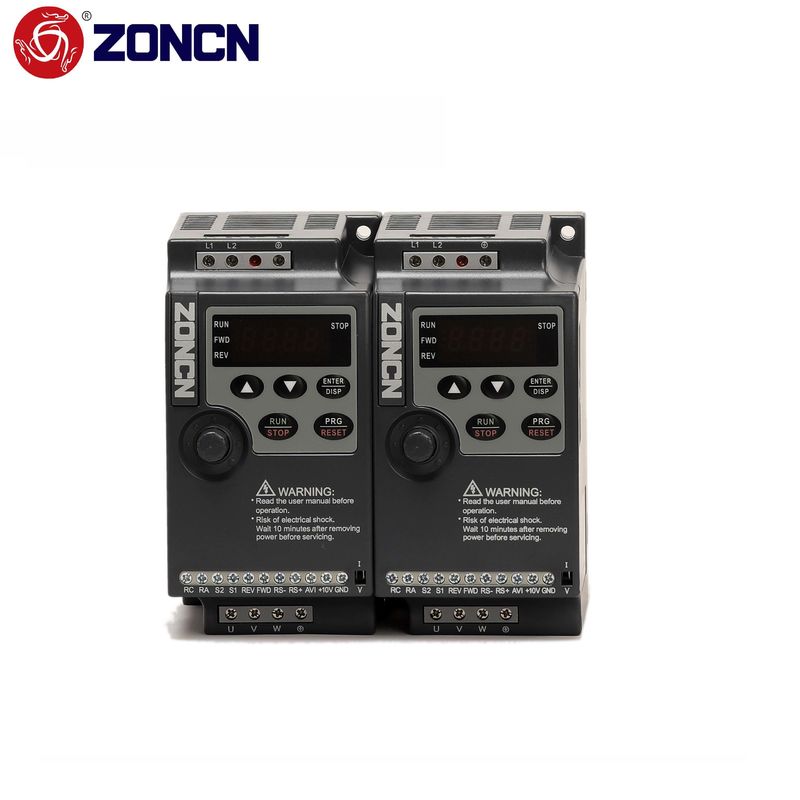

ZONCN NZ100 Series Vfd Ac Drives 220v 1.5kw Inverters Converters 1

The NZ100 series is currently the largest frequency converter shipped by ZONCN. It is compact and adopts VF control mode. Easy to install. LED screen is used. However, if the customer needs an LCD screen can also be used. It is easy to debug, plug and play. Deeply loved by consumers.At present, the NZ100 series has good applications in various VF-controlled small machines, such as food machines and pharmaceutical machines.





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
