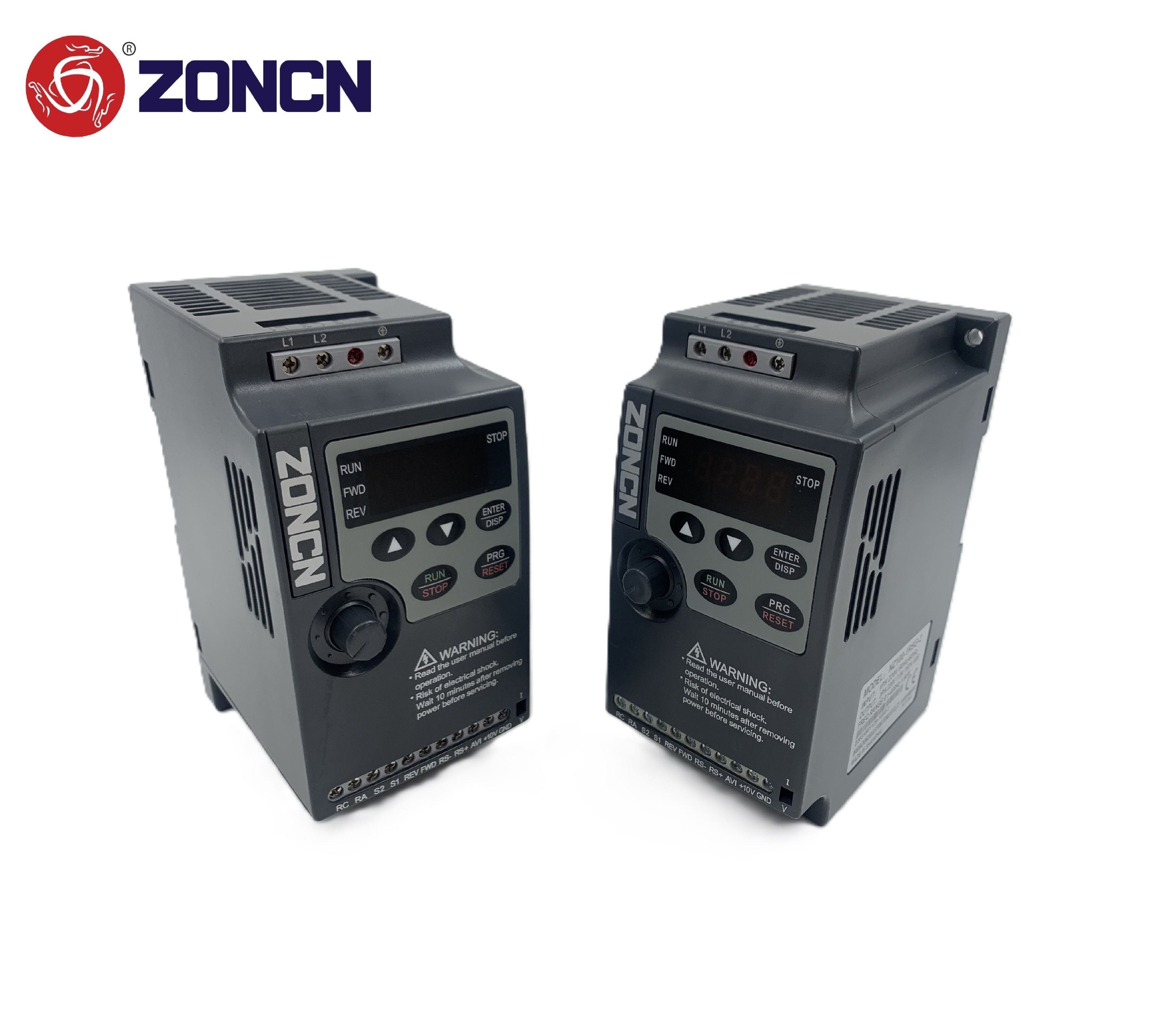

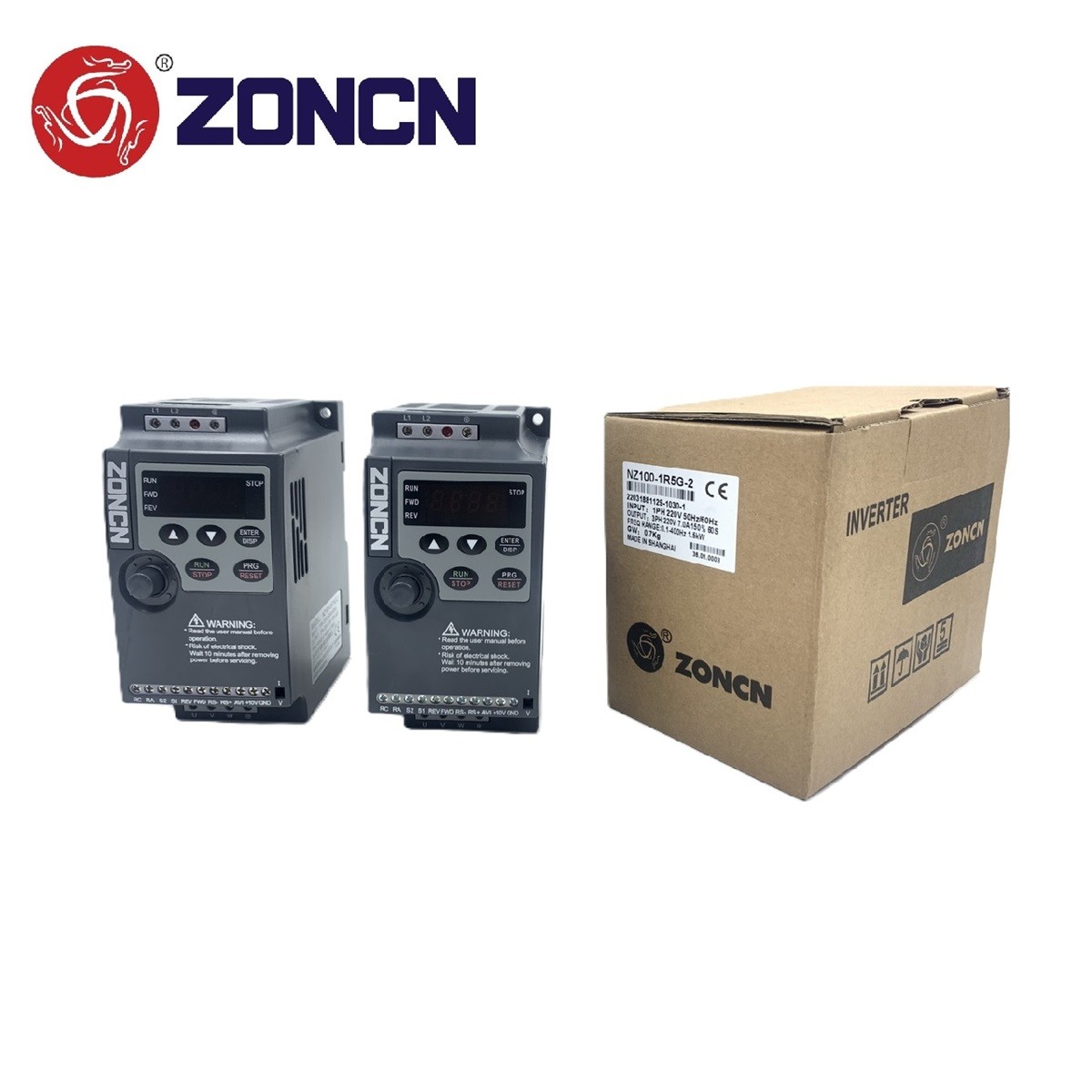

ZONCN Cheap Mini VFD Inverter NZ100 VSD 220v 0.75kw 1.5kw 2.2kw

ZONCN Cheap Mini VFD Inverter NZ100 VSD 220v 0.75kw 1.5kw 2.2kw





VFD Inverter Features

• Smallest size, very easy to use in limited space
• Cheap price, save cost
• V/F control mode
• Standard RS485 communication
• Power range: 220v 0.4kw-3.7kw; 380v 0.4kw-11kw
• Warranty: 18 months after delivery
• Gross weight: 0.7kg
• Packing: 32 pcs/carton
• Application: Conveyor/blower/automatic door/fan/pump/food machines, etc.





NZ100 VFD Inverter Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension







VFD inverter's Wiring Diagram











ZONCN VFD Application





FAQ



Q1. Does this NZ100 series VFD inverter support vector control?

A. NZ100 series is mini VFD inverter which support V/F control only, if need vector control, you can check our NZ200, Z2000, T9000, T200, ets.



Q2. Does this NZ100 series VFD inverter support RS485 MODBUS communication

A: Yes, all our VFD inverters support RS485 communication, but we also have other series which support Profinet, Profibus, EtherCAT and other comminications too.



Q3. What is your VFD inverter's warranty time?

A: All our VFD inverters have 18 months warranty after delivery from factory.



Q4. Can you produce for my own logo of VFD inverters?

A: Sure, if the quantity can meet our MOQ, we can produce for your own brand, no problem.



Q5. Can we buy 1 unit of your VFD inverter as sample to test first?

A. No problem.
