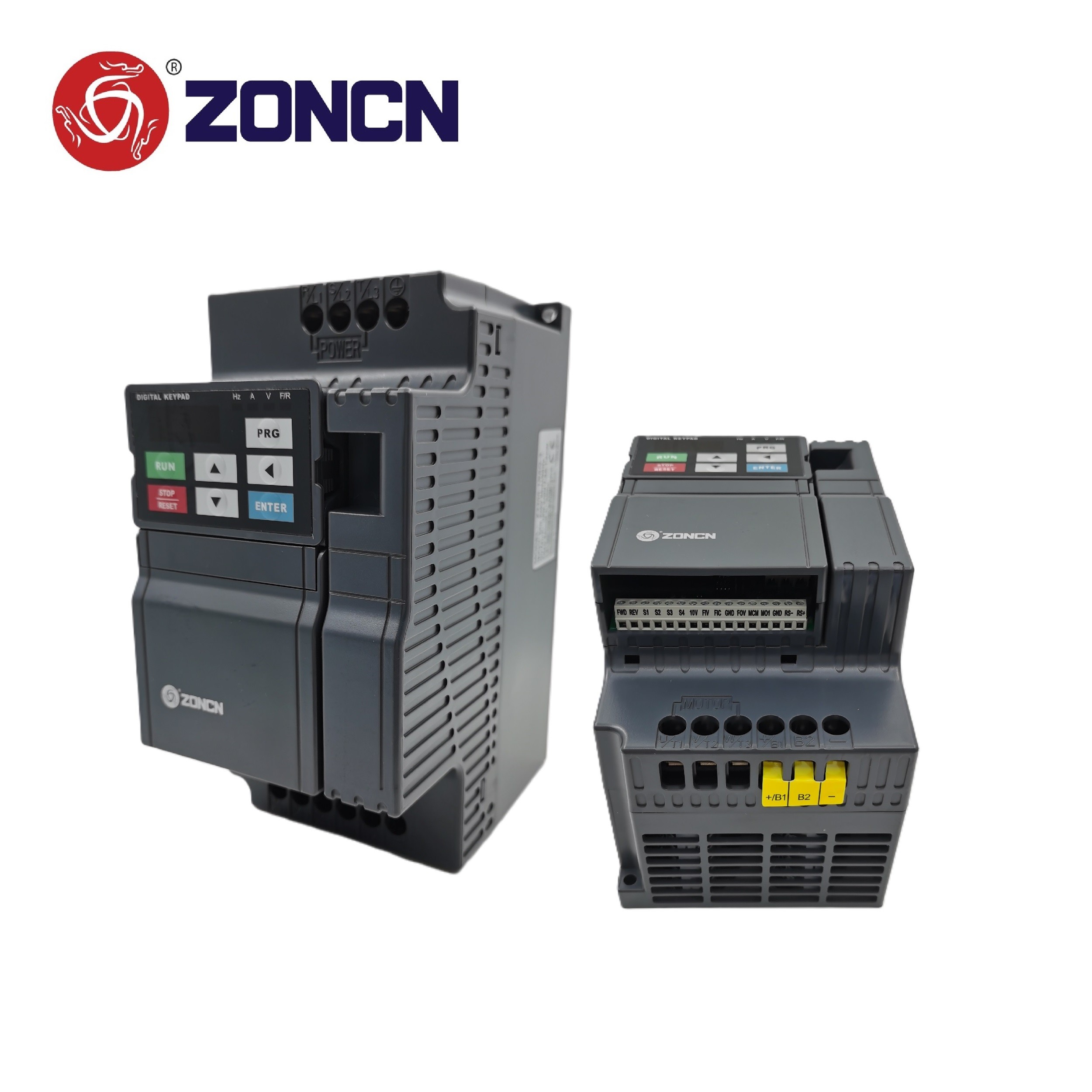

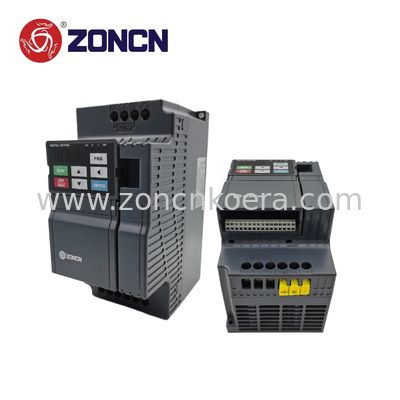

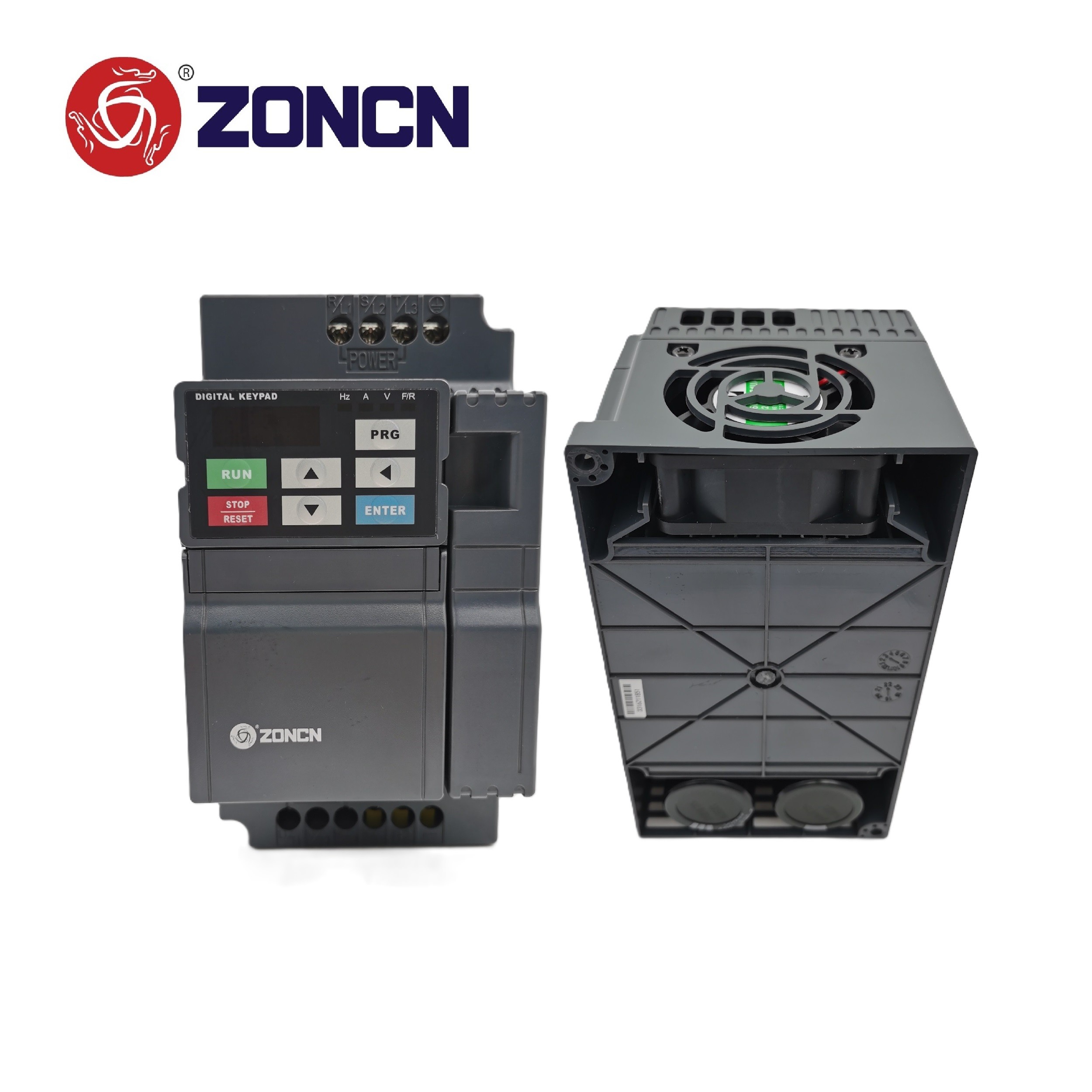

Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication

Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication
Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: Z2200-1R5G-3
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Variable Frequency Inverter Brand: ZONCN
Input&output: 220V 3phase Rated Power: 2hp/1.5kw
Model: Z2200-1R5G-3 Control Model: Vector Control
Customize: Support EtherCAT Communication: Support
Highlight:

2hp 220v VFD Inverter

,

3phase 1.5kw VFD Inverter

,

EtherCAT Communication VFD Inverter

Variadores De Frecencia 2hp 220v 3phase 1.5kw VFD Inverter With EtherCAT Communication





ZONCN inverter Z2200 & Z2400

Z2000 series is one of the hotest selling inverter of ZONCN, 110v/220v/380v/400v/415v/440v/480v are available, power range 0.4kw to 450kw, which is the general type vector control inverter in most applications.



Z2000 series inverter support RS485 and EtherCAT communication.



Z2000 series inverter have detachable keypad, which can be use remotely.



Z2000 series inverter have Potentiometer keypad, it can adjust the speed very easily.





Inverter Technical Specification

Item Z2000 Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes



VFD Inverter Specification

 Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　




*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.
