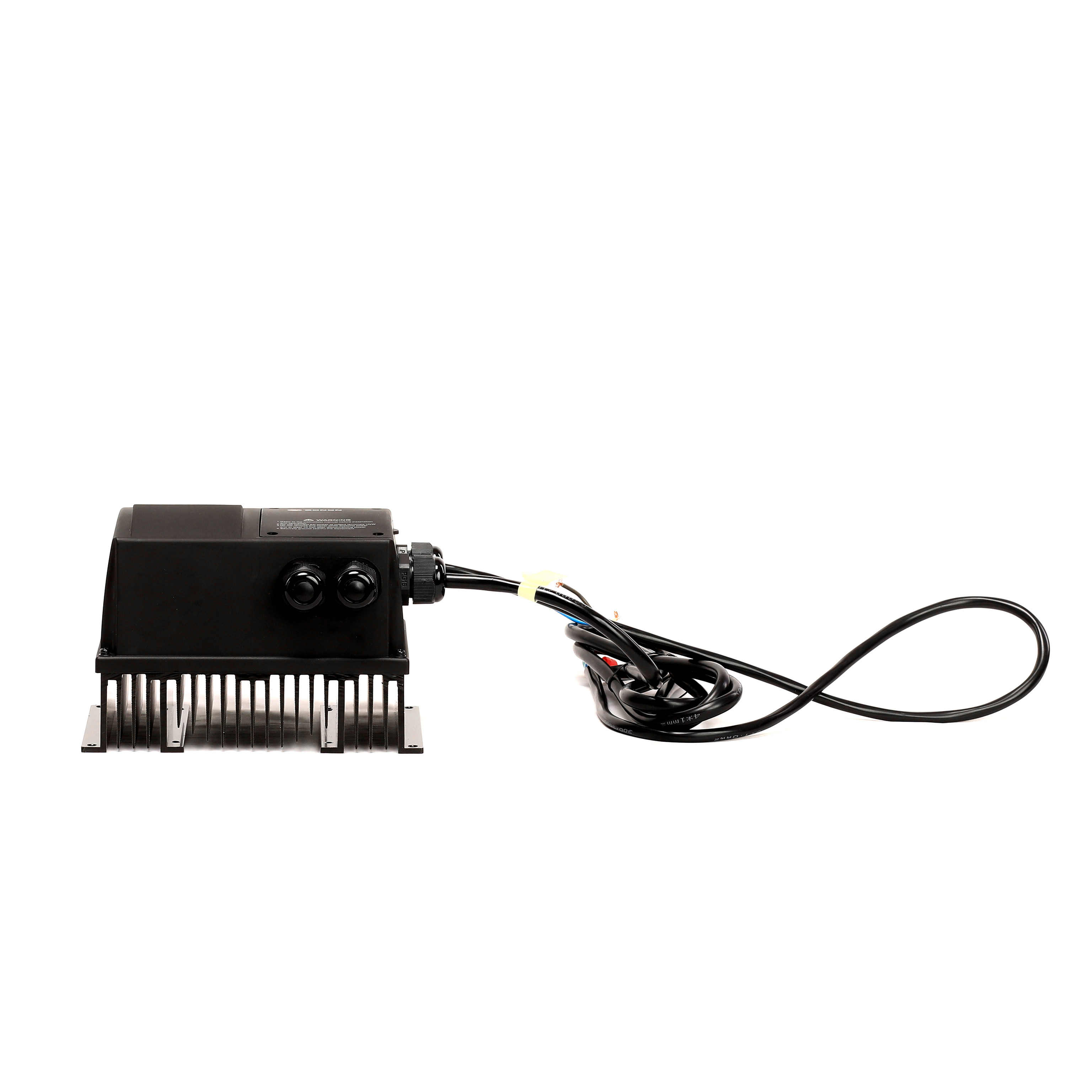

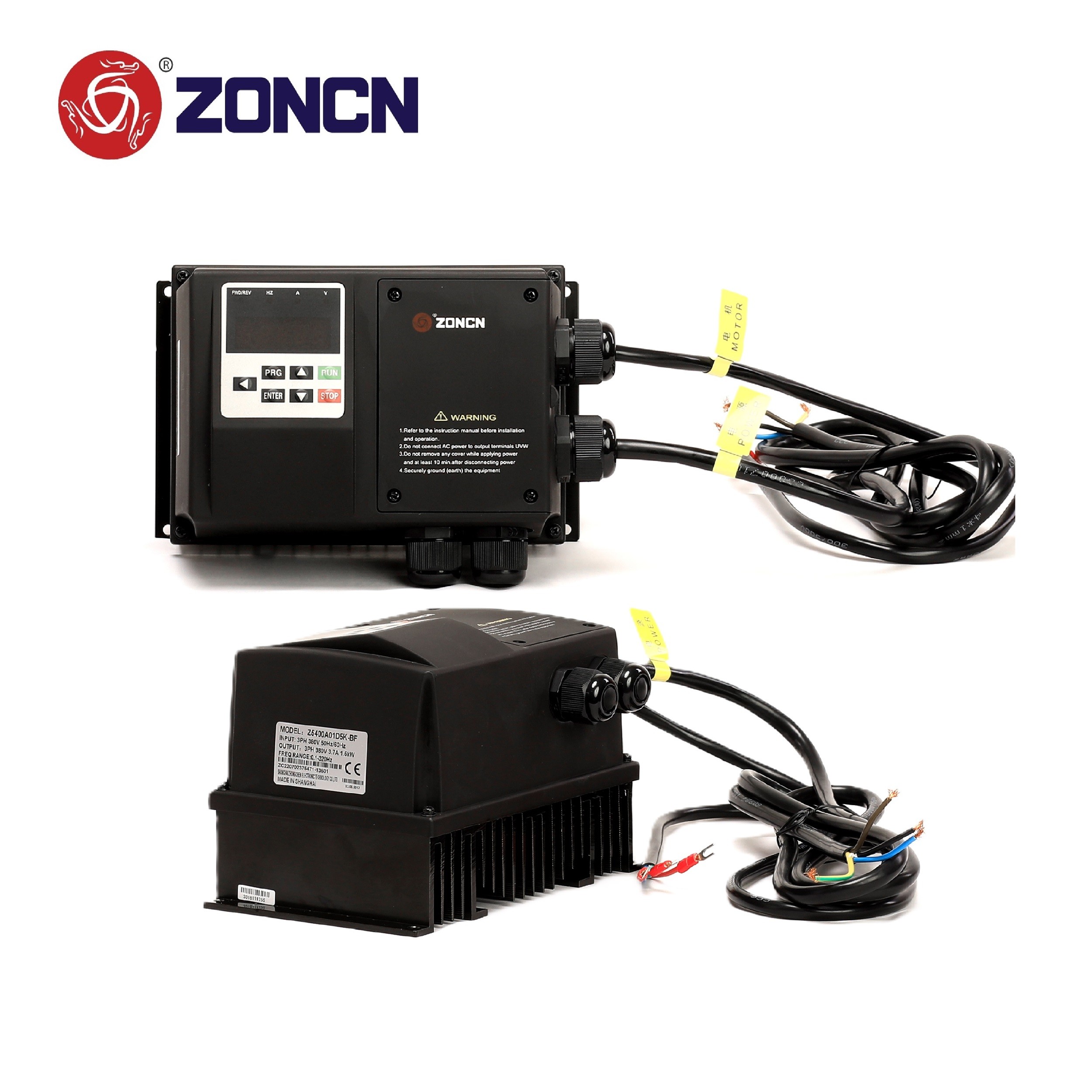

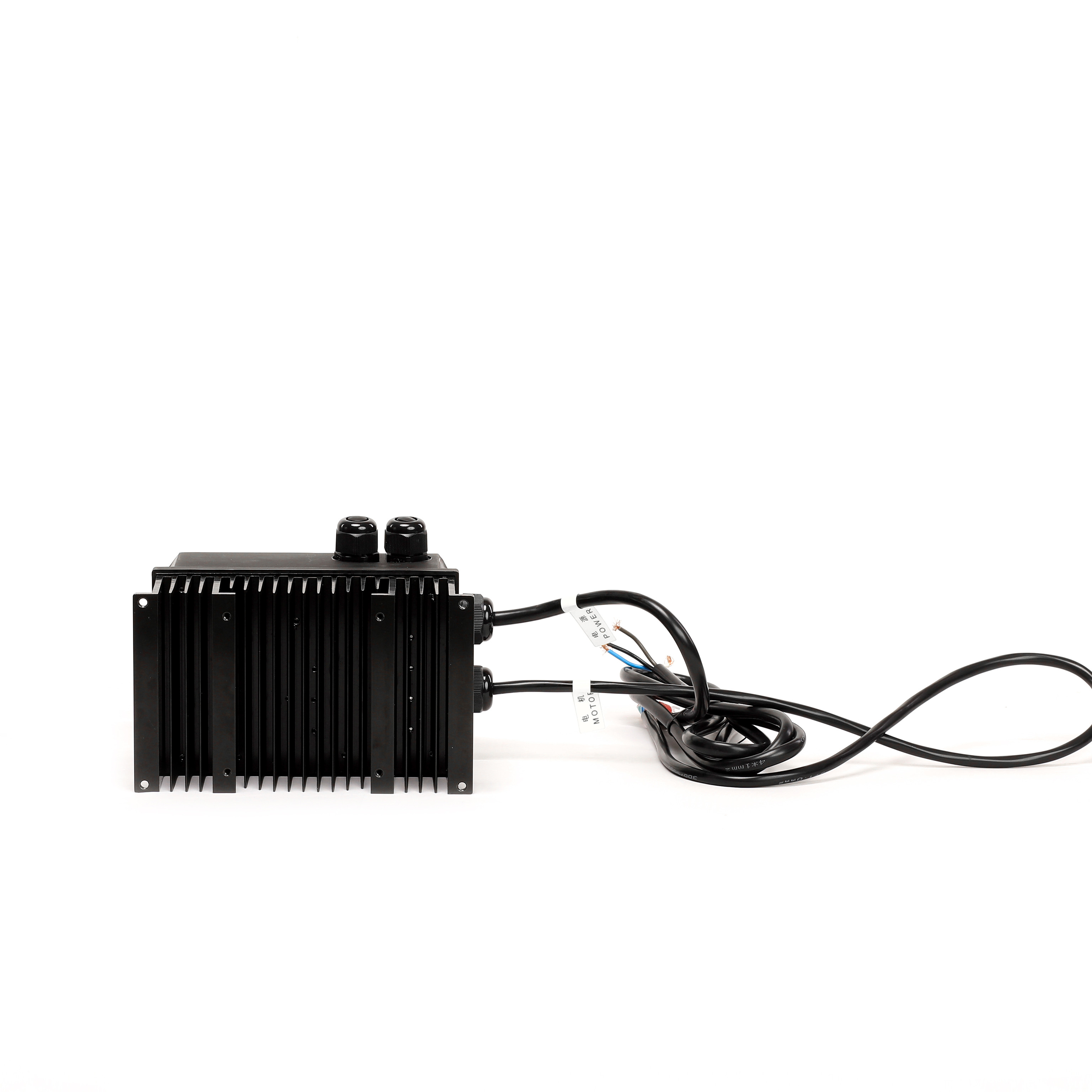

High Protection IP65 Pump Inverter VFD 220v 380v AC Drives 0.75kw 1.5kw 2.2kw

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	Z5200A01D5K-BF

Minimum Order Quantity:	1 Unit
Price:	To be negotiable
Packaging Details:	Inside: box, output side: carton
Delivery Time:	within 15 days
Payment Terms:	T/T
Supply Ability:	10000 months

Get Best Price Contact Now

Product Name:	VFD Inverter	Type:	Variable Frequency Inverter
Protection Level:	IP65	Input:	Single Phase 220v
Power:	1.5kw/2HP	Communication Interface:	RS485
EMC Filter:	Built-in	Power Range:	0.75kw-160kw
Water-proof:	Yes	Dust-proof:	Yes
Highlight:	AC Drives Pump Inverter , 220v 380v Pump Inverter , High Protection IP65 Pump Inverter

High Protection IP65 Pump Inverter VFD 220v 380v AC Drives 0.75kw 1.5kw 2.2kw

VFD inverter Features

Z5000/H5000 is a high protection grade frequency inverter for the speed control of asynchronous/induction motor. This series of inverter has the characteristics of excellent software performance, simple and easy to use; The hardware is designed with high reliability; and the protection level is IP65/IP54.

Z5000/H5000 Series inverter can be used for all kinds of open loop vector control applications, especially suitable for occasions that have strict requirements on reliability, and use environment.

VFD inverter Technical Specification

ITEM		Z5000-BF Series VFD Inverter
Standard functions	Control mode	Sensorless flux vector control (SFVC)
	Control mode	Voltage/Frequency (V/F) control
	Maximum frequency	Vector control: 0–320 Hz
	Maximum frequency	V/F control: 0–3200Hz
	Carrier frequency	1 kHz–16 kHz
	Carrier frequency	The carrier frequency can be automatically adjusted based on the load features.
	Input frequency resolution	Digital setting: 0.01 Hz
	Input frequency resolution	Analog setting: maximum frequency x 0.025%
	Startup torque	G type: 0.5 Hz/150% (SFVC);
	Startup torque	P type: 0.5 Hz/100%
	Speed range	1:100 (SFVC)
	Speed stability accuracy	± 0.5% (SFVC)
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
	Overload capacity	P type: 60s for 120% of the rated current, 3s for 150% of the rated current
	Torque boost	Fixed boost
	Torque boost	Customized boost 0.1%–30.0%
	V/F curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp
		S-curve ramp
		Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	DC braking	DC braking frequency: 0.00 Hz to maximum frequency； Braking time: 0.0-36.0s；
	DC braking	Braking action current value: 0.0%–100.0%
	JOG control	JOG frequency range: 0.00–50.00 Hz
	JOG control	JOG acceleration/deceleration time: 0.0–6500.0s
	Onboard Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input(X) terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage	It can keep constant output voltage automatically when the mains voltage changes.
	regulation (AVR)
	Over-voltage/	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
	Over-current stall
	control
	Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
	Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Rapid current limit	It helps to avoid frequent over-current faults of the AC drive.
	High performance	Control of asynchronous motor is implemented through the high-performance current vector control technology.
	Timing control	Time range: 0.0–6500.0 minutes
	Communication methods	RS485
	Running command channel	Given by the panel, control terminals,
	Running command channel	Serial communication port, can be switched by many ways
	Frequency source	10 kinds of frequency source, given by
	Frequency source	Digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
	Auxiliary frequency source	10 kinds of Frequency source, given by Digital analog voltage, analog current, pulse, serial port. Can be switched by many ways.
Input and output	Input terminals	6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input.(S3)
	Input terminals	2 analog input terminal,one of which only supports 0-10V voltage input and the other supports 0–10 V voltage input and 4–20 mA current input.
	Output terminal	1 digital output terminal
		1 relay output terminal (RA.RB.RC)
		1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output
	Frequency source	Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.
	LED display	It displays the parameters.
	Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent malfunction.
	Protection mode	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

VFD Specification

VFD Model	Input voltage	Rated Output Power (KW)	Rated Input current (A)	Rated Output Current (A)	Motor Power (kW)
Z5200A00D7K-BF	1PH AC220V ±15%	0.75	7.2	5	0.75
Z5200A01D5K-BF		1.5	10	7	1.5
Z5200A02D2K-BF		2.2	16	11	2.2
Z5400A0D75K-BF	3PH AC380V ±15%	0.75	3.8	2.5	0.75
Z5400A1D5K-BF		1.5	5	3.7	1.5
Z5400A02D2K-BF		2.2	5.8	5	2.2
Z5400A03D7K-BF		3.7	10	9	3.7
Z5400A05D5K-BF		5.5	15	13	5.5
Z5400A07D5K-BF		7.5	20	17	7.5
Z5400A0011K-BF		11	26	25	11
Z5400A0015K-BF		15	35	32	15
Z5400A0018K-BF		18.5	38	37	18.5
Z5400A0022K-BF		22	46	45	22
Z5400A0030K-BF		30	62	60	30
Z5400A0037K-BF		37	76	75	37
…		…	…	…	…
Z5400A00160K-BF		160			160

VFD inverter Nameplate Description

Inverter Application

FAQ

1. What is the control model of this Z5000/H5000 series inverter?

A: Both V/F control and vector control;

2. Does this series of inverter built-in PID control?

A. Yes.

3. Does this series inverter support Analog voltage input(0-10V) and Analog current input (4-20mA)?

A. Yes, through the switch SW1.

4. This series of inverter can be mounted directly on the motor?

A. Yes, Z5000/H5000 series inverter can be mounted directly on the motor or to the wall.
