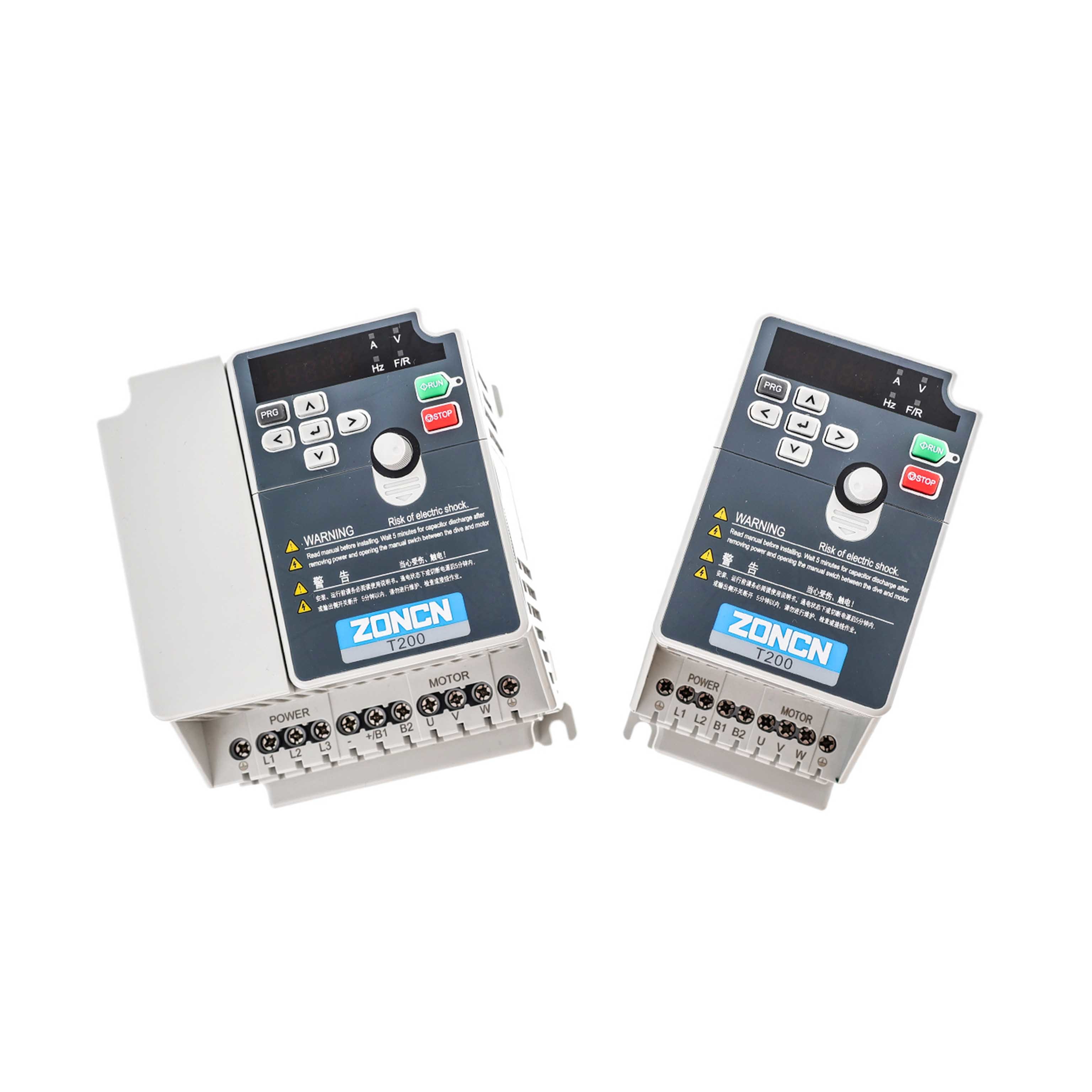

T200 Series VFD Frequency Inverter AC Drives 15KW



Basic product introduction:

In the complex and changeable industrial environment, electromagnetic interference (EMI) is a major problem that affects the stable operation of equipment. The T200 inverter is built with a high-performance EMC filter, which reduces the influence of external electromagnetic interference on the inverter and its drive motor at the source. The built-in filter not only simplifies system configuration, reduces installation costs, but also improves the overall stability and reliability of the device. For enterprises pursuing efficient and stable production, the T200 inverter is undoubtedly the ideal choice.

The T200 drives demonstrate extreme flexibility and compatibility in terms of communication. It supports the RS485 communication protocol, a classic industrial communication method that ensures seamless connection with numerous existing devices. At the same time, the T200 inverter is also compatible with Modbus TCP, CANopen, Profinet and other modern communication protocols, providing users with more abundant communication options. This means that whether in traditional industrial automation scenarios or in iot based intelligent manufacturing environments, the T200 inverter can be easily integrated to achieve fast data transmission and remote monitoring of equipment.

In addition, the T200 inverter also supports the Profibus-DP communication protocol, which has a wide application base in the field of industrial automation, and further broadens the application scope of the T200 inverter. Diversified communication functions enable the T200 inverter to easily cope with a variety of complex industrial communication needs, and provide strong support for enterprises to build intelligent and networked production systems.



Technical characteristic:

Maximum frequency:Vector control:0～600Hz  V/F control:0-3200Hz



Control mode:V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)



Carrier frequency:0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature



Input frequency resolution:Digital setting:0.01Hz Analog setting: maximum frequency×0.025%



Startup torque:G Type:0.5Hz/150%(SFVC)； P Type:0.5Hz/100%



Speed range:1:100(No PG)



Speed stability accuracy:±0.5%(No PG)



Torque control accuracy:±5%(FVC)



Overload capacity:G type: 60s for 150% of the rated current, 3s for 180% of the rated current ；P type: 60s for 120% of the rated current, 3s for 150% of the rated current



Torque boost:Fixed boost；Customized boost 0.1%-30.0%





DC braking:DC braking frequency: 0.00 Hz to maximum frequency；Braking time: 0.0-100.0s；Braking action current value: 0.0%–100.0%

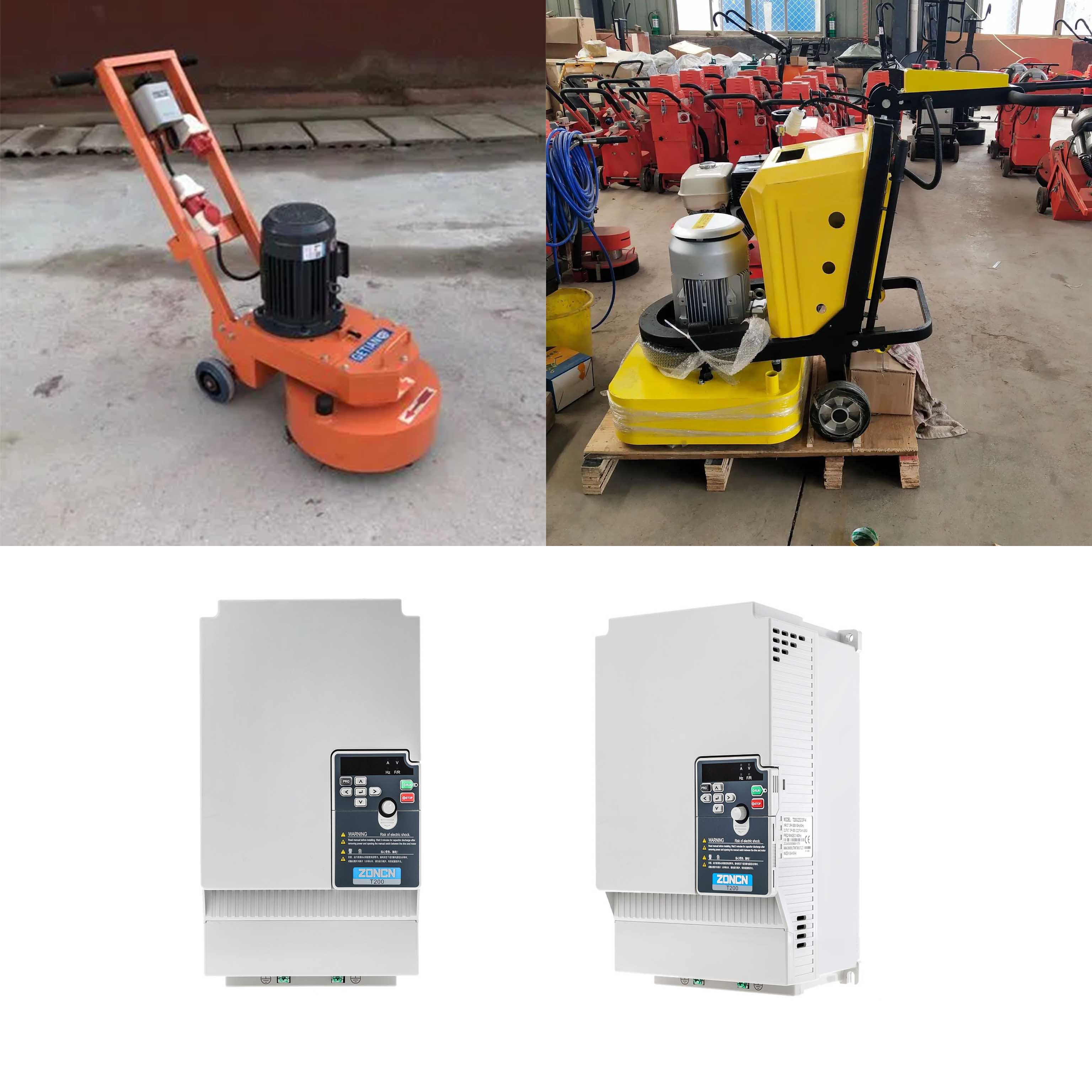

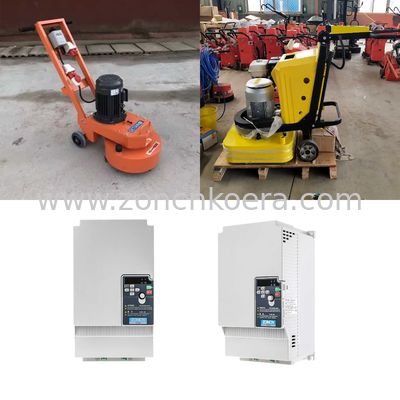

Product distribution diagram:





Product details:





FAQ:
Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
