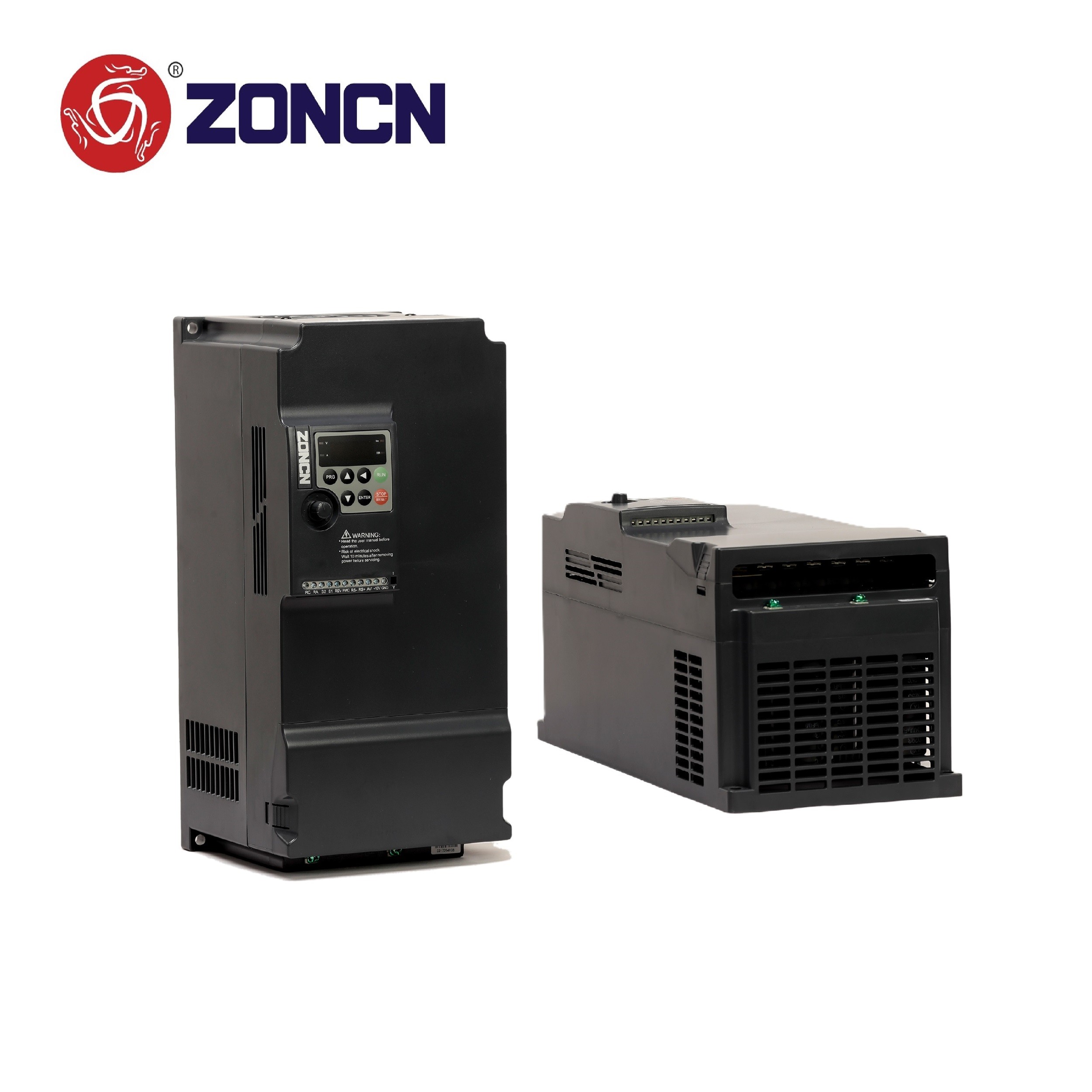

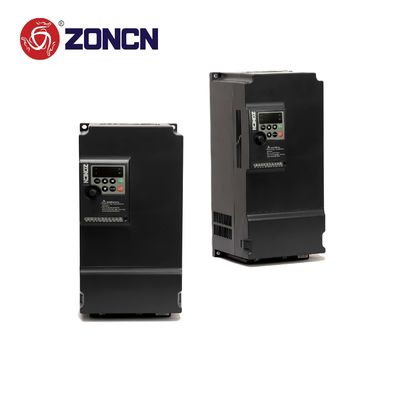

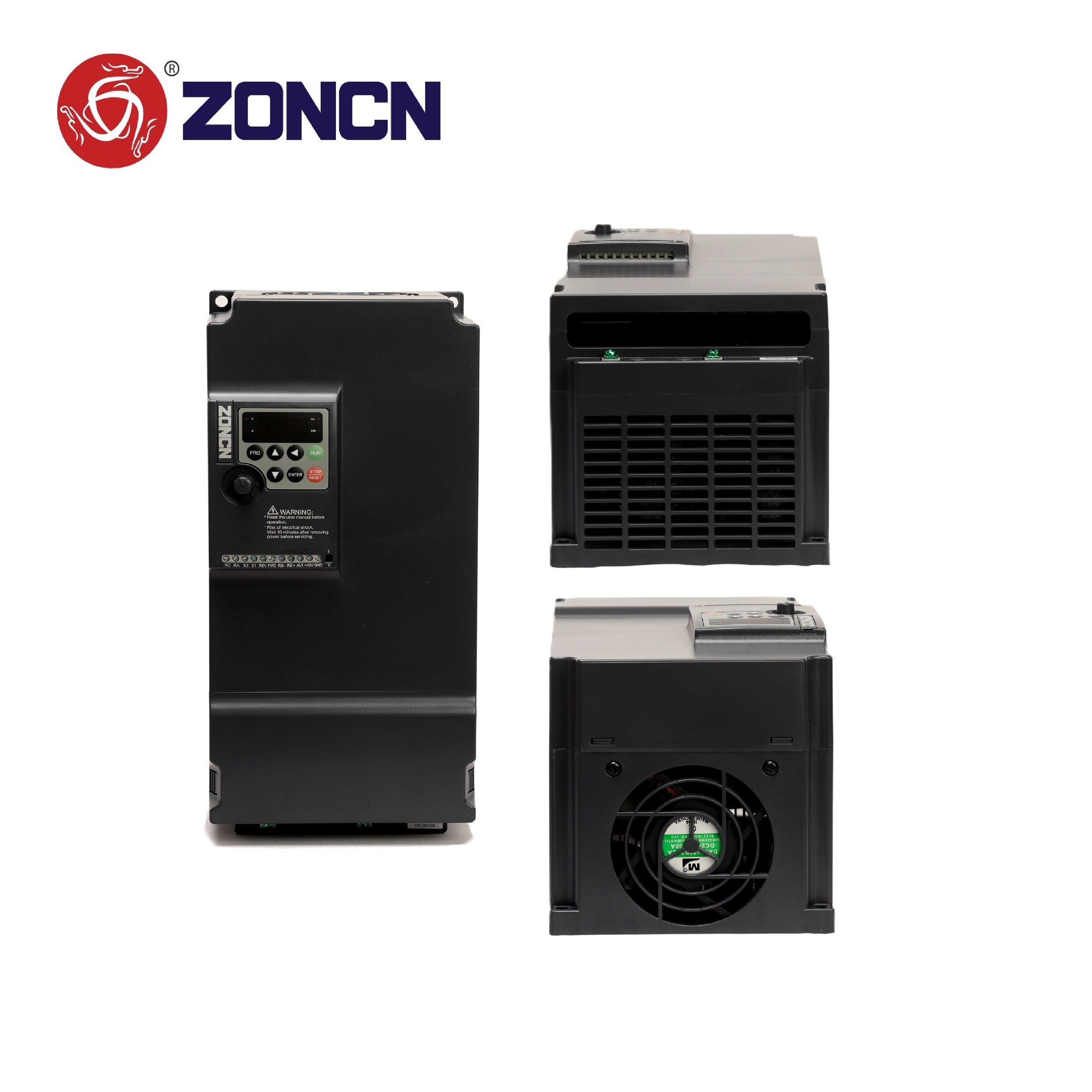

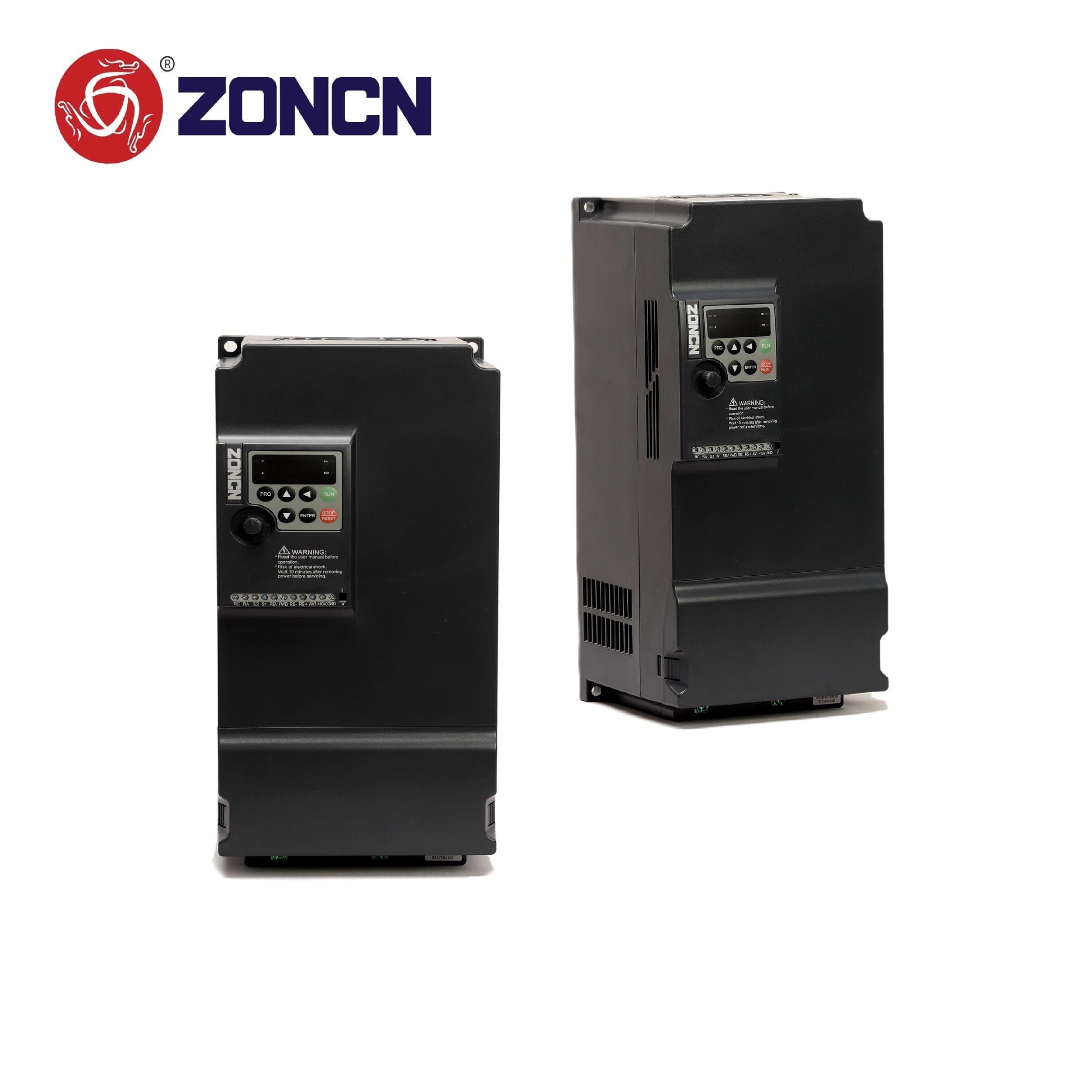

22kw Variable Speed Drive VSD 380v Frequency Converter AC Drives 30hp inverter

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-22G-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Inverter	Product Name:	Frequency Inverter
Brand:	ZONCN	Series:	NZ200
Model:	NZ200-22G-4 （NZ200T-22GY-4）	Voltage:	380v 3phase
Power:	30HP/22KW	Application:	Synchronous And Asynchronous Motor
OEM:	Support
Highlight:	380v Frequency Converter , 22kw Variable Speed Drive , 30hp inverter

22kw Variable Speed Drive VSD 380v Frequency Converter AC Drives 30hp inverter

Why ZONCN NZ200 series?

Open loop vector control, high torque output, motor runs smoothly when heavy loading
Compact size, space saving, install easily
Both support Asynchronous motor and Permagent magnent Synchronous synchronous motor
Support RS485 communication
Have 24V terminals
Have analog input (0-10V/4-20mA)
PID control: Built-in
Protection function: output phase loss protection, over-current protection, over-voltage protection, overload protection, over-heat protection, etc.
Powers from 0.4kw to 630kw are available

VFD Specification

VFD Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

VFD Application

22kw Variable Speed Drive VSD 380v Frequency Converter AC Drives 30hp inverter 0

VFD Packing

22kw Variable Speed Drive VSD 380v Frequency Converter AC Drives 30hp inverter 1

VFD Company introduction

22kw Variable Speed Drive VSD 380v Frequency Converter AC Drives 30hp inverter 2

FAQ

Q1: What is the difference between your NZ200 series and NZ100 series of VFD inverters?

A: NZ100 series inverter is V/F contol only, mini size for small powers from 0.4kw to 7.5kw.

NZ200 series inverter is open loop vector, compact size, power from 0.4kw to 630kw, which can widely used in most of industrial applications.

Q2: The programming of the inverter is ready?

A: No, you need to set the parameters according to your application. But it is not difficult.

Q3. What is your normal delivery time?

A: Generally, our delivery time is within 15 days after full payment.
