ZONCN Inverter 3phase 22kw Variable Speed Drive Frequency Converter 30hp Vfd

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-22G-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Inverters	Product Name:	Variable Speed Drive
Brand:	ZONCN	Model:	NZ200-22G-4
Power:	15kw, 18.5kw, 22kw	PM Synchronous Motor:	Support
Control Mode:	Vector Control	Communication:	RS485
Highlight:	3phase 22kw Inverter , ZONCN 22kw Inverter , 30hp Vfd Inverter

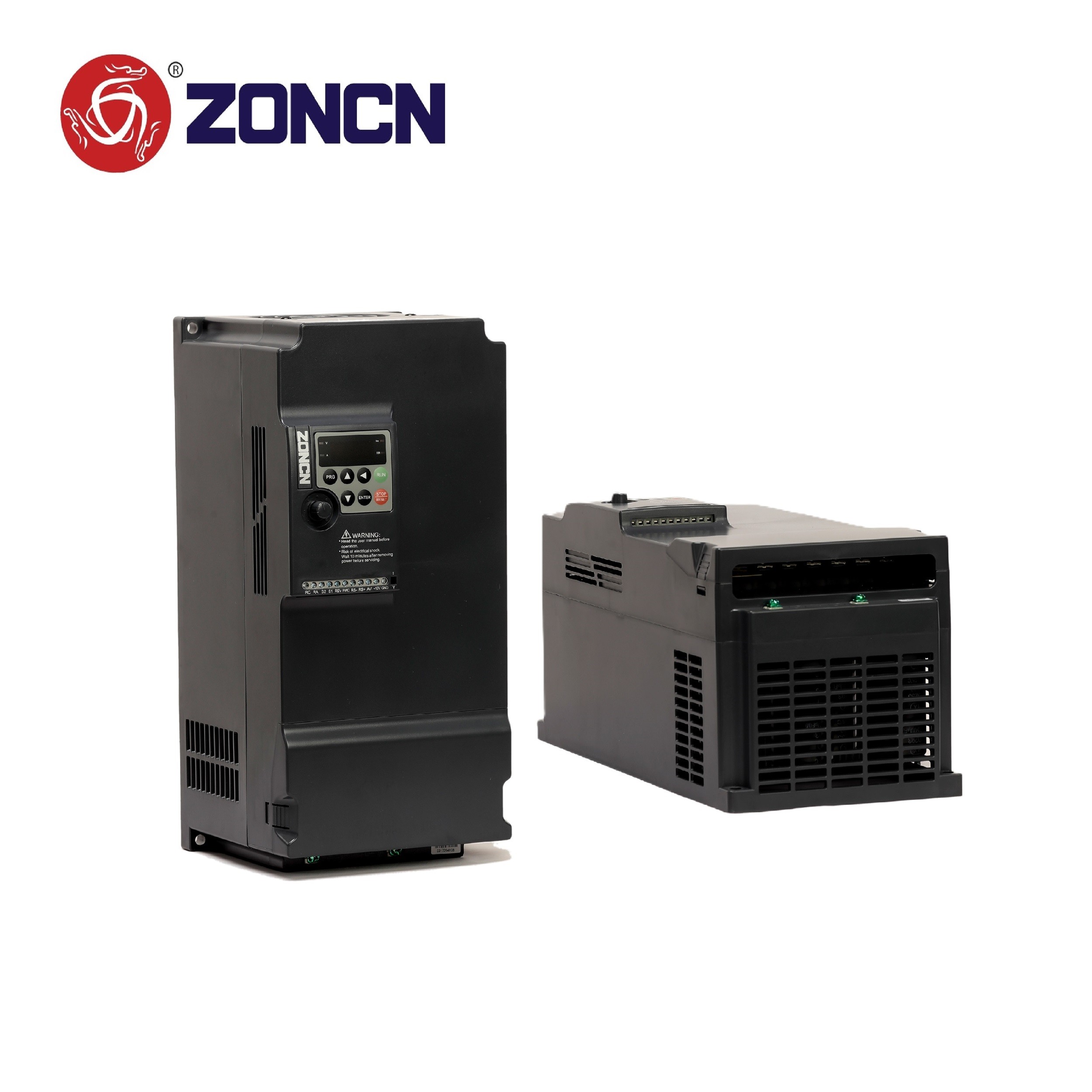

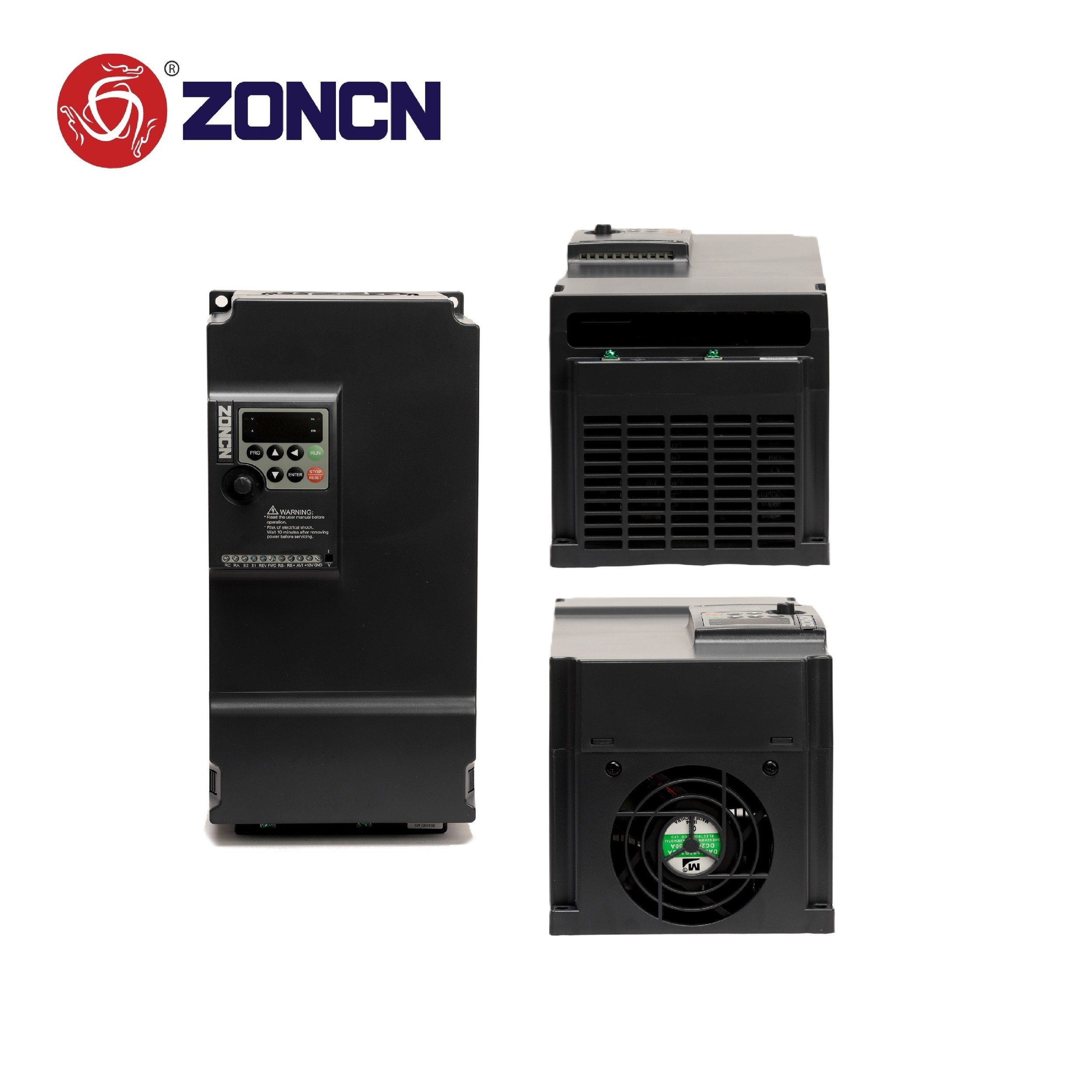

ZONCN Inverter 3phase 22kw Variable Speed Drive Frequency Converter 30hp Vfd

Product description

Product: Variable speed drive

Brand: ZONCN

Series: NZ200

Control mode: open loop vector control

Model: NZ200-22G-4 (For PM motor NZ200T-22GY-4)

Voltage: 380v+/-15%

Power: 22kw

Voltage: 220v single phase & 380v 3phase

Power range: 0.4kw-630kw

VFD Specification

VFD Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

VFD Application

ZONCN Inverter 3phase 22kw Variable Speed Drive Frequency Converter 30hp Vfd 0

VFD Packing

ZONCN Inverter 3phase 22kw Variable Speed Drive Frequency Converter 30hp Vfd 1

VFD Company introduction

ZONCN Inverter 3phase 22kw Variable Speed Drive Frequency Converter 30hp Vfd 2

FAQ

Q1: This NZ200 series can be used for general purpose?

A: Yes, we can produce from 0.4kw to 630kw, can be used in most of industrial applications.

Q2: Do you have inverter for input voltage of 440v, 480v instead of 380v?

A: Sure, we can produce for 220v/380v/44v/480v/690v, etc.

Q3. What is your inverters' warranty time?

A: All our inverters have 18 months of warrany after delivery.

Q4: Can you ship to my forwarder's address in China?

A: No problem, and the shipping cost to any address in China is FREE.
