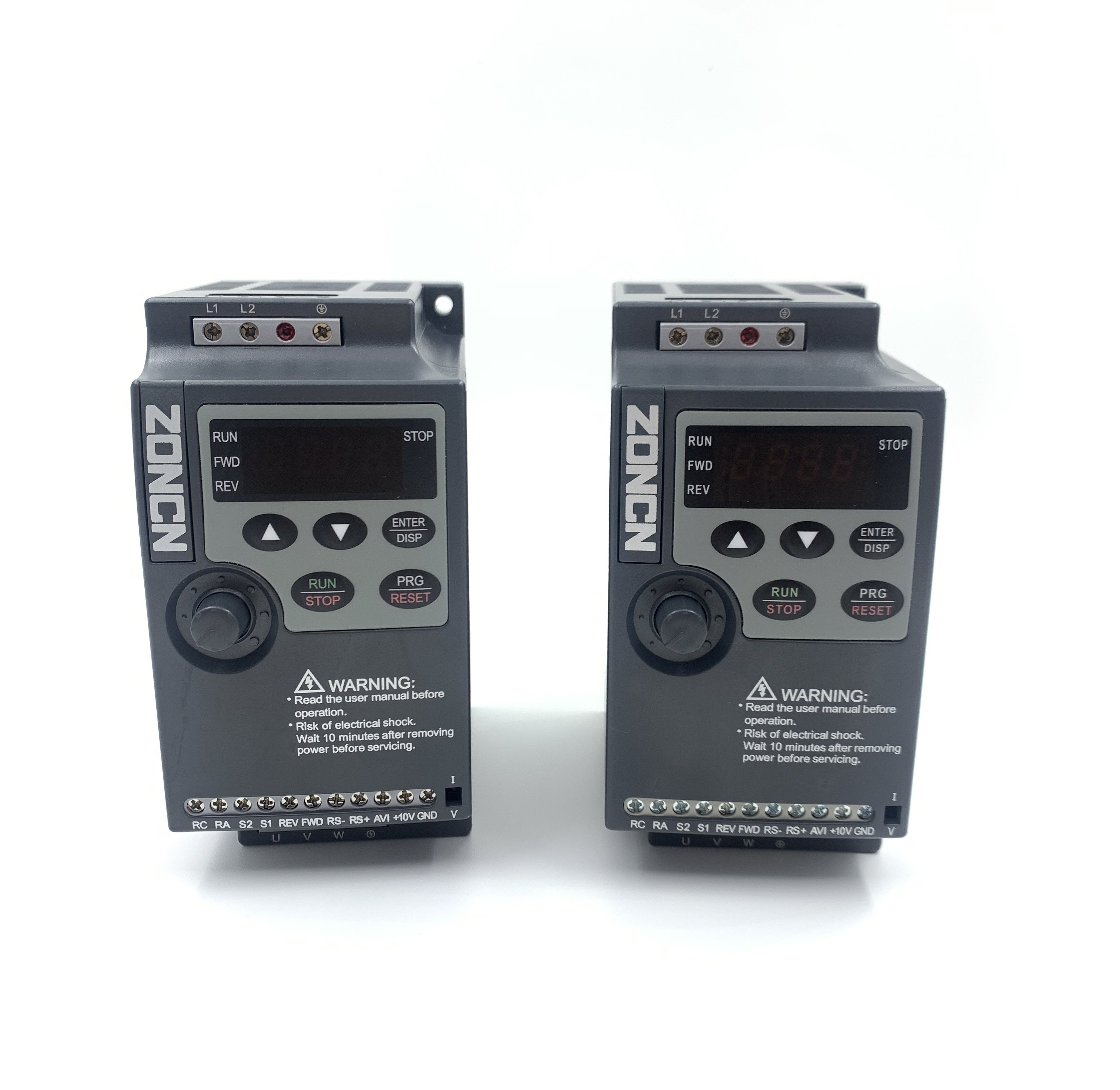

220v Variable Frequency Drive 1hp 2hp 3hp VFD VSD Frequency Converter 0.75kw 50hz 60hz

220v Variable Frequency Drive 1hp 2hp 3hp VFD VSD Frequency Converter 0.75kw 50hz 60hz​





Why choose NZ100 series

ZONCN is the Top 5 Inverter manufacturer in China since 2006, we focus on producing inverter for almost 2 decades. NZ100 series inverter is second generation inverter of ZONCN, which is mini size, low cost, good performance to control the motor speed for saving energy.



It is V/F control, built in PID control, supports RS485 communication, external keypad, have analog current input 4-20mA and analog voltage input 0-10V. Power range from 0.4kw to 7.5kw.



NZ100 inverter is one of hotest selling series of ZONCN, which are widely in fan, pump, conveyor, blowers etc.





NZ100 inverter's Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension







VFD inverter's Wiring Diagram

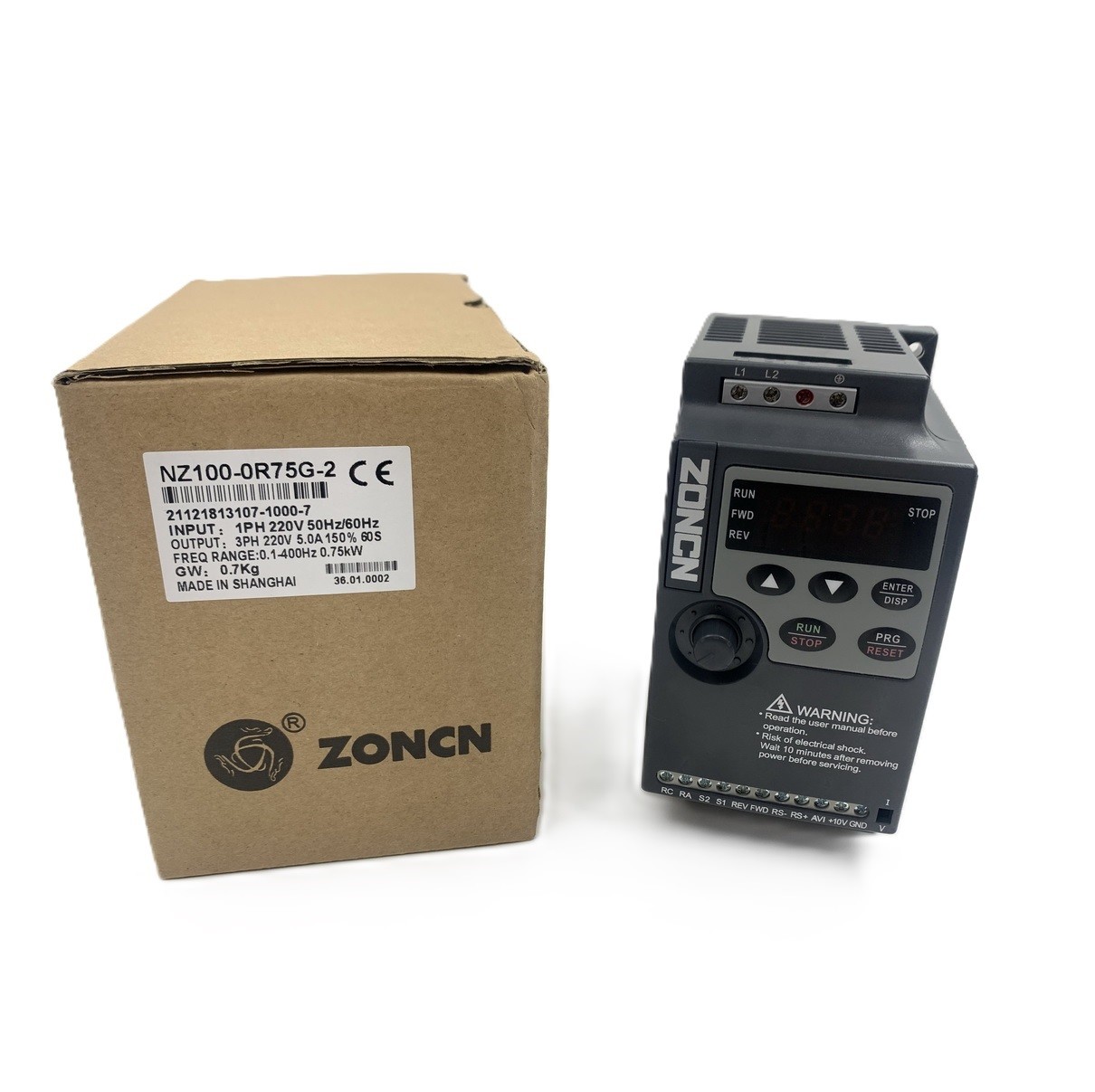

Packaging





Application
