Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw

Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw
Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw
Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-0R75G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: Mini VFD Inverter Brand: ZONCN
Model: NZ100-0R75G-2 Analog Input: 0-10V/4-20mA
Keypad: LED Control Mode: V/F Control
External Keyboard: Available Communication: MODBUS Via RS485
Certificate: CE,KC Weight: 0.7kg
Highlight:

3hp Mini Frequency Inverter

,

1hp Mini Frequency Inverter

,

220v Mini Frequency Inverter

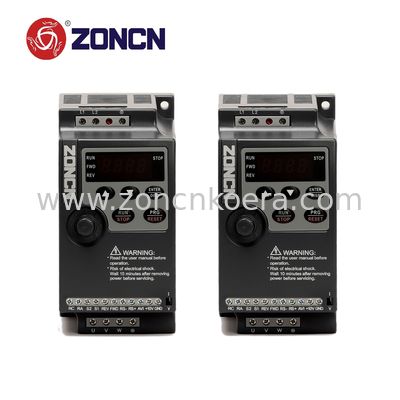

Mini Variador De Frecuencia 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw





Product description



Product name: VFD inverter

Brand: ZONCN

Series: NZ100

Model: NZ100-0R75G-2

Input: 220v single phase input, 220v three phase output

Power: 0.75kw

PID control: Built-in

Control mode: V/F control

Protection: IP20

Analog input: 0-10V / 40-20mA

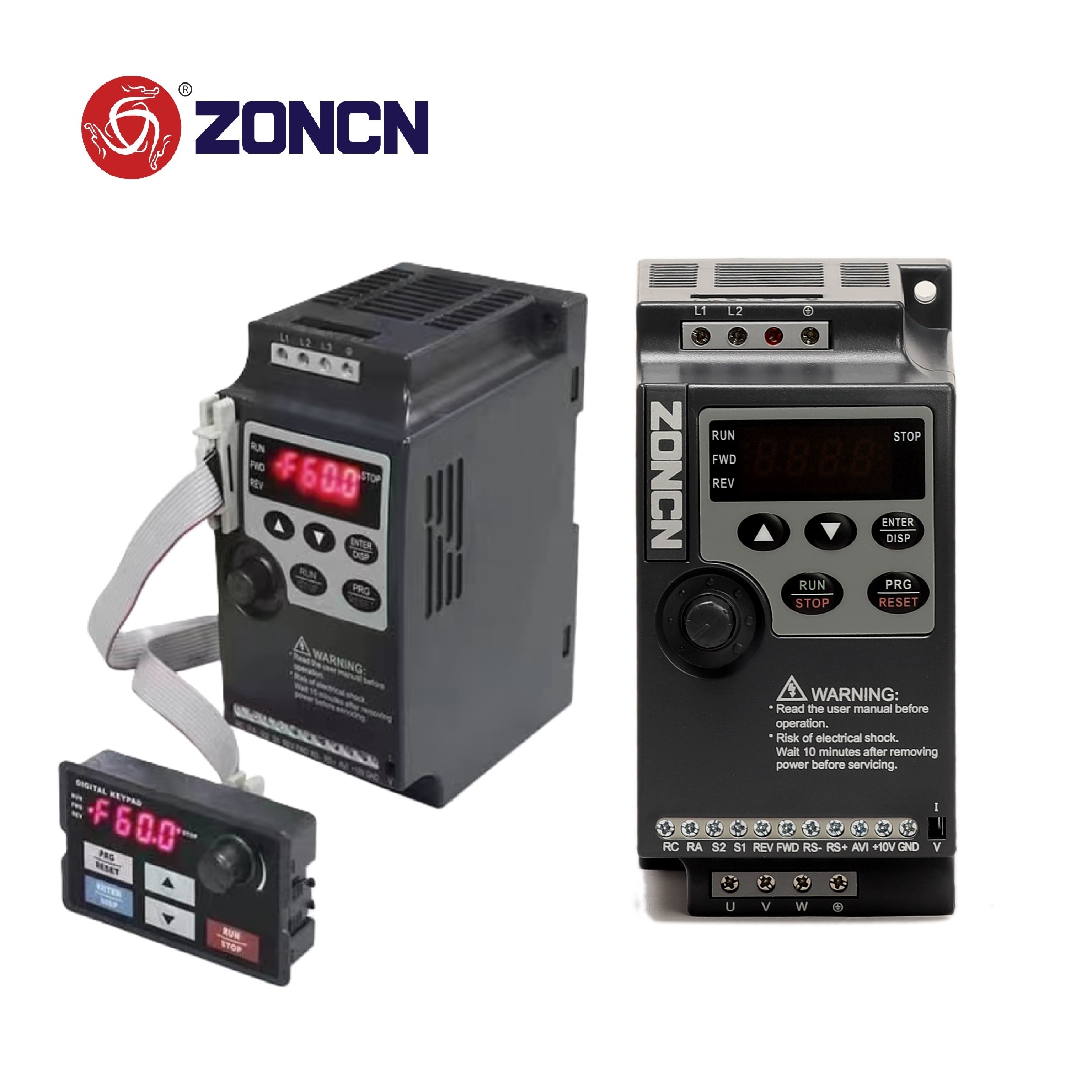

External keyboard: Available

OEM/ODM: Yes

Ceriticate: CE,KC

Warranty: 18 months





VFD inverter's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension



Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw 0





VFD inverter's Wiring Diagram



Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw 1





Packaging

Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw 2





Application



Mini 1hp 2hp 3hp AC Drive 220v Frequency Inverter 0.75kw 1.5kw 3







FAQ


Q1. Can you produce for my own logo/brand of VFD inverter?

A: Sure, we have lots of experience for OEM brands.



Q2. What ceriticate do you have for this series of VFD inverter?

A: We have CE and KC ceriticate.



Q3. What is your inverter's delivery time?

A: Normally 15 days after receiving full payment.



Q4. What is the warranty time for your VFD inverter?

A. 18 months after delivery from our facotry.
