Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-1R75G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: Mini VFD Inverter Brand: ZONCN
Input: 220V Single Phase Power: 1.5kw/2HP
Control Mode: V/F Control Output Currenct: 7A
Communication: MODBUS Via RS485 PID Control: Built-in
Highlight:

220v Inverter

,

2hp Inverter

,

1.5kw Inverter

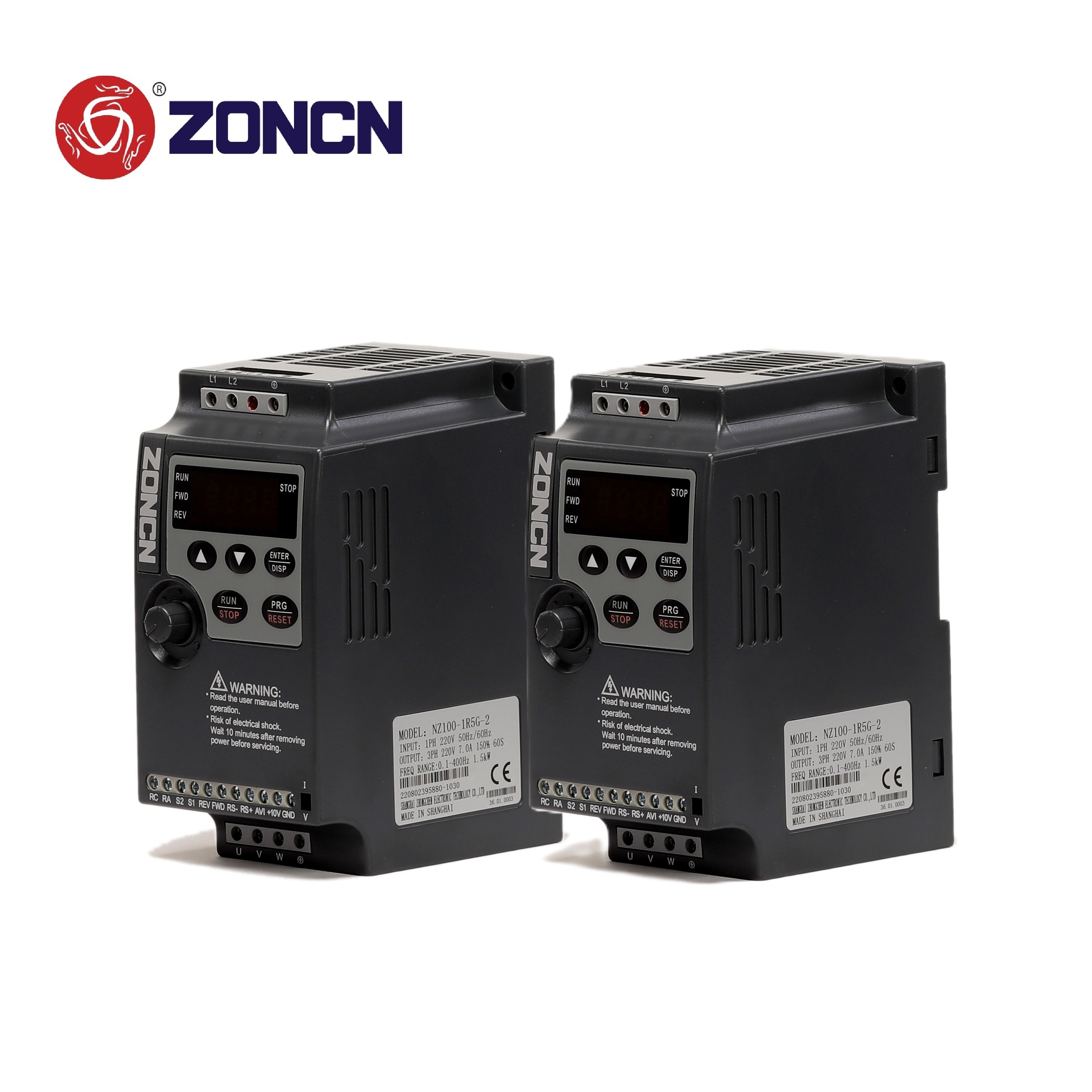

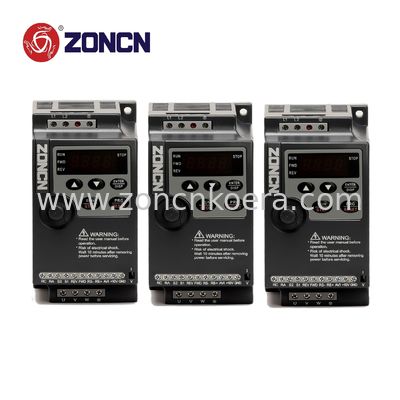

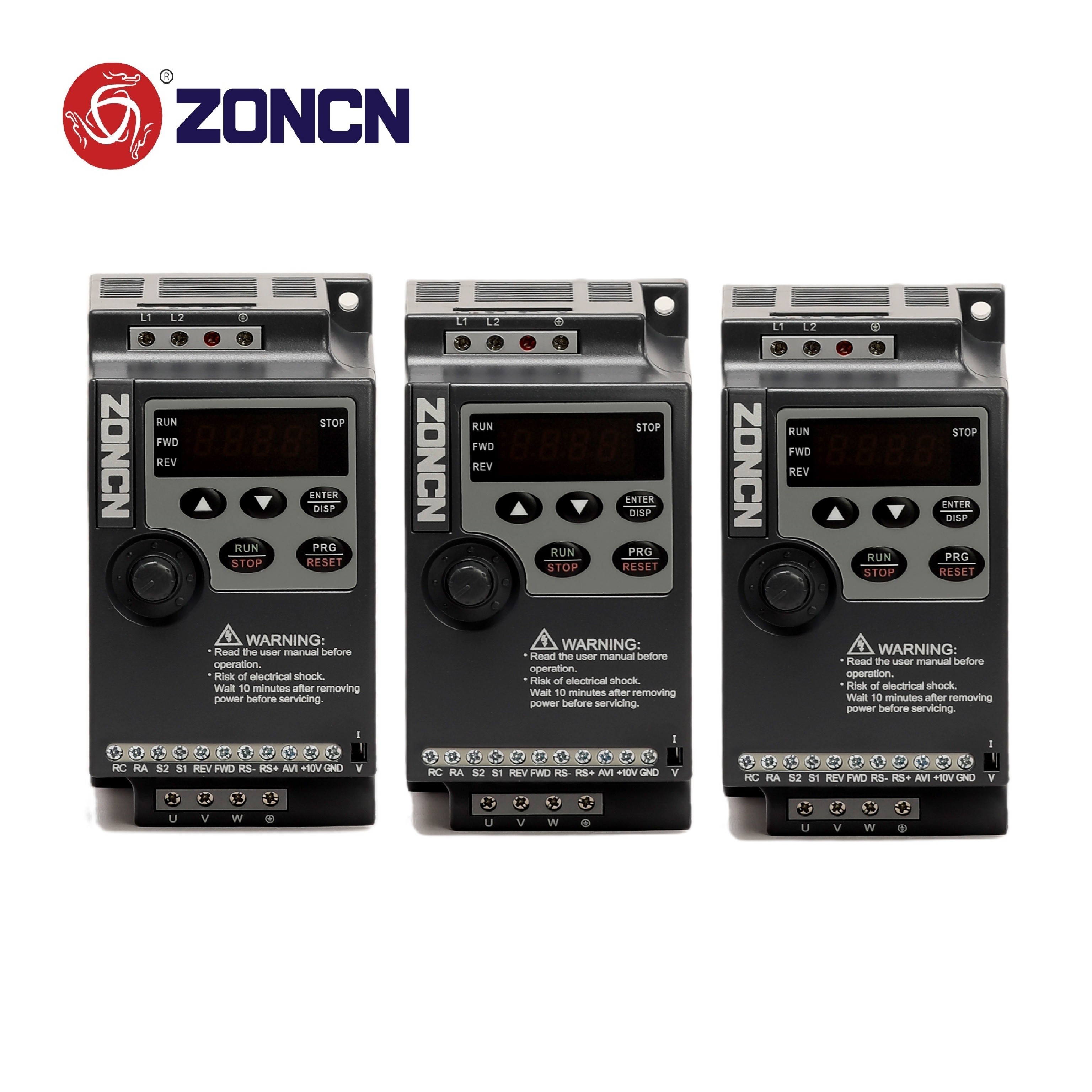

ZONCN NZ100 Mini Inverter VFD 1.5kw variable frequency drive 220v






Mini drive ; Low cost
Adjustable V/f control, Built-in PID control, output frequency range 0.1-400Hz
Compact size, space saving.
DIN rail mounting and wall mounting
Easy wiring, terminals uncovered
Standard communication protocol, Modbus RTU , RS 485

Inverters power range
For 220V input voltage 0.4-3.7 kw
For 380V input voltage 0.4-7.5 kw





VFD inverter's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension



NZ100-1R5G-2 Inverter 220v 0.75kw 1.5kw Variable Frequency Drive 1hp 2hp VFD From ZONCN 0





VFD inverter's Wiring Diagram



NZ100-1R5G-2 Inverter 220v 0.75kw 1.5kw Variable Frequency Drive 1hp 2hp VFD From ZONCN 1



VFD inverter's Packing&Shipping

NZ100-1R5G-2 Inverter 220v 0.75kw 1.5kw Variable Frequency Drive 1hp 2hp VFD From ZONCN 2





VFD inverter's Application



NZ100-1R5G-2 Inverter 220v 0.75kw 1.5kw Variable Frequency Drive 1hp 2hp VFD From ZONCN 3
