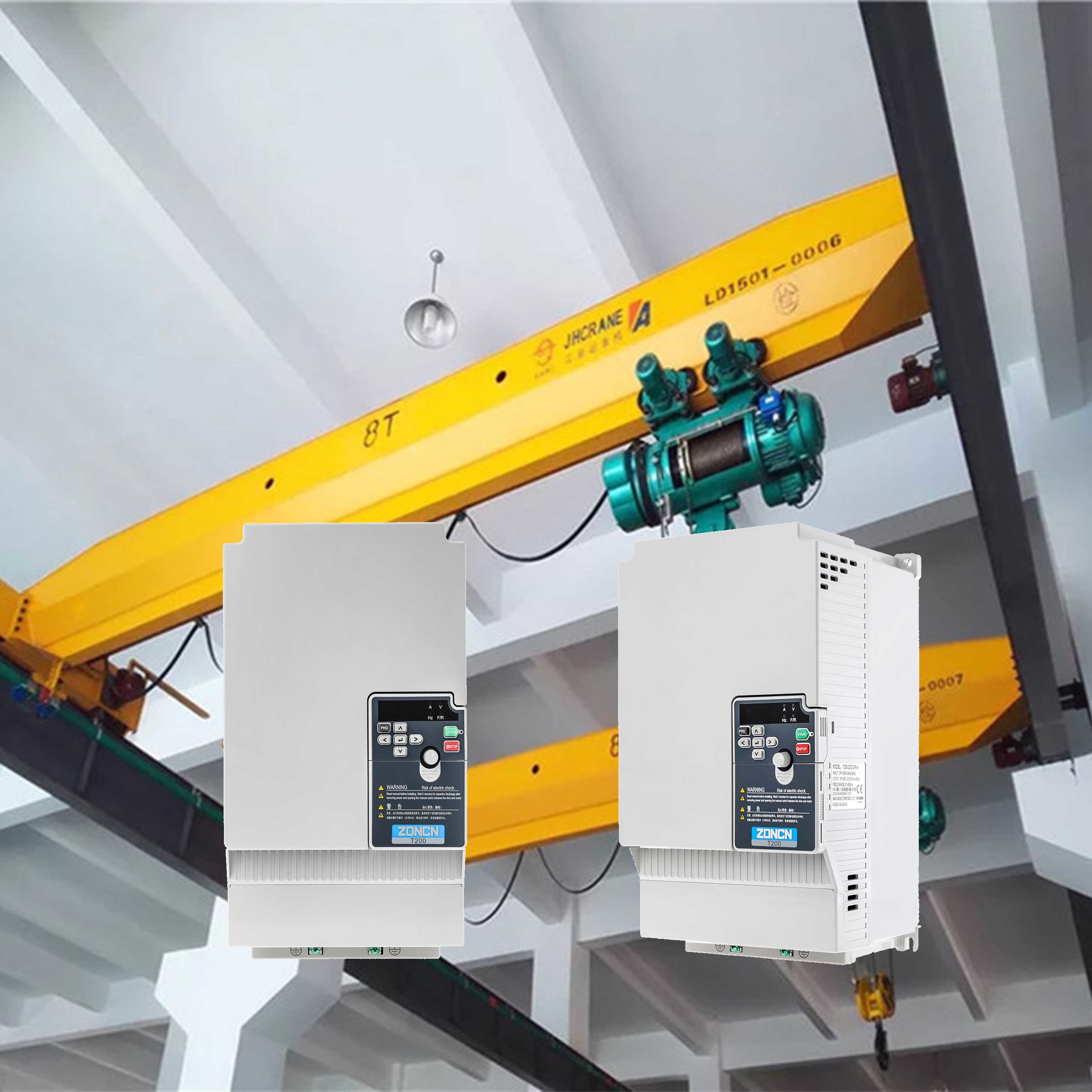

T200 Series VFD Frequency Inverter AC Drives 22KW



Basic product introduction:

The strengths of the T200 series vfd drive lie in its compact design, ‌ integration of multiple iot functions and high performance. ‌



· Minization design: ‌ under the condition that the operation parameters, ‌ performance and quality of the whole machine are unchanged, ‌ reduces the volume of the whole machine by improving the integration of the internal structure of the product, ‌ not only saves installation space and cost for customers, ‌ also makes the product easier to install and use.

· Integration of a variety of iot functions: ‌ This series of vfd inverter integrates bus technology and a variety of iot functions, ‌ is the company's focus on multi-function miniaturization products. ‌ This design makes ZONCN T200 vfd series inverter can better adapt to the development needs of modern industrial automation and intelligence, ‌ improve production efficiency and system flexibility.

· High performance: ‌ T200 series vfd inverter as the company launched the high performance inverter, ‌ its performance has been recognized by the market. ‌ The company expects to complete the serialization of T200 vfd high performance drives this year, ‌ to further meet the needs of different industries and applications.

To sum up, ‌ T200 series vfd inverter through its miniaturization, ‌ multi-function integration and high performance characteristics, ‌ provides an efficient and flexible solution for the field of industrial automation





Technical characteristic:

Maximum frequency:Vector control:0～600Hz  V/F control:0-3200Hz



Control mode:V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)



Carrier frequency:0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature



Input frequency resolution:Digital setting:0.01Hz Analog setting: maximum frequency×0.025%



Startup torque:G Type:0.5Hz/150%(SFVC)； P Type:0.5Hz/100%



Speed range:1:100(No PG)



Speed stability accuracy:±0.5%(No PG)



Torque control accuracy:±5%(FVC)



Overload capacity:G type: 60s for 150% of the rated current, 3s for 180% of the rated current ；P type: 60s for 120% of the rated current, 3s for 150% of the rated current



Torque boost:Fixed boost；Customized boost 0.1%-30.0%





DC braking:DC braking frequency: 0.00 Hz to maximum frequency；Braking time: 0.0-100.0s；Braking action current value: 0.0%–100.0%





Product distribution diagram:

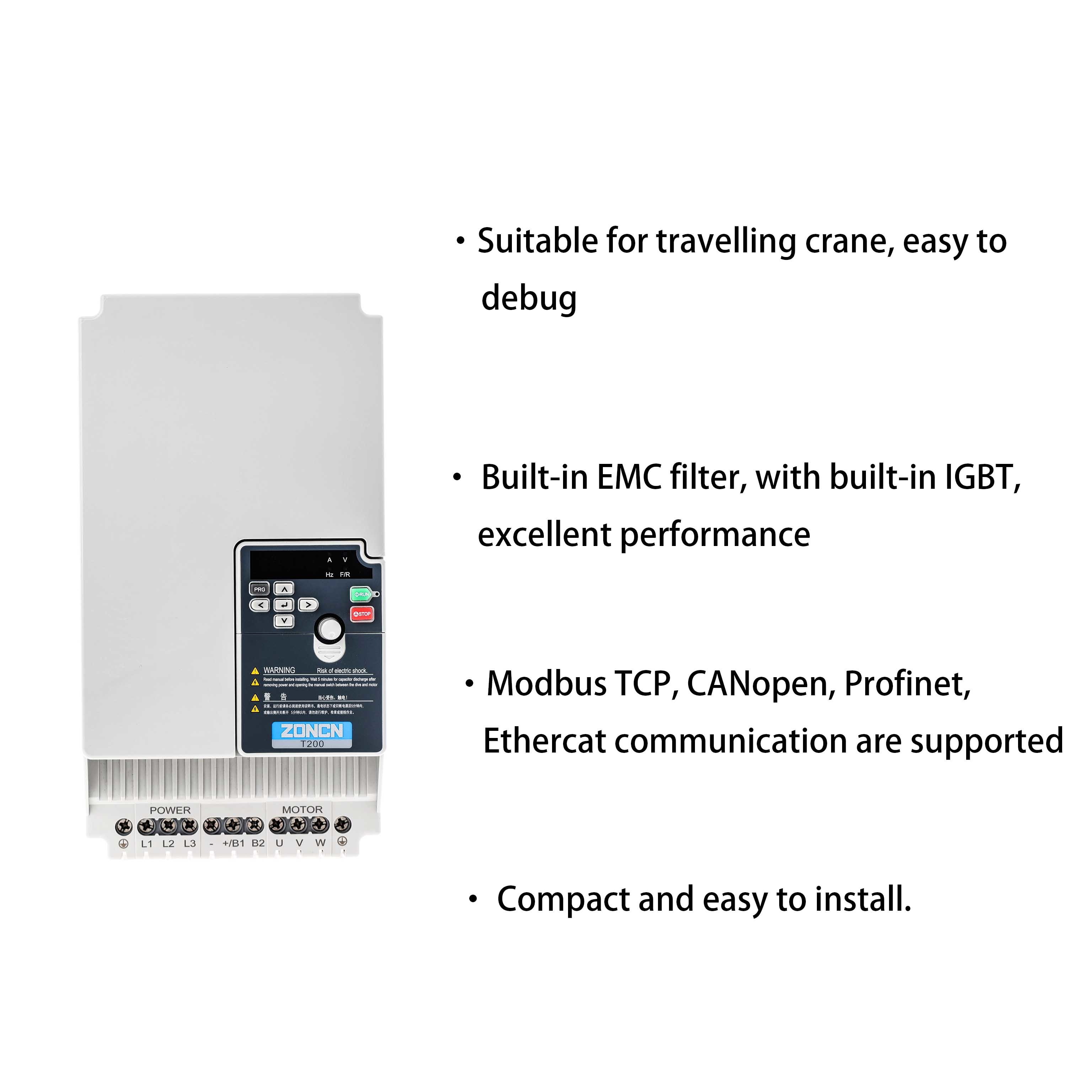

Product details:





FAQ:
Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
