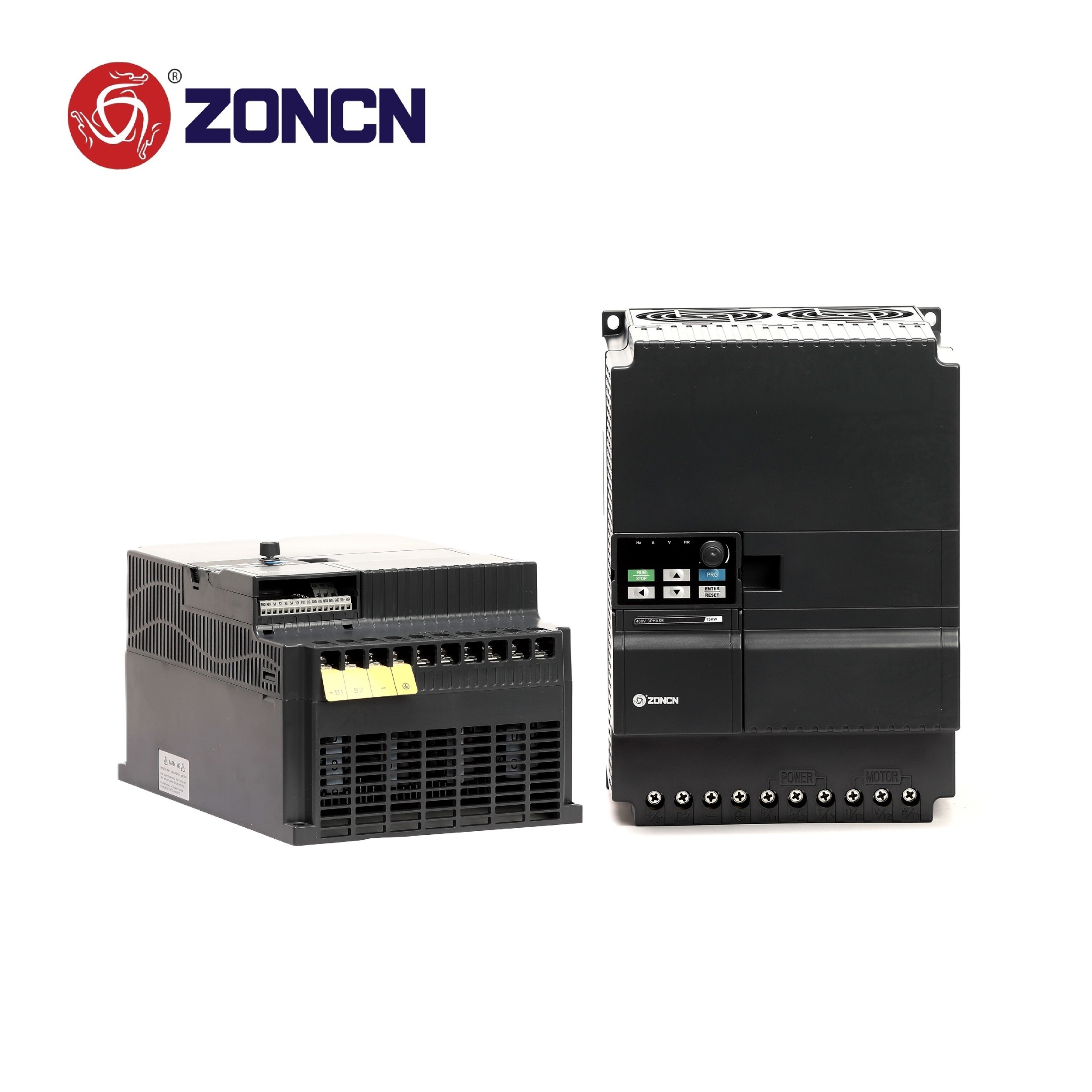

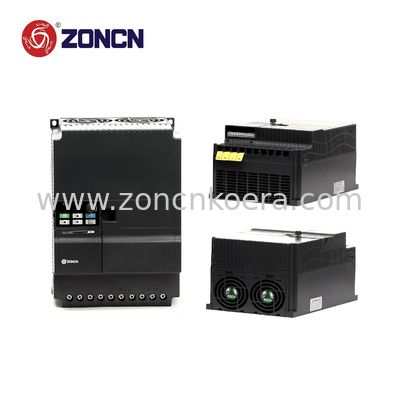

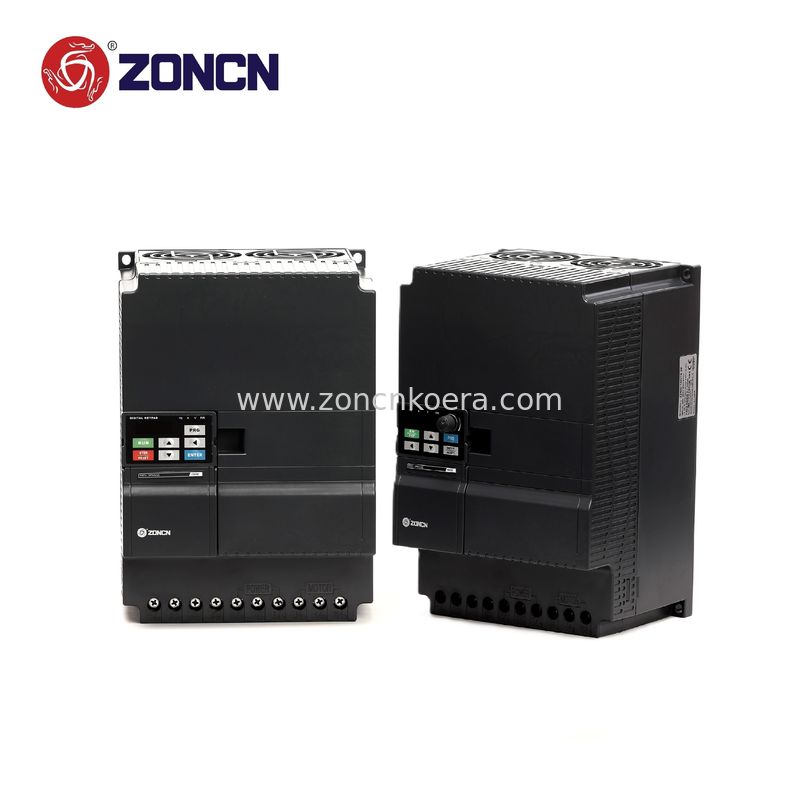

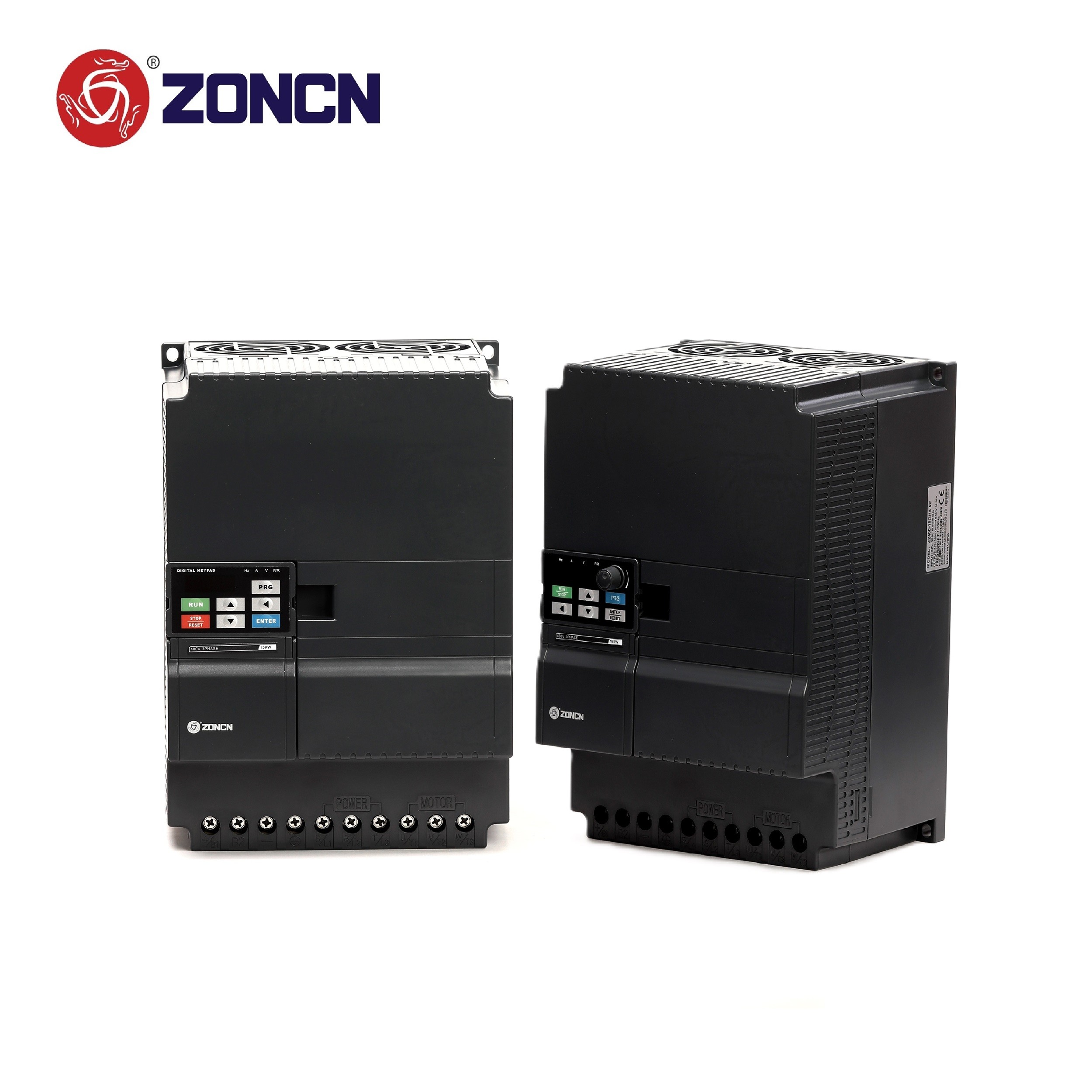

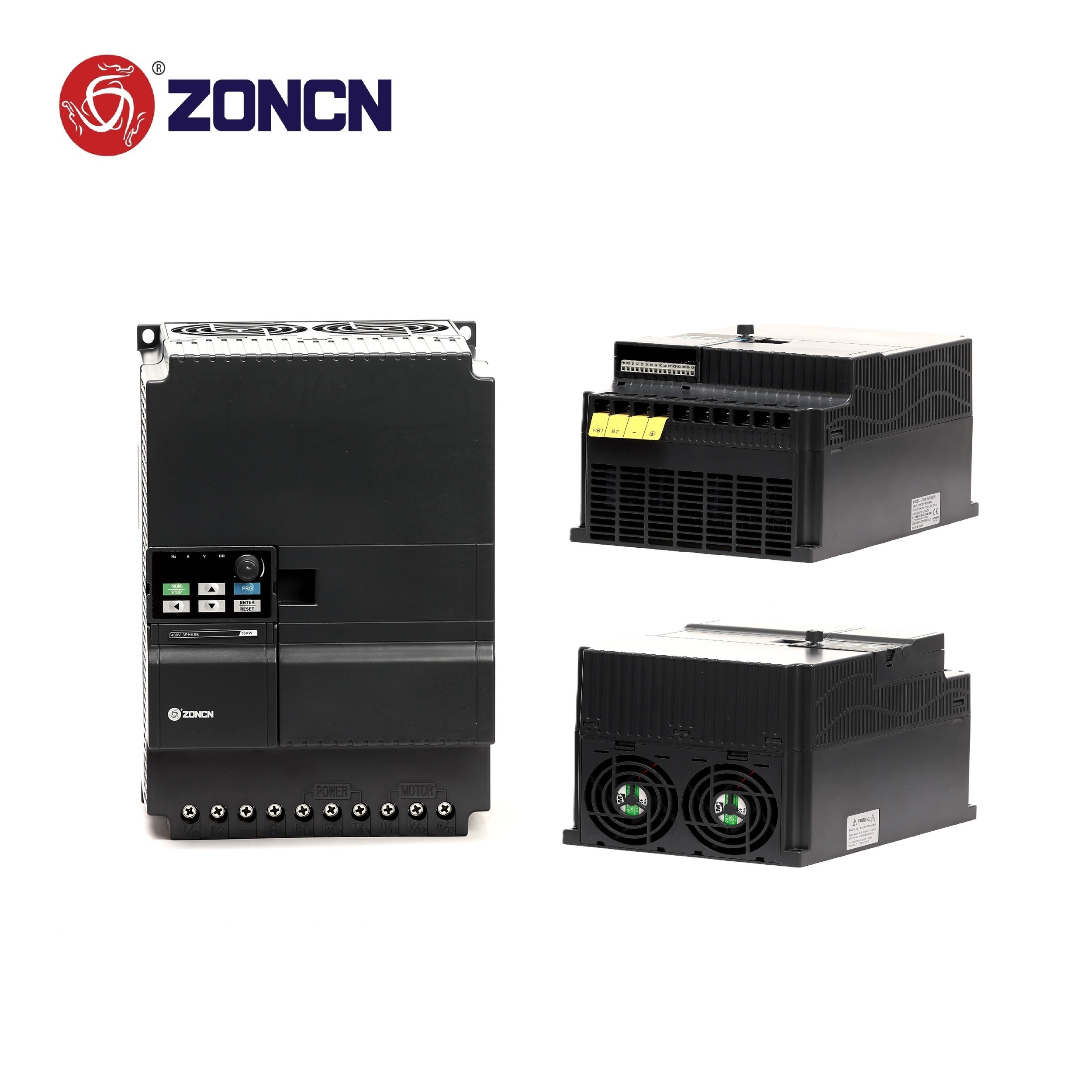

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication
Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: Z2400-15G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Application: Induction Motor
Brand: ZONCN Series: Z2000
Control Mode: Sensorless Vector Control Power: 20hp/15kw
Output Current: 45A Weight: 6kg
Protection: IP20
Highlight:

380v Variable Frequency Inverter

,

RS485 Communication Variable Frequency Inverter

,

20hp Variable Frequency Inverter





DZONCN 380v Inverter VFD 15KW Variable Frequency Drive





ZONCN Z2000 series VFD, high performance inverter for all industrial solutions!

Features:
- Input voltage: 400VAC (380VAC +/-15%) 50-60Hz (3 phase)
- Output voltage: 0-400VAC (3 phase)
- Output frequency (V/F control): 0-3200Hz
- Output frequency (Vector control): 0-320Hz
- Vector frequency: 1-16KHz
- Max. output current: 25A / 35A
- Max power: 15kW (constant torque)
- V/F and SFVC control model
- Control with potentiometer
- Removable control panel
- Built-in PID
- RS485, MODBUS-RTU protocol
- Control logic: NPN





VFD Inverter Specification

VFD inverter Specification
 Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　




*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.





VFD inverter Nameplate Description

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication 0





Company Introduction

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication 1

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication 2









VFD inverter Application

Variable Frequency Inverter 380v 20hp VFD 15kw With RS485 Communication 3









Why ZONCN?



Established on 2006, focus on producing VFD inverter almost for 2 decades, we have our R&D team, we can customize for our customers special requirements with our professional technical teams. We have different series which can be used in all kinds of industrial applications.

Voltage range 110v/220v/380v/40v/480v/690v, power ranges from 0.4kw to 2000kw. We developed specific softwares to use in various applications, for example, CNC, air compressor, automtic door, injection machine, construction lift, etc.
