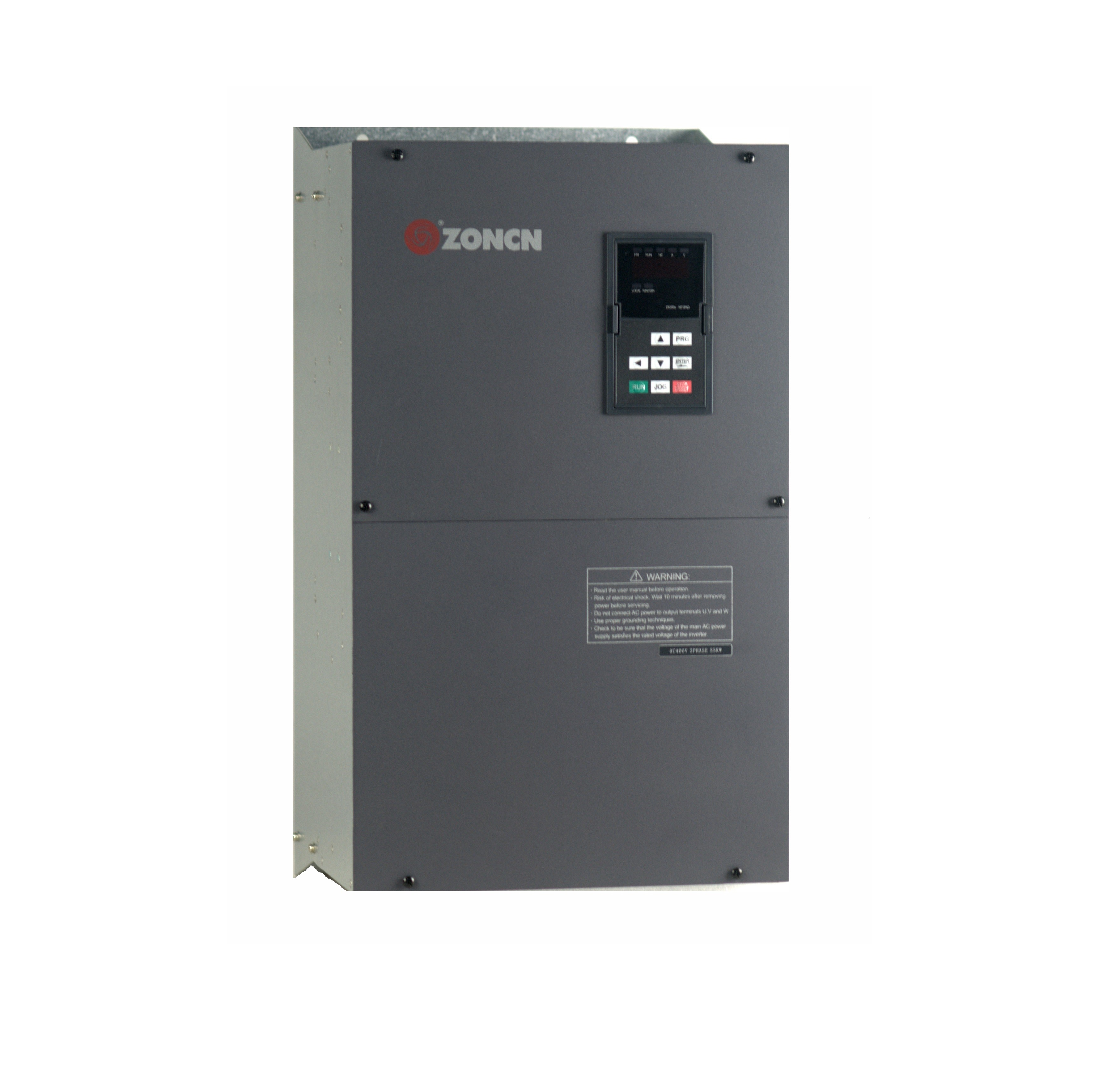

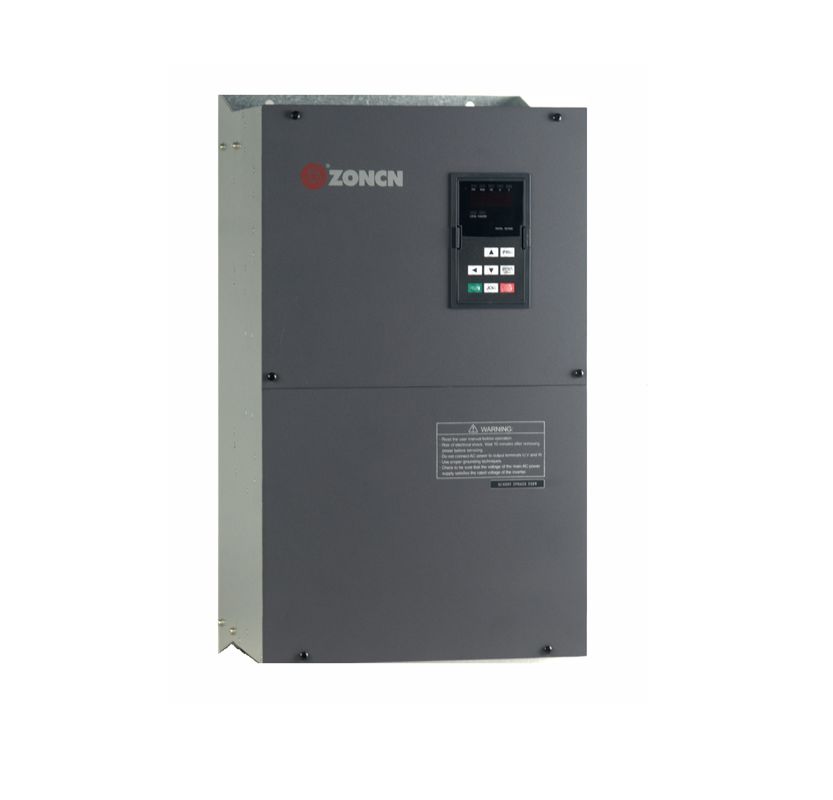

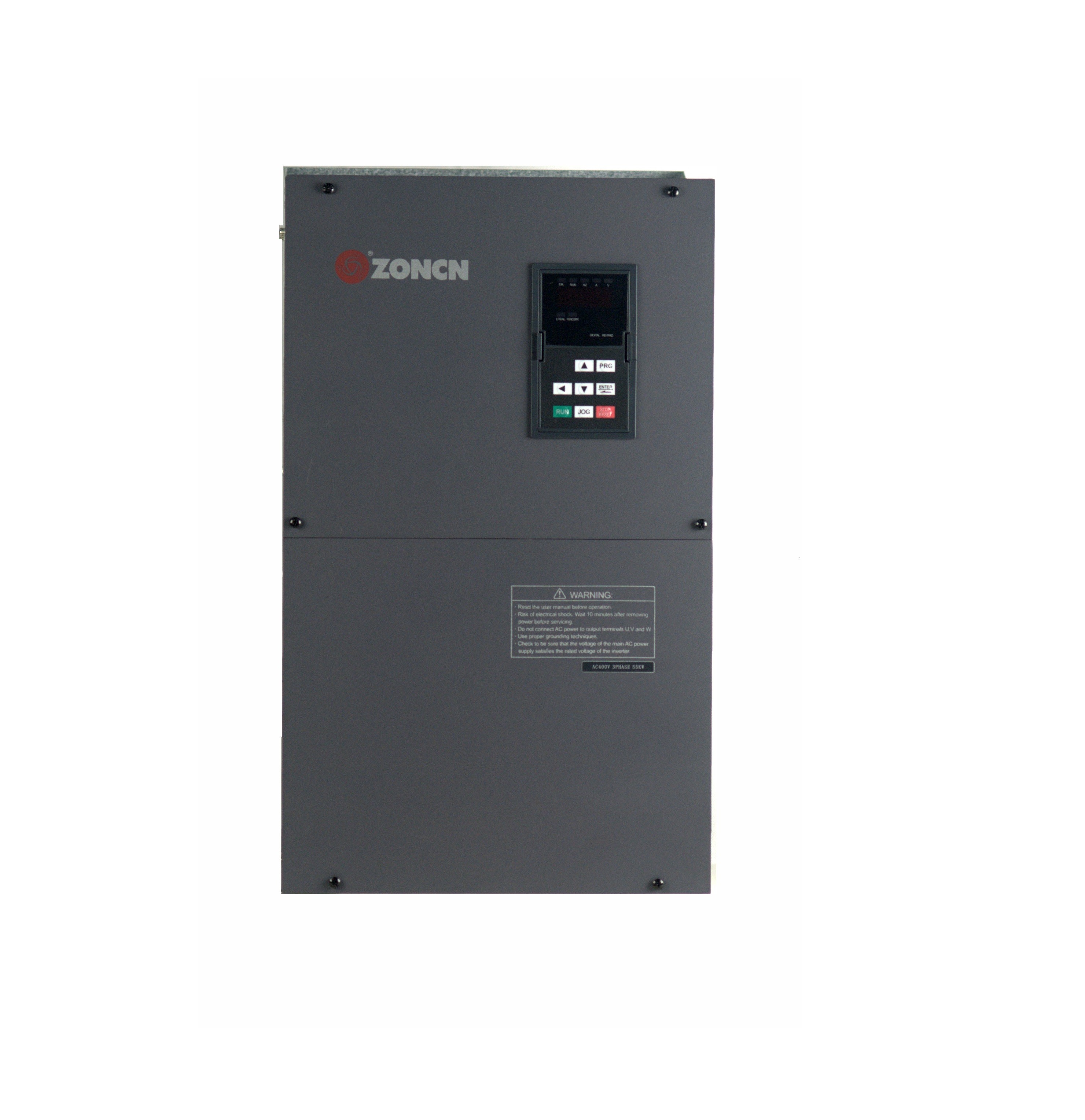

440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW

440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW
440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 30kW Vfd
Voltage: 380V Vfd Type: AC Drives Vfd
Solar Application: No Speed Range: 1:100(SVC)
Ingress Protectio: IP 20 Ambient Temperature: -10℃-40℃
VF Curve: Line V/F Curve；Multi-point V/F Curve；N-power V/F Curve JOG Control: JOG Frequency Range: 0.00–50.00 Hz
Timing Control: Timing Range:0.0Min~6500.0Min LED Display: It Displays The Parameters.
Highlight:

30KW Variable Frequency Drives

,

Low Voltage Inverter Variable Frequency Drives

,

Z2000 Series Variable Frequency Drives

Z2000 English Catalog.pdf

VFD ZONCN Z2000 Series 30KW AC Drives Pump Vfd Inverter

Basic product introduction:

Z2000 series vfd high performance compact vfd inverter
· Senseless flux vector control (VC)；V/F (Voltage/Frequency) Control.
· Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated curent.
· There are ten auxiliary frequency sources.
· It can implement fine tuning of auxiliary frequencyand frequency synthesis.
· Support PM motor (Z2000T series)
· Power range: 220V 0.4~7.5kW；380V 0.75~450kW

The Z2000 series vfd inverter has a strong ability to adapt to the environment. It can maintain stable performance in harsh environments such as high temperature, low temperature, humidity or dust. This strong environmental adaptability, thanks to its advanced protective design and strict production process, ensures that the inverter can operate stably in a variety of complex environments.


Technical Specification:

ItemZ2000 series vfd inverter
Control modeSenseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequencyVector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solutionDigital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100
Speed stability accuracy±0.5%
Overload capacityG type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureLine V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separationTwo types: complete separation; half separation
Ramp modeStraight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG controlJ0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive vfd


440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 0


Product wiring diagram:

440V Variable Frequency Drives Low Voltage Inverter Vfd Z2000 Series ZONCN 30KW 1



Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
