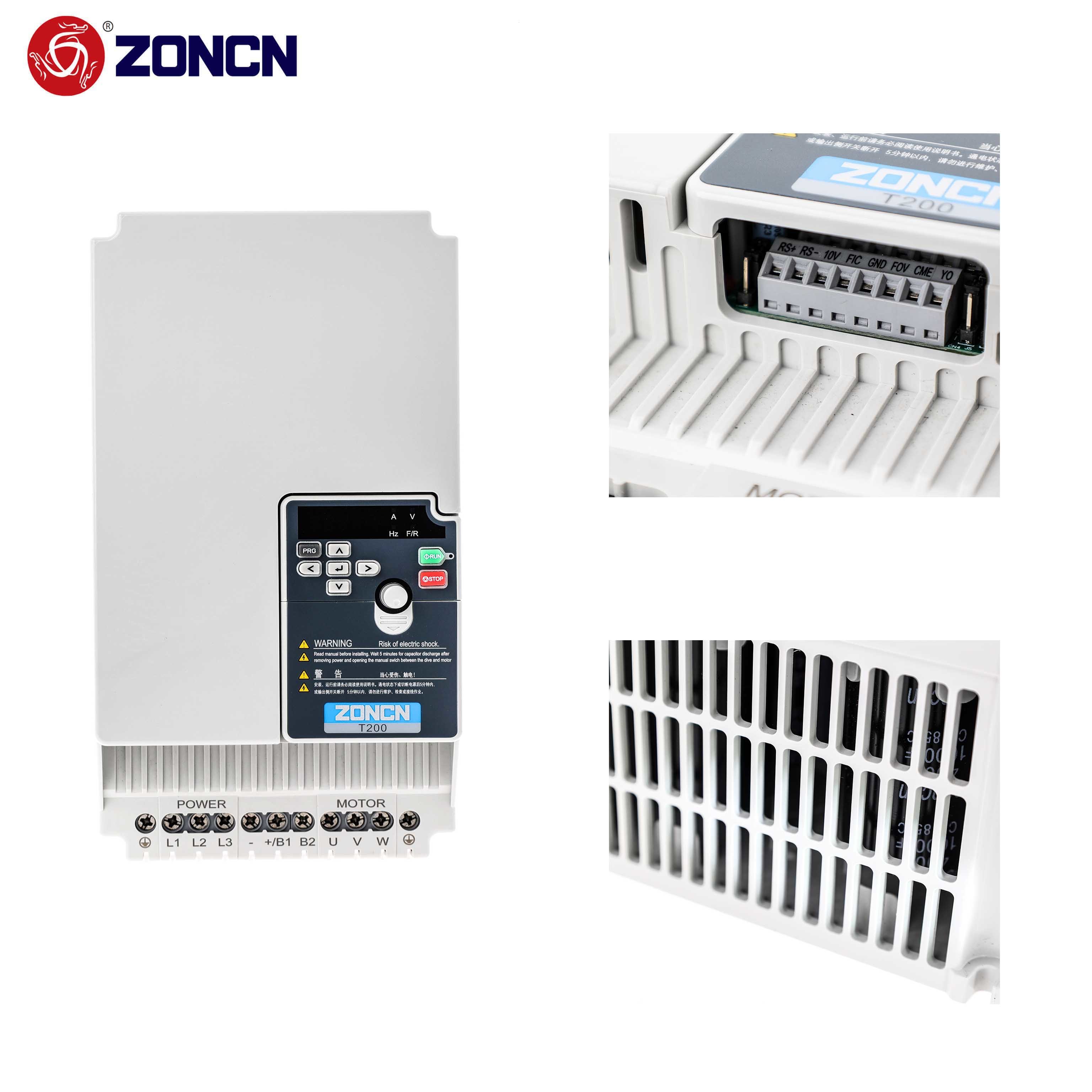

ZONCN T200 Series VFD Frequency Inverter AC Drives 22KW



Basic product introduction:

T200 series vfd variable frequency inverter provide a compact AC drive that combines easy operation with high-efficiency control for AC induction, PMS motor. The robust compact designed, various controls mode, support EtheCAT,Modbus,Profibus-DP communication,built-in EMC filter,24DC,STO function. Extension PG Cards.The ZONCN T200 series vfd inverter are known for their superior performance and are suitable for a wide range of industrial applications. With cutting-edge technology and reliable quality, it provides users with energy efficient and stable power solutions.With its excellent performance, the ZONCN T200 series vfd will continue to shine in the field of automation inverters and set a benchmark in the inverter vfd market.





Technical characteristic:

Maximum frequency:Vector control:0～600Hz  V/F control:0-3200Hz



Control mode:V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)



Carrier frequency:0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature



Input frequency resolution:Digital setting:0.01Hz Analog setting: maximum frequency×0.025%



Startup torque:G Type:0.5Hz/150%(SFVC)； P Type:0.5Hz/100%



Speed range:1:100(No PG)



Speed stability accuracy:±0.5%(No PG)



Torque control accuracy:±5%(FVC)



Overload capacity:G type: 60s for 150% of the rated current, 3s for 180% of the rated current ；P type: 60s for 120% of the rated current, 3s for 150% of the rated current



Torque boost:Fixed boost；Customized boost 0.1%-30.0%





DC braking:DC braking frequency: 0.00 Hz to maximum frequency；Braking time: 0.0-100.0s；Braking action current value: 0.0%–100.0%





Product distribution diagram:



FAQ:
Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
