220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	NZ100-0R75G-2

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Western Union, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Product:	VFD Inverter	Brand:	ZONCN
Input:	220V Single Phase	Power:	0.75kw/1HP
Output Currenct:	7A	Frequency:	50hz/60hz
Communication:	RS485 (MODBUS)	Weight:	1kg
Highlight:	0.75kw Inverter VFD , 1hp Motor Drives Inverter VFD , 220v Inverter VFD

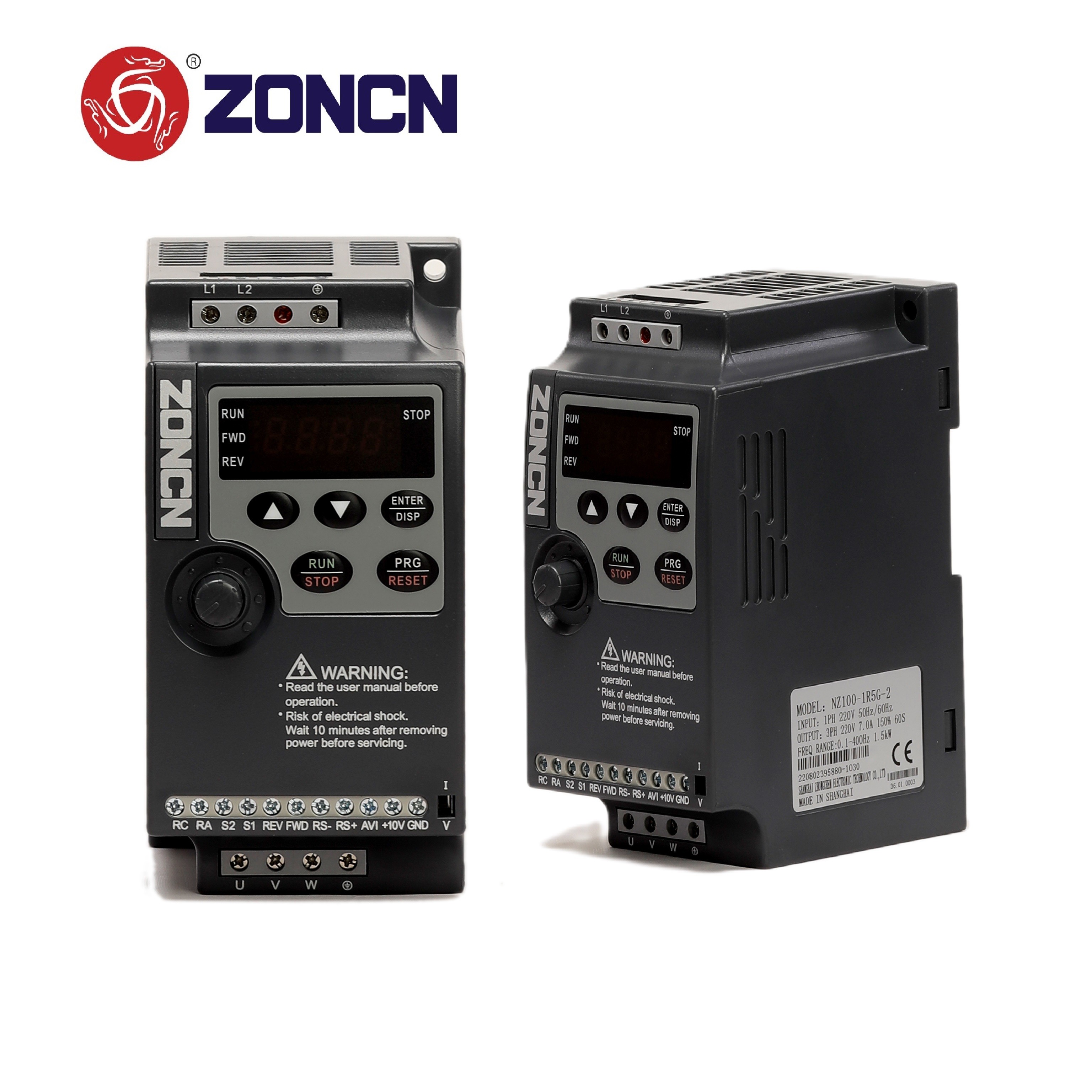

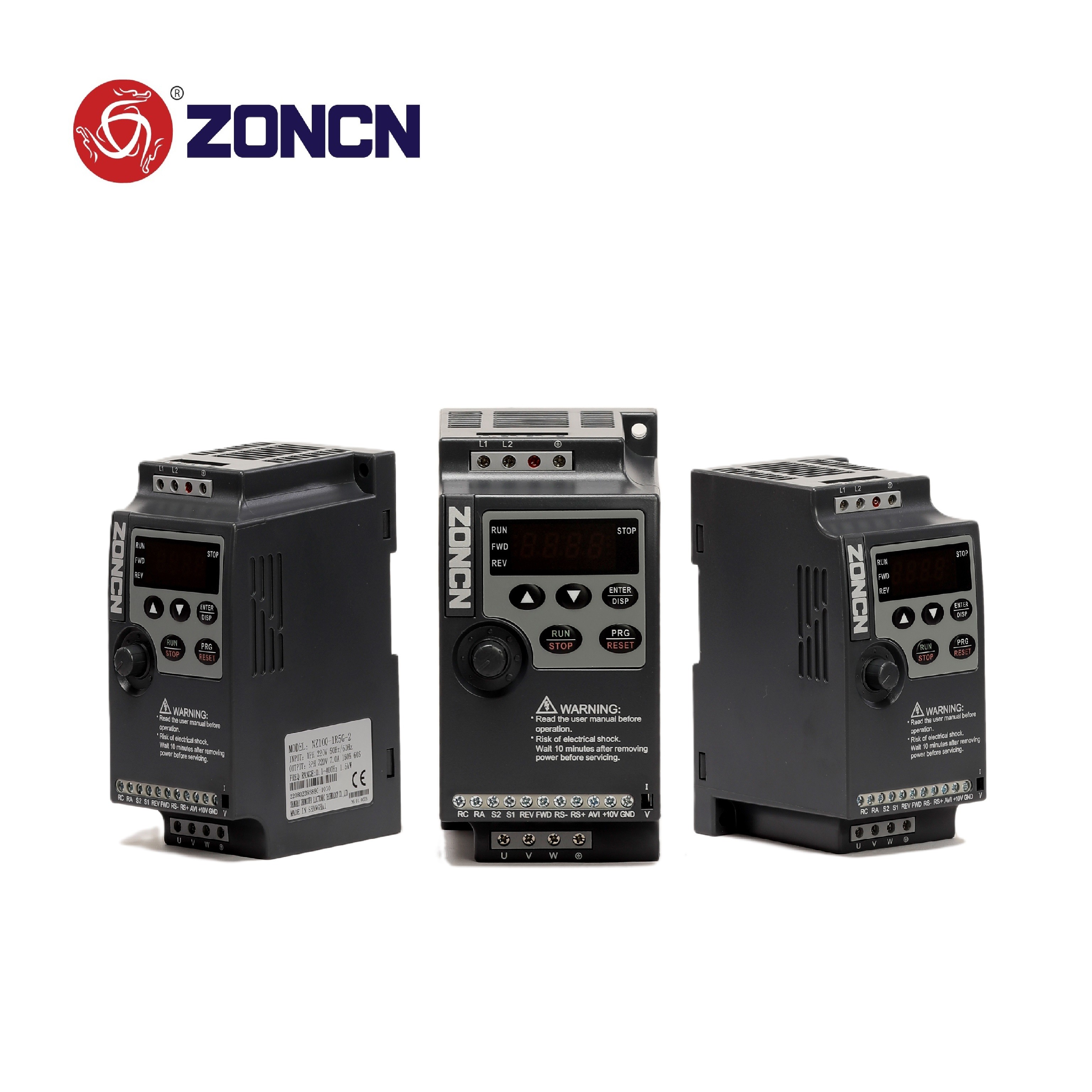

ZONCN NZ100 Series Mini variable frequency inverter(VFD)

The NZ100 series, it has the characteristics of small size, low cost and easy use, for controlling the motor's speed. It is ZONCN's best-selling highly reliable mini frequency inverter. Specially designed for low-power motors.

Mini size
Low cost
Terminals uncovered, very easy for wiring
Analog input: 0-10V, 4-20mA
Overload: 150%, 60S
Control mode: V/F control
Built-in PID control
RS485 communication
Installation: Wall-mounted or standard 35mm rail mouting(≤5.5kw)
External keyboard is available

VFD inverter's Nameplate Description

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 0

VFD inverter's Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

VFD inverter's Dimension

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 1

VFD inverter's Wiring Diagram

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 2

VFD inverter's Packing&Shipping

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 3

VFD inverter's Workshop

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 4

VFD inverter's Application

220v Inverter VFD 0.75kw Variable Frequency Drive 1hp Motor Drives 5
