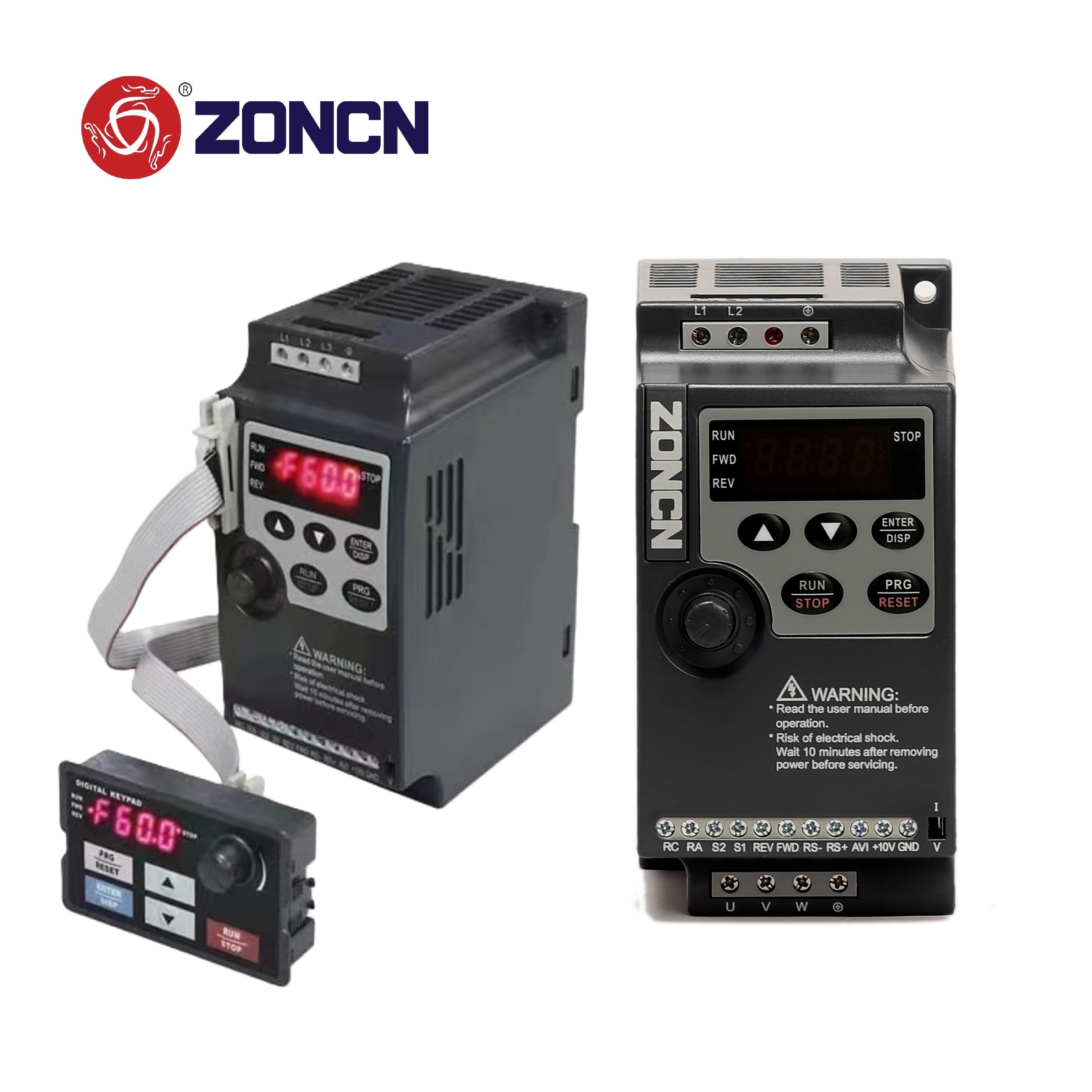

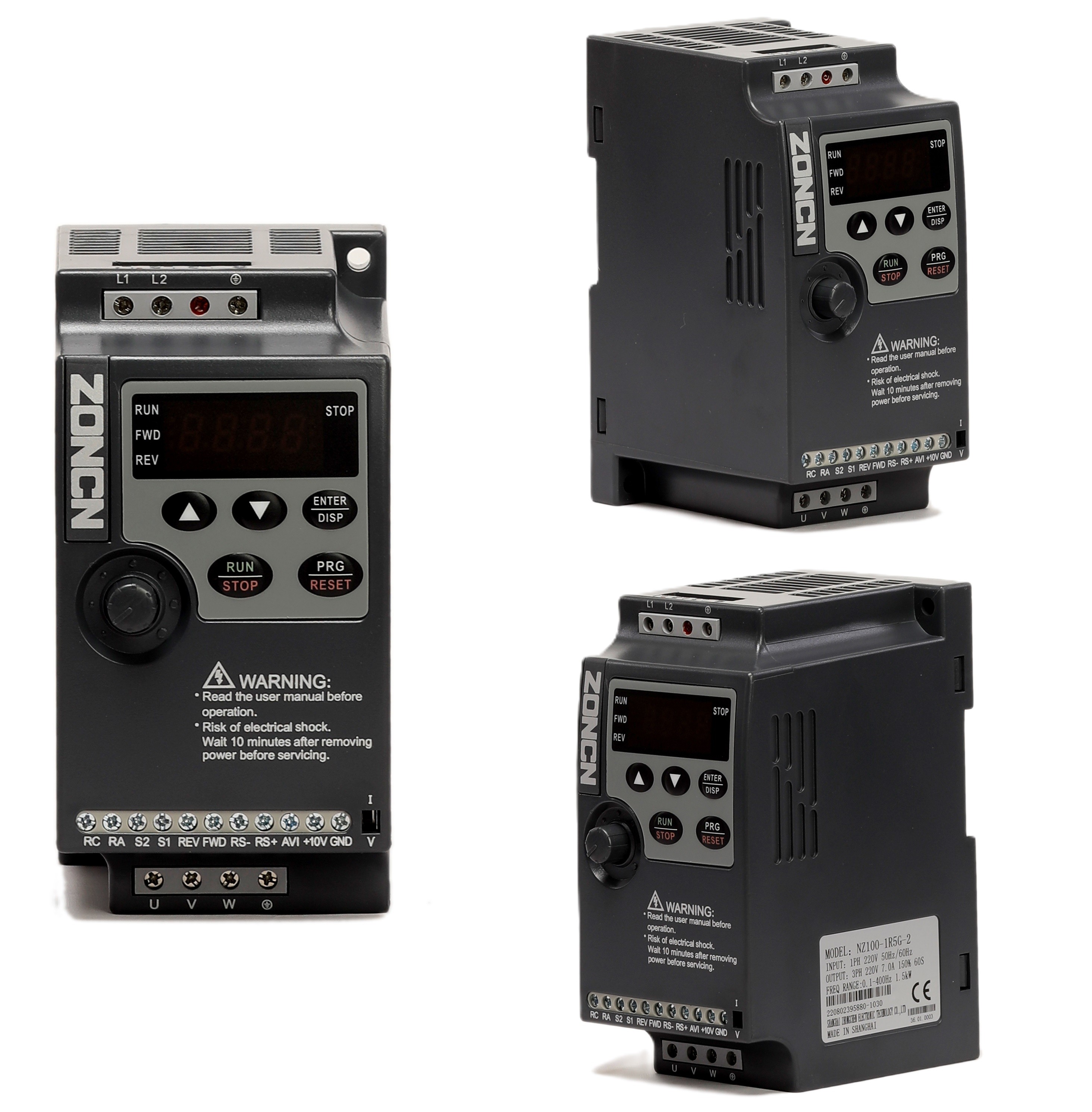

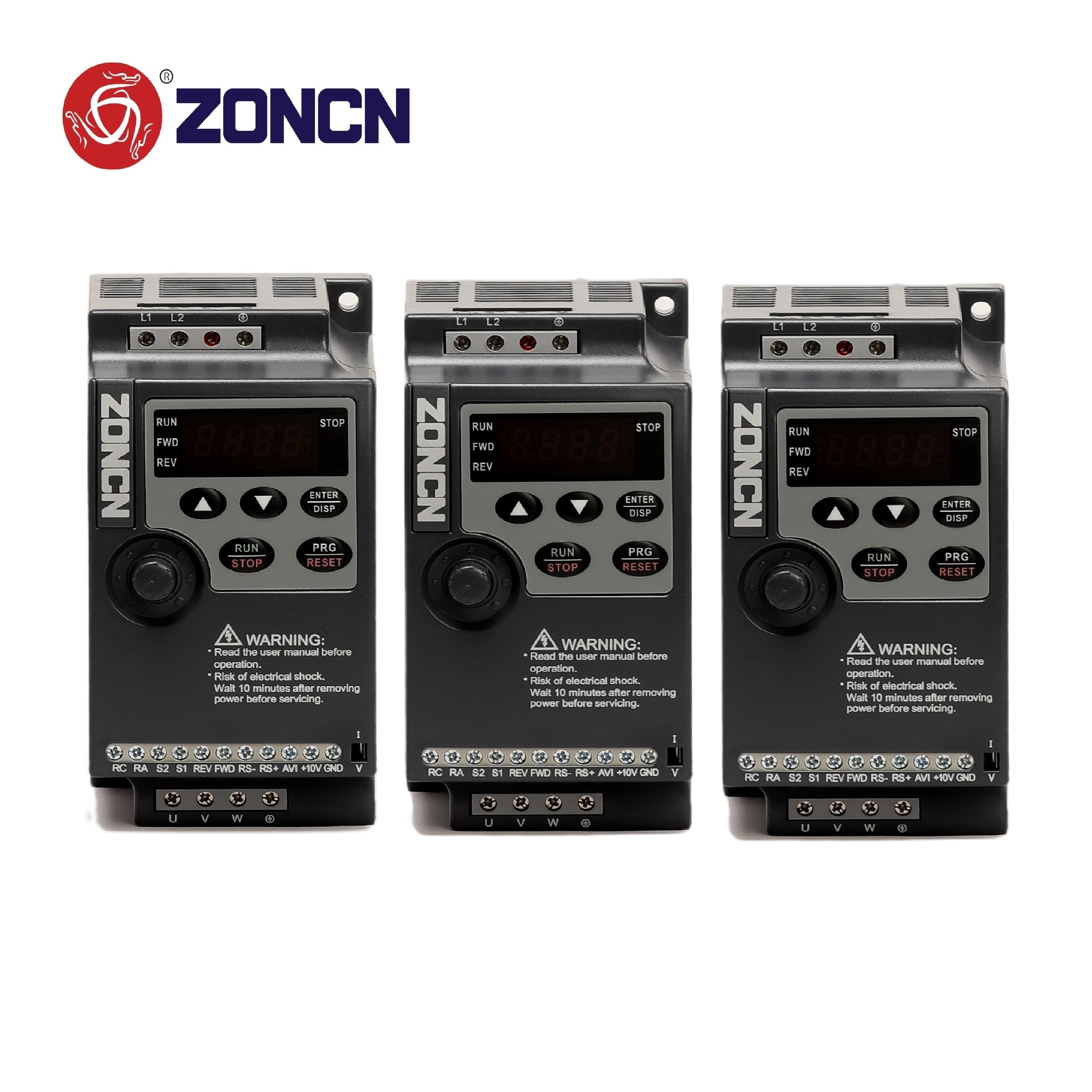

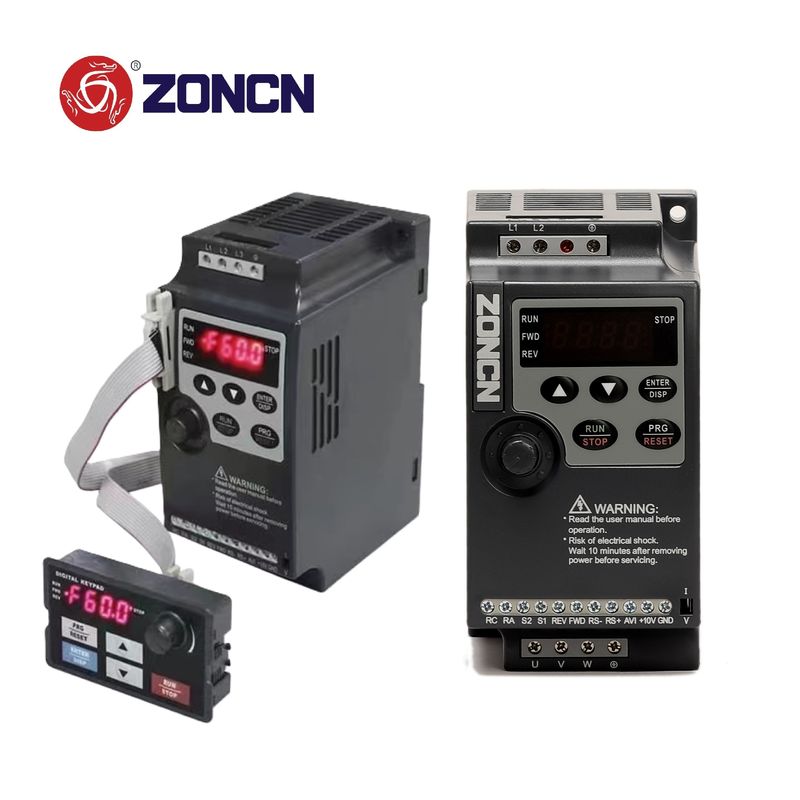

Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN

Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN
Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN
Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-0R75G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: VFD Inverter Brand: ZONCN
Input: Single Phase 220V Power: 0.75kw/1HP
Output Currenct: 7A Frequency: 50/60hz
Communication: RS485 (MODBUS) Weight: 1kg
Highlight:

0.75kw NZ100-0R75G-2

,

220v NZ100-0R75G-2

ZONCN NZ100 Series Mini variable frequency inverter(VFD)





The NZ100 series VFD inverter is ZONCN's best-selling high-quality and highly reliable mini frequency inverter. Specially designed for low-power motors, it has the characteristics of small size, low cost and easy use,  for controlling the motor's speed. NZ100 series VFD inverters are widely used in many automation applications, represented by fan, pump, blower, conveyor, food machines, etc.

  • Micro size VFD inverter
  • Terminals uncovered, very easy for wiring
  • Control mode: V/F control
  • Buil-in PID control
  • RS485 communication
  • Cooling mode: Forced air cooling
  • Installation: Wall-mounted or standard 35mm rail mouting(≤5.5kw)
  • External keyboard is available





VFD inverter's Nameplate Description

Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 0

VFD inverter's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension



Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 1





VFD inverter's Wiring Diagram



Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 2



VFD inverter's Packing&Shipping

Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 3



VFD inverter's Workshop

Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 4







VFD inverter's Application



Single Phase 220v VFD 0.75kw NZ100-0R75G-2 Mini Inverter 50hz 60hz From ZONCN 5
