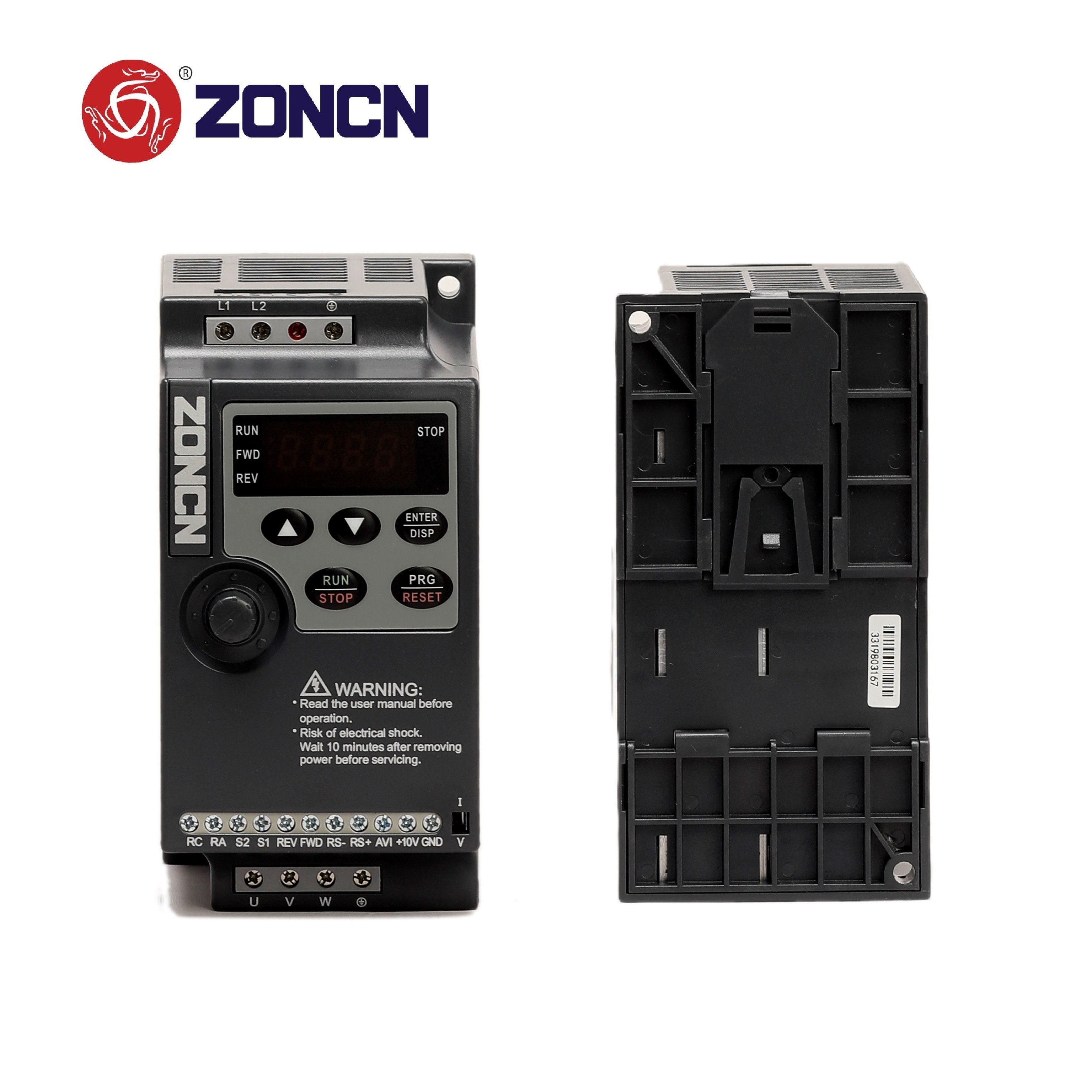

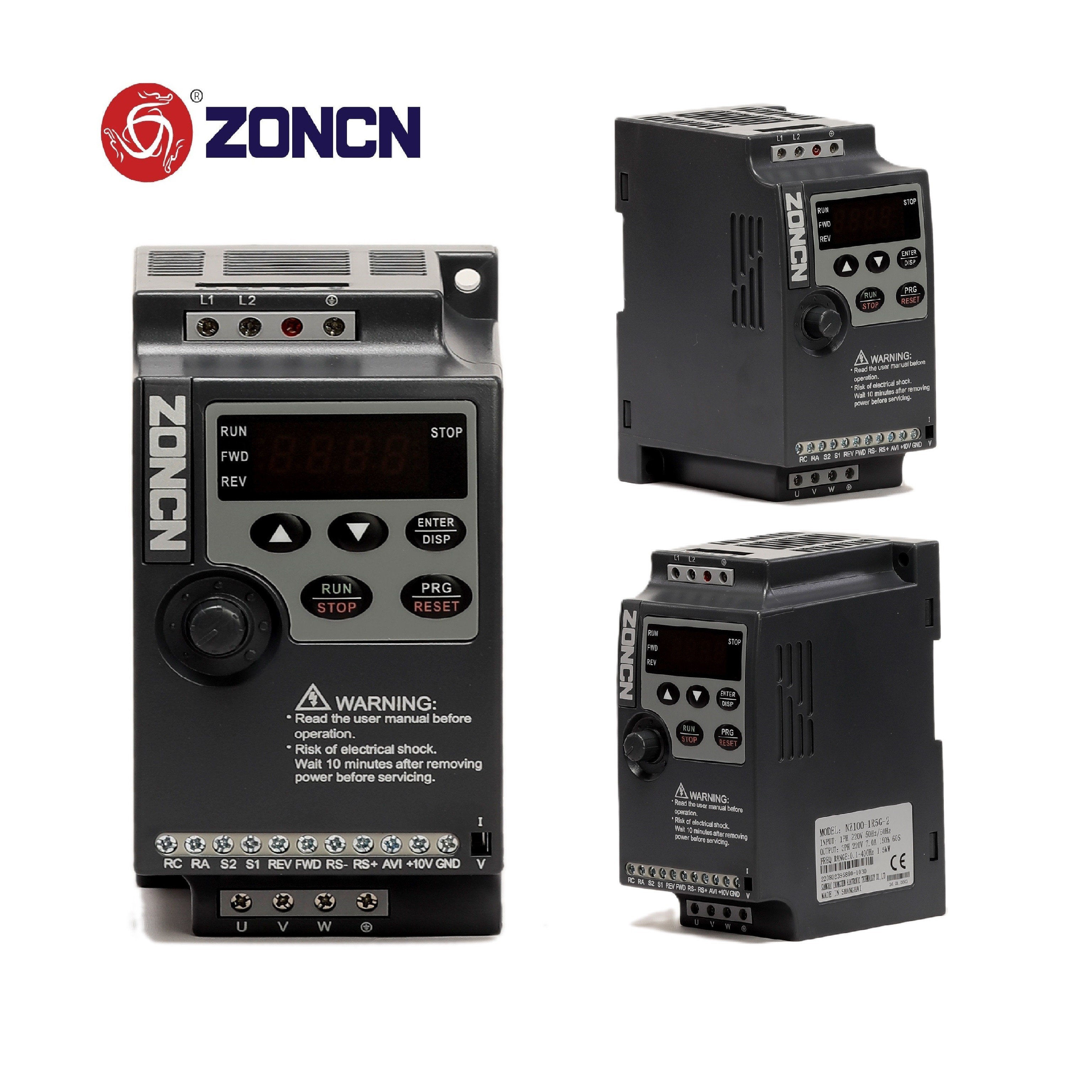

220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN

220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN
220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN
220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product: VFD Inverter Brand: ZONCN
Input: Single Phase 220V Output: 3ph 220V
Power: 1.5kw/2HP Ourtput Currenct: 7A
Control Mode: V/F Control Only Weight: 1kg
Highlight:

1.5kw Single Phase VFD Inverter

,

60hz Single Phase VFD Inverter

,

220v Single Phase VFD Inverter

ZONCN NZ100 Series Mini variable frequency inverter(VFD)





The NZ100 series frequency inverter is ZONCN's best-selling high-quality and highly reliable mini frequency inverter. Specially designed for low-power motors, it has the characteristics of small size and easy use, and can be widely used in small automation machinery represented by woodworking carving, glass edging, food filling, pharmaceutical centrifuges, automated production lines, electronic equipment, logistics equipment, ceramic equipment, textiles, etc.

  • Mini size
  • Terminals uncovered, very easy for wiring
  • Buil-in PID control

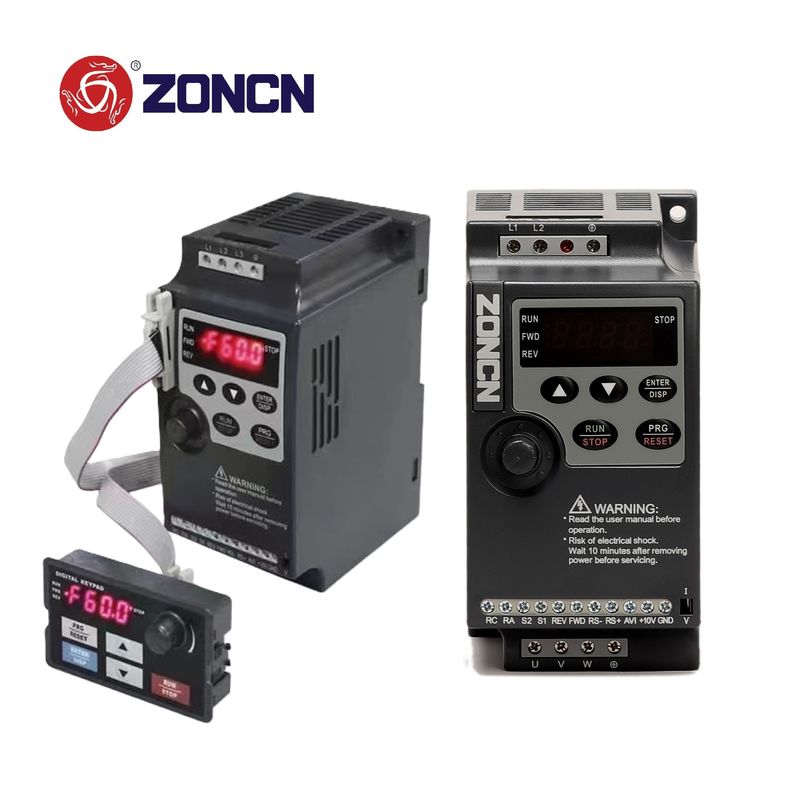

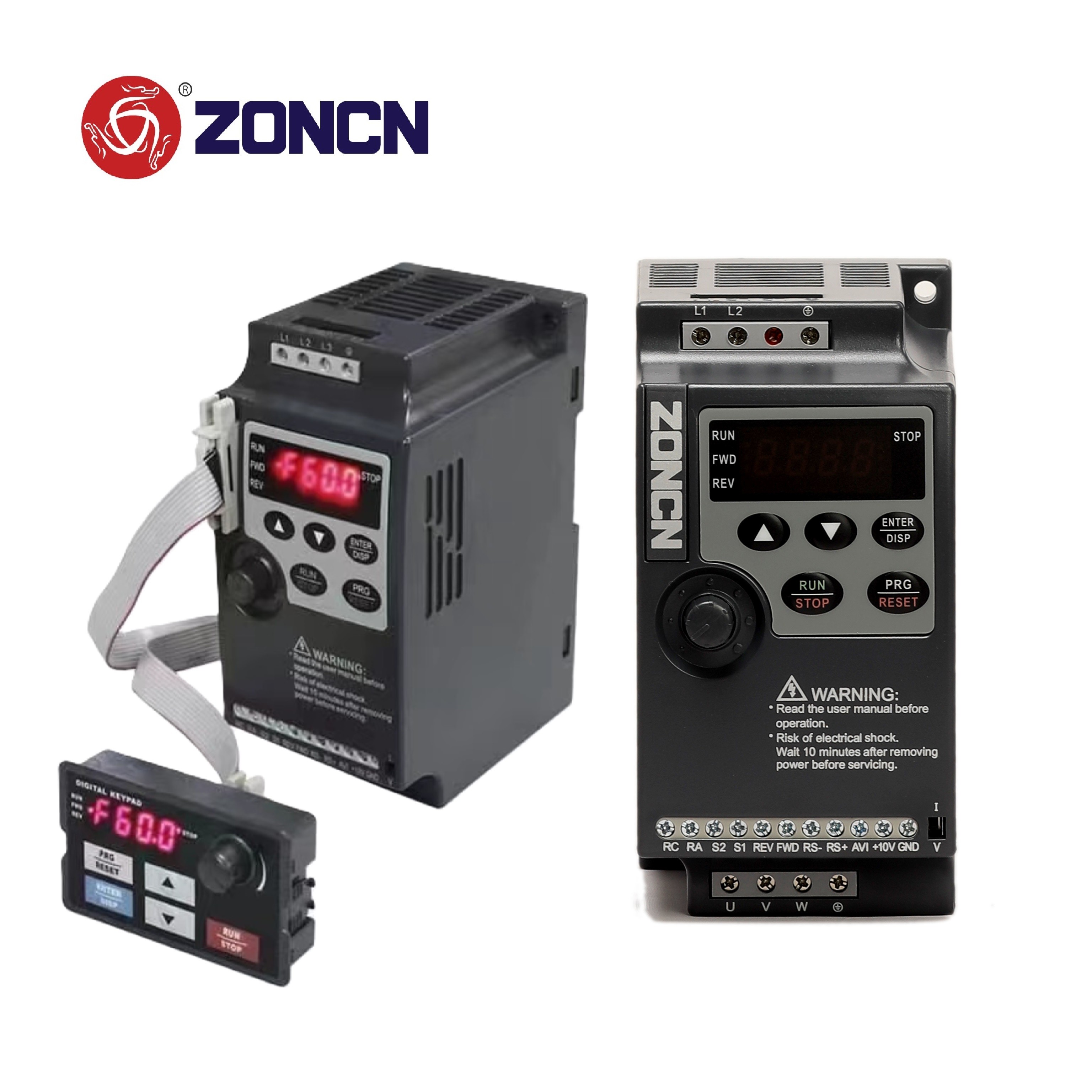

  • External keyboard is available
  • RS485 communication





VFD's Nameplate Description

220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 0

VFD's Specification

VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD's Dimension



220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 1





VFD's Wiring Diagram



220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 2



VFD's Packing&Shipping

220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 3



VFD Workshop

220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 4







VFD Application



220v Single Phase VFD Inverter 50hz 60hz 1.5kw NZ100-1R5G From ZONCN 5













Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
