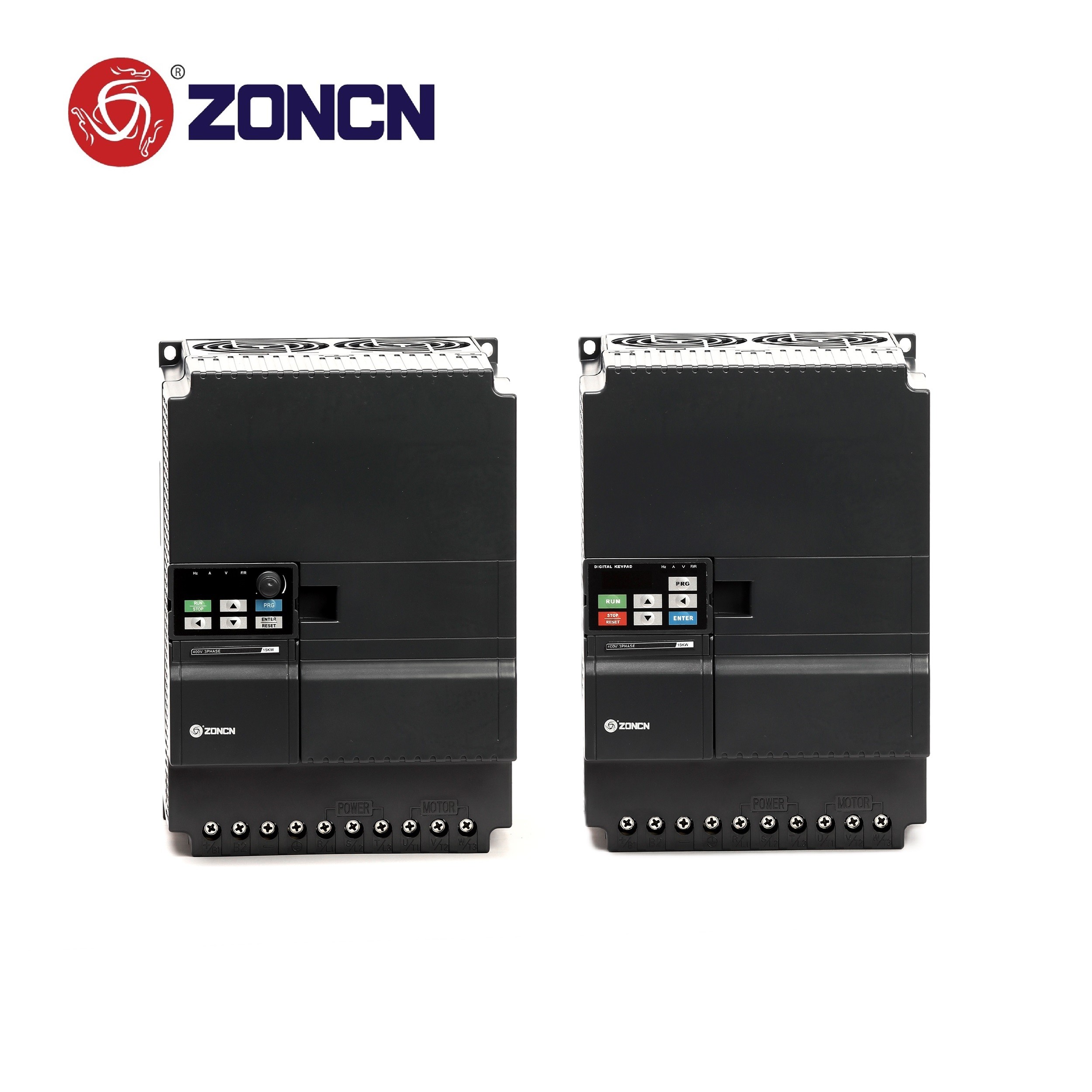

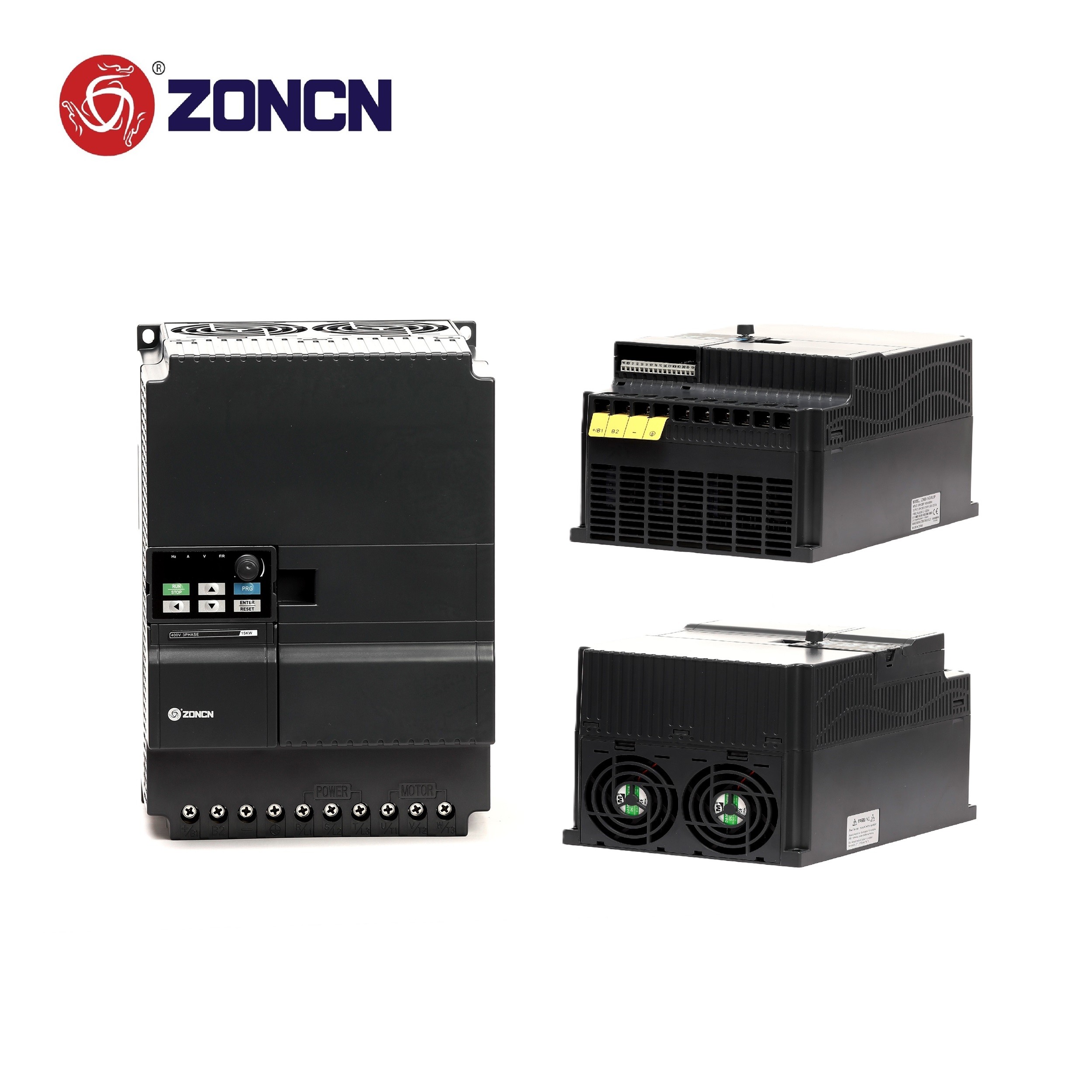

Three Phase 380v Inverter VFD Motor Drives With EtherCAT Communication





ZONCN inverter 380v AC motor drives VFD





• Z2000 series inverter supports multiple frequency setting methods: digital setting, analog setting, PID setting, communication setting, etc
• Provide multiple fault protection functions: overcurrent, overvoltage, undervoltage, overtemperature, phase loss, overload and other protection functions.
• Have excellent control capabilities with its open loop vector control and V/F control functions.
• Open-loop vector control enables the inverter to accurately control the speed and torque of the motor, and maintain stable operating performance even under complex and variable working conditions.
• The V/F control function enables the inverter to automatically adjust the output voltage and frequency according to different load requirements, so as to achieve smooth speed regulation of the motor.



VFD Inverter Specification

VFD inverter Specification
Inverter Model	Rated Output Power(kW)	Rated Input Current(A)	Rated Output Current(A)	Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G	0.4	5.4	2.5	0.4
Z2200-0R75G	0.75	7.2	5	0.75
Z2200-1R5G	1.5	10	7	1.5
Z2200-2R2G	2.2	16	11	2.2
Z2200-3R7G	3.7	23	16.5	3.7
Z2200-5R5G	5.5	21	25	5.5
Z2200-7R5G	7.5	31	32	7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G	0.75	3.8	2.5	0.75
Z2400-1R5G	1.5	5	3.7	1.5
Z2400-2R2G	2.2	5.8	5	2.2
Z2400-3R7G/5R5P	3.7/5.5	10/15.0	9/13	3.7/5.5
Z2400-5R5G	5.5	15	13	5.5
Z2400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z2400-11G/15P	11/15	26/35	25/32	11/15
Z2400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z2400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z2400-22G/30P	22/30	46/62	45/60	22/30
Z2400-30G/37P	30/37	62/76	60/75	30/37
Z2400-37G/45P	37/45	76/90	75/90	37/45
Z2400-45G/55P	45/55	90/105	90/110	45/55
Z2400-55G	55	105	110	55
Z2400-75G/90P	75/90	140/160	150/176	75/90
Z2400-90G/110P	90/110	160/210	176/210	90/110
Z2400-110G/132P	110/132	210/240	210/253	110/132
Z2400-132G/160P	132/160	240/290	253/300	132/160
Z2400-160G/185P	160/185	290/330	300/340	160/185
Z2400-185G/200P	185/200	330/370	340/380	185/200
Z2400-200G/220P	200/220	370/410	380/420	200/220
…



*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.





VFD inverter Nameplate Description





Company Introduction









VFD inverter Application





FAQ



1. What is your VFD inverter's annual sales quantity?

A. About 1 Million units in 2023.



2. Can you produce for my own logo?

A. No problem, we have lots OEM/ODM experience to produce for our customers' inverter brands.



3. Which certificate do you have for your VFD inverter?

A. All our inverter have CE certificate.



4. What is your VFD inverter's lead time?

A. Generally our VFD's lead time is within 15 days.
