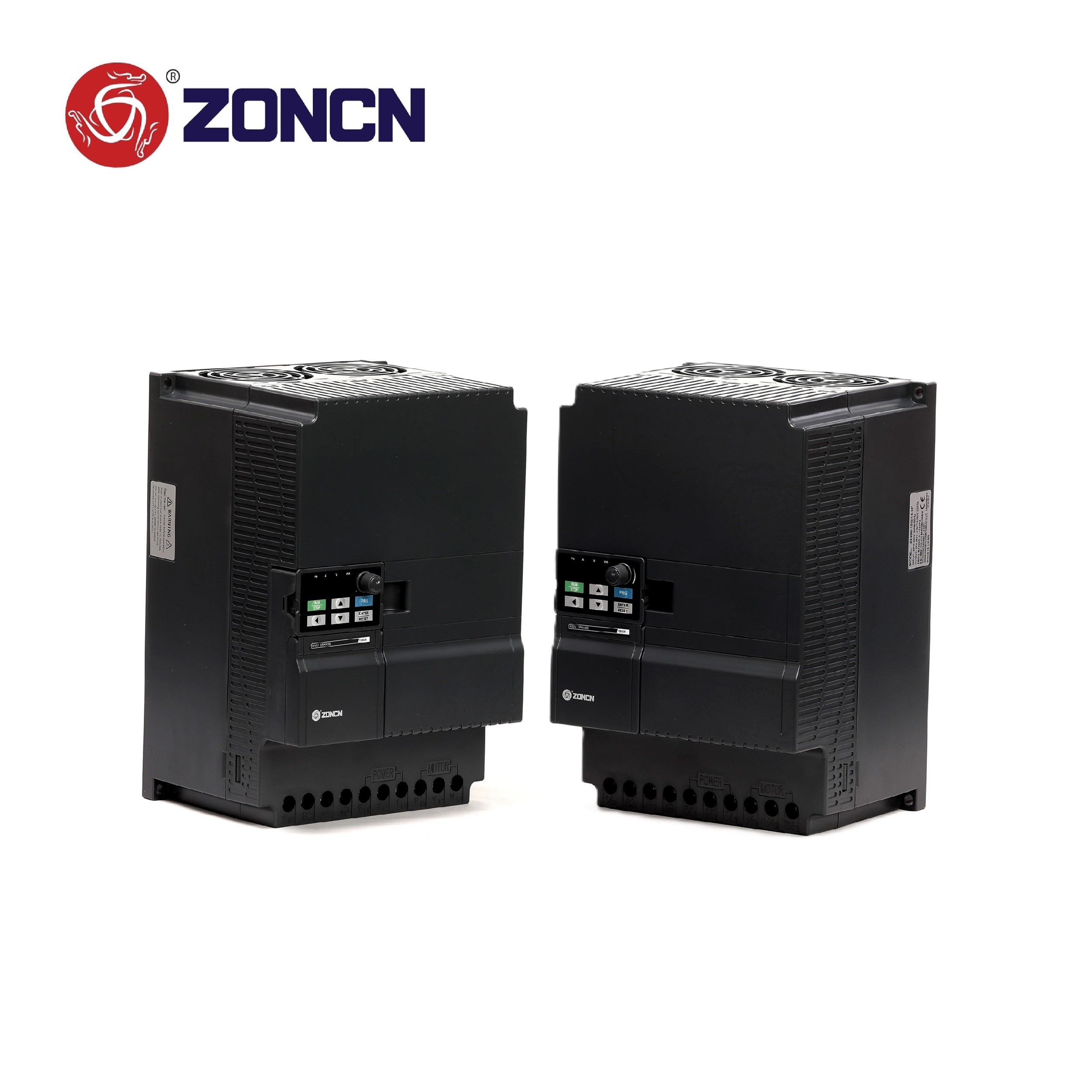

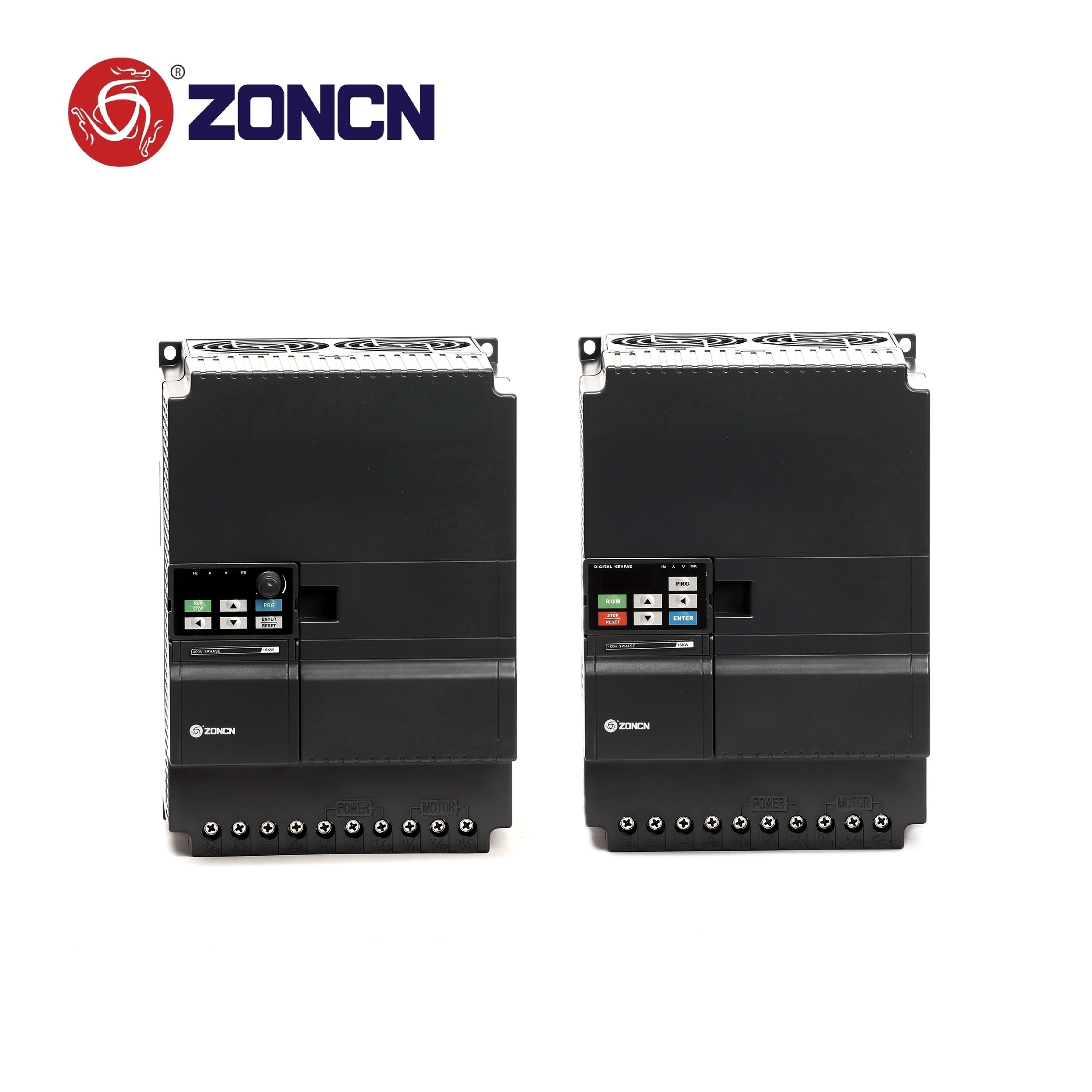

ZONCN 20HP Variable Frequency Drive Inverter 380v VFD For Induction Motor

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	Z2400-15G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Inverter	Application:	Contorl Motor Speed
Brand:	ZONCN	Series:	Z2000
Model:	Z2400-15G	Voltage:	380V/440V/480V
Power:	15kw	OEM:	Yes
Packing:	Carton
Highlight:	Induction Motor VFD Inverter , 20HP VFD Inverter

ZONCN 380v Inverter 15KW Variable Frequency Inverter (VFD)

The Z2000 series of ZONCN inverter includes two control modes: V/F and PG free vector control. It adopts internationally leading vector control algorithms to achieve high-performance and high-precision motor drive control, further strengthening the reliability and adaptability of the product to the environment, as well as customized and industrialized design, which can better meet the needs of various industrial applications.

VFD Inverter Specification

VFD inverter Specification
Inverter Model	Rated Output Power(kW)	Rated Input Current(A)	Rated Output Current(A)	Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G	0.4	5.4	2.5	0.4
Z2200-0R75G	0.75	7.2	5	0.75
Z2200-1R5G	1.5	10	7	1.5
Z2200-2R2G	2.2	16	11	2.2
Z2200-3R7G	3.7	23	16.5	3.7
Z2200-5R5G	5.5	21	25	5.5
Z2200-7R5G	7.5	31	32	7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G	0.75	3.8	2.5	0.75
Z2400-1R5G	1.5	5	3.7	1.5
Z2400-2R2G	2.2	5.8	5	2.2
Z2400-3R7G/5R5P	3.7/5.5	10/15.0	9/13	3.7/5.5
Z2400-5R5G	5.5	15	13	5.5
Z2400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z2400-11G/15P	11/15	26/35	25/32	11/15
Z2400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z2400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z2400-22G/30P	22/30	46/62	45/60	22/30
Z2400-30G/37P	30/37	62/76	60/75	30/37
Z2400-37G/45P	37/45	76/90	75/90	37/45
Z2400-45G/55P	45/55	90/105	90/110	45/55
Z2400-55G	55	105	110	55
Z2400-75G/90P	75/90	140/160	150/176	75/90
Z2400-90G/110P	90/110	160/210	176/210	90/110
Z2400-110G/132P	110/132	210/240	210/253	110/132
Z2400-132G/160P	132/160	240/290	253/300	132/160
Z2400-160G/185P	160/185	290/330	300/340	160/185
Z2400-185G/200P	185/200	330/370	340/380	185/200
Z2400-200G/220P	200/220	370/410	380/420	200/220
…

*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.

VFD inverter Nameplate Description

ZONCN 20HP Variable Frequency Drive Inverter 380v VFD For Induction Motor 0

Company Introduction

ZONCN 20HP Variable Frequency Drive Inverter 380v VFD For Induction Motor 1

ZONCN 20HP Variable Frequency Drive Inverter 380v VFD For Induction Motor 2

VFD inverter Application

ZONCN 20HP Variable Frequency Drive Inverter 380v VFD For Induction Motor 3

FAQ

1. Can you produce for my own logo of inverter?

A. Sure, we have lots of OEM/ODM experience to produce for our customers' inverter brands both for domestic and abroad markets.

2. What is your inverter' packing?

A. From 0.4kw to 55kw, packed by brown carton, for 75kw and above, packed by wooden carton.

3. What is your inverter's shiping way?

A. We can ship by Fedex/UPS Express, by Air or by Sea. Or we can deliver to any of your own forwarder's address in China.
