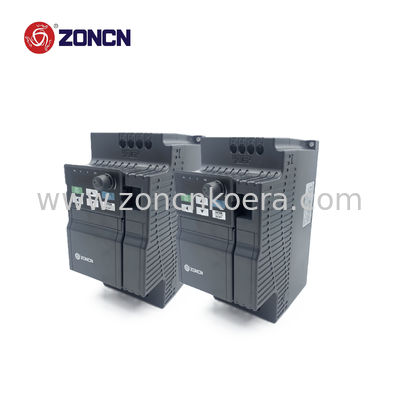

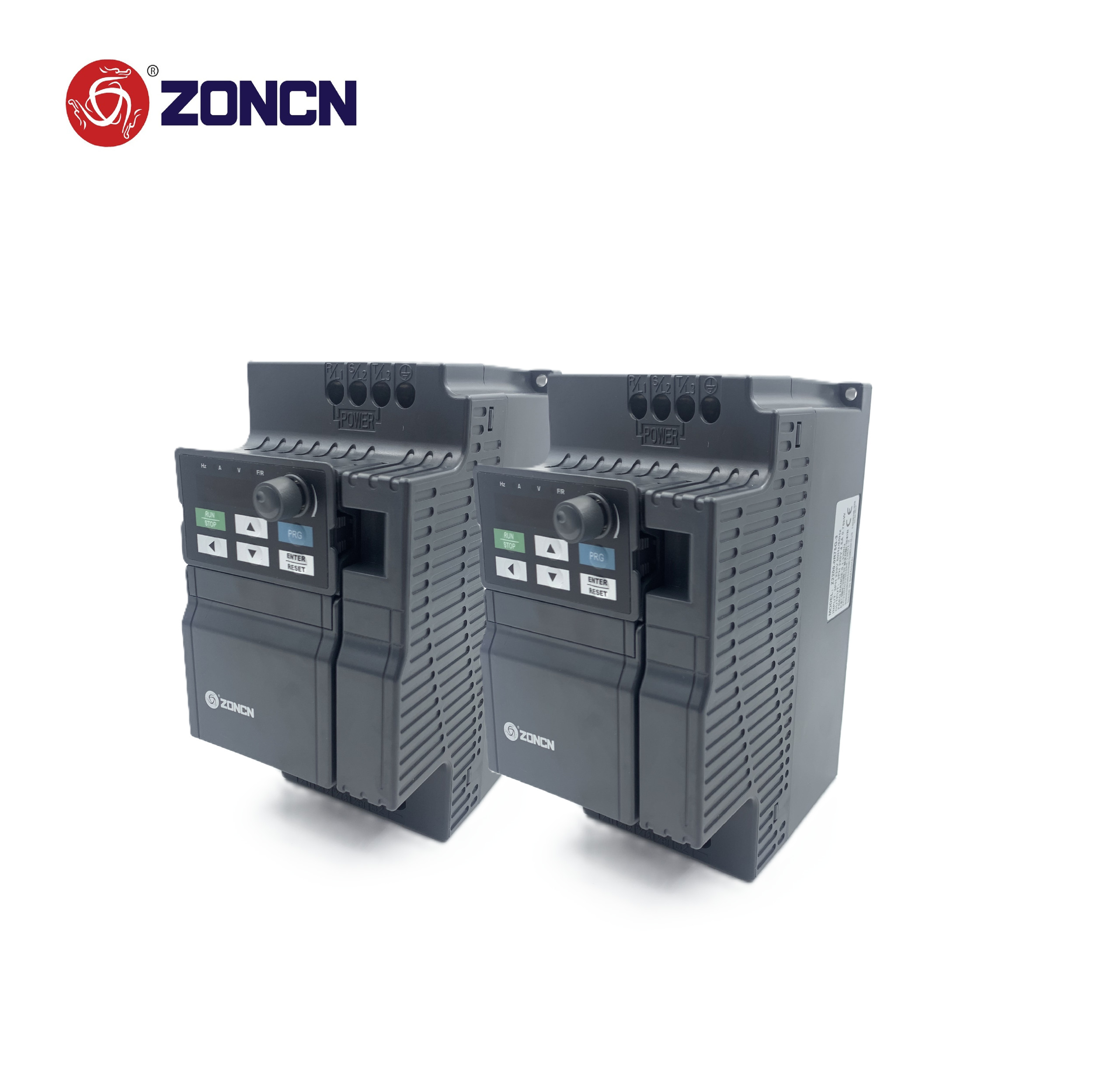

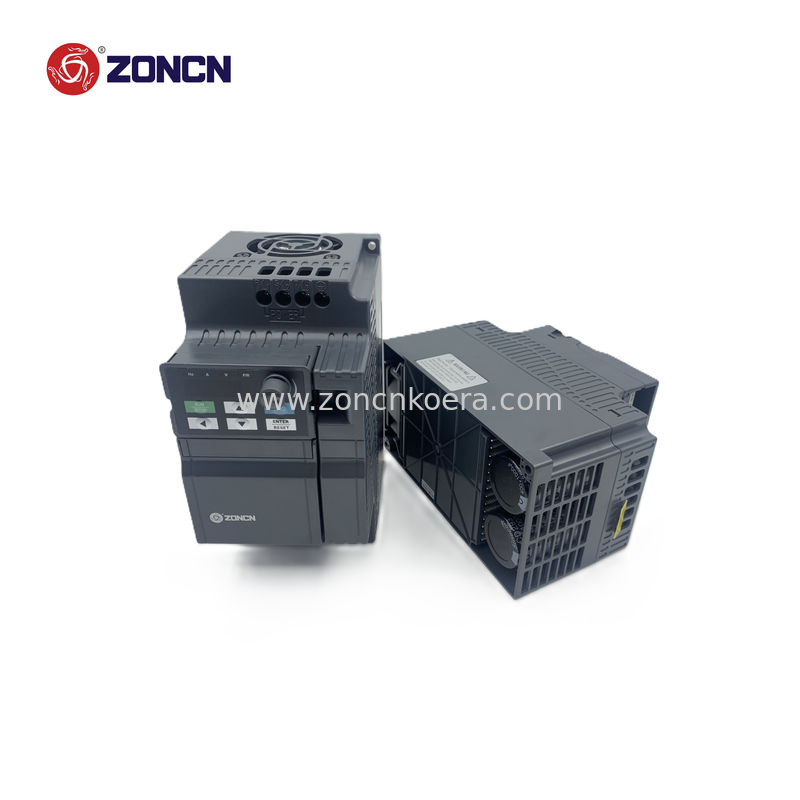

220VAC 3ph Input 50hz 60hz Variable Speed Drive VFD Inverter 1hp From ZONCN





ZONCN Inverter 3phase 220v Variable frequency drives (VFD)





ZONCN Z2000 series vfd inverter, a HOT selling series with advanced control technology and excellent environmental adaptability. The power up to 450KW,  whether it is a heavy load start-up or a long period of stable operation, the Z2000 VFD inverter provides stable and powerful power support. Its open-loop vector control technology enables the inverter to achieve high-precision motor control without the need for encoder feedback, thus ensuring the efficiency and accuracy of motor operation. In VF control mode, the inverter can automatically adjust the output voltage and frequency according to the load of the motor to achieve smooth start and stable operation of the motor.



VFD Inverter Specification

VFD inverter Specification
Inverter Model	Rated Output Power(kW)	Rated Input Current(A)	Rated Output Current(A)	Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G	0.4	5.4	2.5	0.4
Z2200-0R75G	0.75	7.2	5	0.75
Z2200-1R5G	1.5	10	7	1.5
Z2200-2R2G	2.2	16	11	2.2
Z2200-3R7G	3.7	23	16.5	3.7
Z2200-5R5G	5.5	21	25	5.5
Z2200-7R5G	7.5	31	32	7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G	0.75	3.8	2.5	0.75
Z2400-1R5G	1.5	5	3.7	1.5
Z2400-2R2G	2.2	5.8	5	2.2
Z2400-3R7G/5R5P	3.7/5.5	10/15.0	9/13	3.7/5.5
Z2400-5R5G	5.5	15	13	5.5
Z2400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z2400-11G/15P	11/15	26/35	25/32	11/15
Z2400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z2400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z2400-22G/30P	22/30	46/62	45/60	22/30
Z2400-30G/37P	30/37	62/76	60/75	30/37
Z2400-37G/45P	37/45	76/90	75/90	37/45
Z2400-45G/55P	45/55	90/105	90/110	45/55
Z2400-55G	55	105	110	55
Z2400-75G/90P	75/90	140/160	150/176	75/90
Z2400-90G/110P	90/110	160/210	176/210	90/110
Z2400-110G/132P	110/132	210/240	210/253	110/132
Z2400-132G/160P	132/160	240/290	253/300	132/160
Z2400-160G/185P	160/185	290/330	300/340	160/185
Z2400-185G/200P	185/200	330/370	340/380	185/200
Z2400-200G/220P	200/220	370/410	380/420	200/220
…



*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.





VFD inverter Nameplate Description





Company Introduction









VFD inverter Application





FAQ



1. What is your inverter's annual sales quantity?

A:  About 1 Million set in 2023.



2.  Can i work as ZONCN inverter agent?

A: If you are qualified with our agent conditions, welcome you to be our ZONCN partners.



3. What is your inverter's warranty?

A: Our inverter's warranty is 18 months after delivery.



4. Can you produce for my own logo?

A: No problem, we have lots of OEM/ODM experience.
