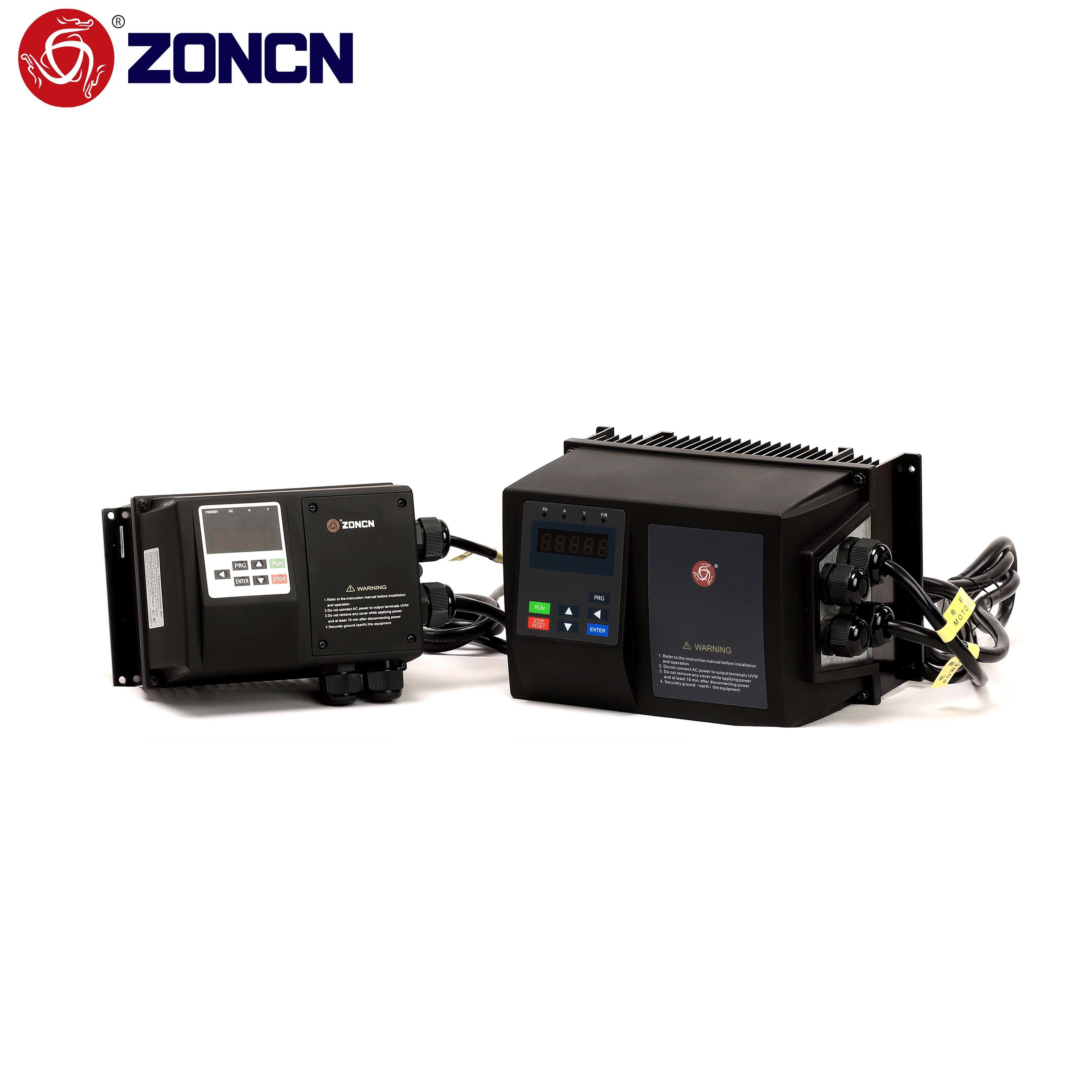

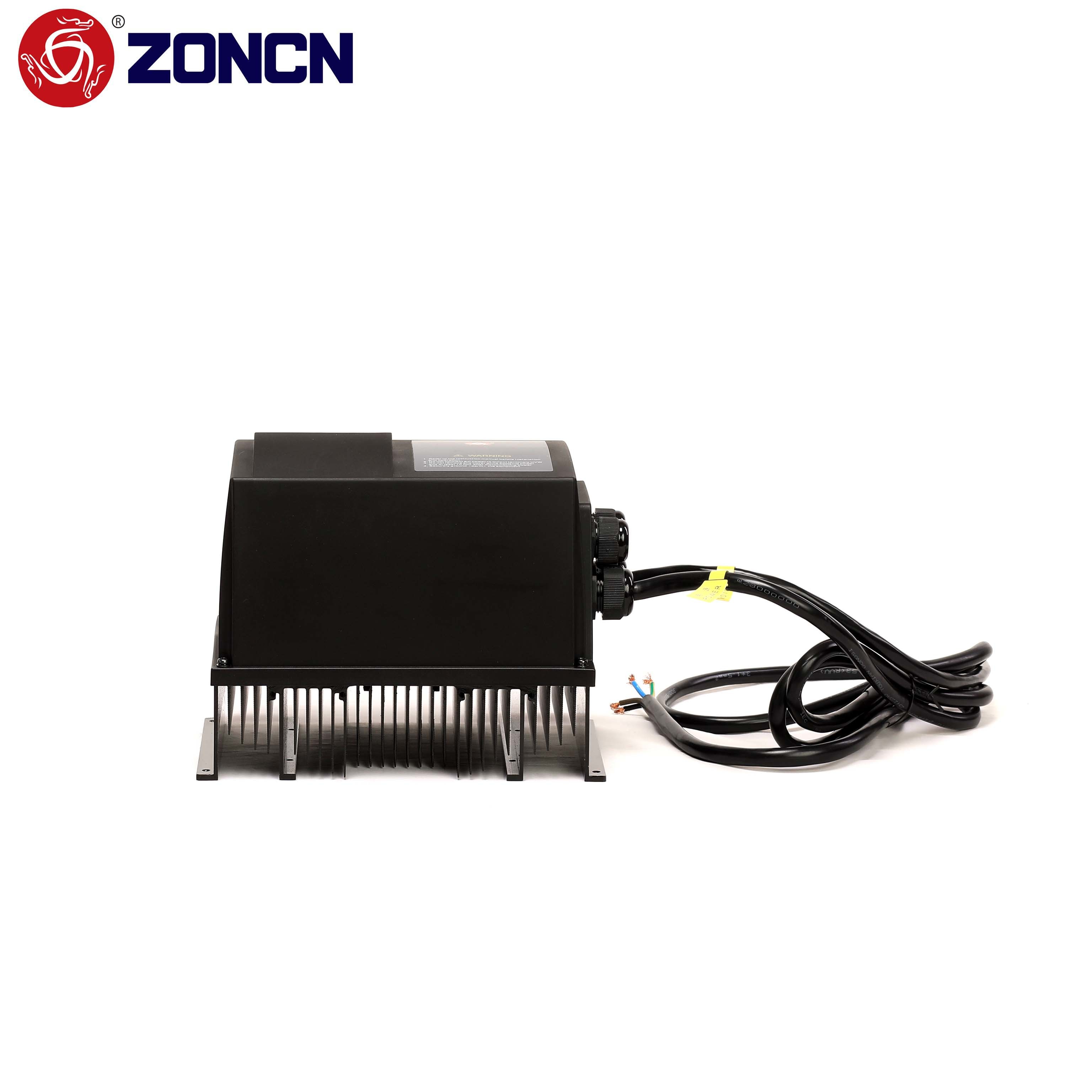

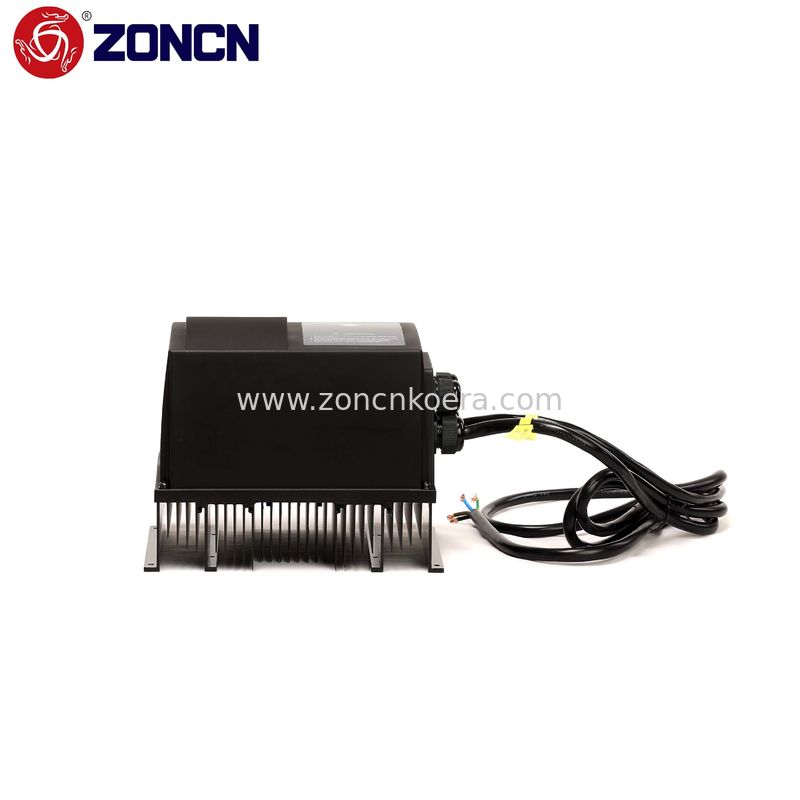

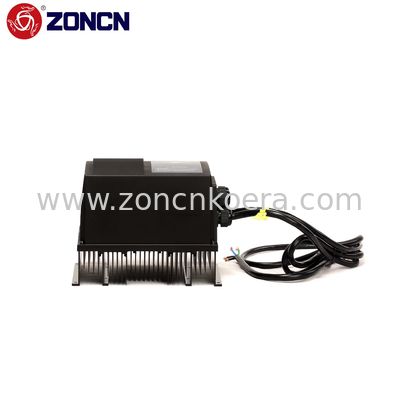

Low Voltage Frequency Vfd Inverter ZONCN 380V 1.5KW Ac For Pump

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN Vfd
Certification:	CE
Model Number:	Z5400A01D5K-BF

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	Z5400A01D5K-BF	Voltage:	380V Vfd
Protection:	IP65 Vfd	Emc Filter:	Support
Brand:	ZONCN Vfd	Start Torque:	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Input Frequency Resolution:	Digital Setting:0.01Hz Analog Setting: Maximum Frequency 0.025%	Speed Stability Accuracy:	±0.5%(SVC)
Torque Boost:	Auto-boost ; Customized Boost:0.1%~30.0%	Onboard PID:	It Realizes Process-controlled Closed Loop Control System Easily
Timing Control:	Timing Range:0.0Min~6500.0Min
Highlight:	Low Voltage Pump Inverter , 1.5KW Ac Pump Inverter , 380V Pump Inverter

Z5000-BF catalog.pdf

ZONCN Z5400A01D5K-BF AC inverter Vfd For Water Pump

Product Brief Introduction:

In industrial applications, safety always comes first. The Z5000-BF series drives understand this and are equipped with multiple safety protection features including timing, antifreeze and waterless alarms. The timing function allows users to set the running time of the device according to actual requirements to avoid potential security risks caused by unattended operation for a long time. The antifreeze function can automatically start the heating device in a low temperature environment to prevent the pipeline from freezing; The no water alarm function can immediately issue an alarm when the system is short of water to avoid idling damage to the equipment. These meticulous safety designs build a solid line of defense, so that users can enjoy efficient production at the same time, but also have a full sense of security.

Another highlight of the Z5000-BF series inverter is its powerful intelligent interconnection capability. Through the built-in interface and protocol support, it can easily connect all kinds of sensors, especially seamless docking with the pump system, to achieve real-time monitoring and control of water flow, pressure and other parameters. For example, in the water supply system, the inverter can automatically adjust the speed of the pump according to the change of the water flow, which not only ensures the stability of the water supply, but also effectively reduces the energy consumption. This intelligent control method not only improves the operating efficiency of the system, but also reduces the need for manual intervention, making management easier and more efficient.

Z5000-BF Technical Specification:

Item		Z5000-BF Series
Basic function	Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
	Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
	Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
	Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
	Speed range	1:100(SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
	VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
	VF separation	2 types: complete separation；half separation
	Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
	Onboard PID	It realizes process-controlled closed loop control system easily
	JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
	DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
	Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Timing control	Timing range:0.0Min~6500.0Min
	Communication	RS485
	Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
	Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Other functions	Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
	Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
	Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
	Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-F	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160

Z5000-BF dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75

Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.

Low Voltage Frequency Vfd Inverter ZONCN 380V 1.5KW Ac For Pump 0

Low Voltage Frequency Vfd Inverter ZONCN 380V 1.5KW Ac For Pump 1

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
