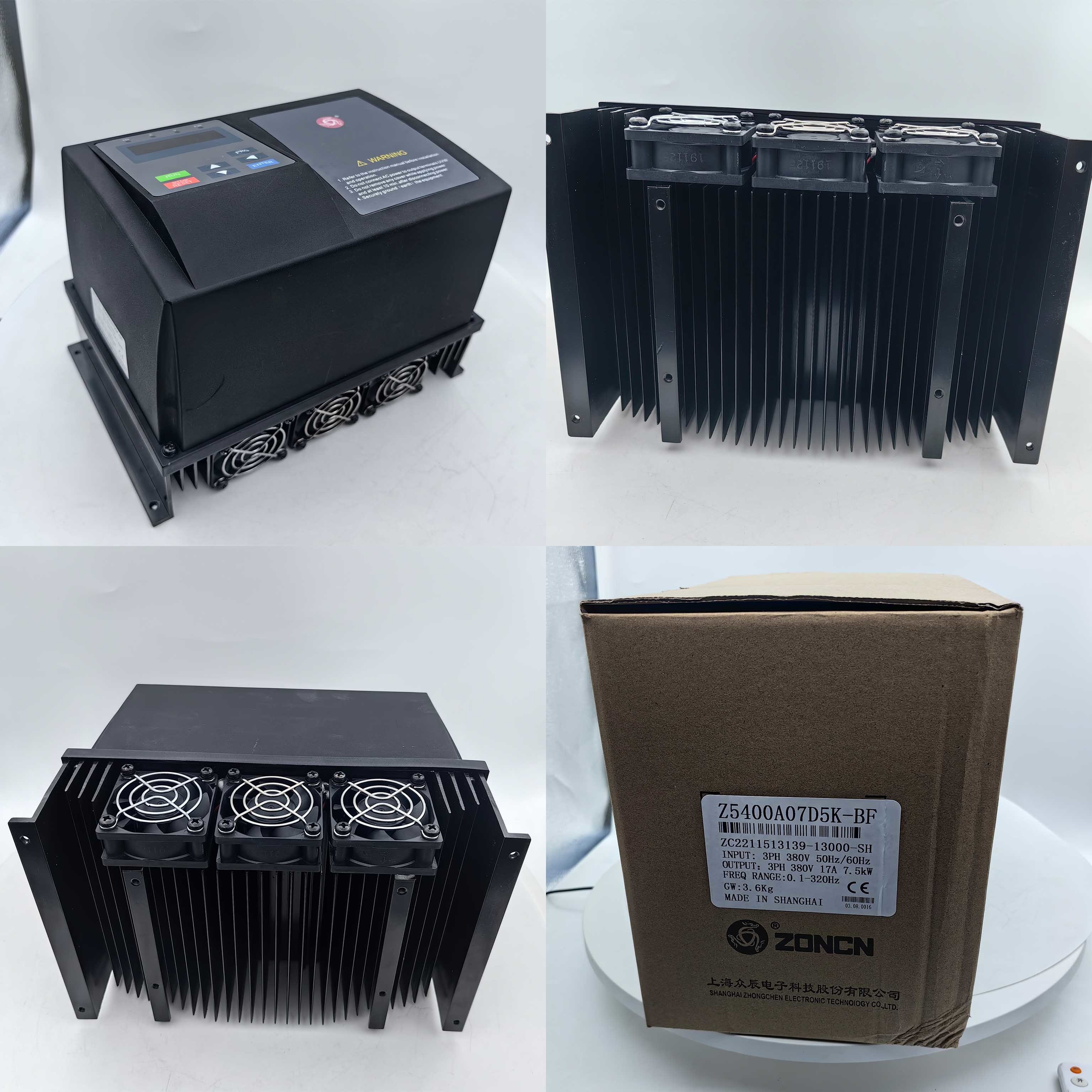

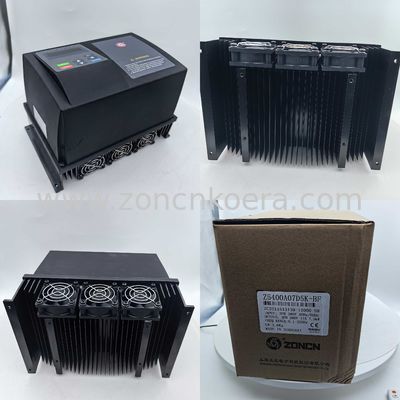

IP54 IP65 Frequency Inverter Vfd Low Voltage 380v 7.5kw Ac Drives

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	Z5400A07D5K-BF

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	Z5400A07D5K-BF	Voltage:	380V Vfd
Protection:	IP54 Vfd	Emc Filter:	Support
Brand:	ZONCN Vfd	Start Torque:	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Input Frequency Resolution:	Digital Setting:0.01Hz Analog Setting: Maximum Frequency 0.025%
Highlight:	380v 7.5kw Frequency Inverter , IP54 IP65 Frequency Inverter , Low Voltage Frequency Inverter

Z5000-BF catalog.pdf

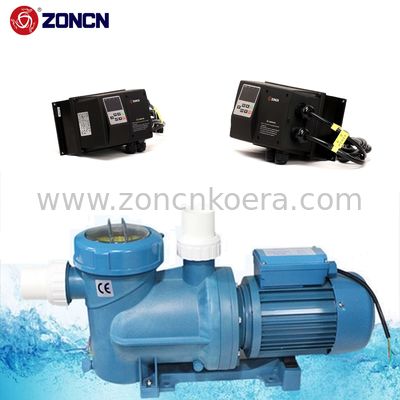

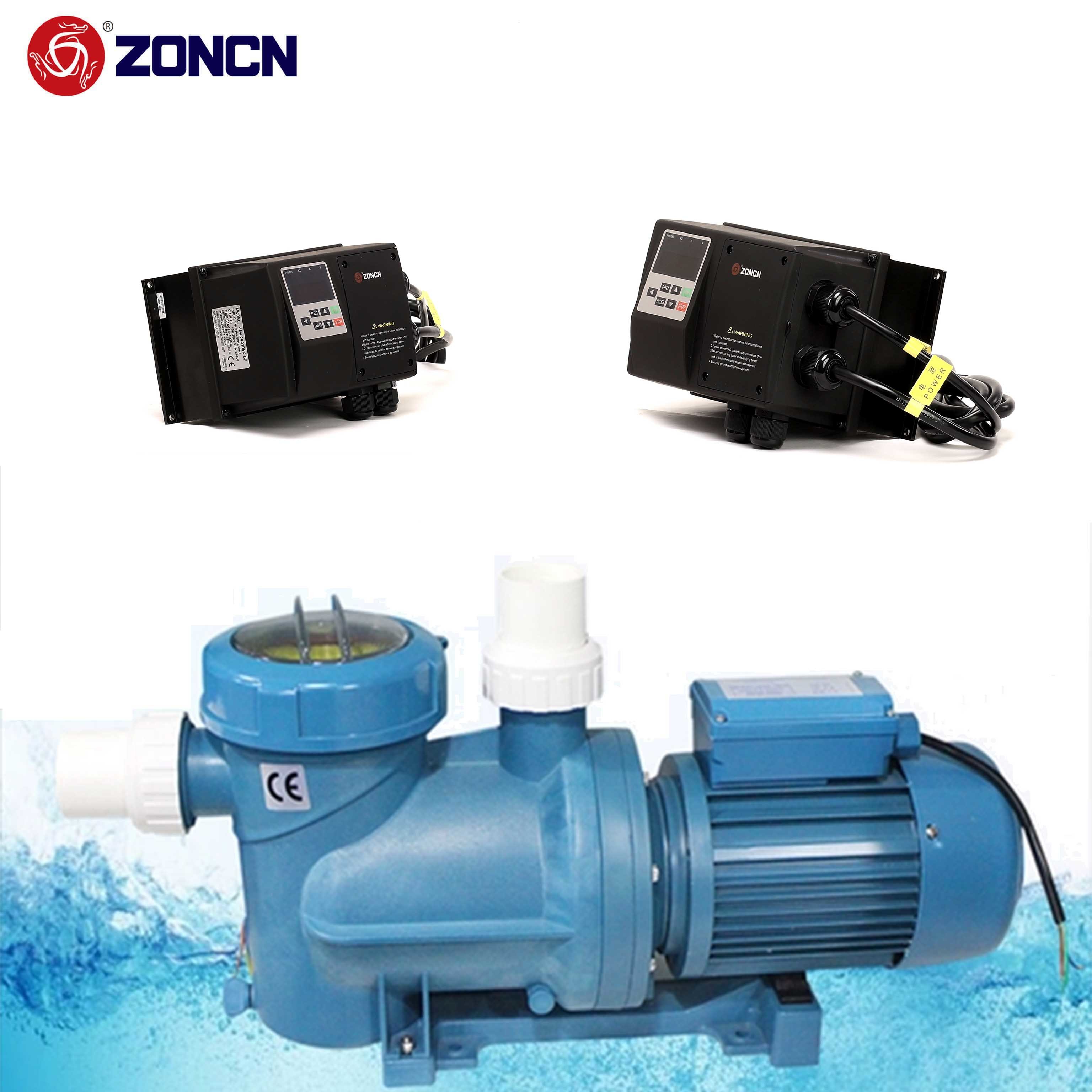

ZONCN Z5400A07D5K-BF AC inverter Vfd For Water Pump

Product Brief Introduction:

In harsh industrial environments, the durability and protection of equipment are critical. The Z5000-BF series provides a high level of protection from IP54 to IP65, which means that it can not only effectively resist the intrusion of dust, but also maintain normal operation in a water-spraying environment. Imagine that in a humid factory floor or a dusty mine site, ordinary inverters may fail frequently due to harsh environments, but the Z5000-BF can be as stable as a mountain, and continue to provide stable power for the production line. This feature undoubtedly provides a strong guarantee for the continuous production of enterprises, reducing the downtime and maintenance costs caused by equipment failure.

Z5000-BF Technical Specification:

Item		Z5000-BF Series
Basic function	Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
	Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
	Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
	Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
	Speed range	1:100(SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
	VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
	VF separation	2 types: complete separation；half separation
	Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
	Onboard PID	It realizes process-controlled closed loop control system easily
	JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
	DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
	Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Timing control	Timing range:0.0Min~6500.0Min
	Communication	RS485
	Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
	Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Other functions	Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
	Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
	Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
	Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-F	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160

Z5000-BF dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75

Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.

IP54 IP65 Frequency Inverter Vfd Low Voltage 380v 7.5kw Ac Drives 0

IP54 IP65 Frequency Inverter Vfd Low Voltage 380v 7.5kw Ac Drives 1

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
