Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE
Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: Z2400-11G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Brand: ZONCN
Rated Power: 11KW/15HP Output Current: 25A
Power Range: 0.4KW-500KW Braking Unit: Built-in
Communication: RS485/EtherCAT OEM: Support
Highlight:

11kw VFD

,

Open Loop Vector Control VFD

,

380v Variable Frequency Inverters

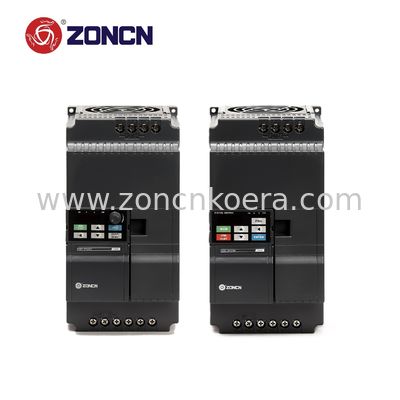

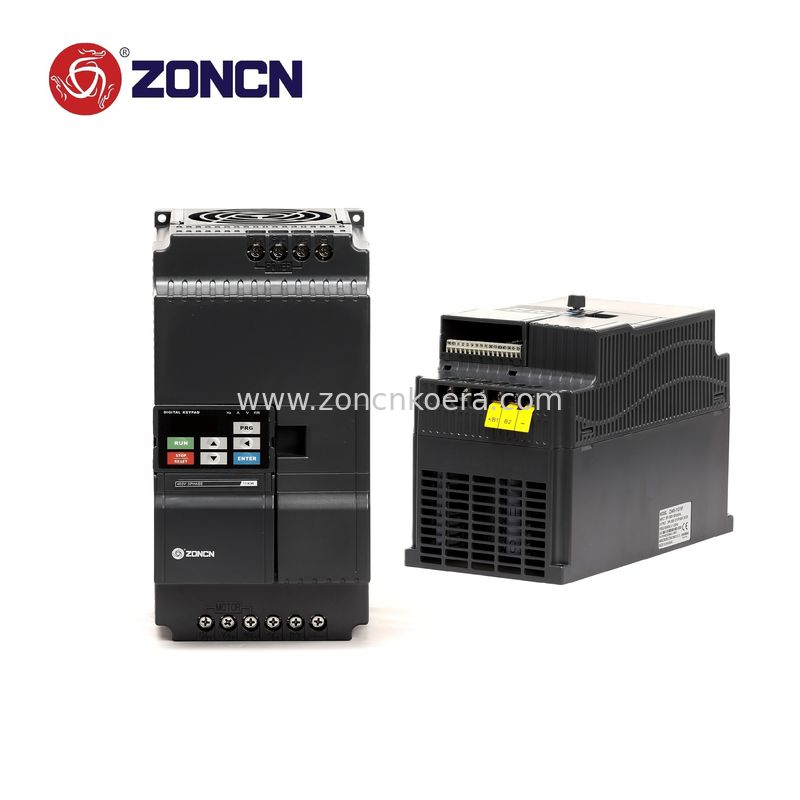

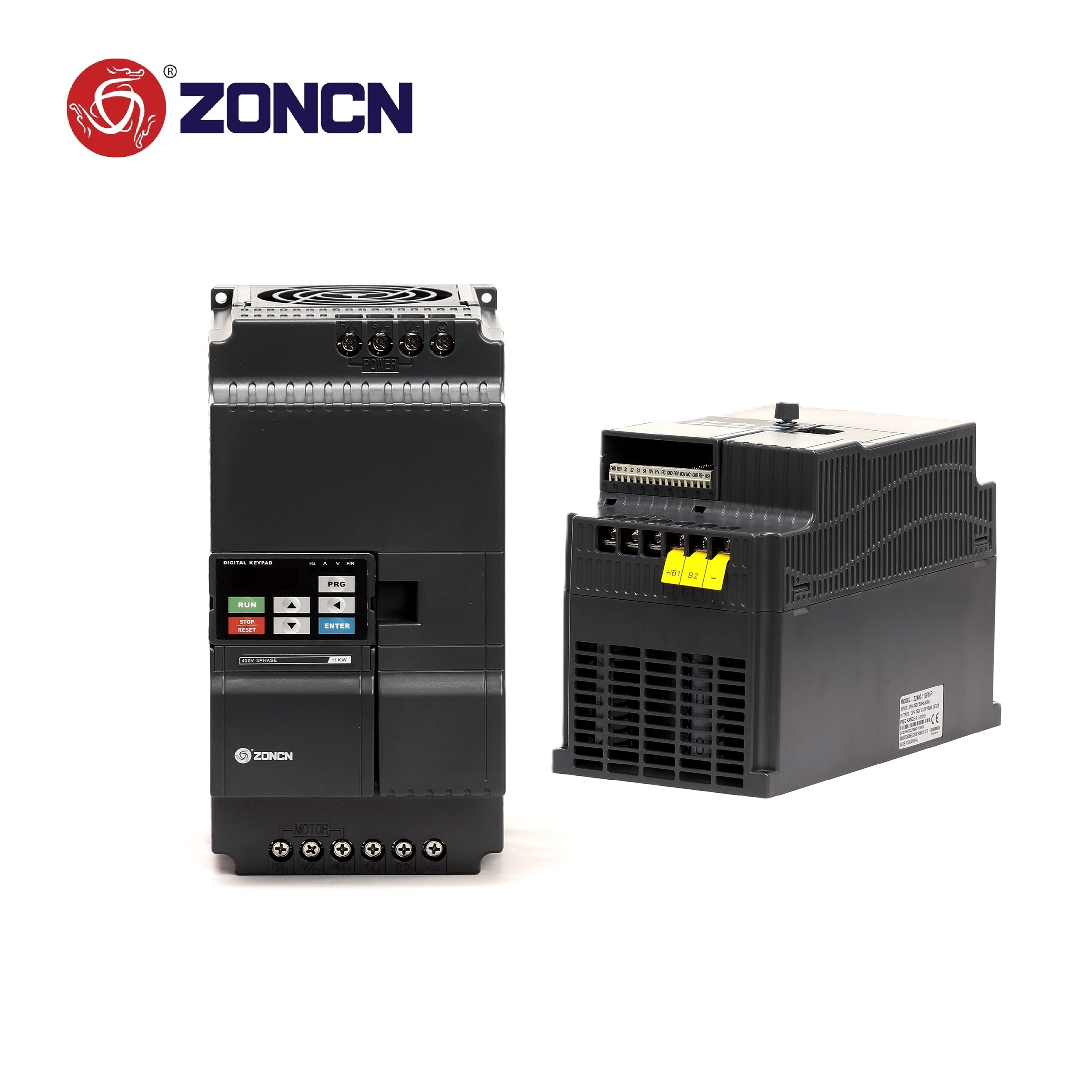

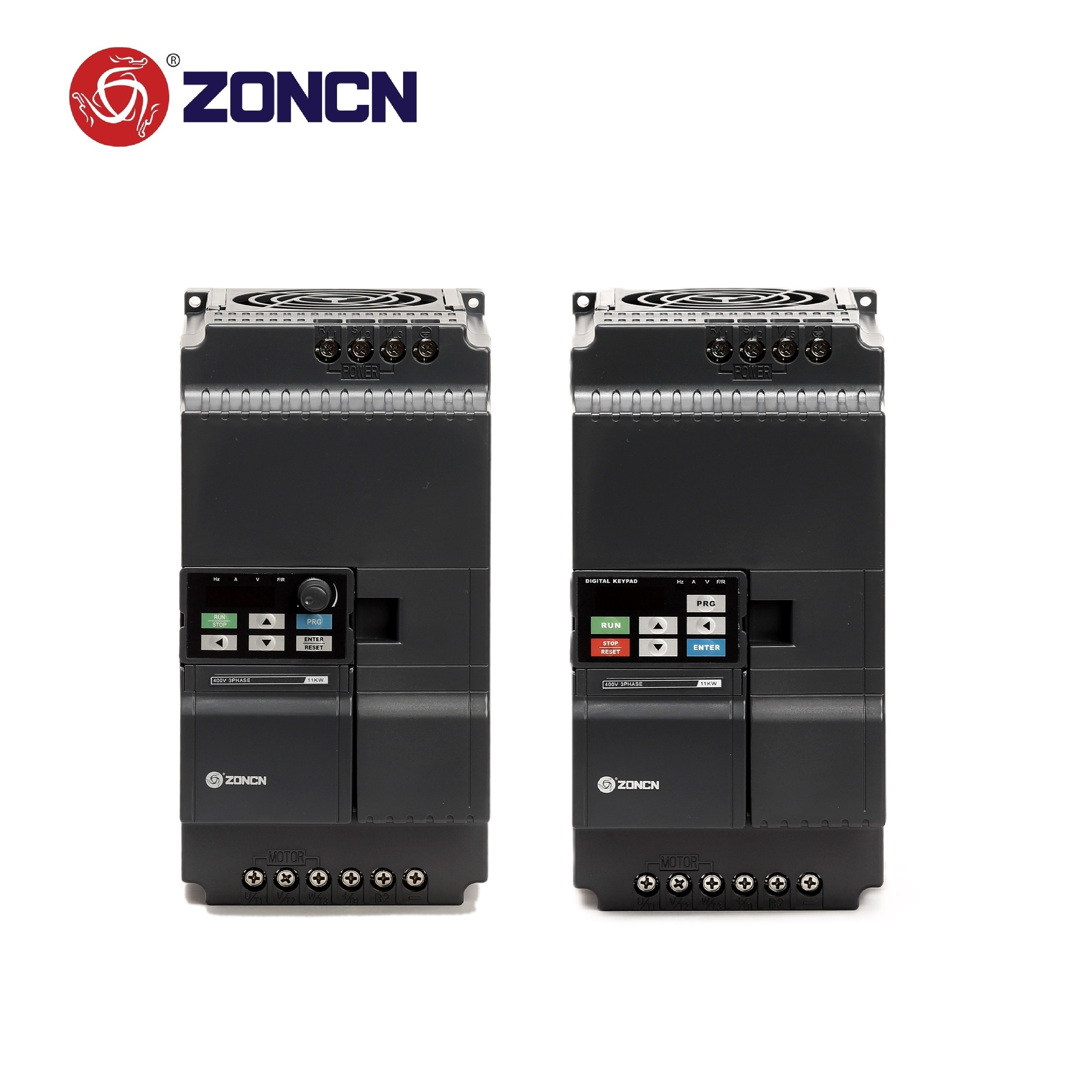

ZONCN Z2000 Vector Control Inverter 380V Variable frequency drives(VFD)







Z2000, one of the hot-selling series of ZONCN inverter, which is designed for general purpose industrial application. Votage rating 110v / 220v / 380v / 400v / 440v / 480v / 690v, power ranges from 0.4kw to 500kw. Z2000 series inverter support RS485 and EtherCAT communication. Potentiometer keypad is available. Z2000 series VFD inverter is widely used in various application, for example, fan, pump, blower, conveyor, water-treatment, CNC, textile machines, injection machine, extrusion machine, packaging machine, air compressor, etc.



VFD Inverter Specification

VFD inverter Specification
 Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　




*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.





VFD inverter Nameplate Description

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE 0





Company Introduction

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE 1

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE 2









VFD inverter Application

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE 3







VFD Inverter recommendation

Open Loop Vector Control 380v Variable Frequency Inverters 11kw VFD With CE 4













Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
