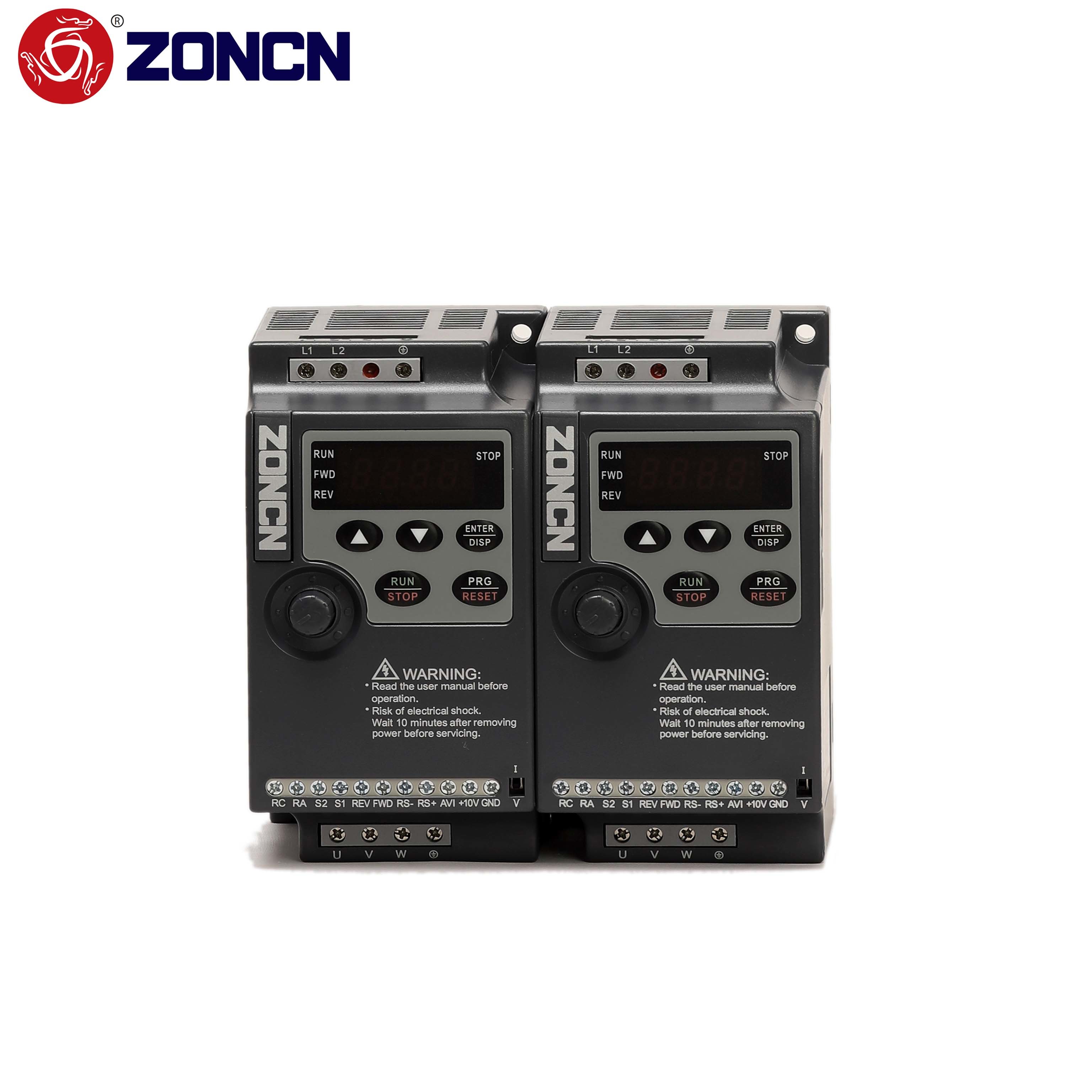

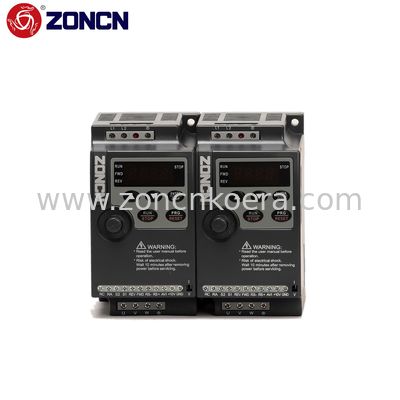

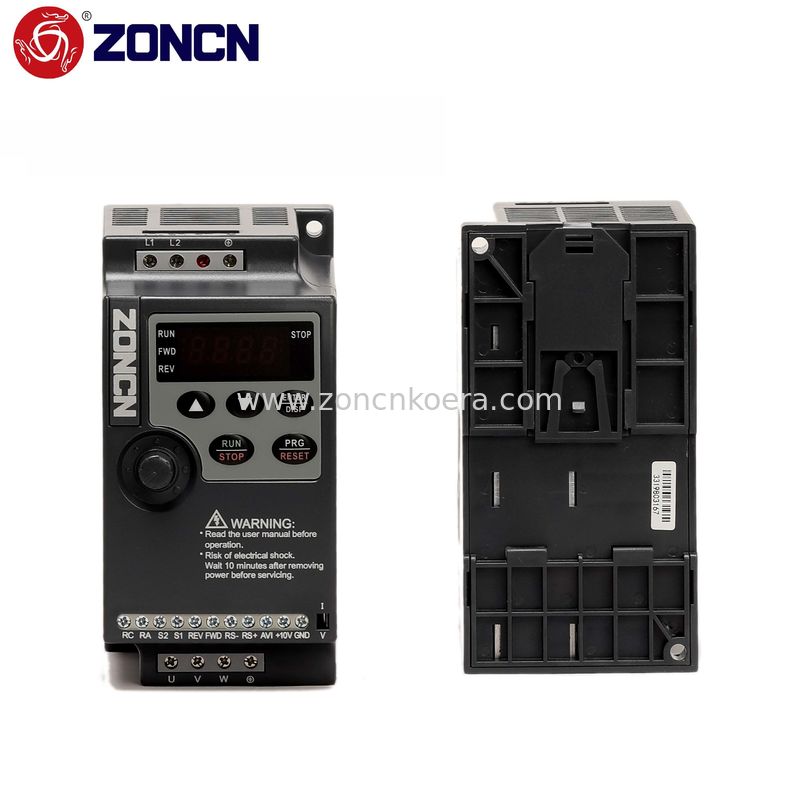

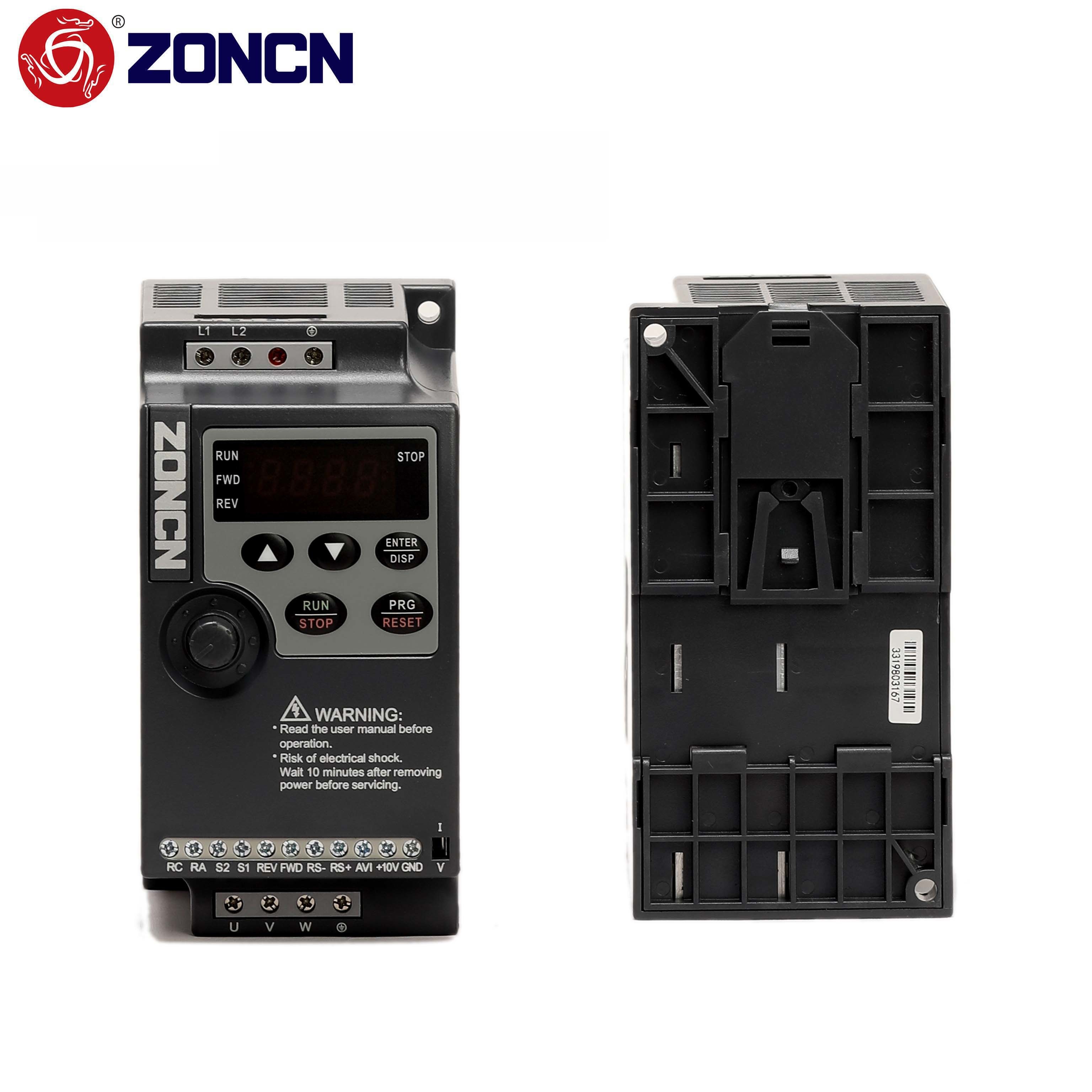

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw
ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw
Basic Information
Place of Origin: China
Brand Name: ZONCN Vfd
Certification: KC ; CE
Model Number: NZ100-3R7G-4 Vfd
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Inverter Vfd Brand: ZONCN
Input: 380v Power: 3.7kw Vfd
Control Mode: V/F Control+vector Control Ouput: 380v
PID Control: Build-in PID Control RS485: Standard RS485 Communication Function(MODBUS)
Series: NZ100
Highlight:

3.7kw Motor Controller Vfd

,

Low Voltage Motor Controller Vfd

,

Micro Motor Controller Vfd

NZ100 English Catalog.pdf

ZONCN NZ100 Series 3.7kW Vfd variable frequency inverter





Product Features

  • The compact model and lower cost allow customers to have a better choice.
  • Terminal cover for easy installation
  • DIN-rail mounting (below 5.5kW)
  • All support MODBUS RS485 communication
  • Maintenance-free
  • V/F control; Built-in PlD control
  • Power range: 220V 0.4kWw-2.2kW；380V 0.75kW-160kW



Nameplate Description

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 0



Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.



































Dimension



ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 1







Wiring Diagram



ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 2





Packing&Shipping

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 3



Workshop

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 4



Warehouse

ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 5









Application



ZONCN Motor Controller Vfd Frequency Inverter Micro Low Voltage Converter 3.7kw 6



FAQ

Q: Can i order 1 unit?

A: Yes, our MOQ is 1 pc.



Q: What is your lead time?

A: within 15 days.



Q:  Does your VFD have warranty?

A: Sure, our warranty time is 18 months after delivery.



Q: Can you produce for my own logo?

A: Yes, if the order quantity can meet the MOQ.
