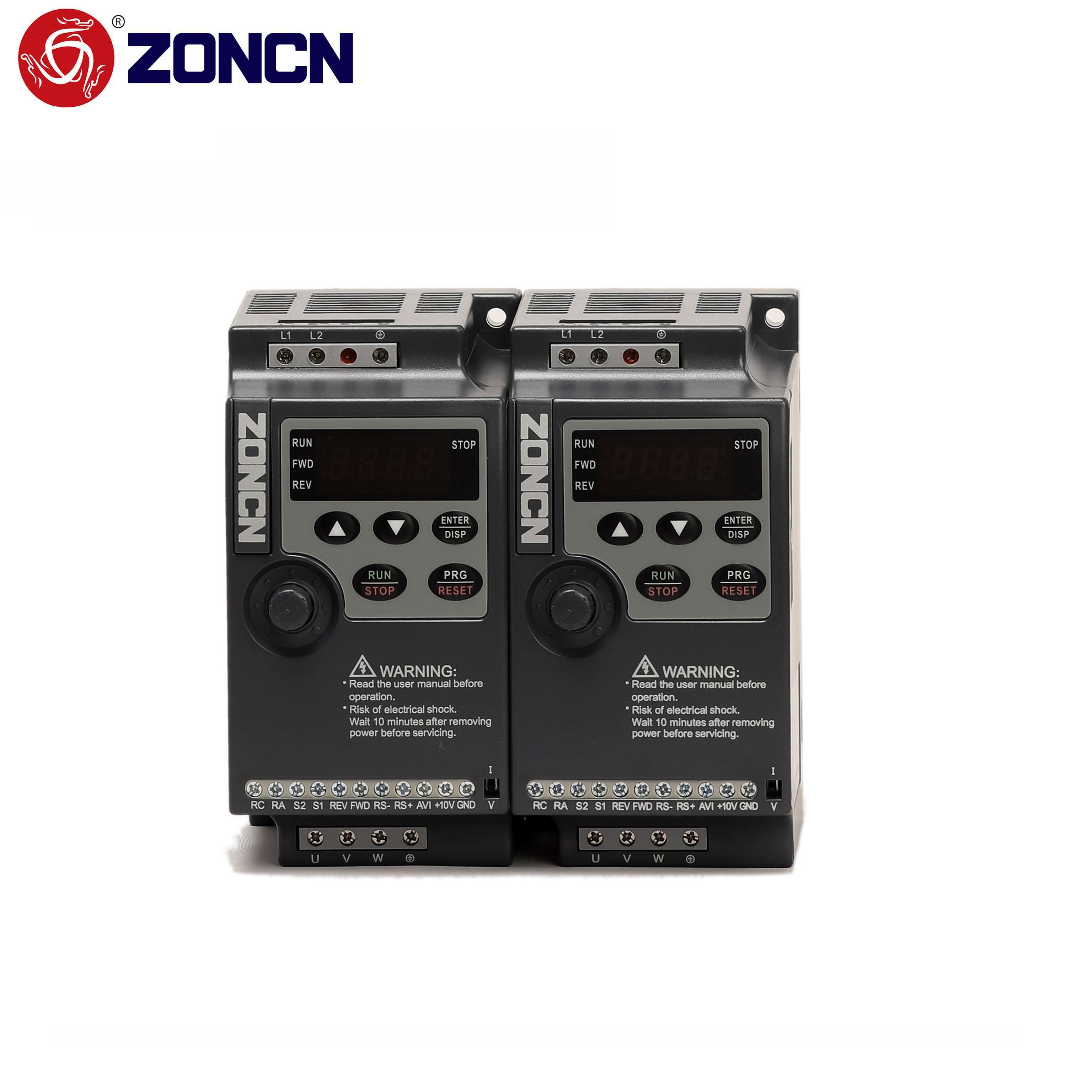

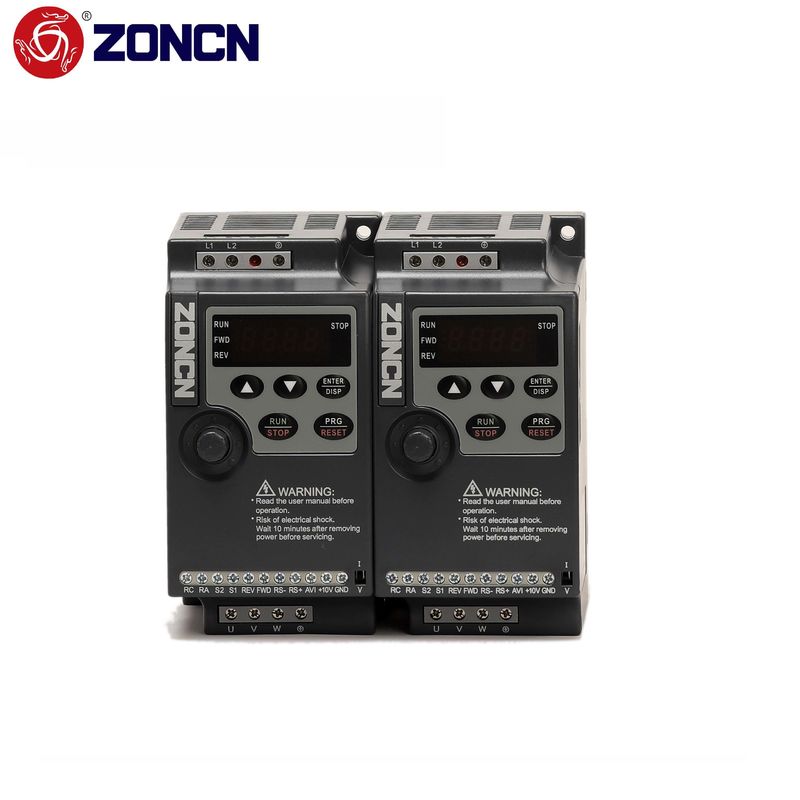

380v Low Voltage Frequency Inverter Vfd Vsd NZ100-1R5G-4 Micro AC Drives 1.5KW

ZONCN NZ100 Series 1.5kW Vfd variable frequency inverter





Product Features

In the field of industrial automation, the frequency converter has become an indispensable device with its unique control ability and stability. The NZ100 vfd inverter, as the leader in the market, has become the focus of many industrial users with its open-loop vector control, support for permanent magnet synchronous motors, compact structure and complete protection functions.Whether it is high temperature, high humidity or harsh environments with dust and vibration, the NZ100 series vfd inverter can operate stably, providing users with lasting and reliable power support. This is due to its well-designed cooling system and protective structure, as well as strict quality control processes.The NZ100 series vfd drives perform well. The design takes into account all kinds of extreme conditions in actual operation. By optimizing the internal structure and algorithm, the inverter can still maintain stable performance output under overload condition. This superior overload capability enables the NZ100 vfd to cope with a variety of complex working environments and provide users with more reliable drive solutions.







Nameplate Description



Specification

Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.



































Dimension









Wiring Diagram







Packing&Shipping



Workshop



Warehouse









Application





FAQ

Q: Can i order 1 unit?

A: Yes, our MOQ is 1 pc.



Q: What is your lead time?

A: within 15 days.



Q:  Does your VFD have warranty?

A: Sure, our warranty time is 18 months after delivery.



Q: Can you produce for my own logo?

A: Yes, if the order quantity can meet the MOQ.
