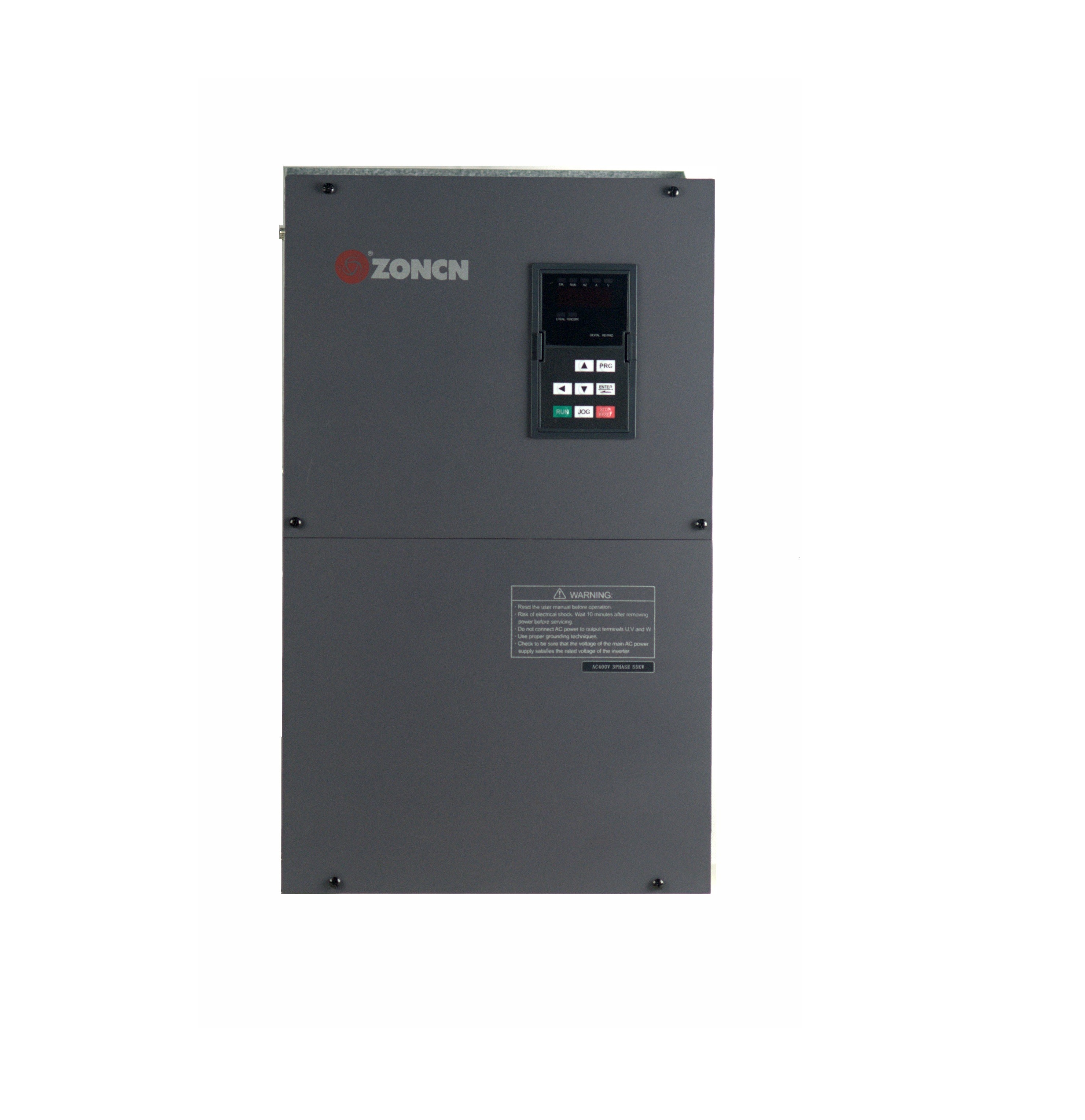

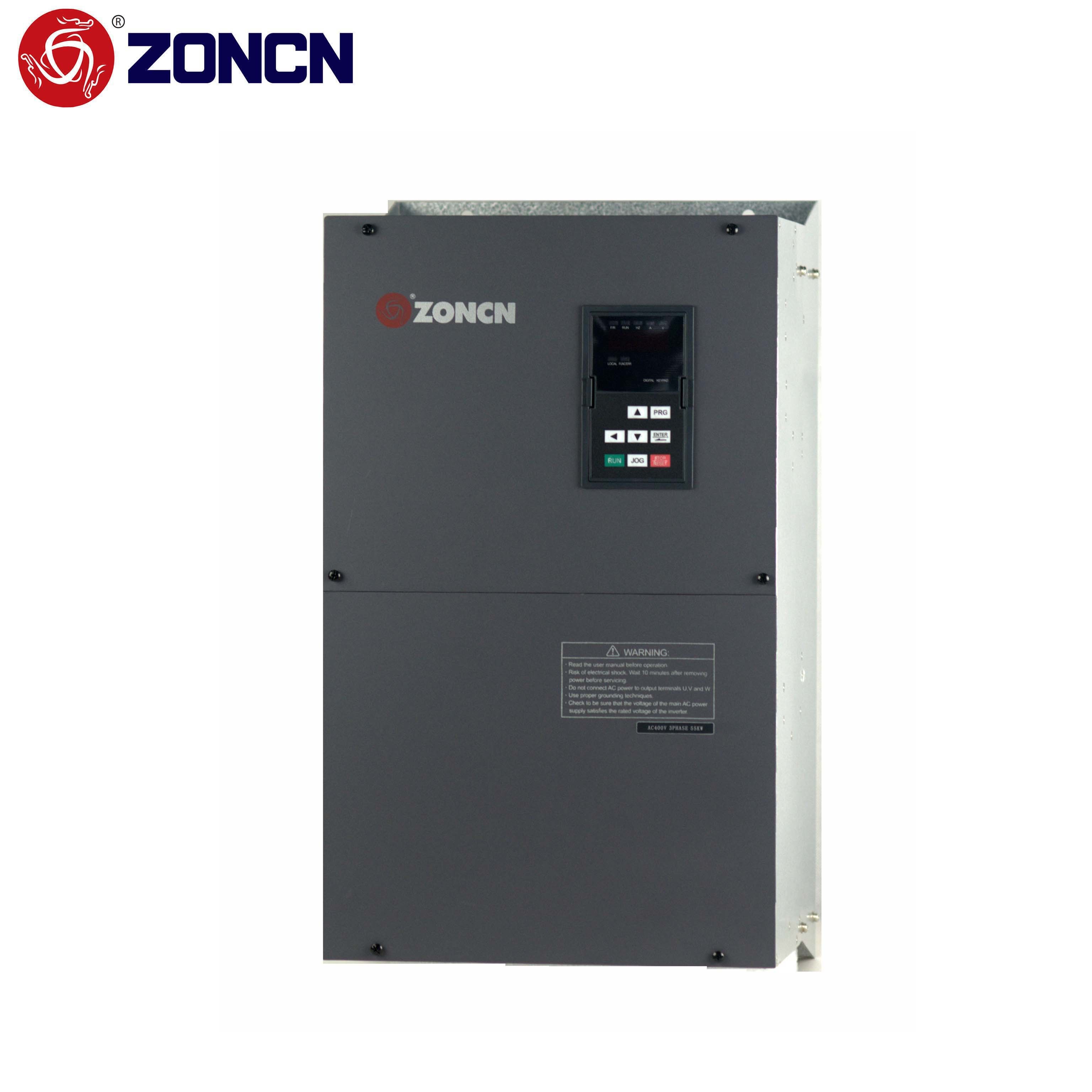

AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V

AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V
AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 55kW Vfd
Voltage: 380V Vfd Type: AC Drives Vfd
Solar Application: No Speed Range: 1:100(SVC)
Ingress Protectio: IP 20 Application: Water Pump
Ambient Temperature: -10℃-40℃ VF Curve: Line V/F Curve；Multi-point V/F Curve；N-power V/F Curve
JOG Control: JOG Frequency Range: 0.00–50.00 Hz VF Separation: 2 Types: Complete Separation；half Separation
Highlight:

55KW AC Vfd Frequency Converter Inverters

,

380V AC Vfd Frequency Converter Inverters

,

Low Voltage AC Vfd Frequency Converter

Z2000 English Catalog.pdf

VFD ZONCN Z2000 Series 55KW AC Drives Pump Inverter

Basic product introduction:

In the field of industrial automation, the frequency converter is the core part of the motor drive and control, and its performance is directly related to the production efficiency and the stability of equipment operation. Today, we introduce the Z2000 series inverter, an outstanding product that combines high power, advanced control technology and excellent environmental adaptability.
Z2000 series inverter, the maximum output power up to 450KW, to meet the needs of a variety of high-power drive scenarios. Whether it is a heavy load start-up or a long period of stable operation, the Z2000 provides stable and powerful power support. Its unique open-loop vector control technology enables the inverter to achieve high-precision motor control without the need for encoder feedback, thus ensuring the efficiency and accuracy of motor operation.
In addition to open-loop vector control, the Z2000 series drives also support VF control, a traditional control mode that has been newly optimized on the Z2000. In VF control mode, the inverter can automatically adjust the output voltage and frequency according to the load of the motor to achieve smooth start and stable operation of the motor. This control mode not only simplifies the complexity of the system, but also reduces the maintenance cost of the equipment.


Technical Specification:

ItemZ2000 series vfd inverter
Control modeSenseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequencyVector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solutionDigital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100
Speed stability accuracy±0.5%
Overload capacityG type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureLine V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separationTwo types: complete separation; half separation
Ramp modeStraight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG controlJ0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive vfd


AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V 0


Product wiring diagram:

AC Vfd Frequency Converter Inverters ZONCN Z2400-55G 55KW Low Voltage 380V 1



Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
