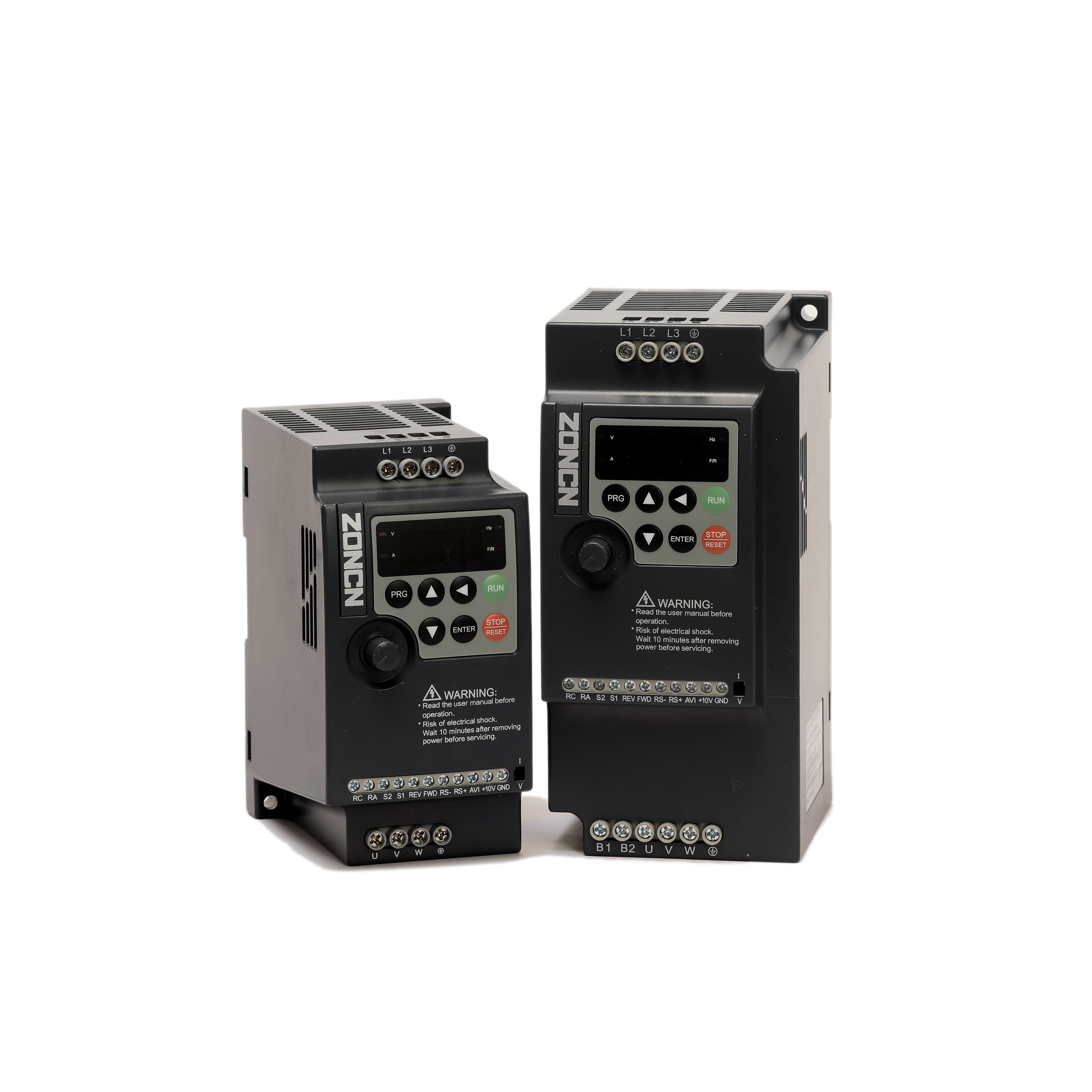

ZONCN Inverter 50hz 60hz Frequency Converter 220V 0.75kw 1.5kw 2.2kw 3.7kw VFD Drives

ZONCN NZ200 Series Econonic Vector control VFD inverter







Product description

• VF control, Open loop Vector control
• High torque
• RS 485 commuication
• Compact size
• Economic price
• Support Permanent Magnet (PM) motor
• Built in PID
• 24V termimal is available
• LED display

VFD Specification

VFD Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450





VFD Nameplate Description



VFD Dimension



A. 0.4kw-37kw







B. 45kw-450kw

VFD Packing

VFD Company introduction



ZONCN is a leading VFD drives manufacturer in China with 19 years of experience. We focus on producing VFD drives and servo products. We have  main series VFD, they are, NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF, they are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment and many industry applications. Our VFD inverter's annual sales quantity is 1 Million units. We have our own R&D team, we keep researching and developing our VFD series, what's more, we have lots of experience for producting OEM/ODM VFD drives.



FAQ

Q1: Can i buy 1pc VFD sample to test before formal order?

A: Yes, of course, our MOQ is 1 Unit.

Q2: Do you support OEM service?

A: Sure, we have lots of experience for producing OEM VFD drives.

Q3: How to choose the suitable model of your VFD?



A: You can send us your application, power, voltage, etc. We will recommend the suitable series and model for you.



Q4: What is your terms of payment?



A: 100% in advance by T/T, paypal, etc.
