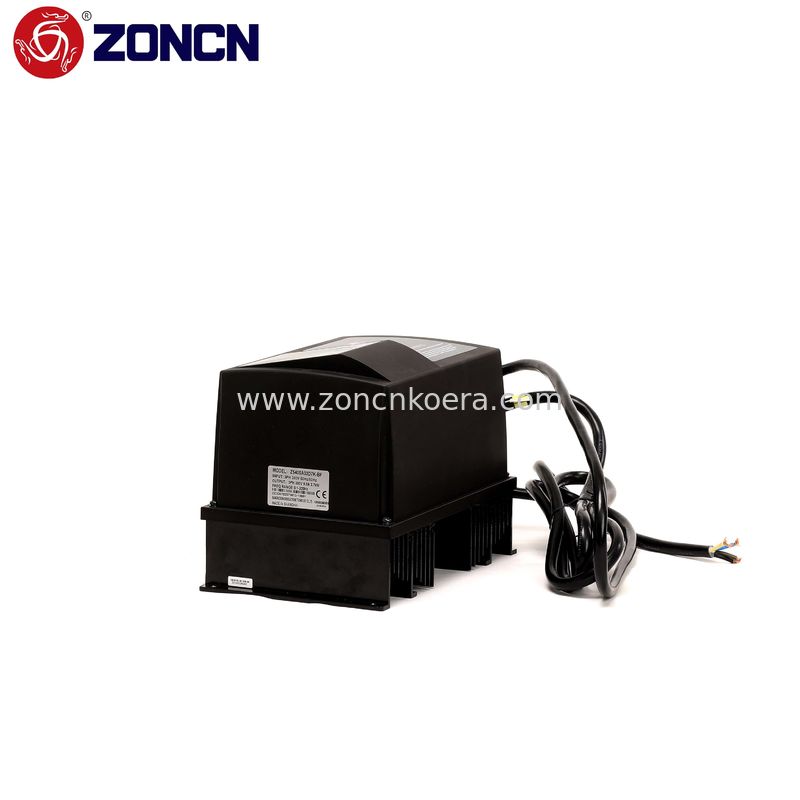

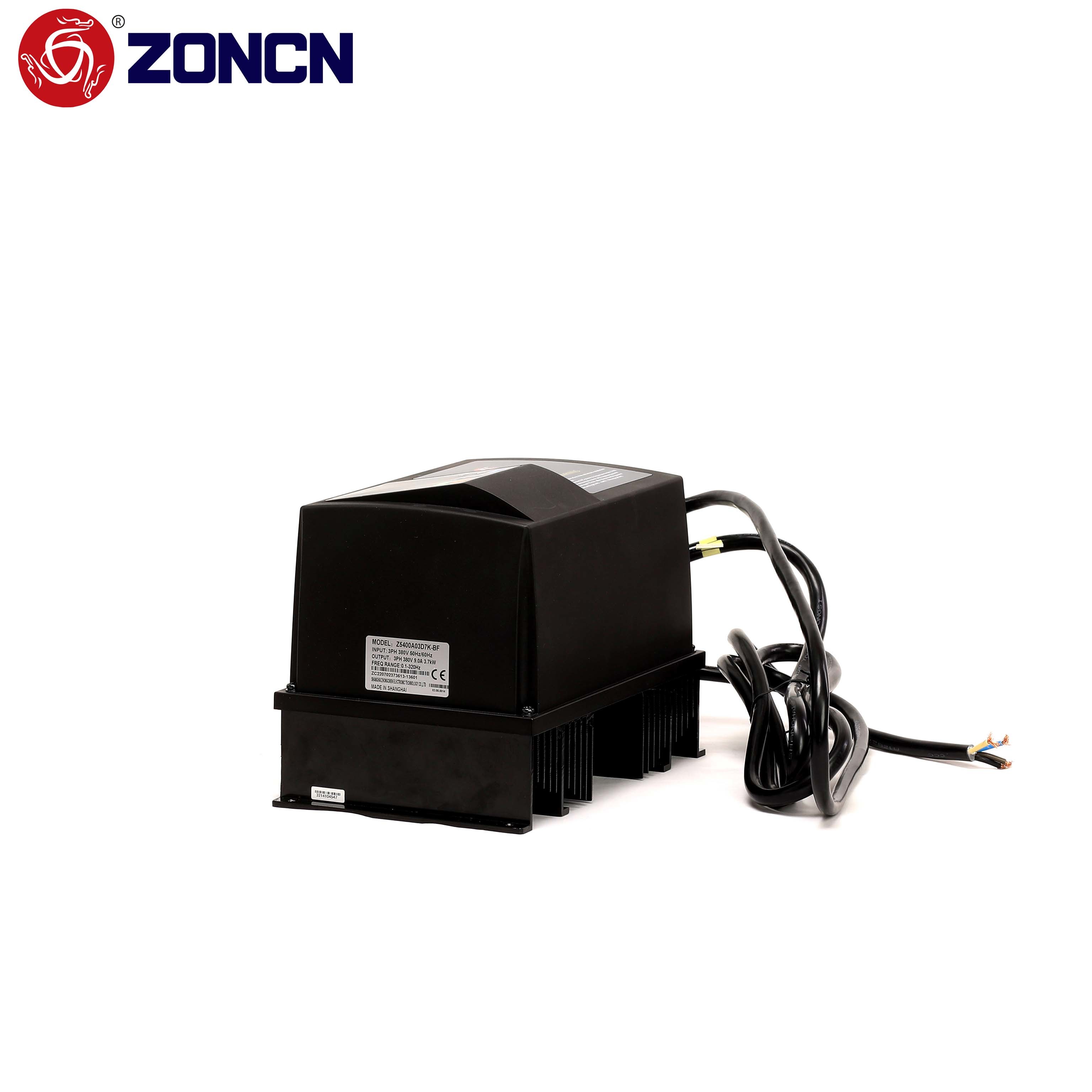

ZONCN Z5000-BF IP65 220v frequency vfd inverter

Product Brief Introduction:

The Z5000-BF inverter has a compact design, which makes it easy to install and take up little space. Whether inside a small unit or in a spacious machine room, the Z5000-BF can easily find the right place. In addition, the wiring mode of the Z5000-BF is also very simple and clear, reducing the difficulty of installation and improving work efficiency.In terms of performance, the Z5000-BF inverter performs well. It uses advanced control algorithms and high-quality components to ensure the stable operation of the equipment and efficient energy consumption. At the same time, the Z5000-BF also has perfect protection functions, such as over current, over voltage, under voltage, overheating and other protection, to ensure that the equipment can automatically shut down in abnormal circumstances to avoid damage.



Item	Z5000-BF Series Vfd
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports 0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Z5000-BF Vfd Technical Specification:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-BF	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160







Z5000-BF vfd dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75



Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.





a. Horizontal installation

b. Vertical installation

45-160kW



Model	Motor	Output current	Overall dimension(mm)				Mounting dimension(mm)
			W	H	H1	D	A	B	Φd
Z5400A0045K-BF	45	90	300	450	482	278	210	465	9
Z5400A0055K-BF	55	110
Z5400A0075K-BF	75	150	400	520	560	275	300	535	9
Z5400A0090K-BF	90	176
Z5400A0110K-BF	110	210
Z5400A0132K-BF	132	253	400	800	864	321.5	330	780	11
Z5400A0160K-BF	160	300





Application:

Z5000-BF Vfd suitable for industrial scenarios:



①Sewage treatment plants: Sewage treatment plants treat a large amount of wastewater and pollutants, and the environment is often high in humidity and pollution.



②Steel smelter: Steel smelting process produces a lot of smoke, waste gas and waste water, the environment often has high pollution and high humidity.



③Pulp and paper mills: The pulp and paper making process involves a lot of water, chemicals and waste paper treatment, and the environment is often high in humidity and pollution.



④Petrochemical plants: The production process of petrochemical plants involves a large number of chemicals, gases and wastewater treatment, and the environment often has high pollution and high humidity.



⑤Food processing plants: There is a lot of water, grease and waste treatment in the food processing process, and the environment is usually high humidity and high pollution.



⑥Printing plant: The printing process involves a lot of ink, solvents and waste paper treatment, and there is often high humidity and high pollution in the environment.



⑦Coal mine: Coal mining process produces a lot of coal dust and wastewater, the environment is usually high humidity and high pollution.



⑧Garbage treatment plants: Garbage treatment plants handle large amounts of garbage and waste, and the environment is often high in humidity and pollution.





FAQ:

1:What is your MOQ?
1 PC.



2:What is terms of payment?
T/T 100% before delivery.



3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.



4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
