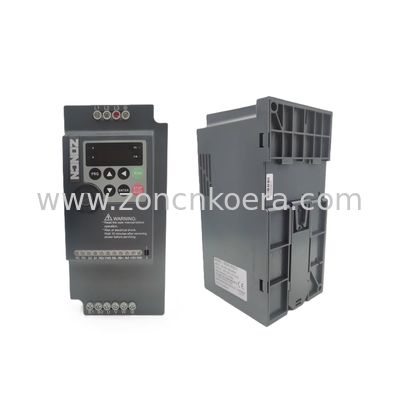

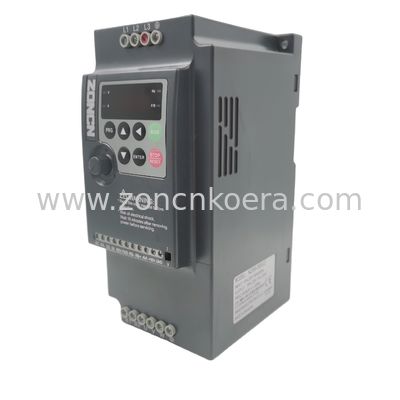

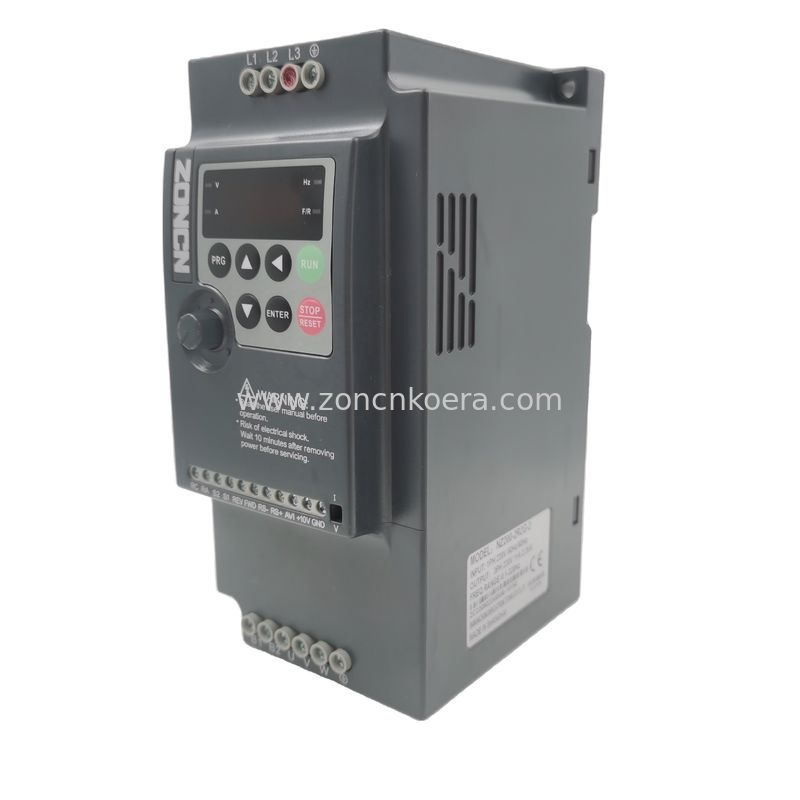

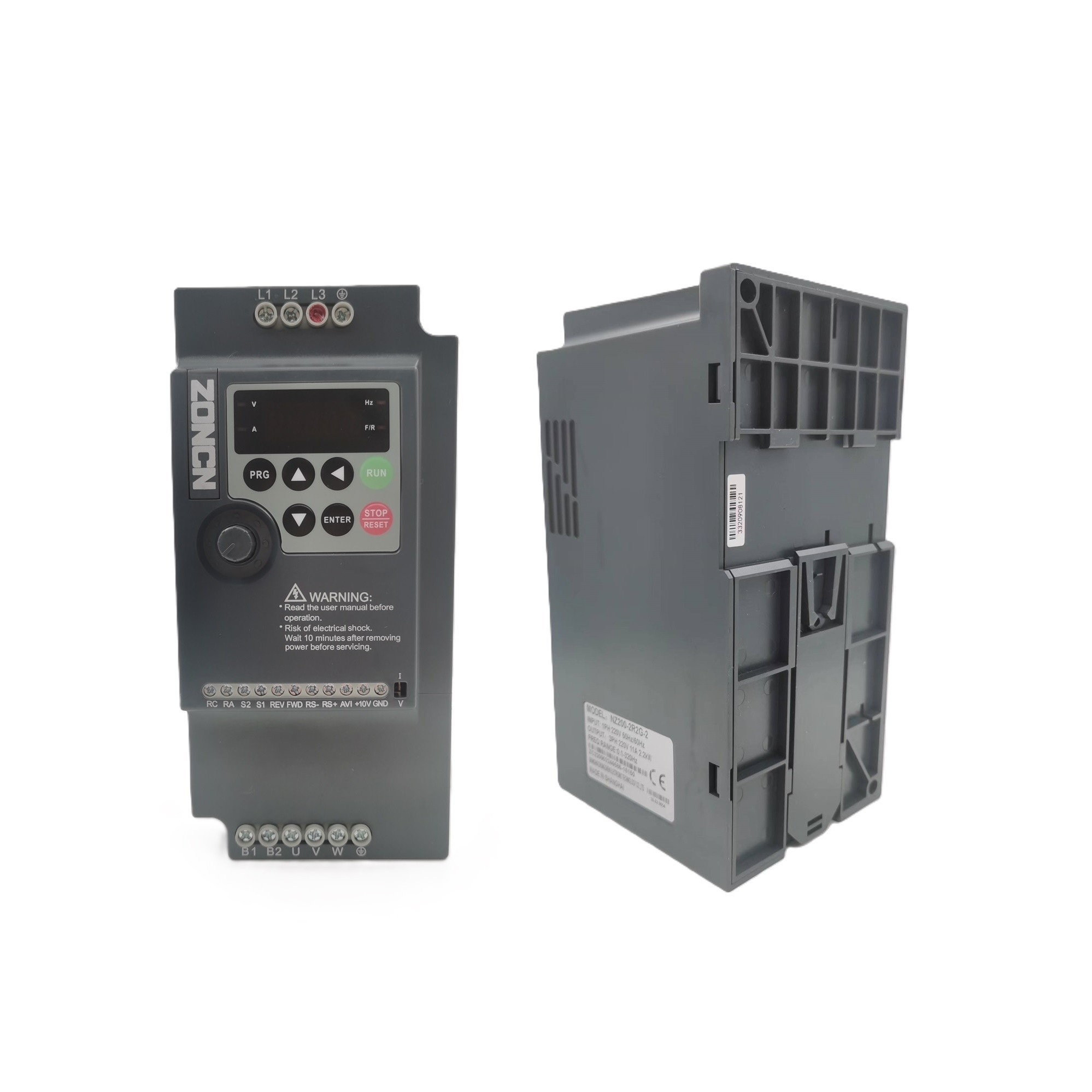

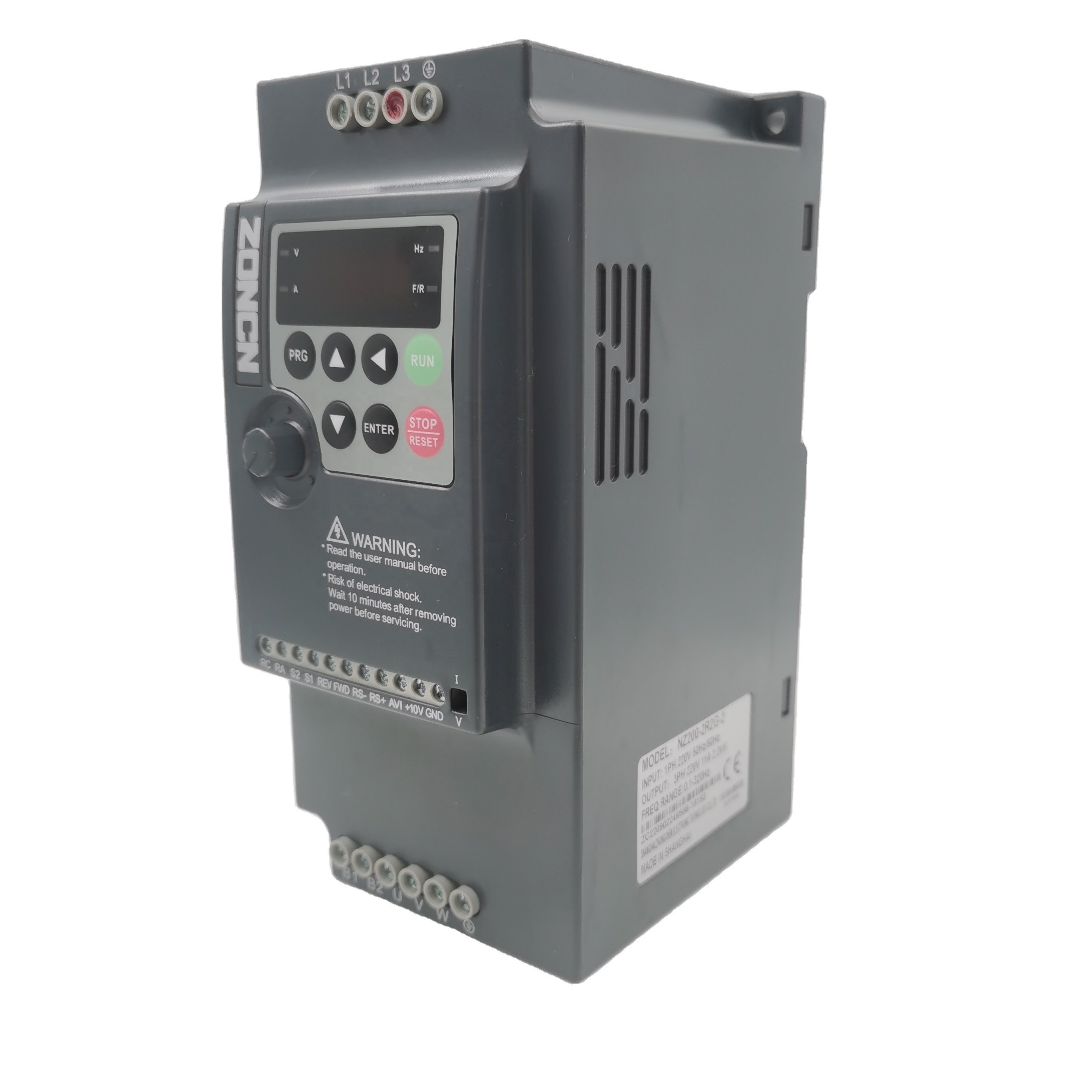

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter
ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200-2R2G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Frequency Inverter Brand: ZONCN
Power: 2.2kw/3hp Series: NZ200
Model: NZ200-2R2G-2 Output Current: 11A
Control Mode: Vector Control Communication: RS485 (MODBUS)
Condition: Original Warranty: 18 Months
Highlight:

220v NZ200 Inverter

,

2.2kw NZ200 Inverter

,

50hz NZ200 Inverter





ZONCN NZ200 Series Econonic Vector control inverter




Company introduction

ZONCN, Top 5 inverter manufacturer in China with 19 years of experience, the main series NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection), which are widely used in various applications, such as conveyor, water treatment, textile, CNC machine, fan and pump, packaging and printing, injection&extrusion machines, industrial washing machine, air compressor and many other industrial applications.



The inverter voltage ranges we can produce from 110v to 1140v, inverter powers range from 0.4kw to 2000kw. ZONCN inverter's annual sales quantity is about 1 Million units. And it was listed on the main board of the Shanghai Stock Exchange in August 2023 (Stock Code: 603275).





ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 0

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 1



Inverter Specification

Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





Inverter Dimension

A. 0.4kw-37kw

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 2
ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 3


B. 45kw-450kw
ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 4
ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 5




Inverter Packing
ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 6




Inverter Application

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 7



Inverter Recommendation

ZONCN Inverter NZ200 2.2kw Single Phase 220v 50hz 60hz Variable Frequency Inverter 8
