AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage

AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage
AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 7.5kW Vfd
Voltage: 380V Vfd Material: ABS+PC
Type: AC Drives Vfd Solar Application: No
Speed Range: 1:100(SVC) Ingress Protectio: IP 20
Rapid Current Limit: It Helps To Avoid Frequent Over Current Faults Of The AC Drive. Application: Water Pump
Ambient Temperature: -10℃-40℃
Highlight:

380v Vfd Frequency Inverter

,

Low voltage Vfd Frequency Inverter

,

AC 220v Vfd Frequency Inverter

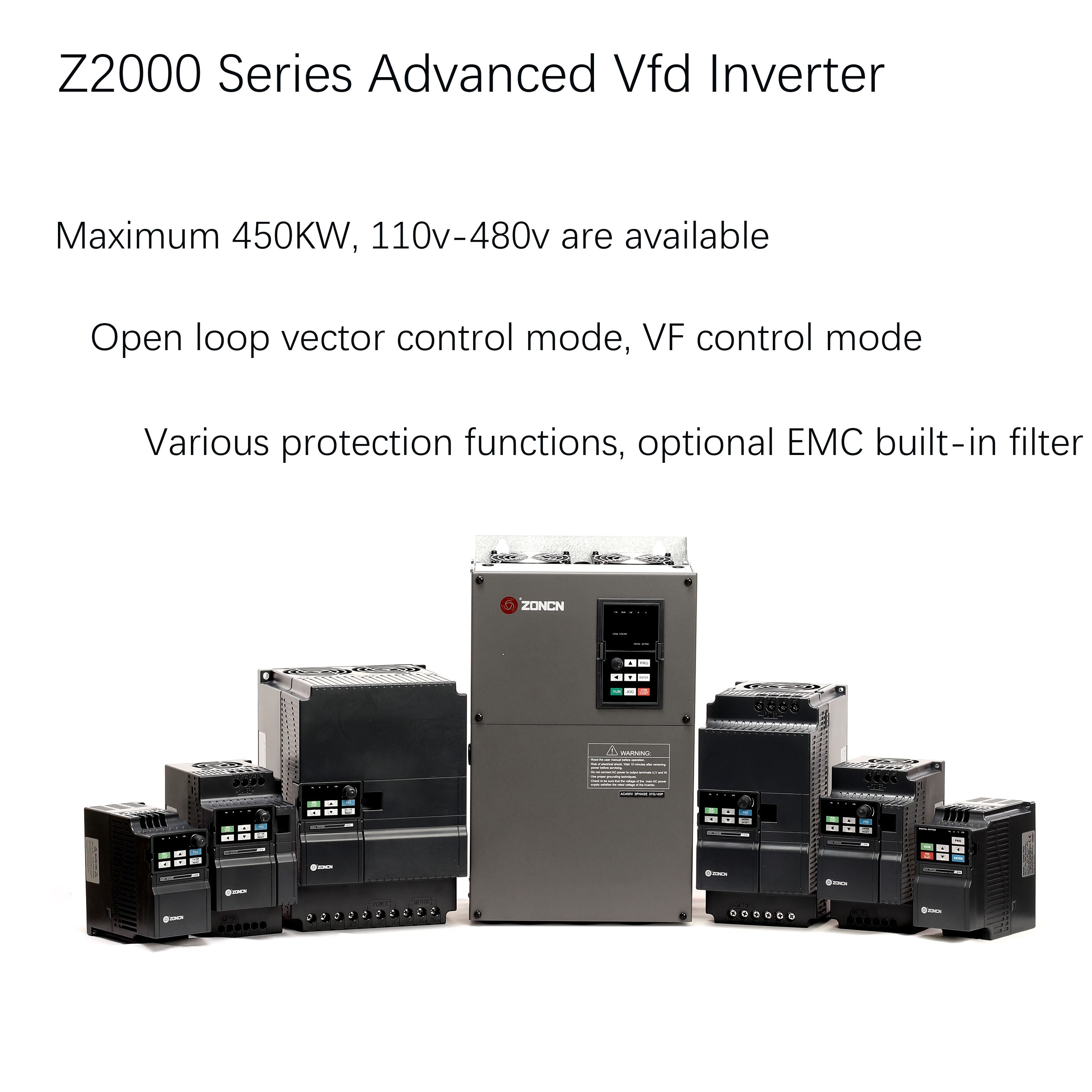

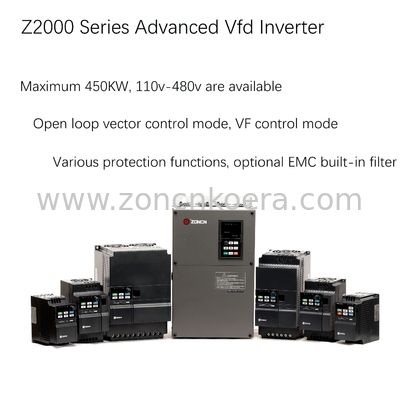

VFD ZONCN Z2000 Series 7.5KW AC Drives Pump Inverter

Basic product introduction:

As an economical and high-performance vector inverter, the Z2000 series offers significant advantages in terms of torque output. It adopts advanced torque control algorithm, which can adjust the output torque in real time according to the change of load, so as to ensure the smooth start of the motor under heavy load. This performance is particularly important in industrial applications where frequent starts and stops are required to effectively reduce motor wear and failure rates and extend the service life of the equipment.



The complete protection function is another highlight of the Z2000 series inverter. It has a variety of protection functions such as output phase loss protection, overcurrent/overvoltage overload/overheat protection, and can cut off the power supply in time when the equipment is abnormal to prevent equipment damage and accidents. This comprehensive protection function not only improves the security of the equipment, but also reduces the maintenance cost of the user.



Technical Specification:

Item Z2000 series vfd inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency  1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solution Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive vfd



AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage 0



Product wiring diagram:

AC 220v 380v Vfd Frequency Inverter Variador De Frecuencia Low voltage 1





Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.



FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
