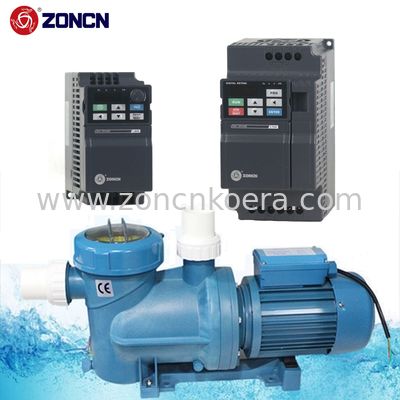

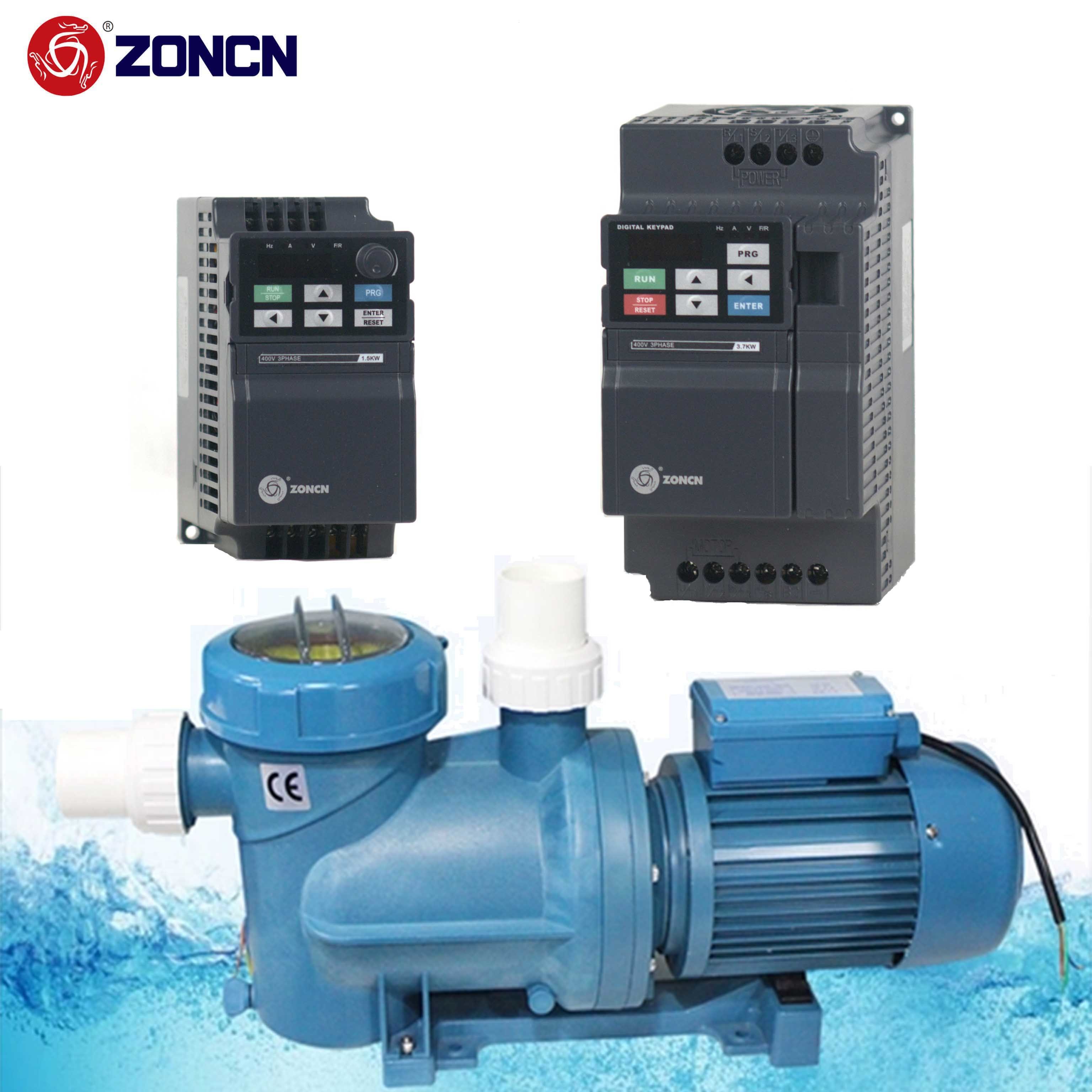

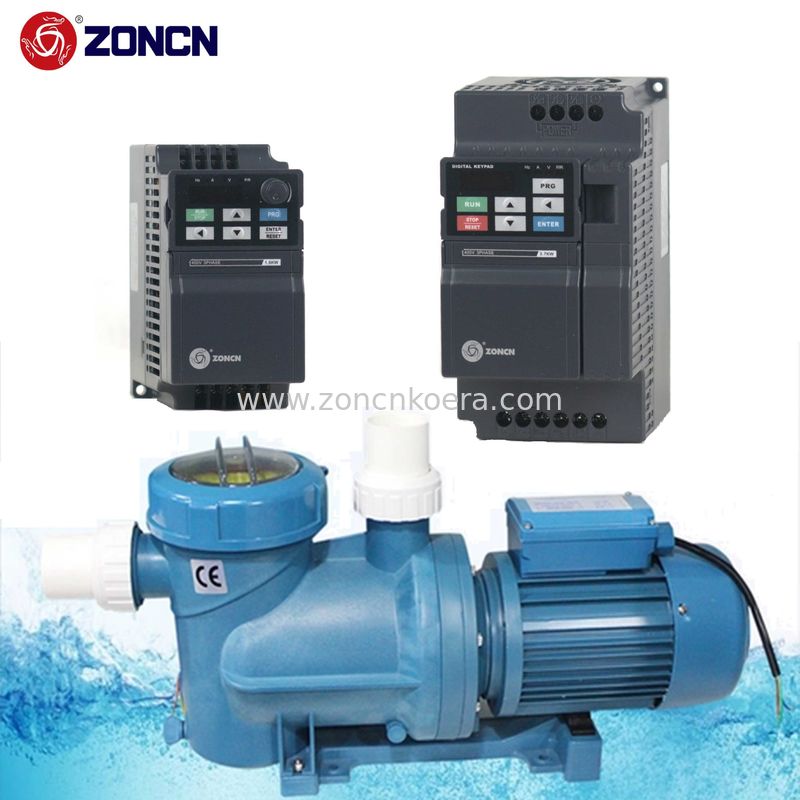

ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v

ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v
ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE+KC
Model Number: Z2000 Series Vfd ( Z2400-7R5G）
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Warranty Power: 7.5kW Vfd
Voltage: 380V Vfd ODM/OEM: Yes
Type: AC Drives Vfd Solar Application: No
Speed Range: 1:100(SVC) VF Separation: 2 Types: Complete Separation；half Separation
Rapid Current Limit: It Helps To Avoid Frequent Over Current Faults Of The AC Drive. Application: Water Pump
Ambient Temperature: -10℃-40℃
Highlight:

7.5kW AC Pump Inverter

,

380v AC Pump Inverter

,

Low Voltage AC Pump Inverter

VFD ZONCN Z2000 Series 7.5KW AC Drives Pump Inverter

Basic product introduction:

The Z2000 series inverter shows its powerful control capabilities with its open loop vector control and V/F control functions. Open-loop vector control enables the inverter to accurately control the speed and torque of the motor, and maintain stable operating performance even under complex and variable working conditions. The V/F control function enables the inverter to automatically adjust the output voltage and frequency according to different load requirements, so as to achieve smooth speed regulation of the motor. This dual control function enables the Z2000 series inverter to perform at its best in a variety of industrial applications.



In addition to the excellent control function, the Z2000 series inverter performance is also excellent. It uses advanced control algorithms and high-quality electronic components, making the inverter has a high degree of stability and reliability during operation. At the same time, this series of inverter also has good environmental adaptability, whether it is high temperature, low temperature, wet or dusty environment, can maintain stable operation, thus ensuring the continuity and stability of the production line.



Technical Specification:

Item Z2000 series vfd inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency  1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solution Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive vfd



ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v 0



Product wiring diagram:

ZONCN Vfd Variable Frequency Drives 7.5kW AC Pump Inverter Low Voltage 380v 1





Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.



FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
