Vfd ZONCN Z2000 Series 7.5kw 11kw 380v Variable Frequency Inverters For Motor Speed Controller

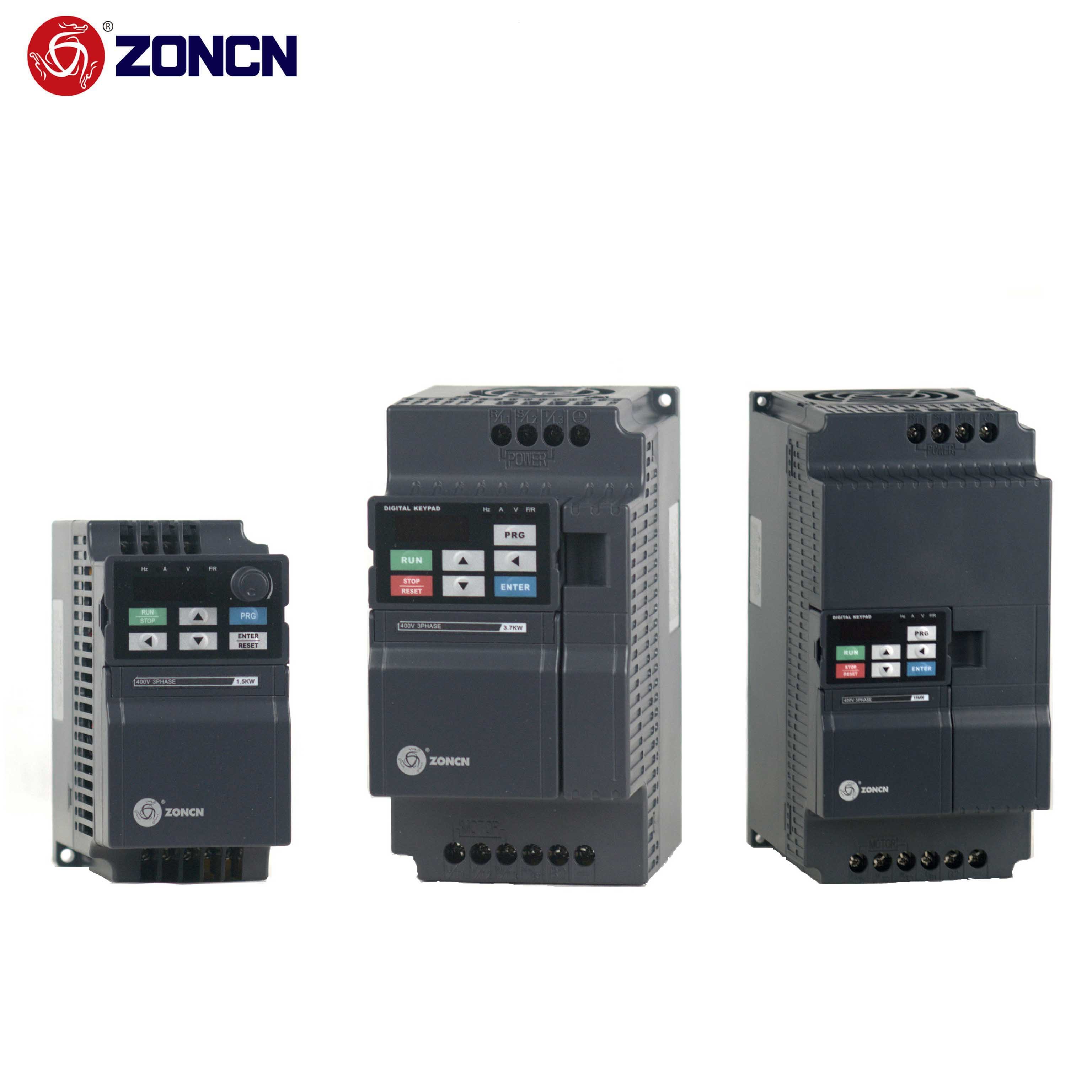

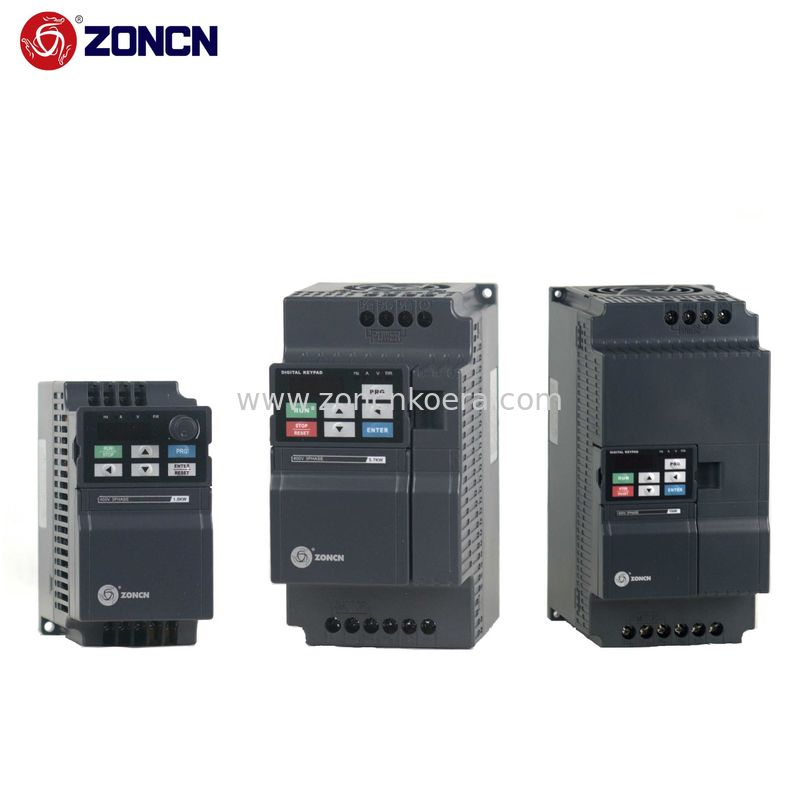

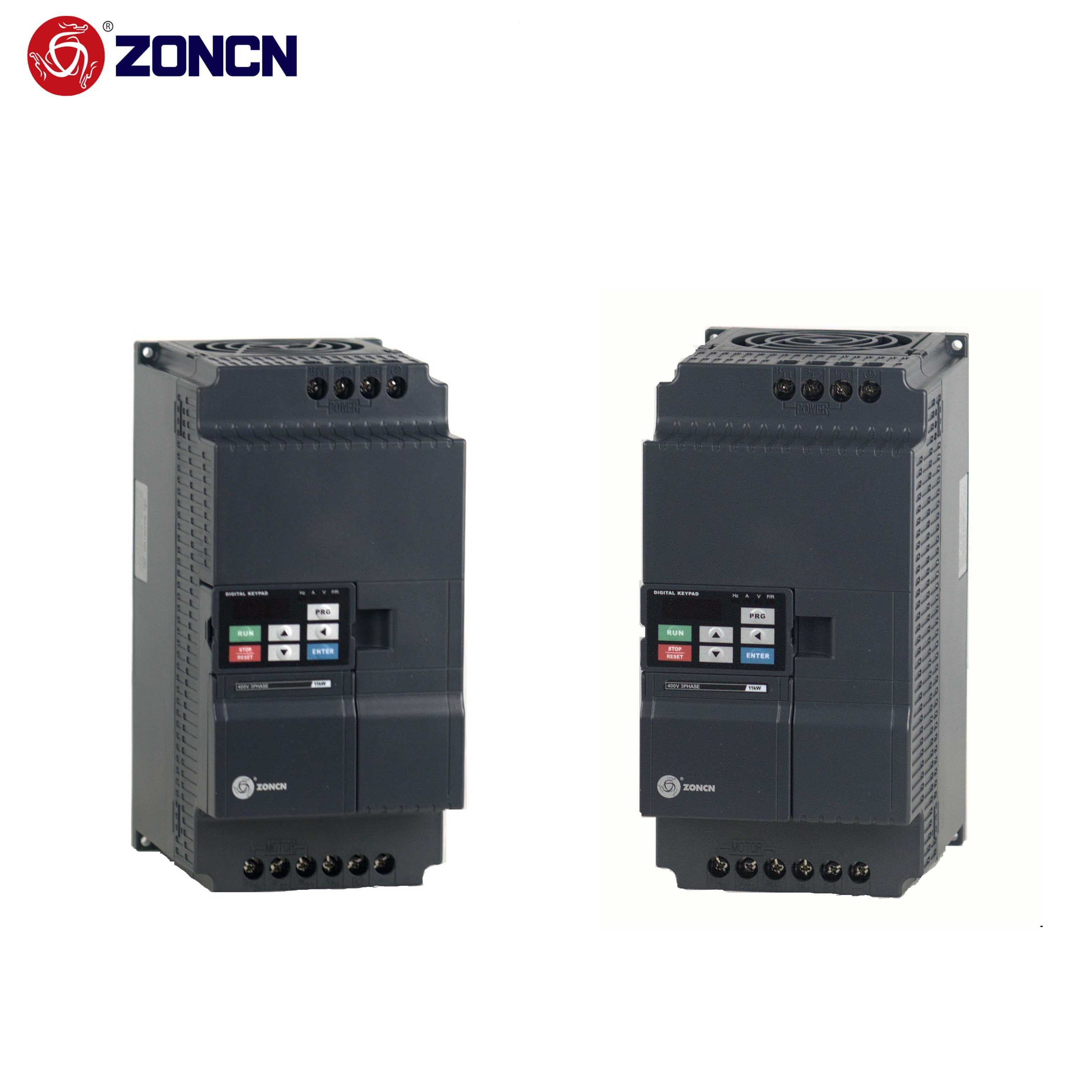

VFD ZONCN Z2000 Series 7.5KW 11KW Inverter

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control vfd

· The overload capacity allows for 60 seconds at 150% of the rated current and 3 seconds at 180% of the rated current.

· Ten auxiliary frequency sources are available.

· It enables precise adjustment of the auxiliary frequency and frequency synthesis.

· Supports PM motor (Z2000T series vfd)

· Optional inclusion of built-in EMC filter; Optional EtheCat communication.

· Power range: 110V/220V/380V/415V/440V/480V, ranging from 0.4kW to 450kW.



The new star in the field of industrial control - Z2000 vfd inverter



The performance of this product is amazing, the stability is impeccable, and there is no fault, which is a very important point in the field of industrial control!



Z2000 vfd inverter, first of all, its performance is absolutely first-class, no matter what kind of working environment, it can maintain stable operation, which is the envy of many peers! Secondly, its stability is also very excellent, there will be no failure, which allows us to rely on it in the process of use, without worrying about any problems.



Moreover, the design of the Z2000 vfd inverter is also very user-friendly, easy to operate, even novice can easily get started.





Technical Specification:

Item	Z2000 series vfd inverter
Control mode	Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency	Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency	1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solution	Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque	G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range	1:100
Speed stability accuracy	±0.5%
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto boost or Customized boost 0.1%-30.0%
V/F cure	Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation	Two types: complete separation; half separation
Ramp mode	Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking	DC braking frequency:0.0Hz to maximum frequency Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control	J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds	lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID	It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)	It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit	It helps to avoid frequent over current faults of the AC drive





Product configuration:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
EtheCAT communication	Optional
Certificate	KC+CE
Warranty	18 months







Product wiring diagram:





Product applications:

The Z2000 series finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.



Application:





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
