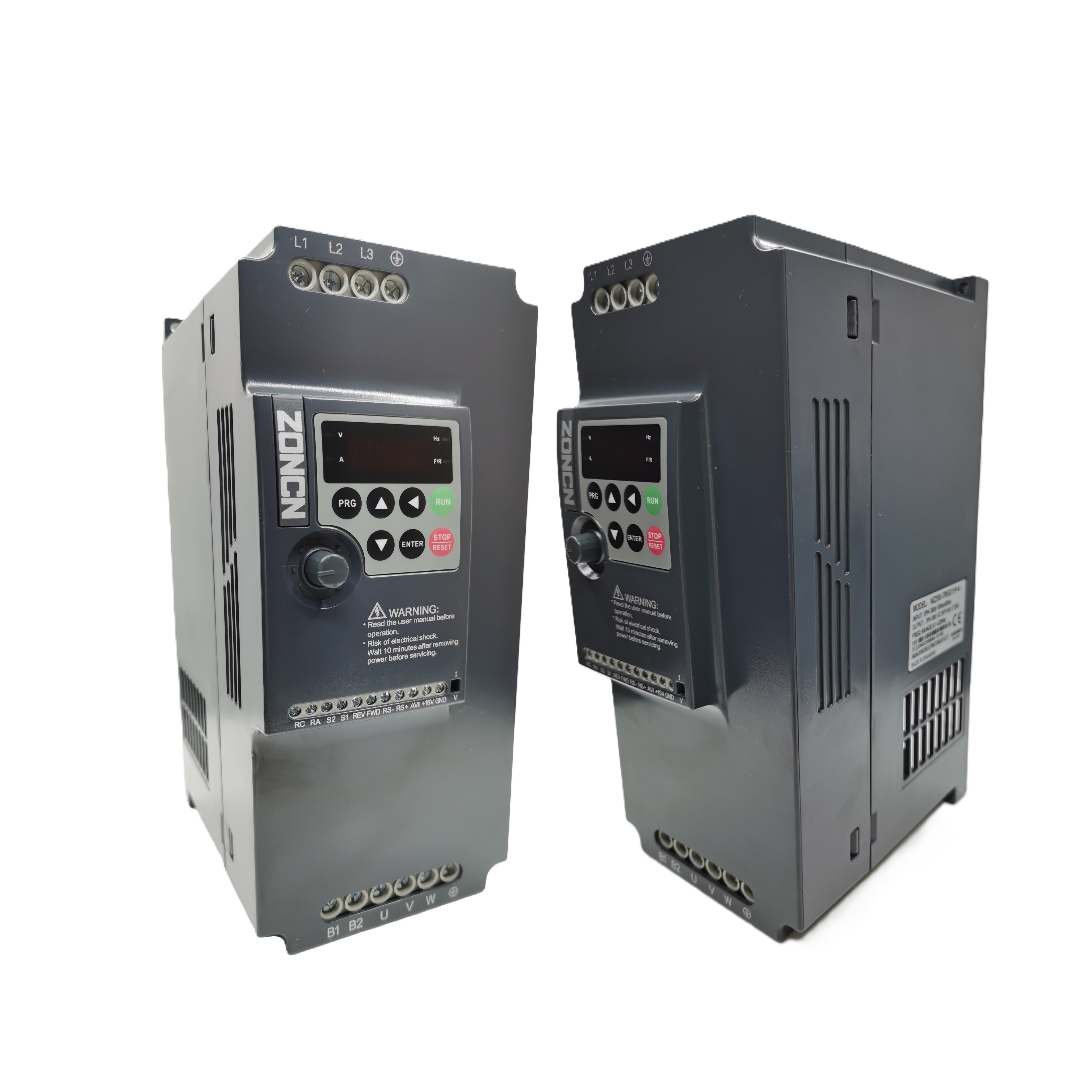

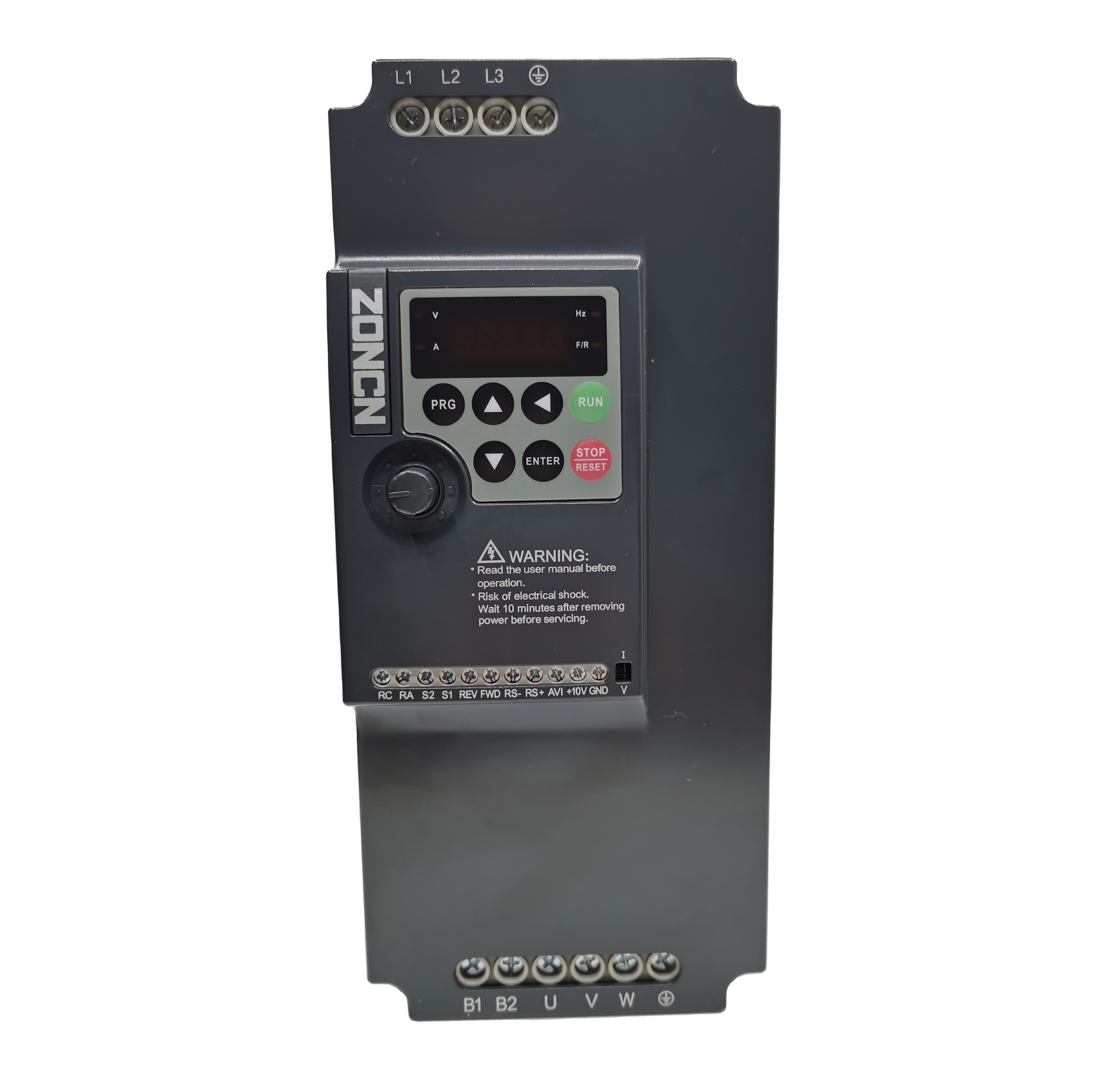

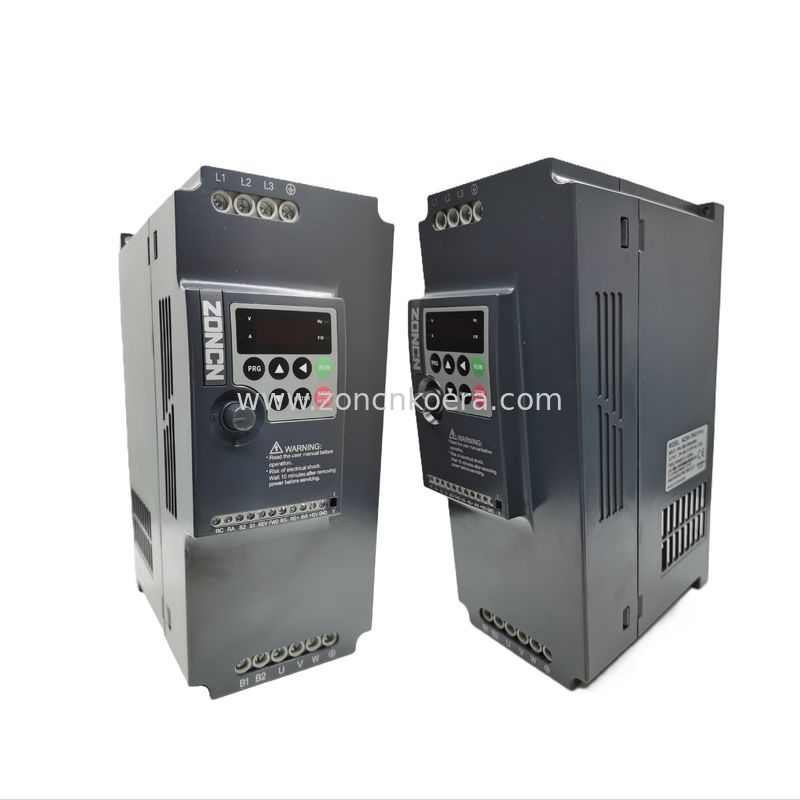

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter
380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200-7R5G-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Variable Frequency Inverter Brand: ZONCN
Power: 7.5kw/10hp Output Current: 17A
Communication: RS485 Condition: 100% New
Model: NZ200-7R5G-4 Warranty: 18 Months
Highlight:

10hp NZ200 Inverter

,

7.5kw NZ200 Inverter

,

380v NZ200 Inverter





ZONCN NZ200 Series Econonic Vector control inverter




Company introduction

ZONCN, a professional inverter manufactuer which was established in 2006. We are a high-tech enterprise specializing in the research, production, sales, and service of inverter in China. The voltage ranges from 110v to 1140v, powers range from 0.4kw to 1000kw. ZONCN's annual sales quantity is about 1 Million units. And it was listed on the main board of the Shanghai Stock Exchange in August 2023 (Stock Code: 603275).


At present, NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection), are ZONCN's general series of inverter, which are widely used in various applications,  such as conveyor, water treatment, textile, CNC machine, fan and pump, packaging and printing, injection&extrusion machines, industrial washing machine, air compressor and many other industrial applications.



380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 0

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 1



Inverter Nameplate Description

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 2



Inverter Specification

Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





Inverter Dimension

A. 0.4kw-37kw

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 3
380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 4


B. 45kw-450kw
380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 5
380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 6




Inverter Packing
380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 7




Inverter Application

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 8



Inverter Recommendation

380v Variable Frequency Drive 7.5kw VFD 10hp VSD ZONCN NZ200 Inverter 9
