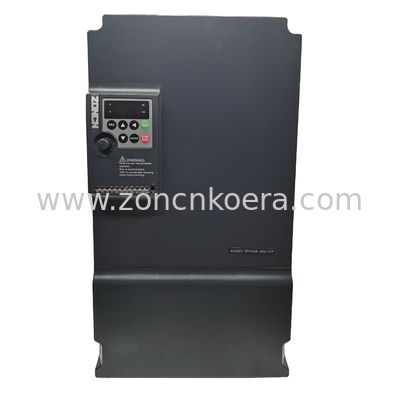

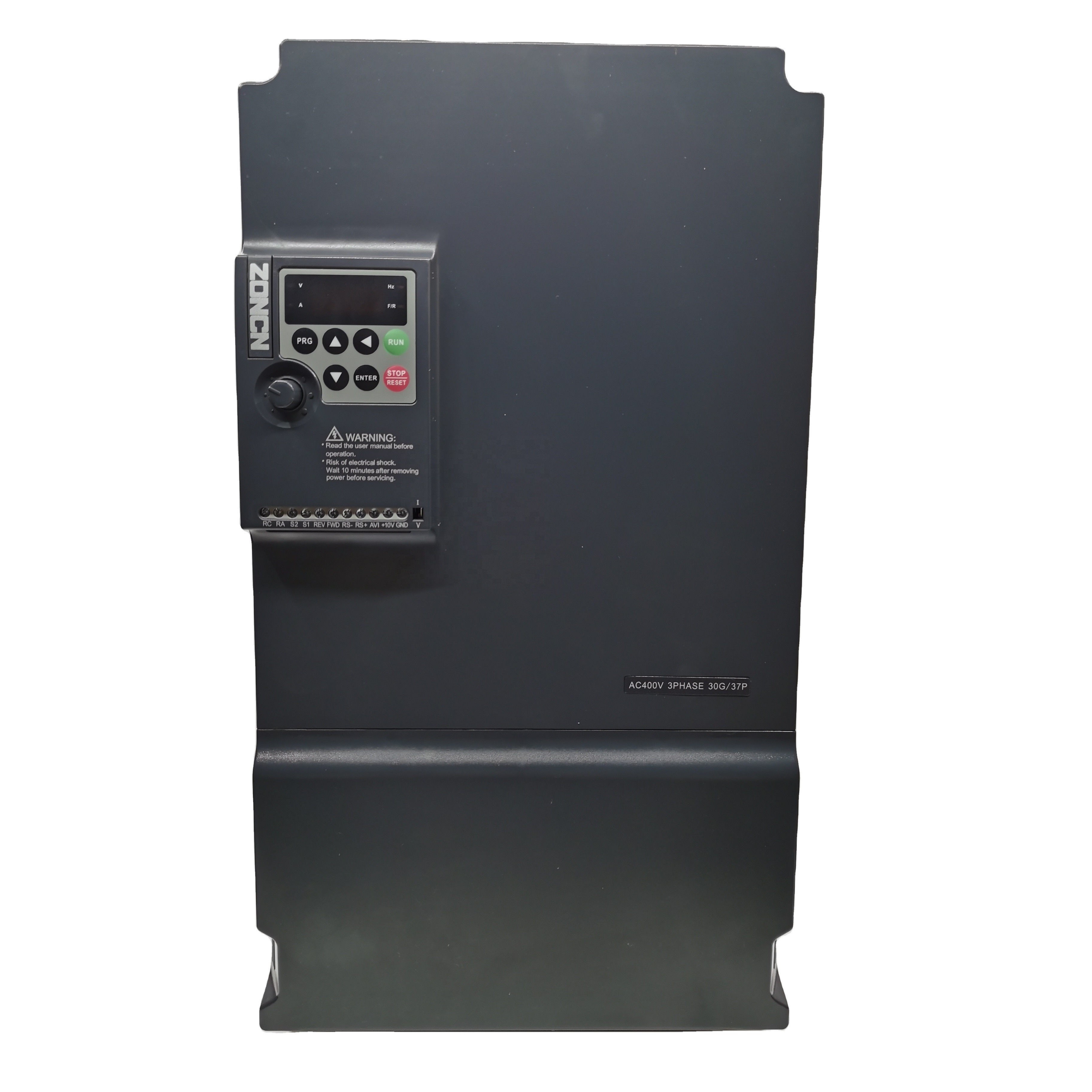

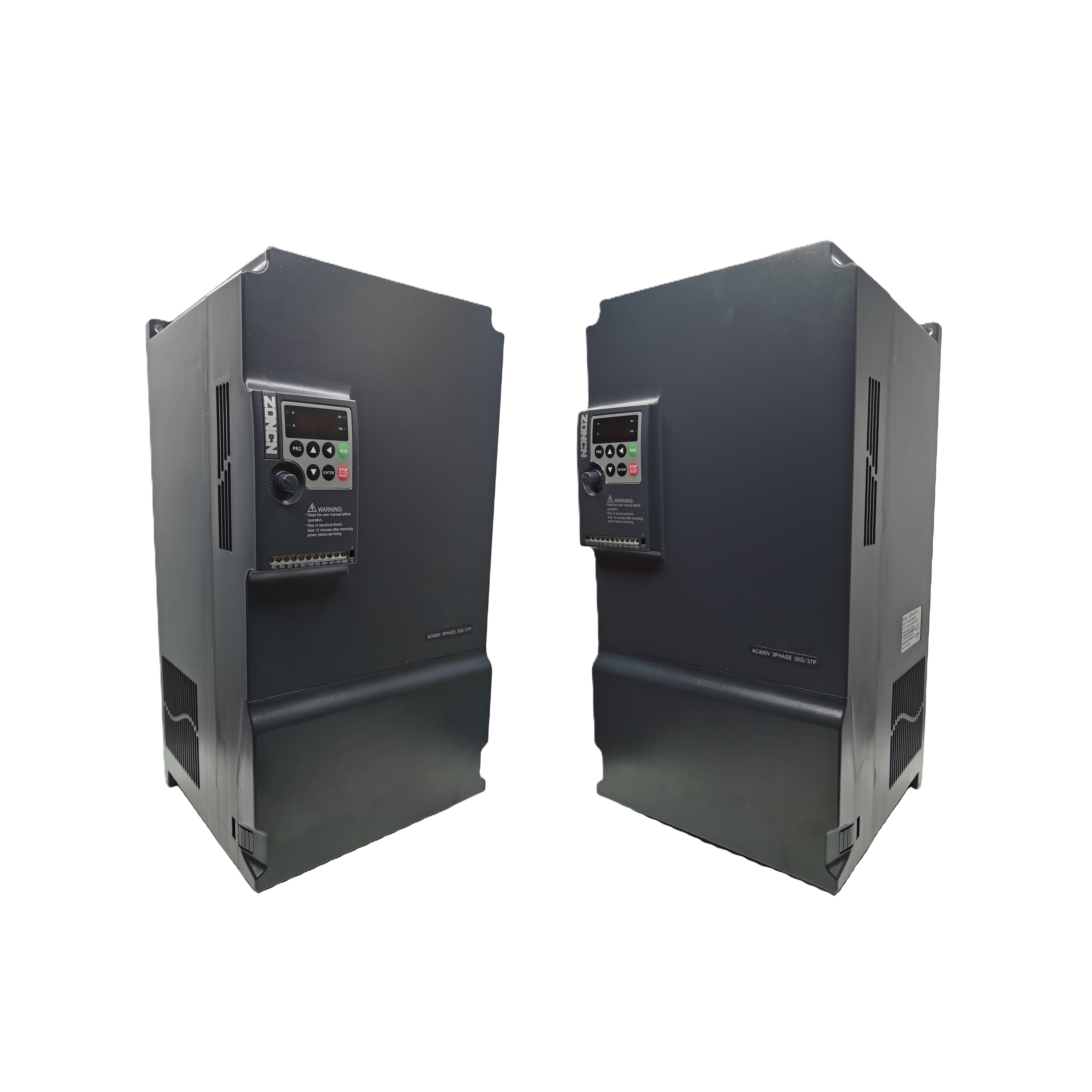

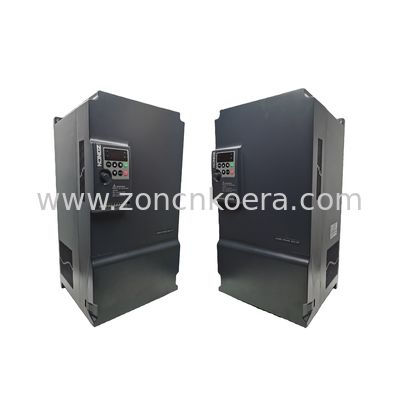

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives
30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200-15G-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Frequency Inverter Brand: ZONCN
Control Mode: Vector Control Voltage: 380v 3PH
Power: 30kw/40hp Output Current: 60A
OEM: Yes Condition: Original
Highlight:

30kw Variable Frequency Drives

,

40HP Variable Frequency Drives

,

380v Variable Frequency Drives





ZONCN NZ200 Series Econonic Vector control inverter




Company introduction

ZONCN was is established in 2006, which is a high-tech enterprise specializing in the research, production, sales, and service of inverter in China. ZONCN was listed on the main board of the Shanghai Stock Exchange in August 2023( Stock Code: 60327).

ZONCN has 6 main general series, NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection), which are widely used in various applications, such as fan&pump, water treatment, air compressor, textile, CNC machine, packaging&printing, injection&extrusion, etc. What's more, ZONCN is the Top 1 inverter brand which used for air compressor.

ZONCN will always warmly welcome you to visit our factory and to be our partner.

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 0

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 1


Inverter Nameplate Description

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 2



Inverter Specification

Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





Inverter Dimension

A. 0.4kw-37kw

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 3
30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 4


B. 45kw-450kw
30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 5
30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 6




Inverter Packing
30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 7




Inverter Application

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 8



Inverter Recommendation

30kw Variable Frequency Drives 380v Frequency Inverter 40HP AC Drives 9
